Home >> Lexus >> 1995 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Locations >> Connector Locations >> A - Z Connectors >> B - Connectors >> BB1

BB1

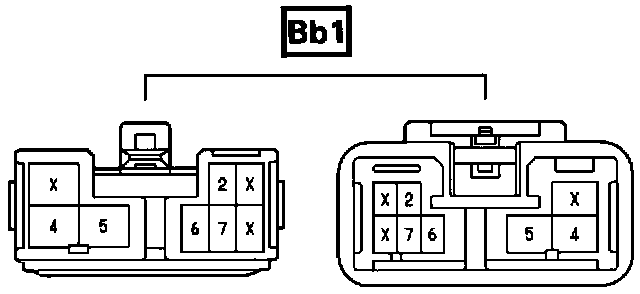

Bb1:




Floor No.3 Wire and Front Seat RH Wire (Under The Front RH Seat)
