ACC Power Source Circuit

This circuit supplies power to the air conditioning control assembly (contains the ECU).

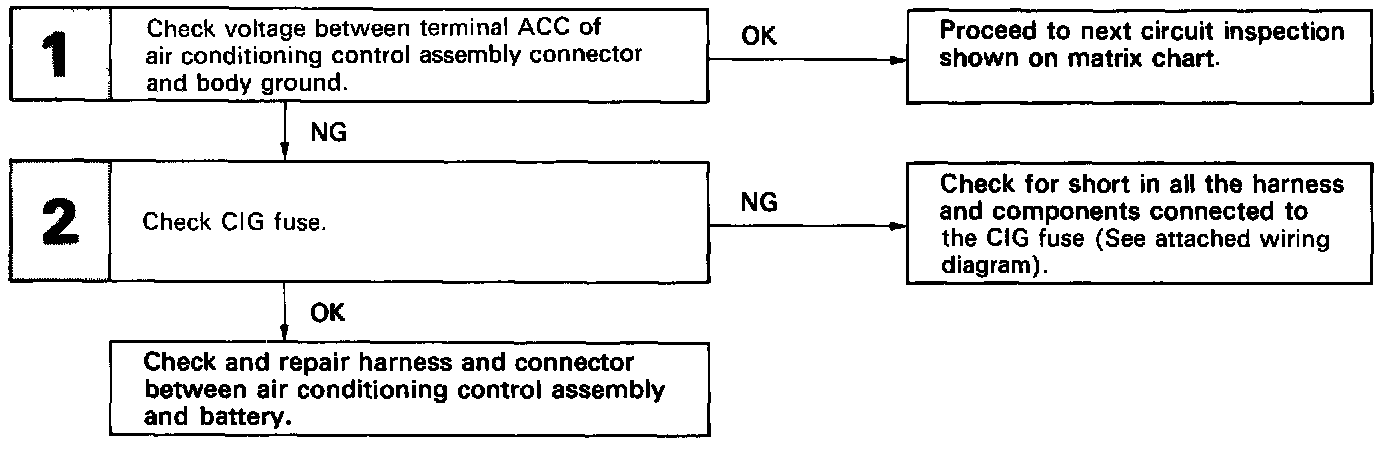

Diagnostic Chart:

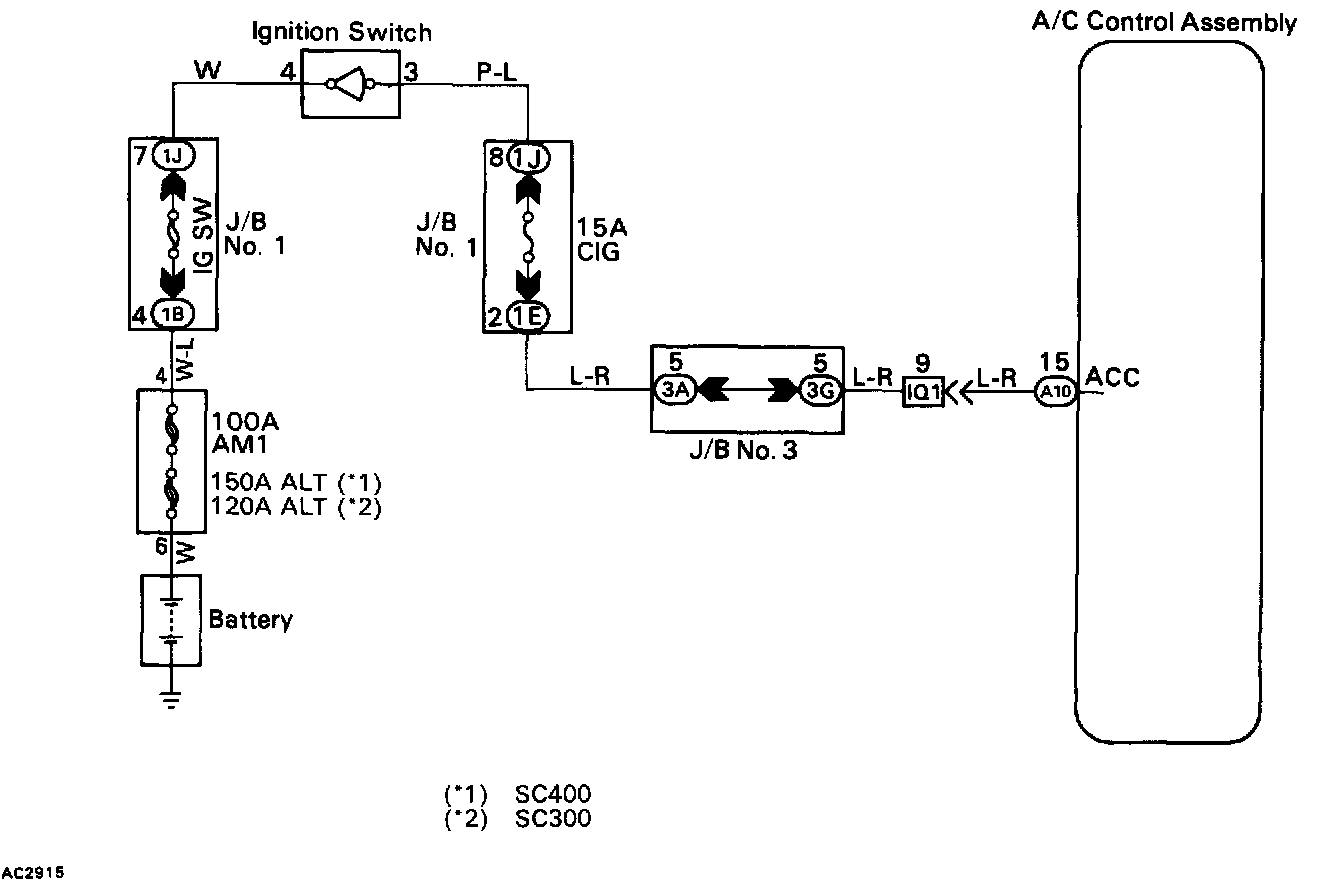

Wiring Diagram:

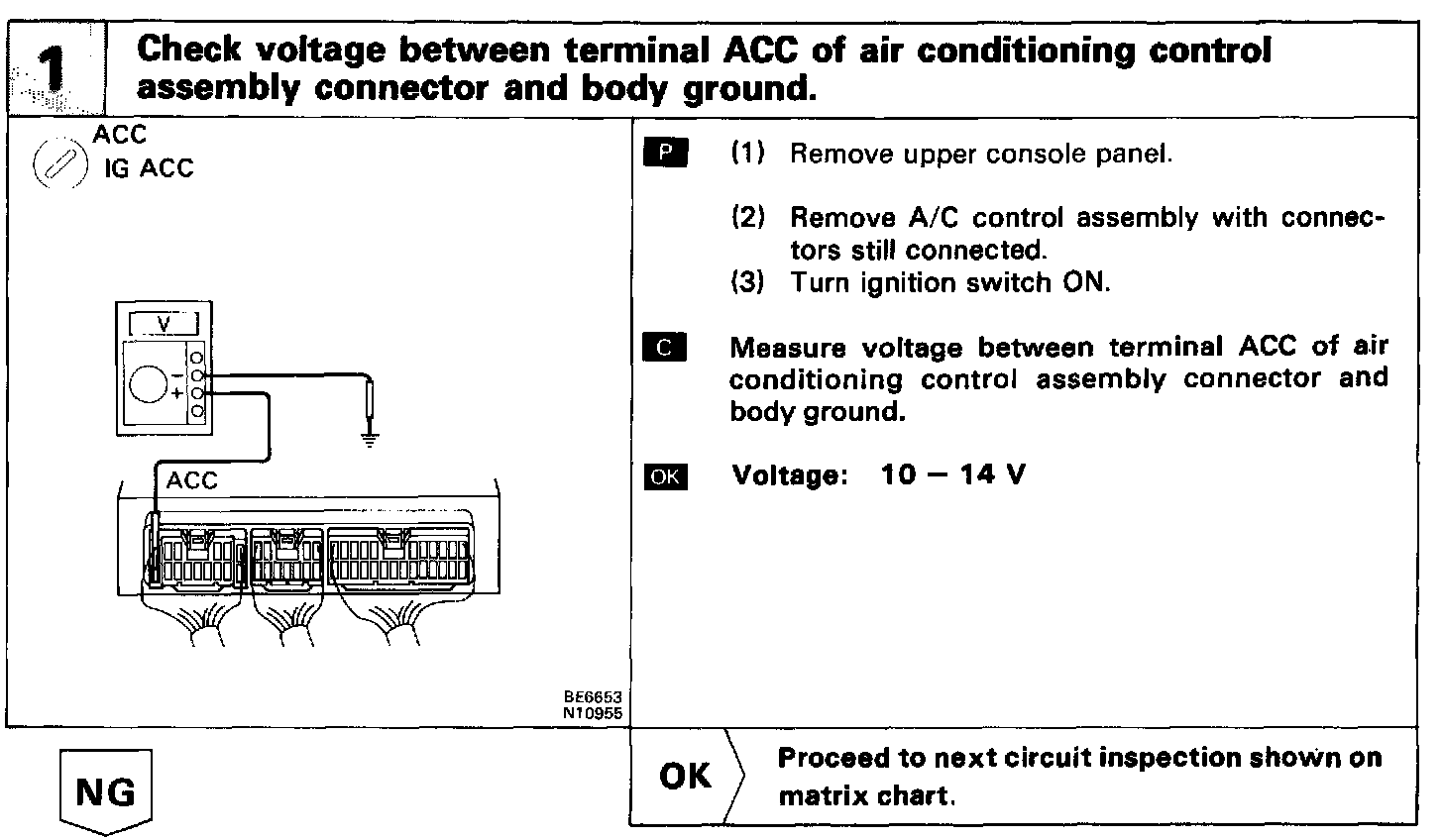

Inspection Procedure - Step 1:

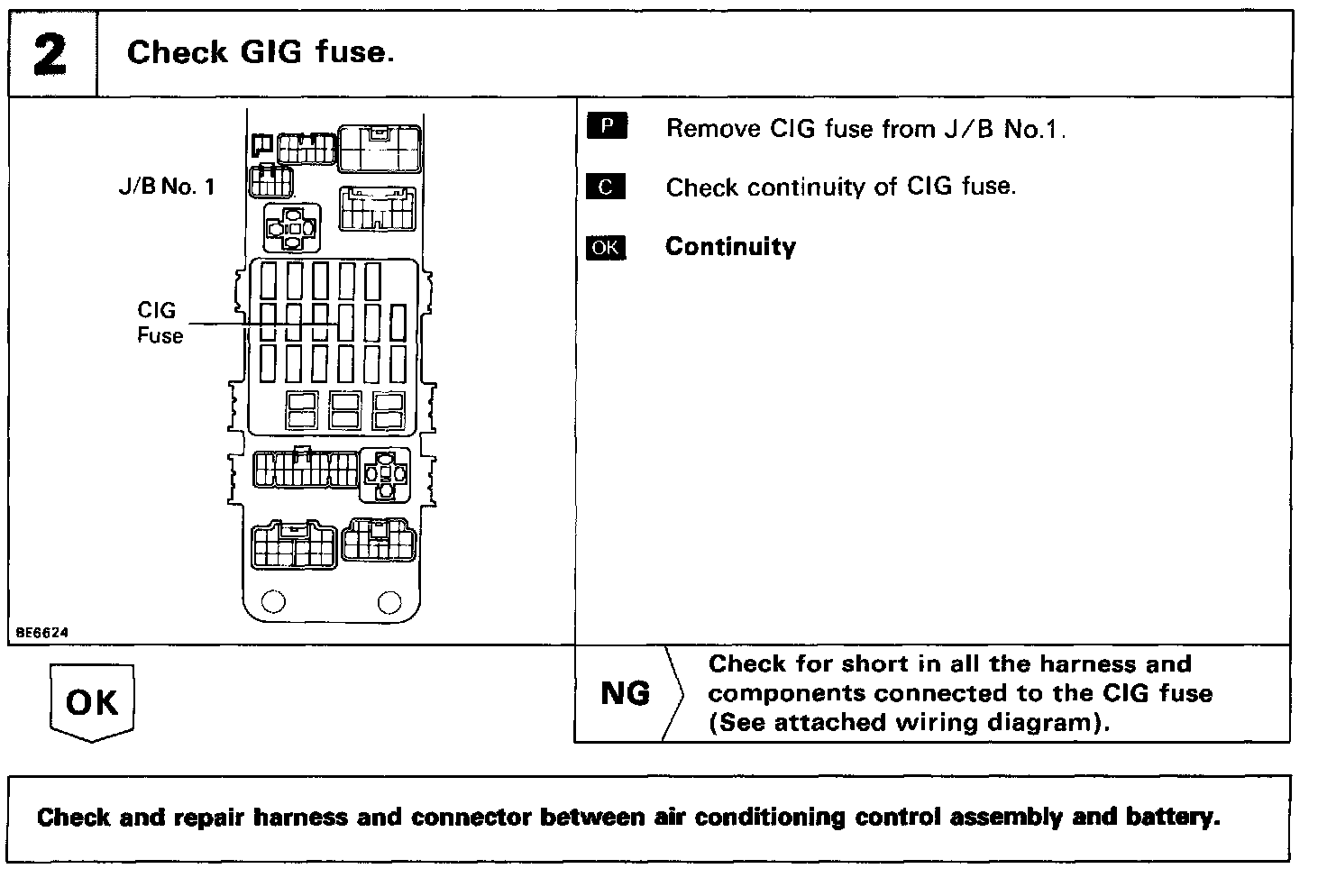

Step 2:
