Remote Control Mirror (With Driving Position Memory)
Remote Control Mirror (With Driving Position Memory)

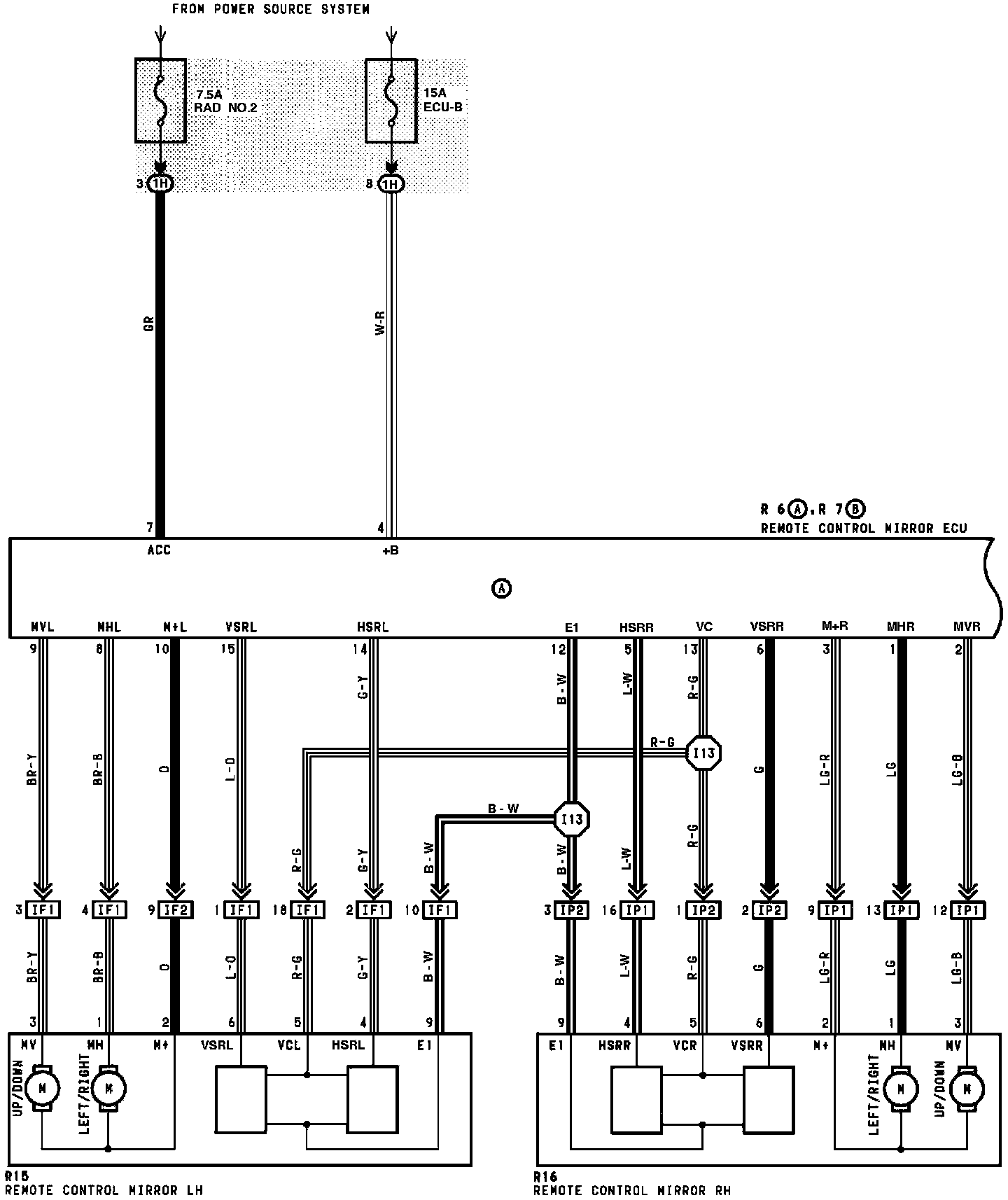

Remote Control Mirror (Part 1 Of 2):

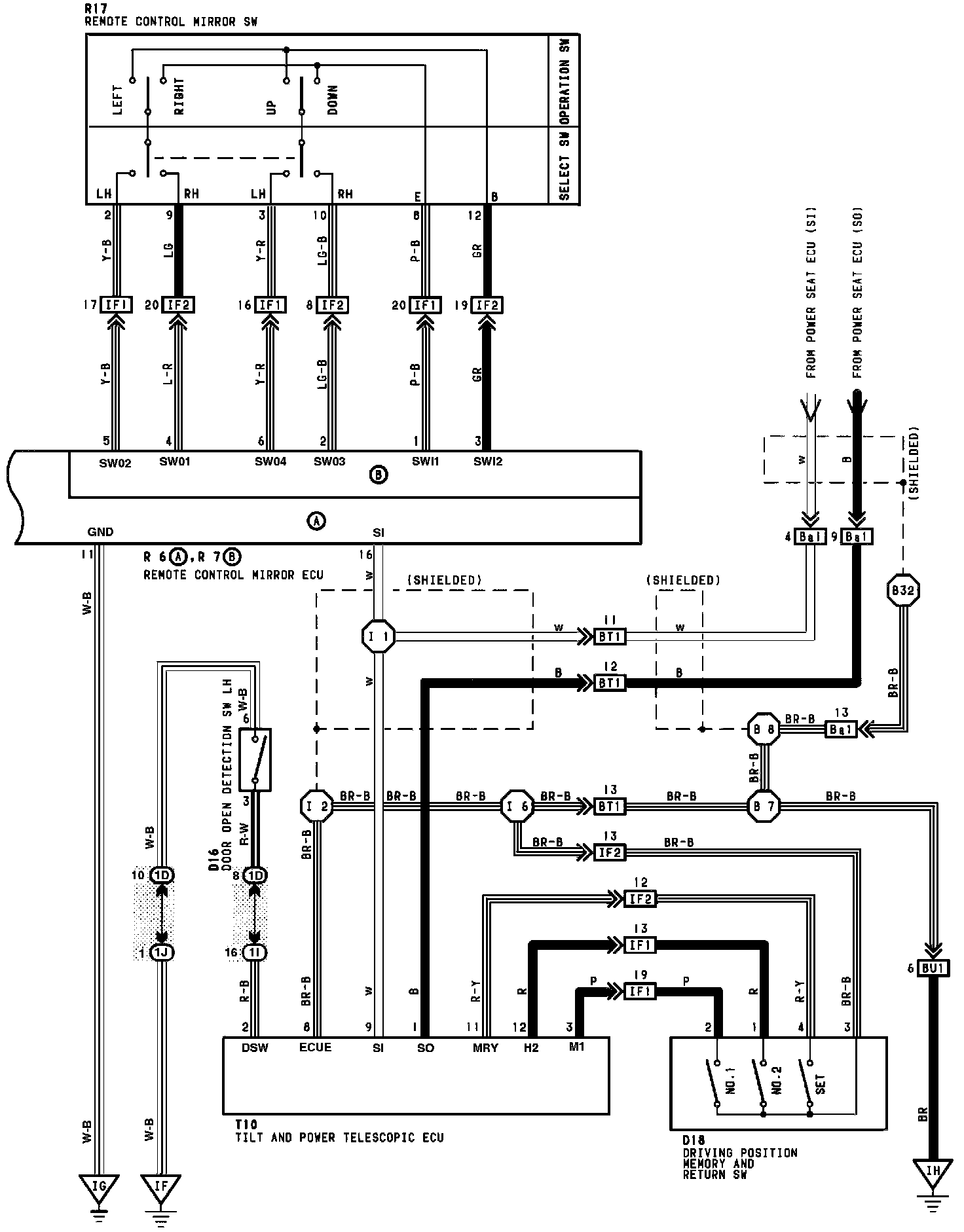

Remote Control Mirror (Part 2 Of 2):
