Antilock Brake (ABS) System

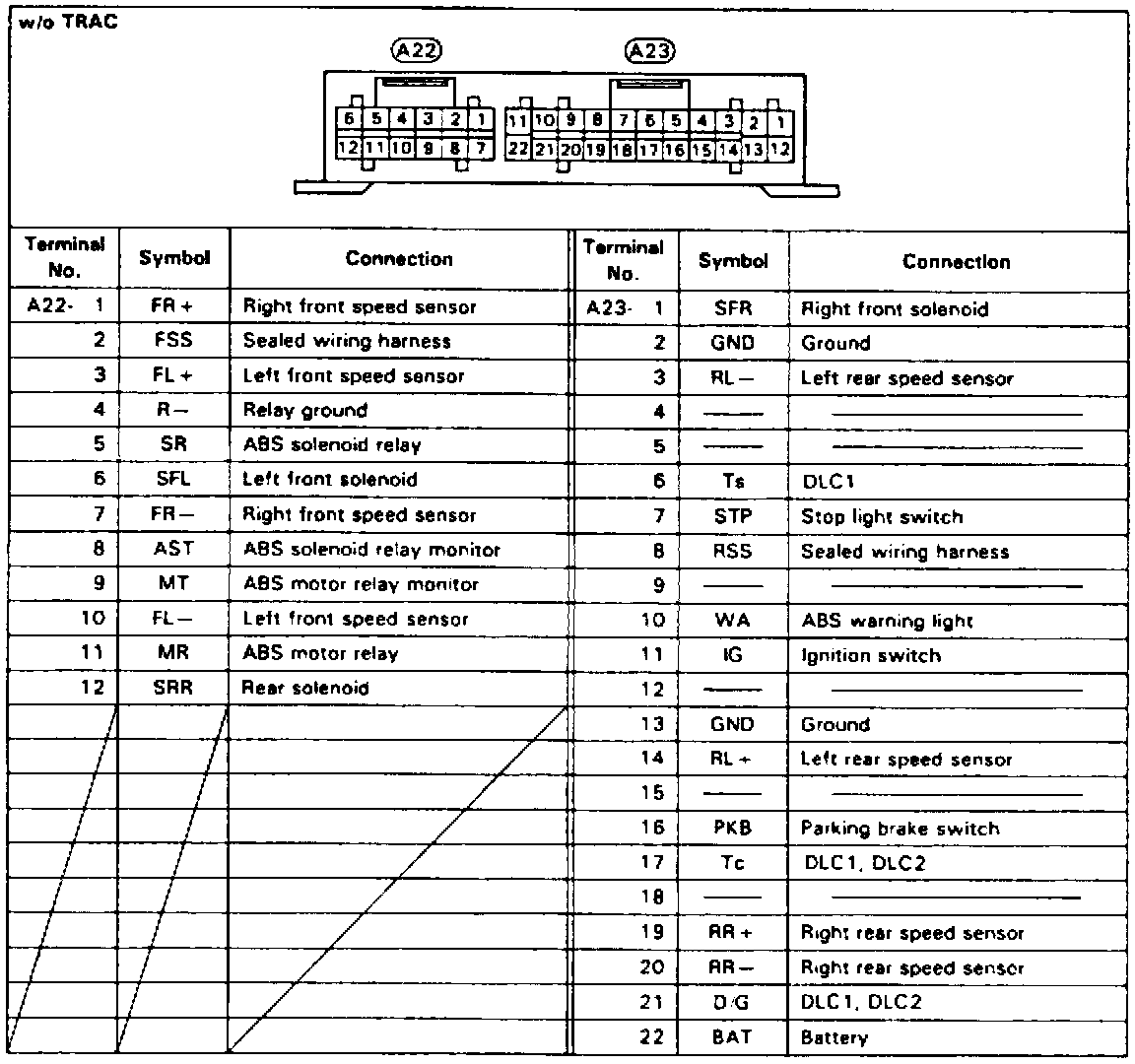

Fig. 21 ABS ECU Terminal Identification:



Fig. 40 ABS ECU Terminal Identification:
