Hydraulic System: Testing and Inspection

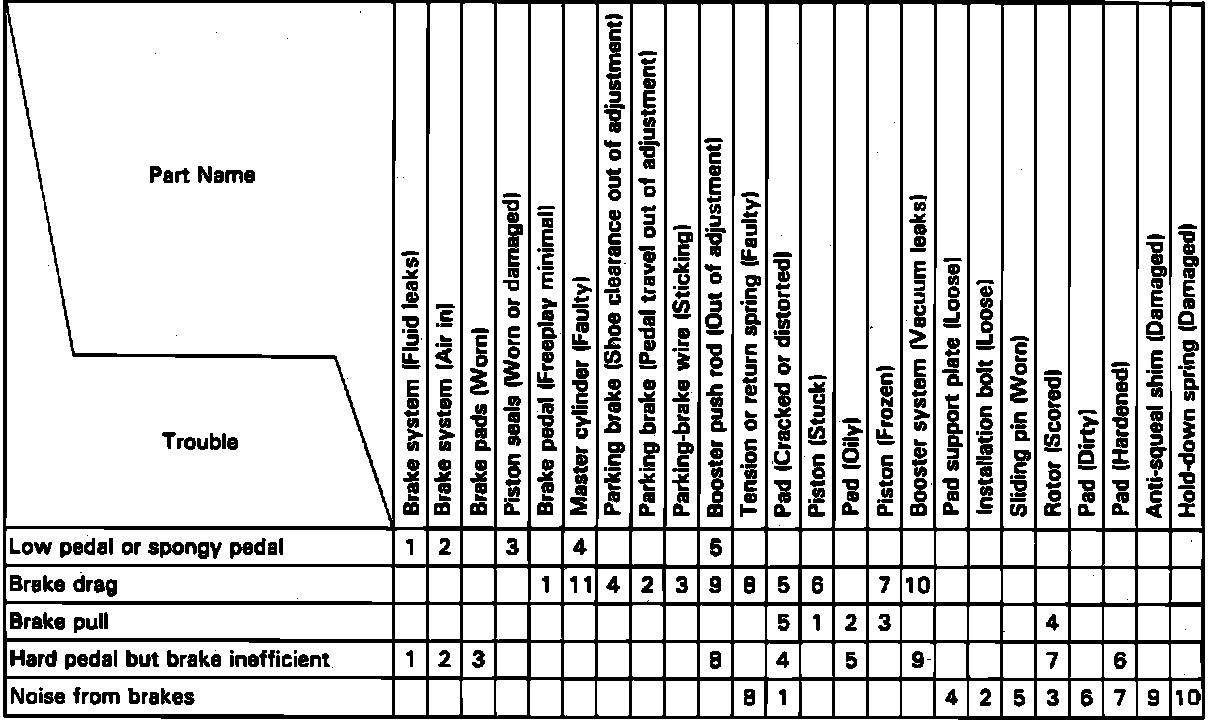

Fig. 1 Troubleshooting Chart:






Refer to Fig. 1 for troubleshooting information.
