Disassembly and Assembly

REAR SEAT DISASSEMBLY

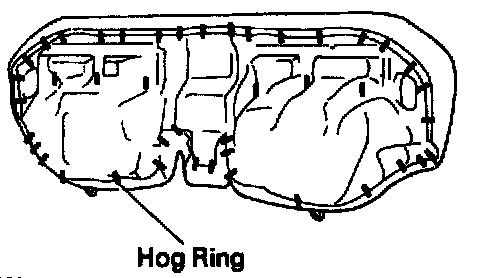

1. REMOVE SEAT CUSHION COVER
Remove hog rings and the cover.

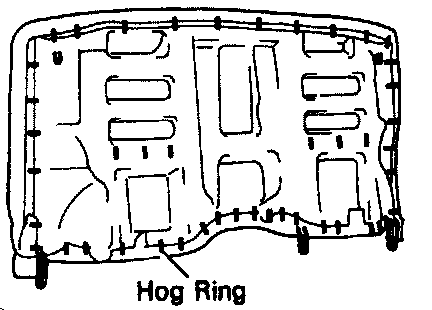

2. REMOVE SEATBACK COVER
Remove hog rings and the cover.

REAR SEAT ASSEMBLY





ASSEMBLE THE REAR SEAT PARTS BY FOLLOWING DISASSEMBLY SEQUENCE IN REVERSE

HINT:

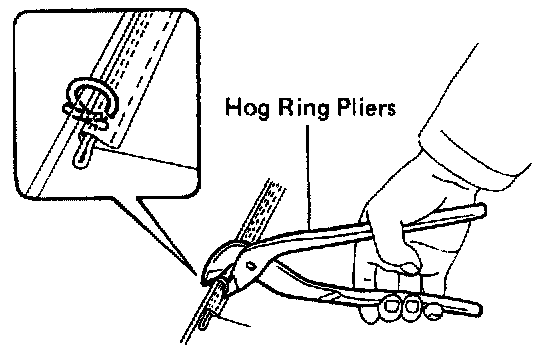

- Using hog ring pliers, install the new hog ring.
- If creases occur in the front seat, stretch out the creases by heating them with a dryer. etc.
If the creases still cannot be removed, spray them lightly with a vaporizer before applying the hair dryer again.
