Removal and Installation
FRONT SEAT REMOVAL1. REMOVE HEADREST
While pushing the lock button, pull up the headrest to remove it.

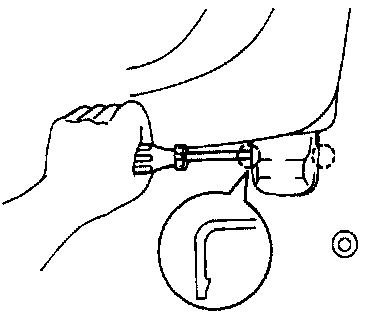

2. REMOVE SEAT TRUCK COVERS
Using a screwdriver, pry out 4 covers.
HINT: Tape the screwdriver tip before use.
3. REMOVE SEAT TRUCK COVER (Rear Inner Side)
(a) Lift up the rear part of the cover.
(b) Pull the cover straight backwards.
4. REMOVE FRONT SEAT
(a) Remove 5 bolts.
(b) Disconnect the connector.
FRONT SEAT INSTALLATION
1. INSTALL HEADREST TO SEAT
2. INSTALL FRONT SEAT
(a) Connect the connector.
(b) Install 5 bolts.
Torque: 37 N.m (375 kgf.cm, 27 ft.Ibf)
3. CHECK SEAT ADJUSTER PROPER OPERATION
4. INSTALL SEAT TRUCK COVERS
