SFI System - Basic Inspection

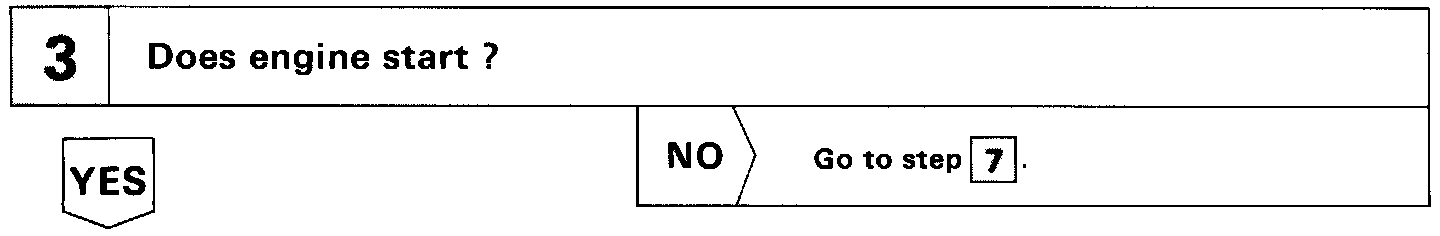

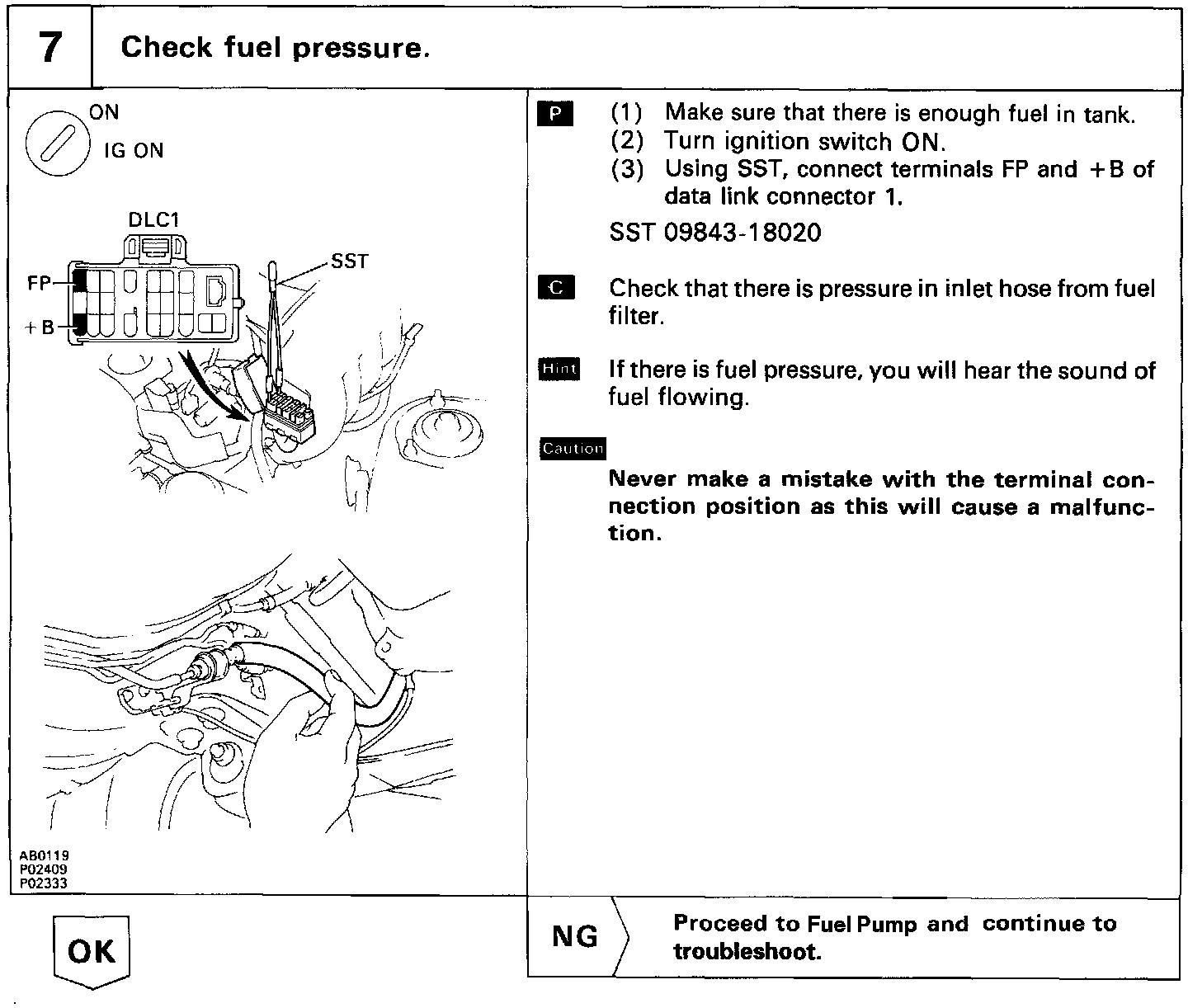

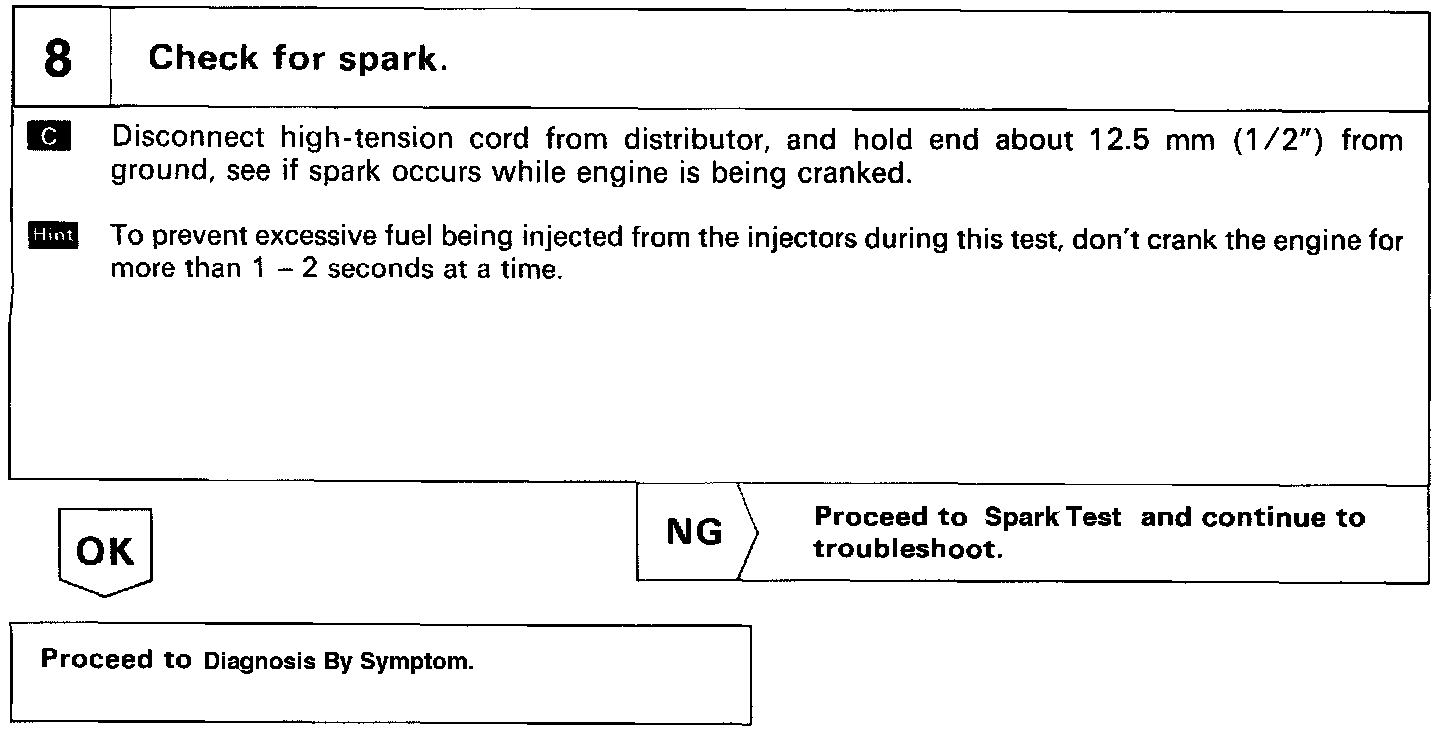

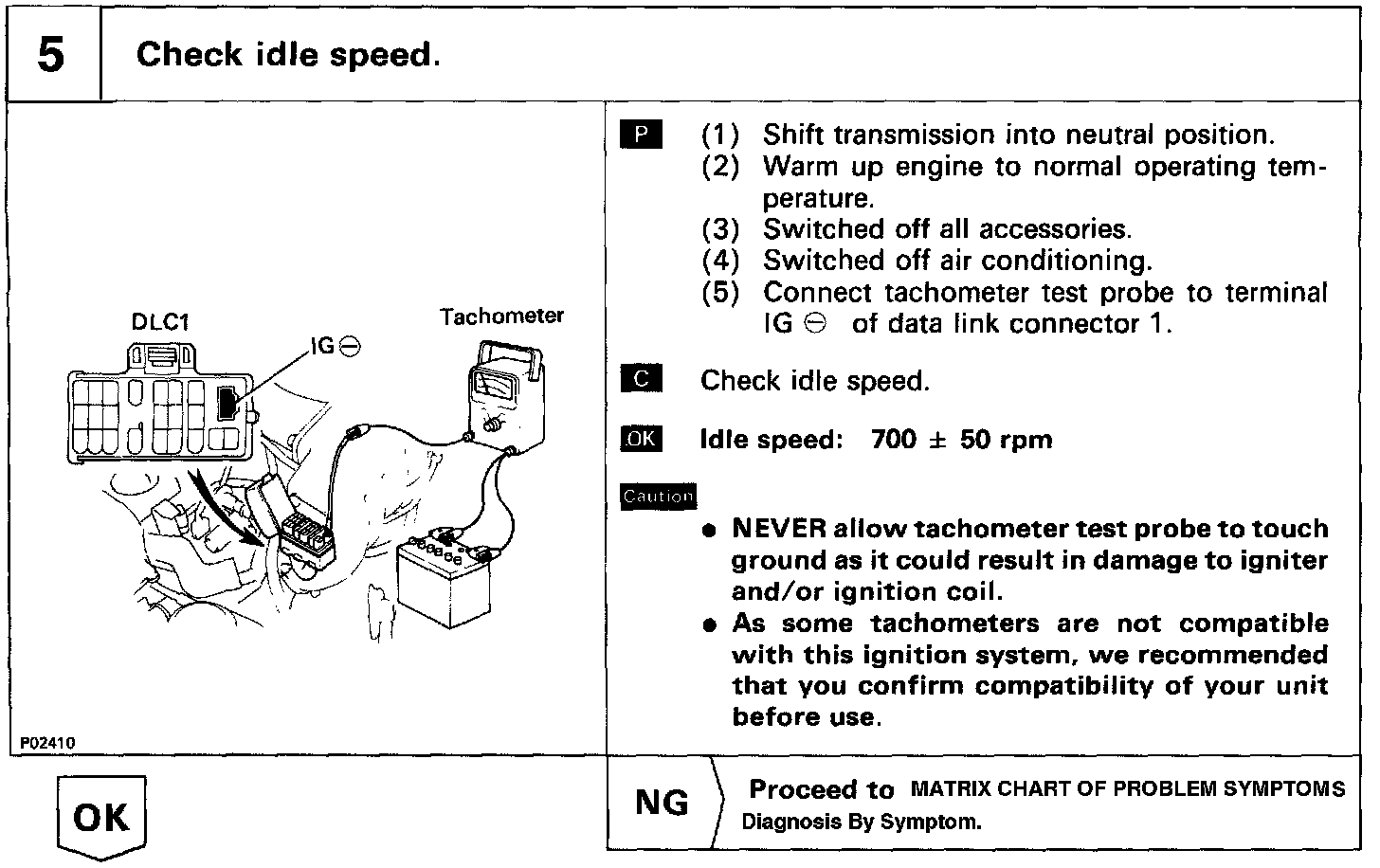

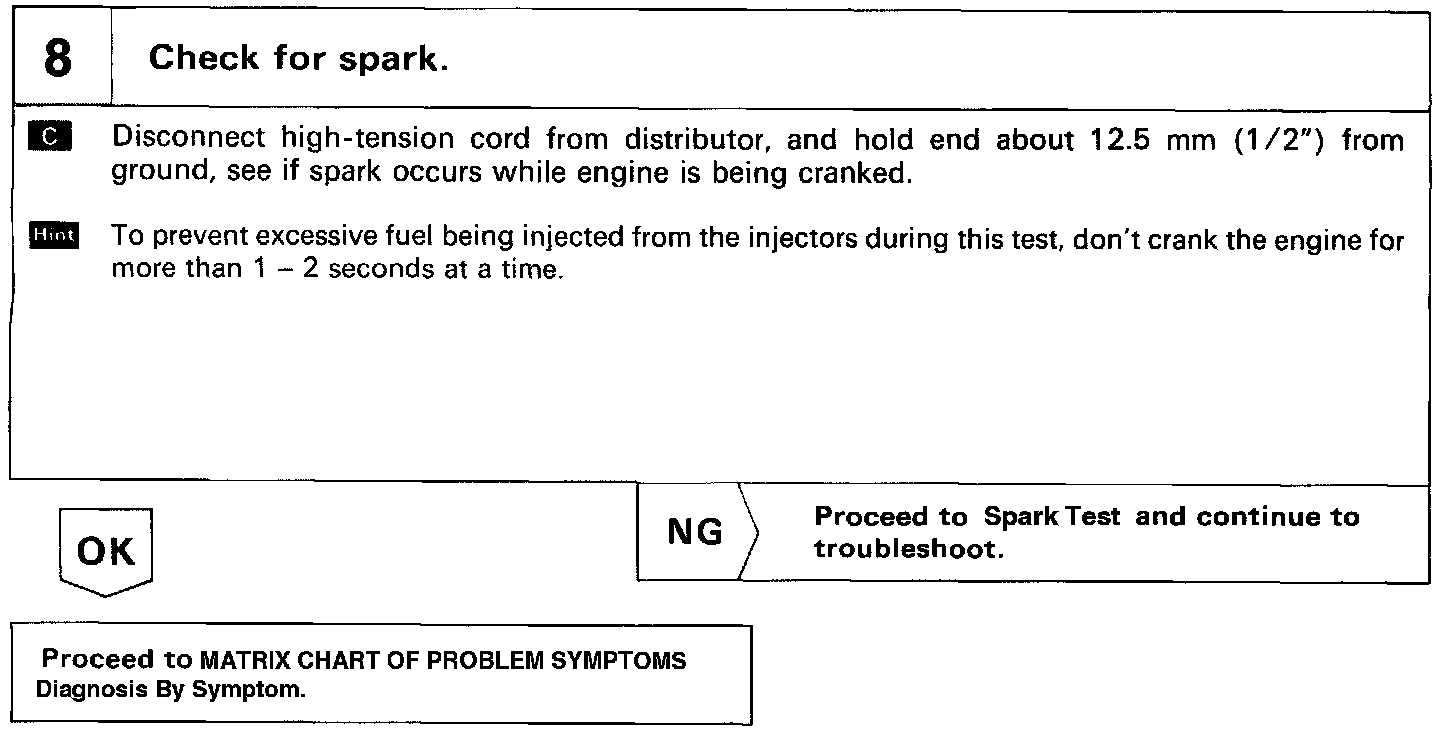

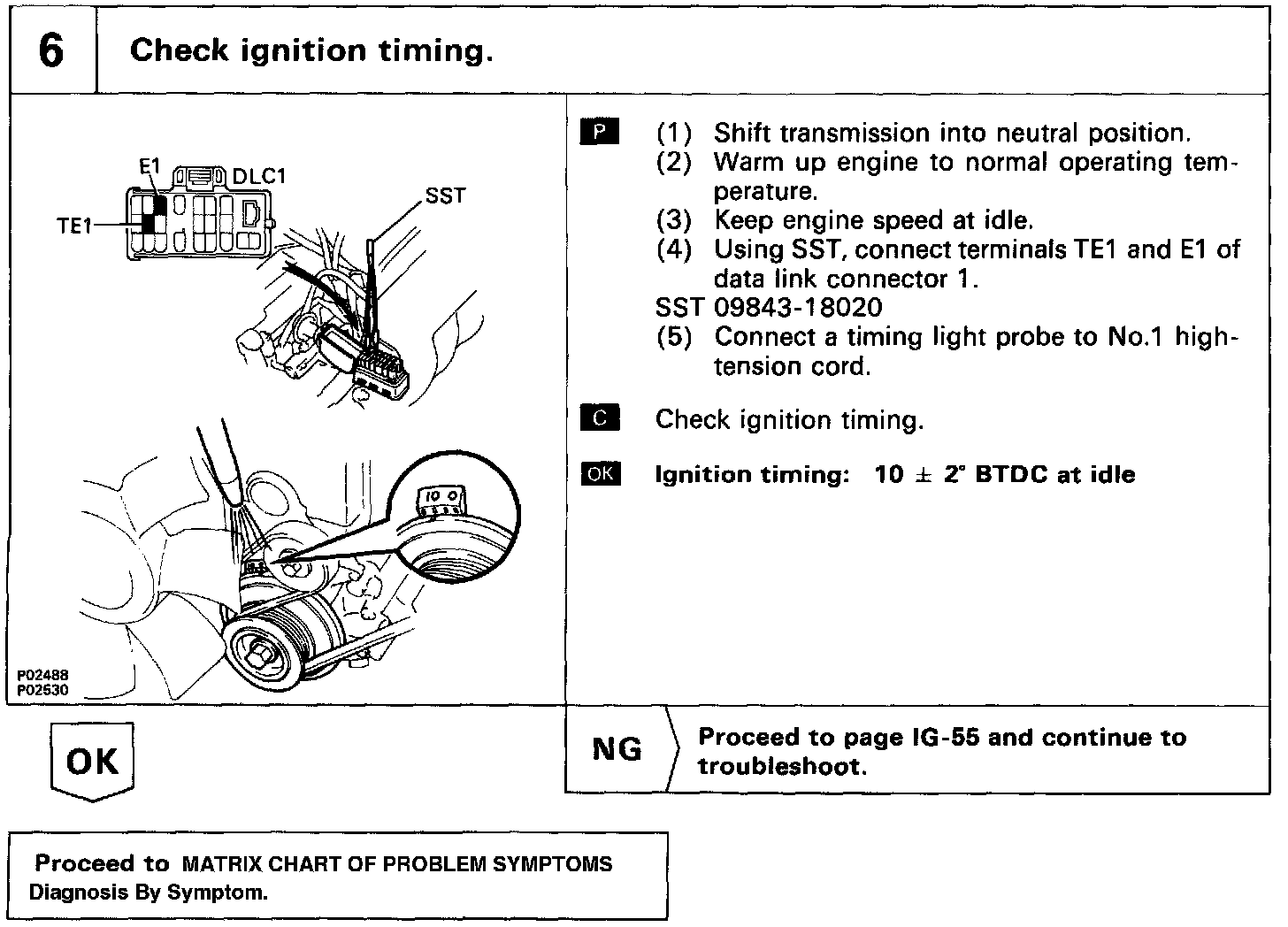

When the normal code is displayed in the diagnostic trouble code check, troubleshooting should be performed in the order for all possible circuits to be considered as the causes of the problems. In many cases, by carrying out the basic engine check shown in the images above, the location causing the problem can be found quickly and efficiently. Therefore, use of this check is essential in engine troubleshooting.
