DTC 51

CIRCUIT DESCRIPTION

Park/Neutral Position Switch Signal:
The ECM uses the signals from the park/neutral position switch to determine whether the transmission is in park or neutral, or in some other gear.

Air Conditioning Switch Signal:
The ECM uses the output from the air conditioning switch to determine whether or not the air conditioning is operating so that it can increase the idling speed of the engine if necessary.

Throttle Position Sensor IDL Signal:
The IDL contacts are mounted in the throttle position sensor, and detects the idle condition.

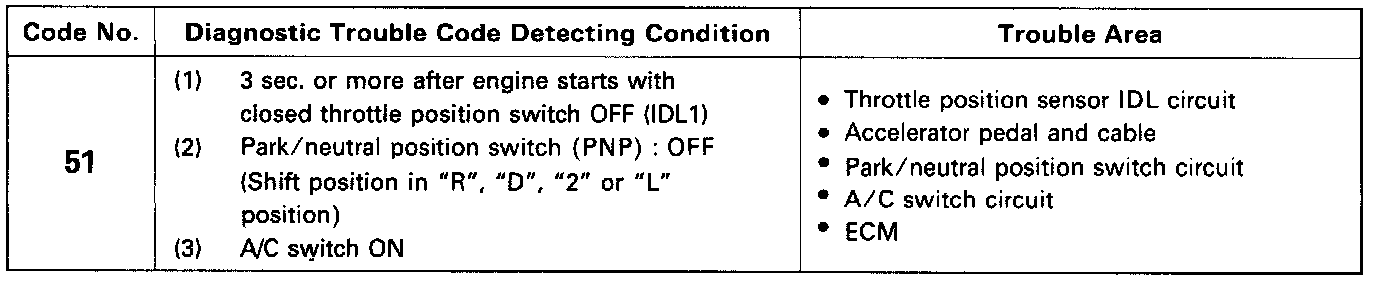

DETECTING CONDITION AND TROUBLE AREA
*:Only vehicles with A/T.

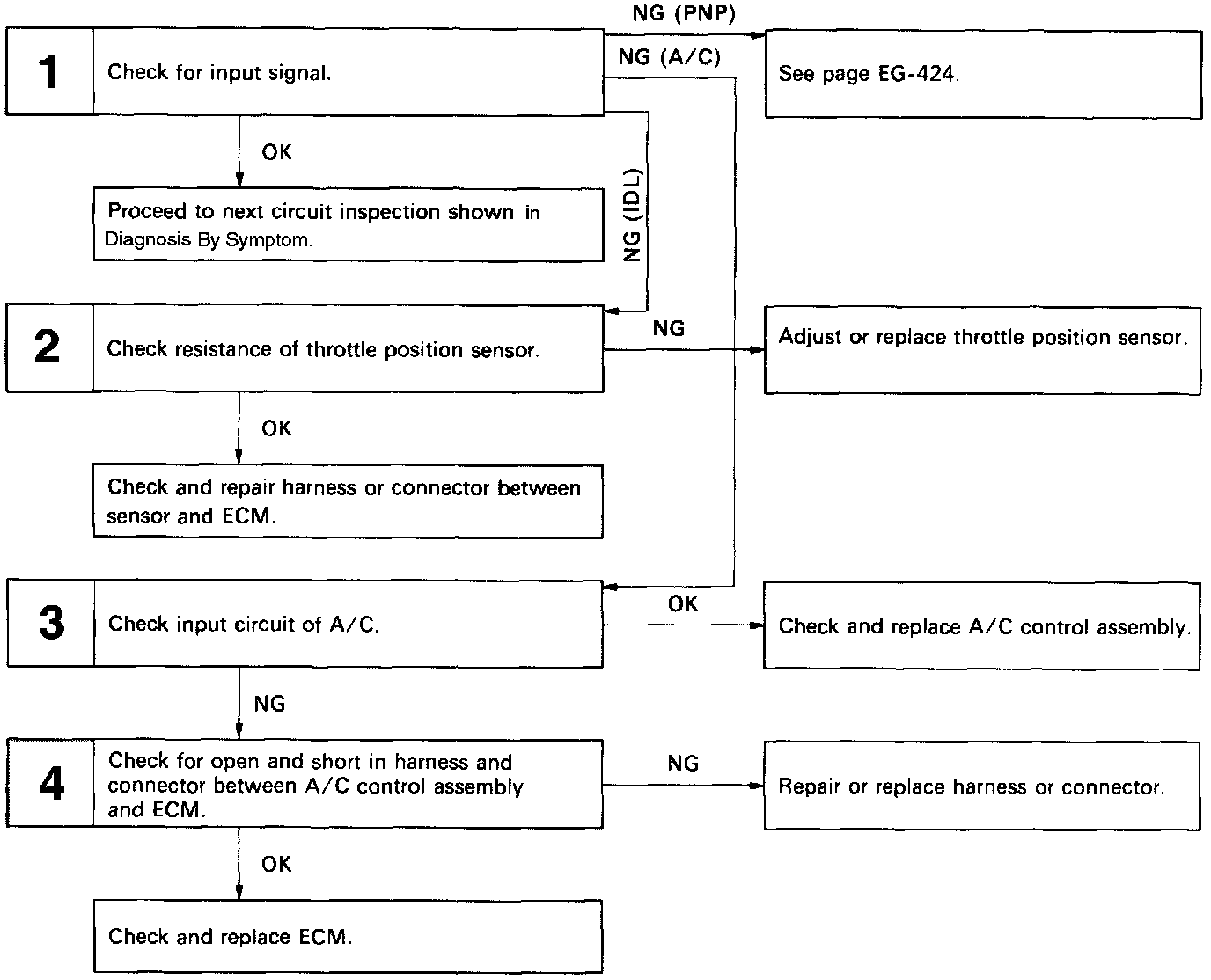

DIAGNOSTIC CHART

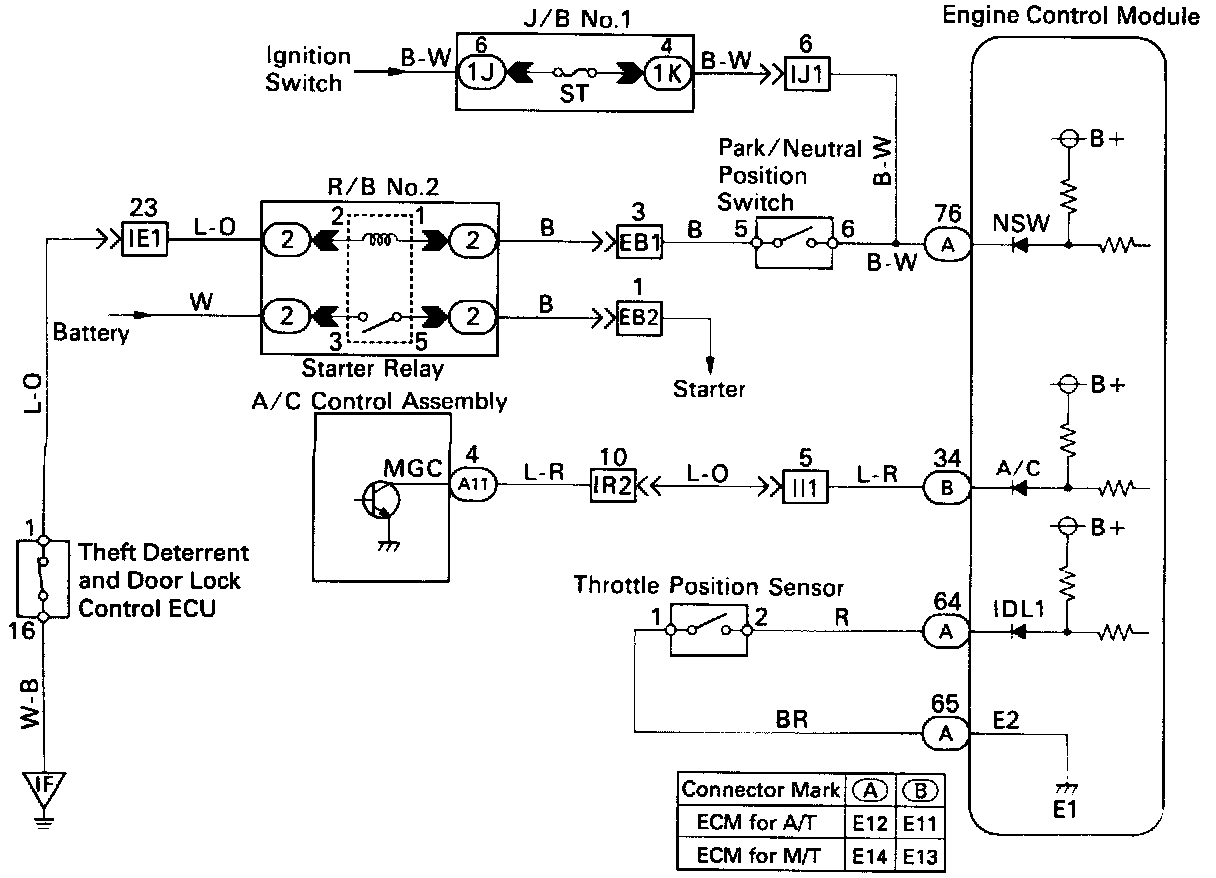

WIRING DIAGRAM

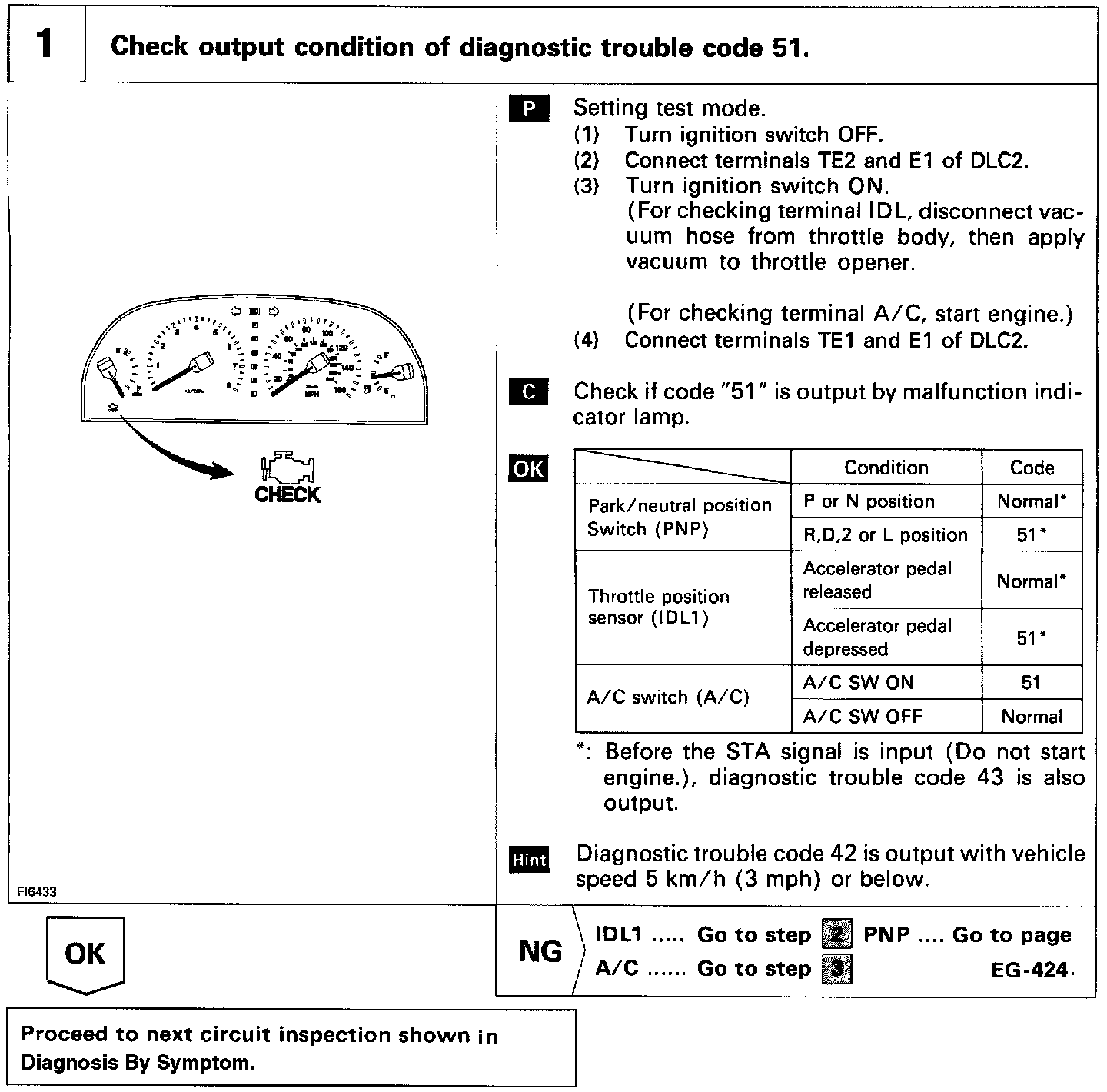

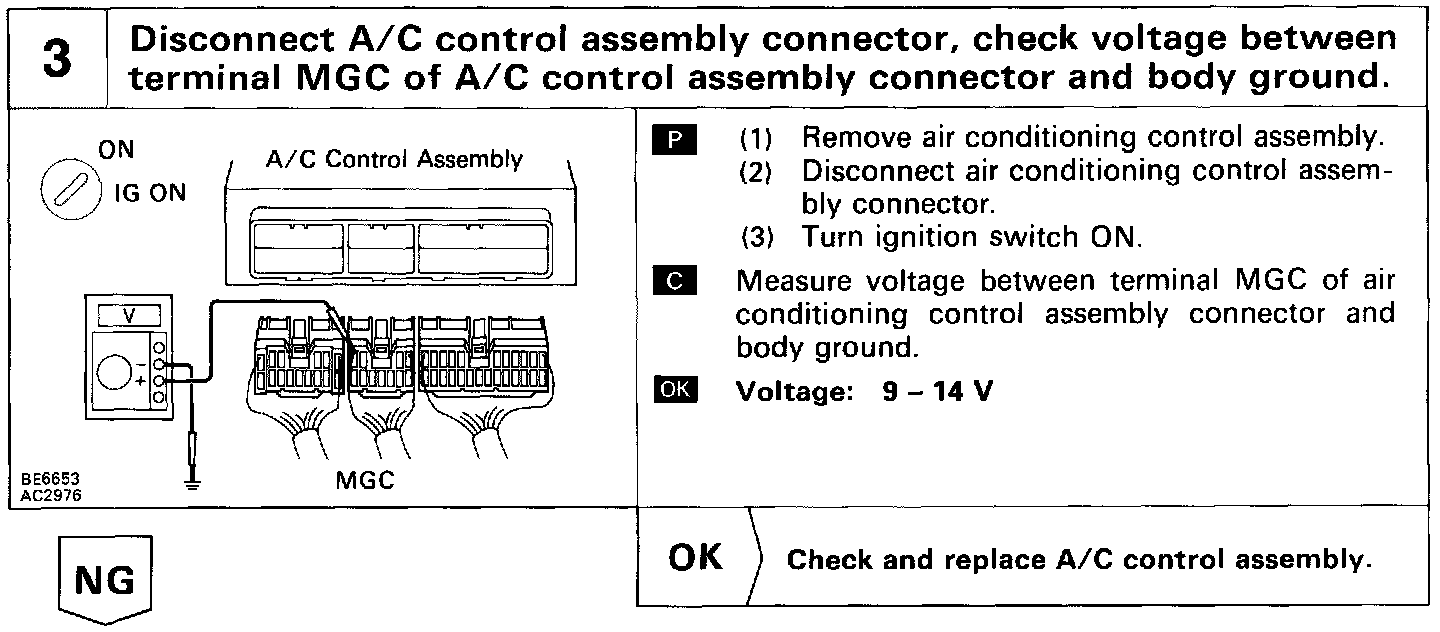

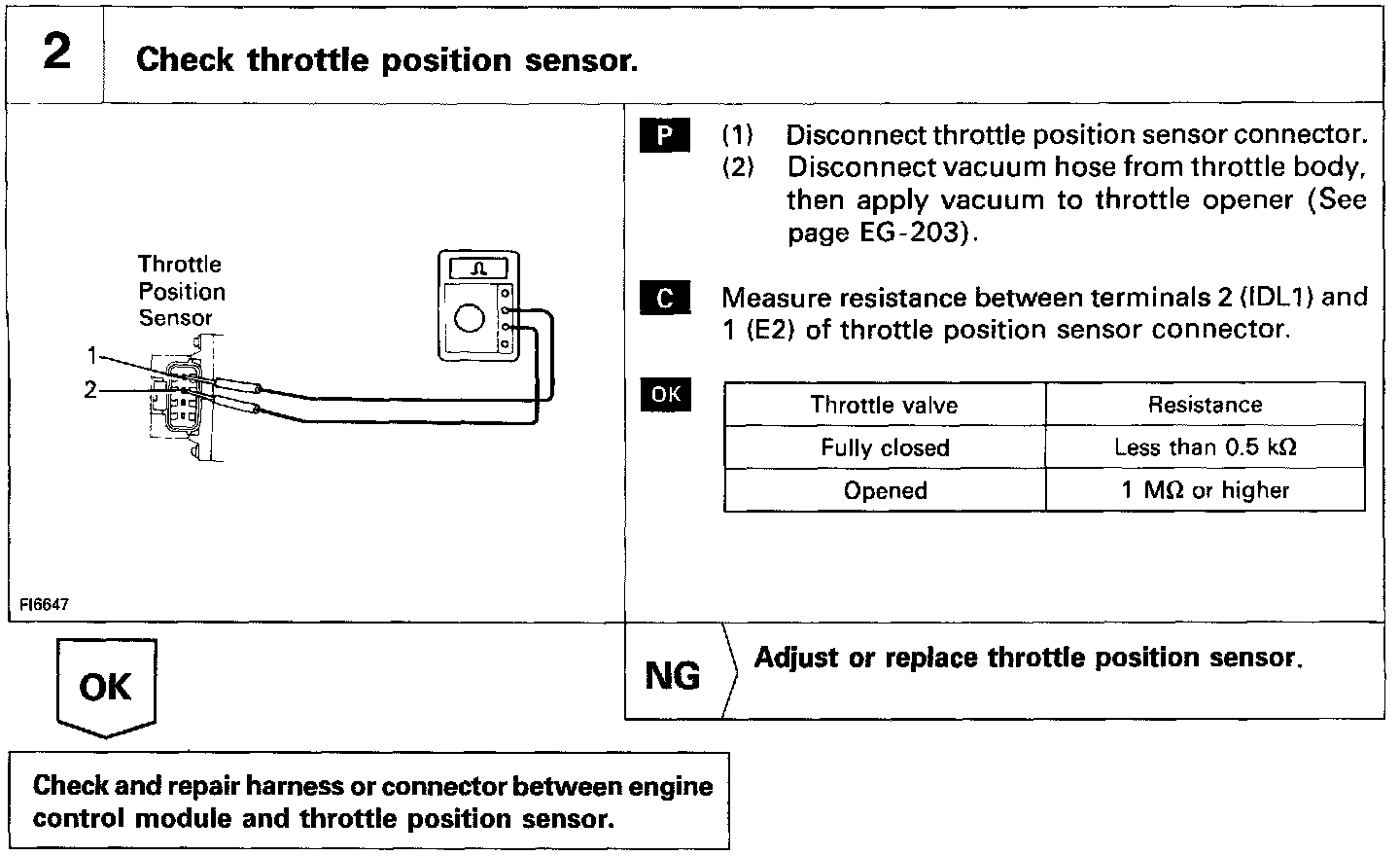

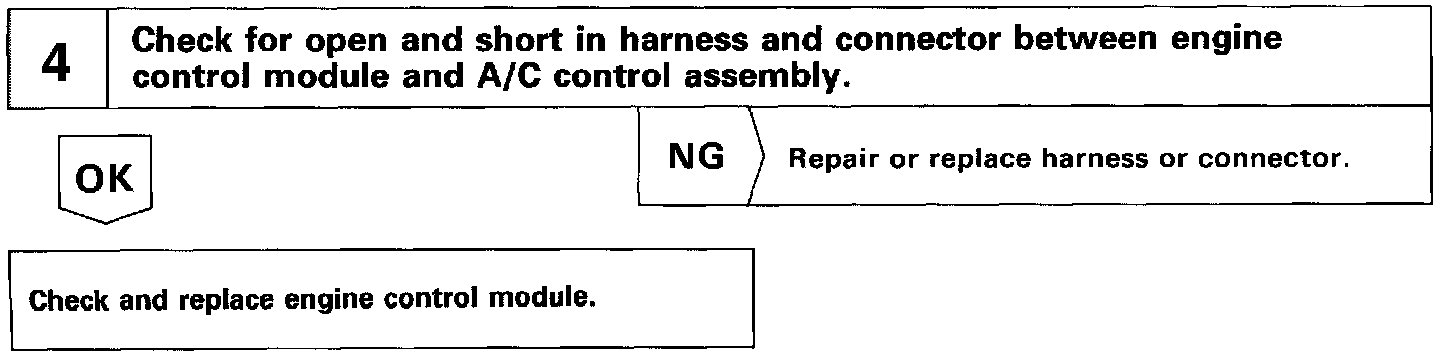

INSPECTION PROCEDURE
