DTC 41

CIRCUIT DESCRIPTION
The throttle position sensor is mounted in the throttle body and detects the throttle position. When the throttle valve is fully closed, the IDL contacts in the throttle position sensor are on, so the voltage at the terminal IDL of the ECM become 0 V. At this time, a voltage of approximately 0.7 V is applied to the terminal VTA of the ECM. When the throttle valve is opened, the IDL contacts go off and thus the power source voltage of approximately 12 V in the ECM is applied to the terminal IDL of the ECM. The voltage applied to the terminal VTA of the ECM increases in proportion to the opening angle of the throttle valve and becomes approximately 3.2 - 4.9 V when the throttle valve is fully opened. The ECM judges the vehicle driving conditions from these signals input from the terminals VTA and IDL, and uses them as one of the conditions for deciding the air-fuel ratio correction, power increase correction and fuel-cut control etc. The sub-throttle position sensor is built and operates in the same way as the main throttle position sensor. This sensor is used for traction control. The sub-throttle valve is opened and closed by the sub-throttle actuator according to signals from the TRAC ECU to control the engine output.

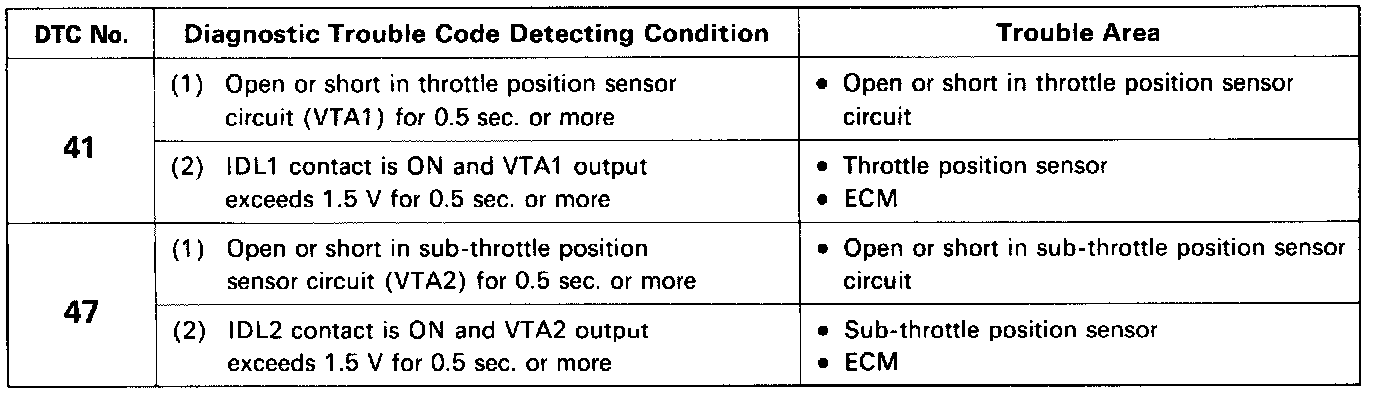

DETECTING CONDITION AND TROUBLE AREA

HINT:
Diagnostic trouble code 41 is for the throttle position sensor circuit.
Diagnostic trouble code 47 is for the sub-throttle position sensor circuit.
- When the connector for the throttle position sensor(s) is disconnected, diagnostic trouble code 41 or 47 is not displayed. Diagnostic trouble code 41 or 47 is displayed only when there is an open or short in the VTA signal circuit of the throttle position sensor(s).
- Signals from the throttle position sensor(s) are also input to the TRAC ECU. So when a malfunction occurs on the TRAC side, code 41 or 47 may be displayed.

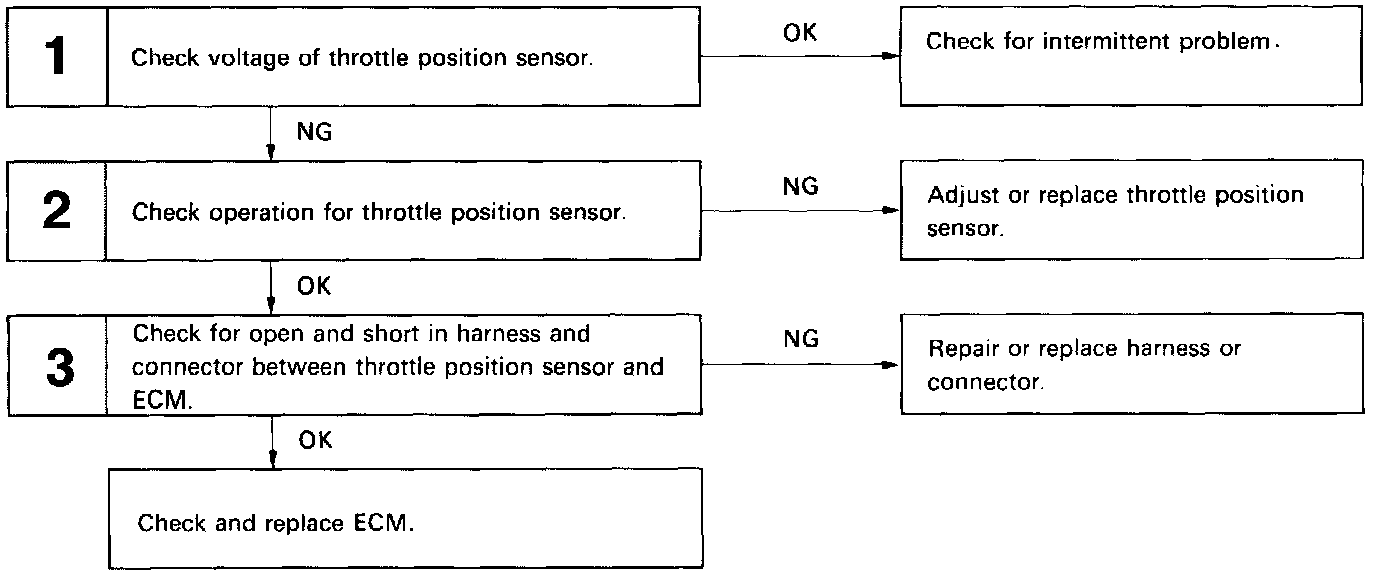

DIAGNOSTIC CHART

HINT:
- If diagnostic trouble code 41 is displayed, check throttle position sensor circuit; if diagnostic trouble code 47 is displayed, check sub-throttle position sensor circuit.
- If diagnostic trouble codes "22" (engine coolant temperature sensor circuit), "24" (intake air temperature sensor circuit) and "41" (throttle position sensor circuit) are output simultaneously, E2 (sensor ground) may be open.

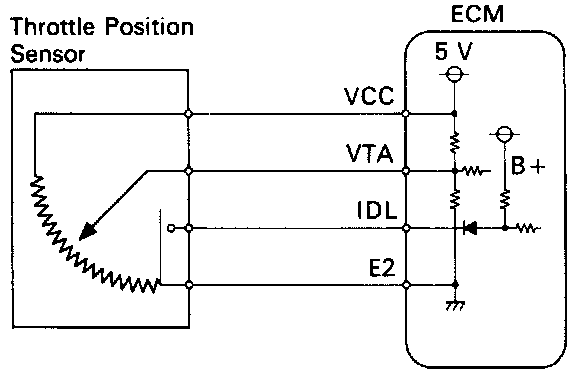

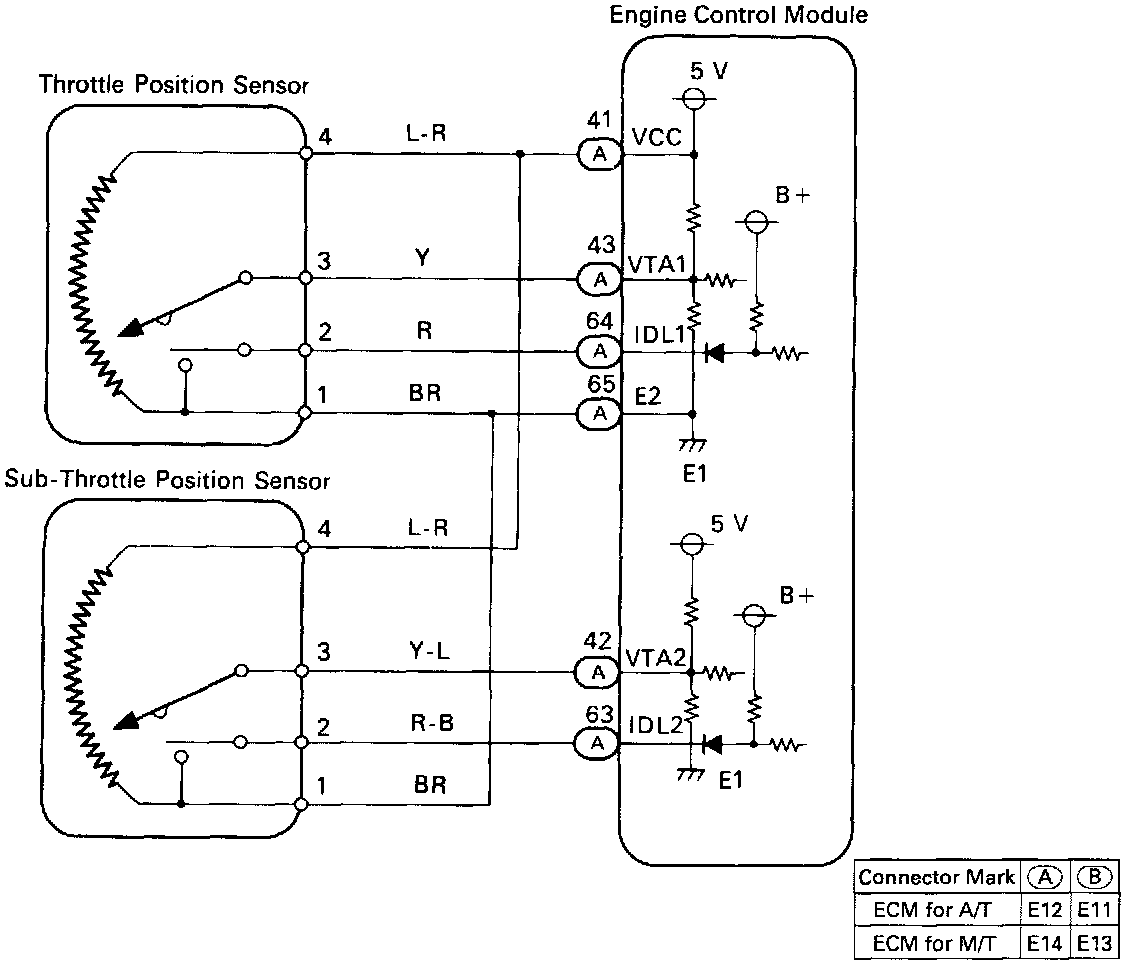

WIRING DIAGRAM

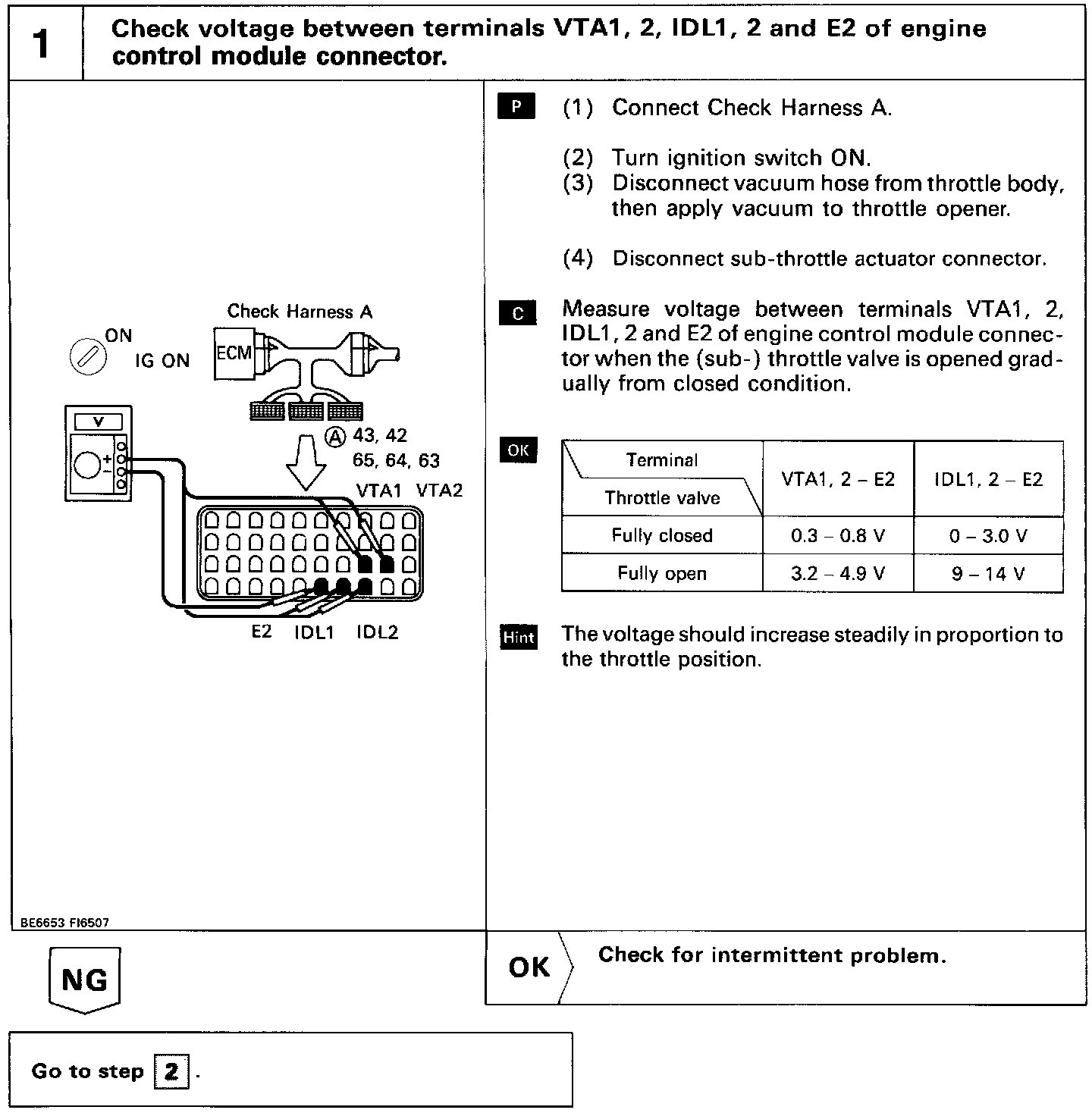

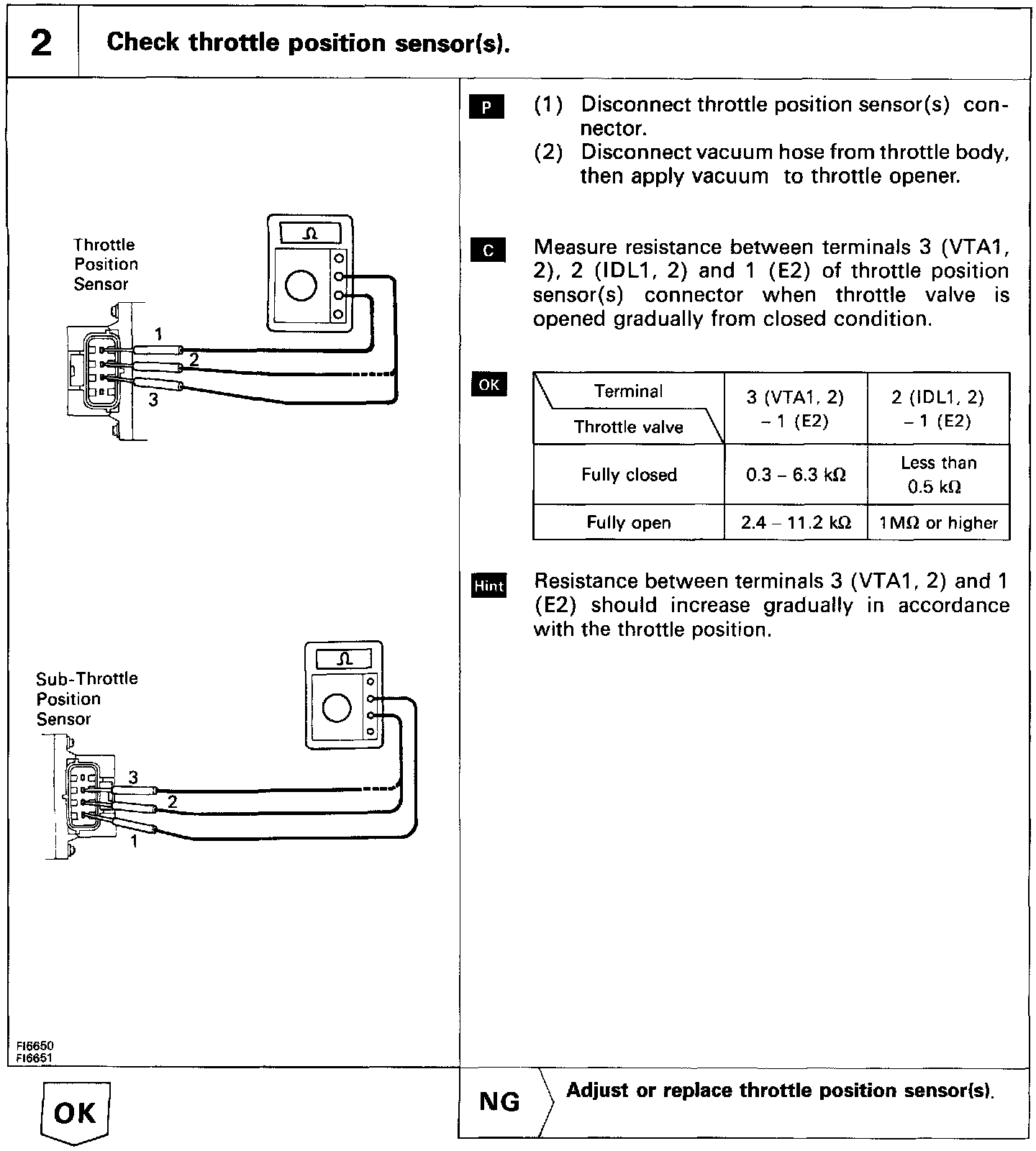

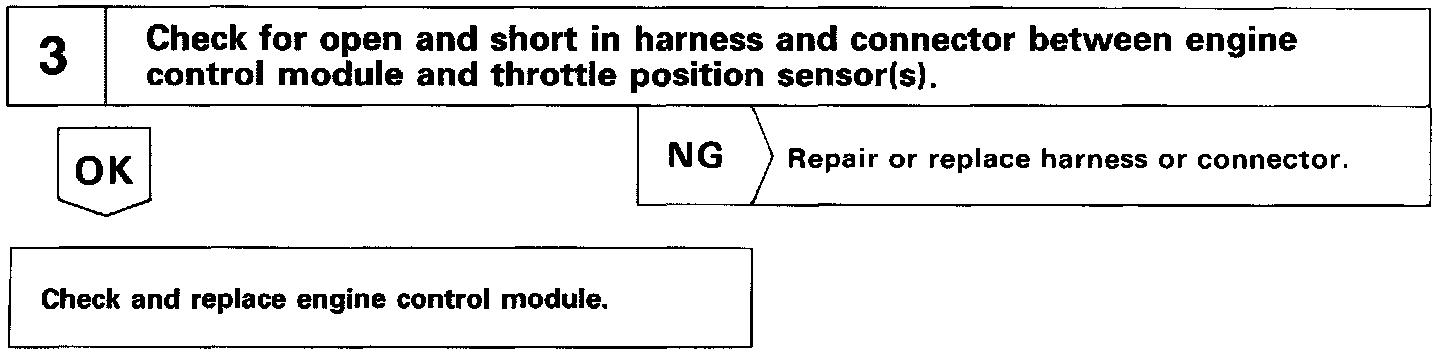

INSPECTION PROCEDURE
- If diagnostic trouble code 41 is displayed, check throttle position sensor circuit; if diagnostic trouble code 47 is displayed, check sub-throttle position sensor circuit.
- If diagnostic trouble codes "22" (engine coolant temperature sensor circuit), "24" (intake air temperature sensor circuit) and "41" (throttle position sensor circuit) are output simultaneously, E2 (sensor ground)may be open.
