DTC 12

CIRCUIT DESCRIPTION
The distributor in the Engine Control System contains 3 pickup coils (G1, G2 and NE). The G1, G2 signals inform the ECM of the standard crankshaft position. The NE signals inform the ECM of the crankshaft position and engine speed.

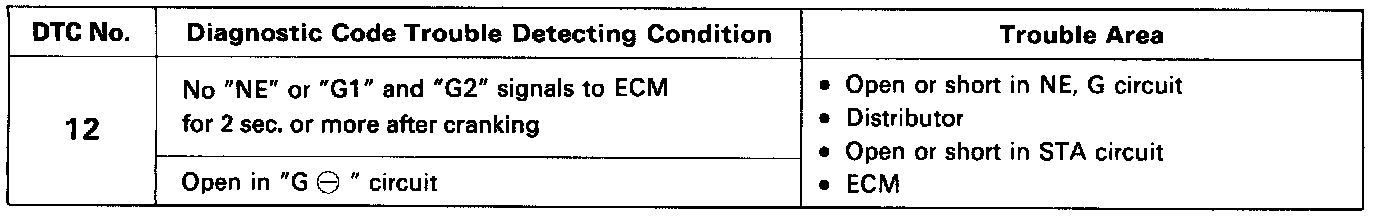

DETECTING CONDITION AND TROUBLE AREA

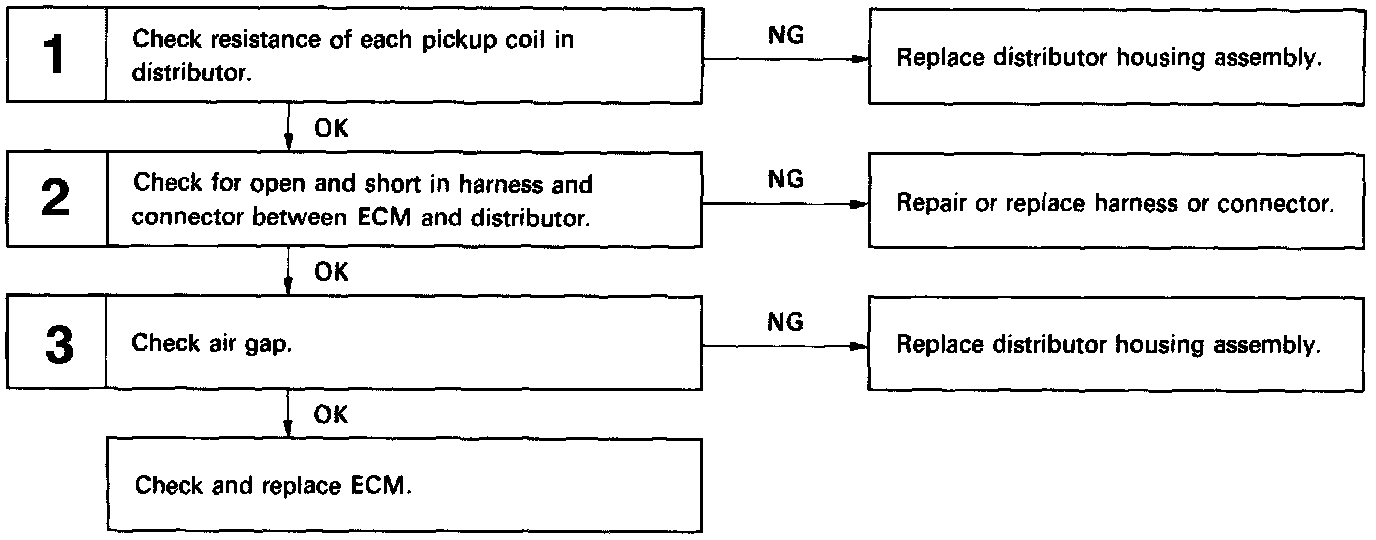

DIAGNOSTIC CHART

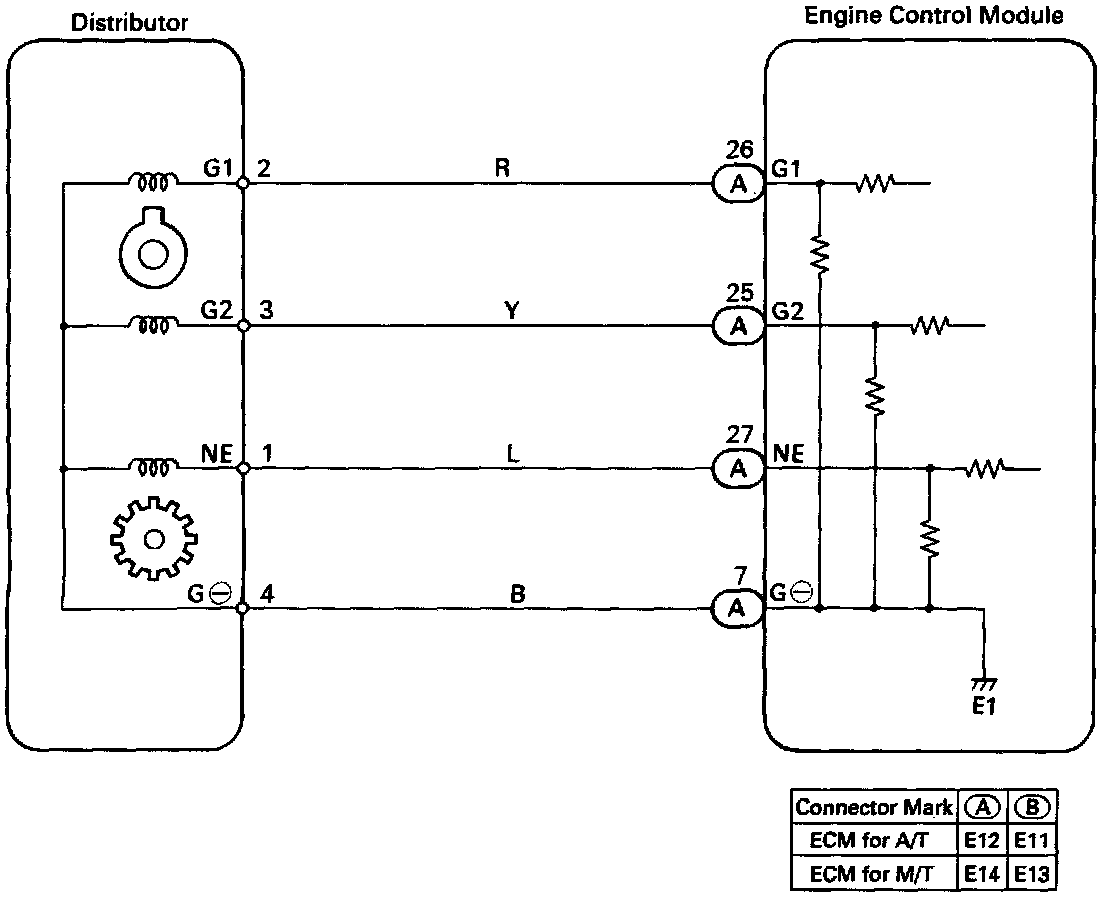

WIRING DIAGRAM

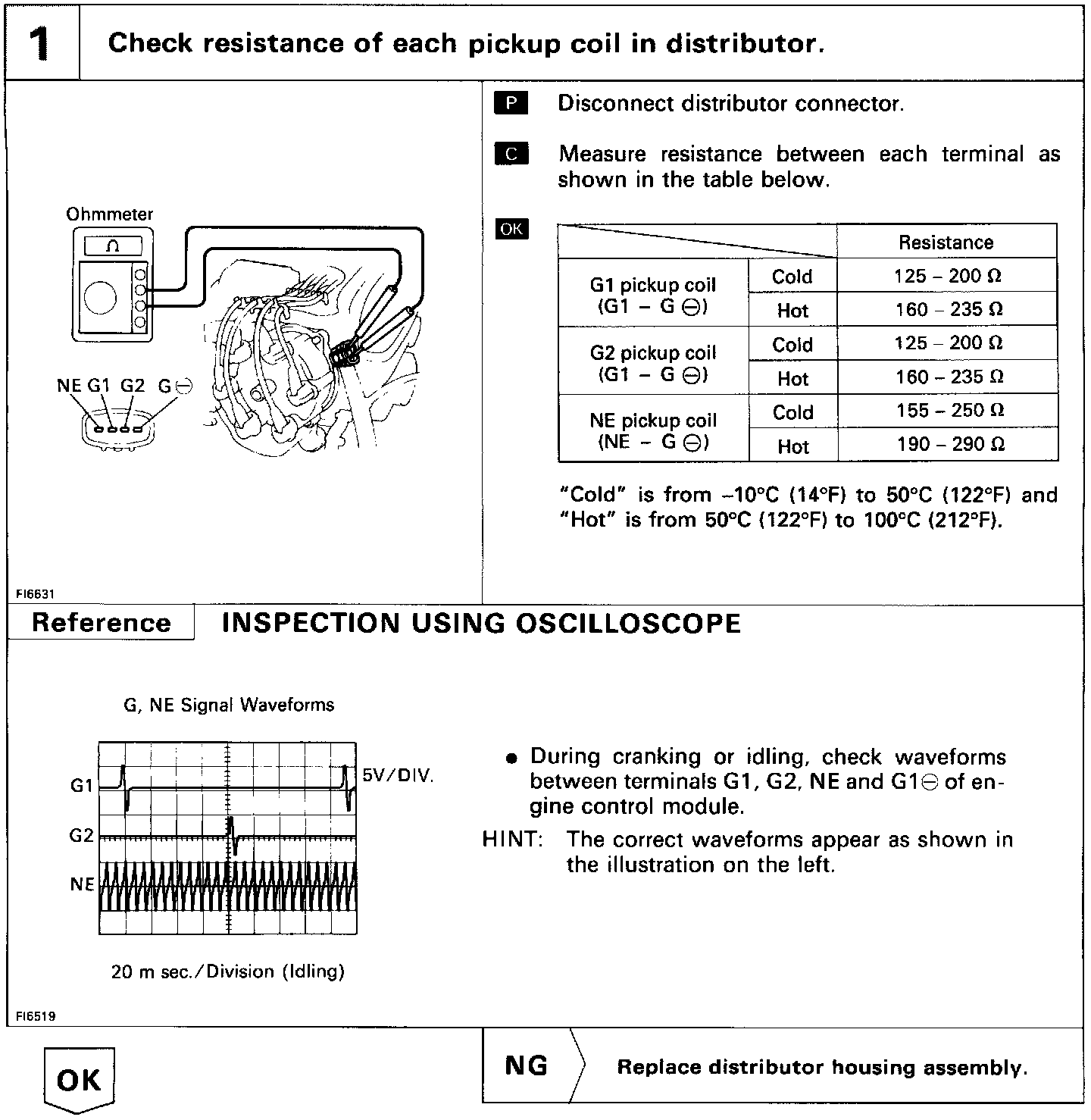

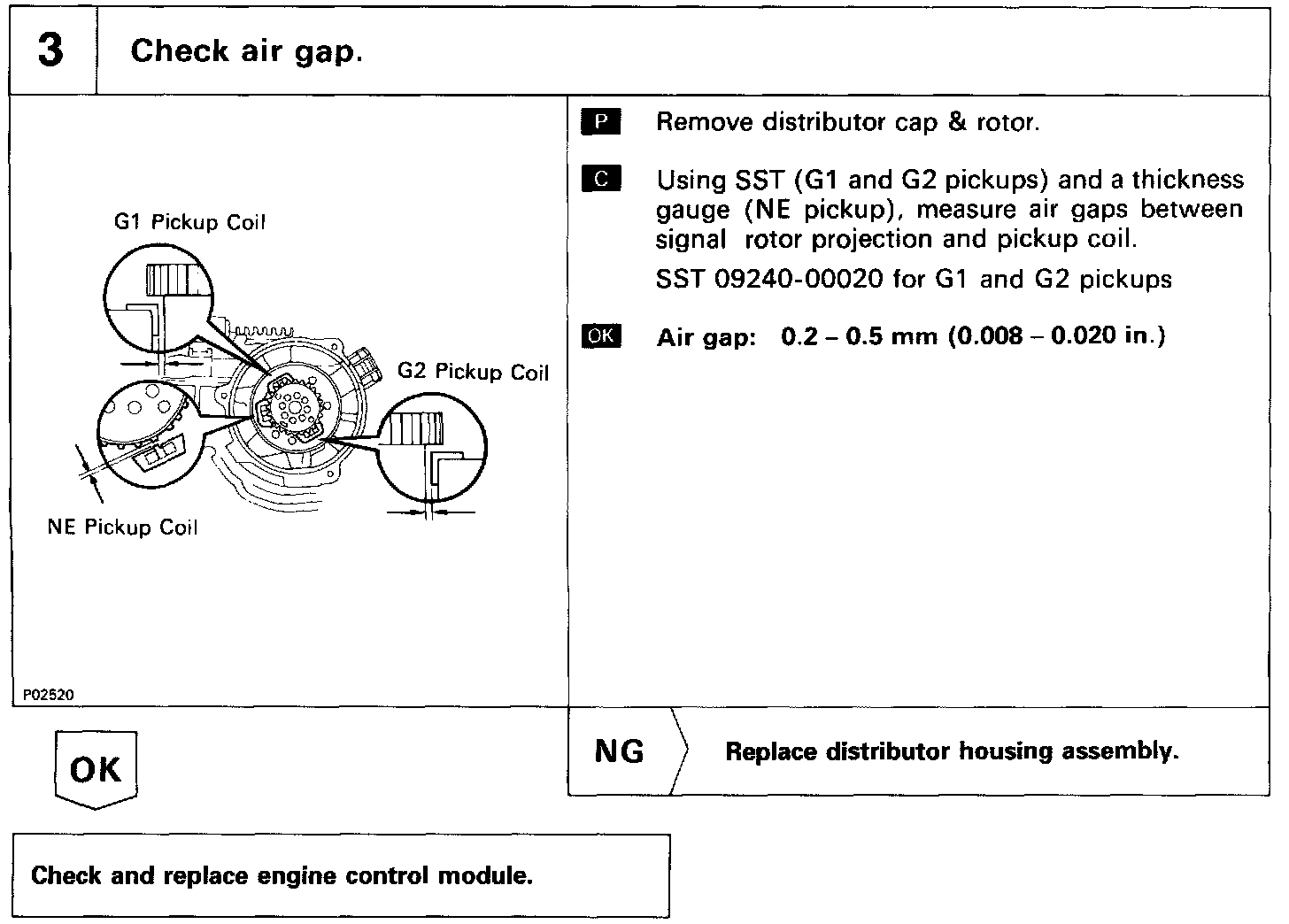

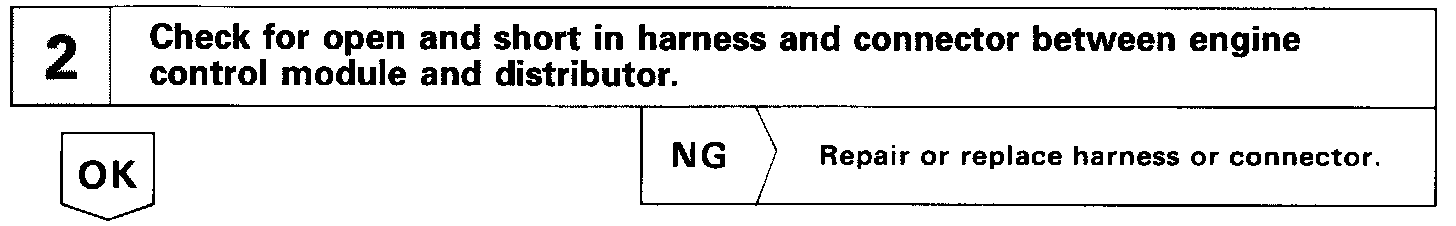

INSPECTION PROCEDURE
