DTC 54

Circuit Description
The squib circuit consists of the center airbag sensor assembly and front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

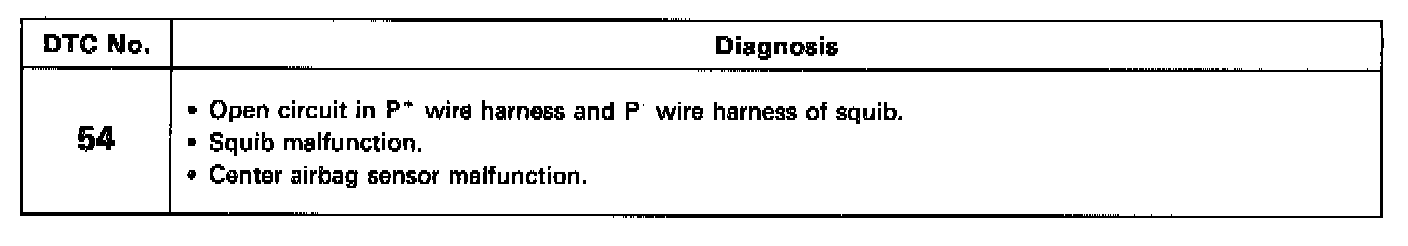

Diagnostic trouble code 54 is recorded when an open is detected in the squib circuit.

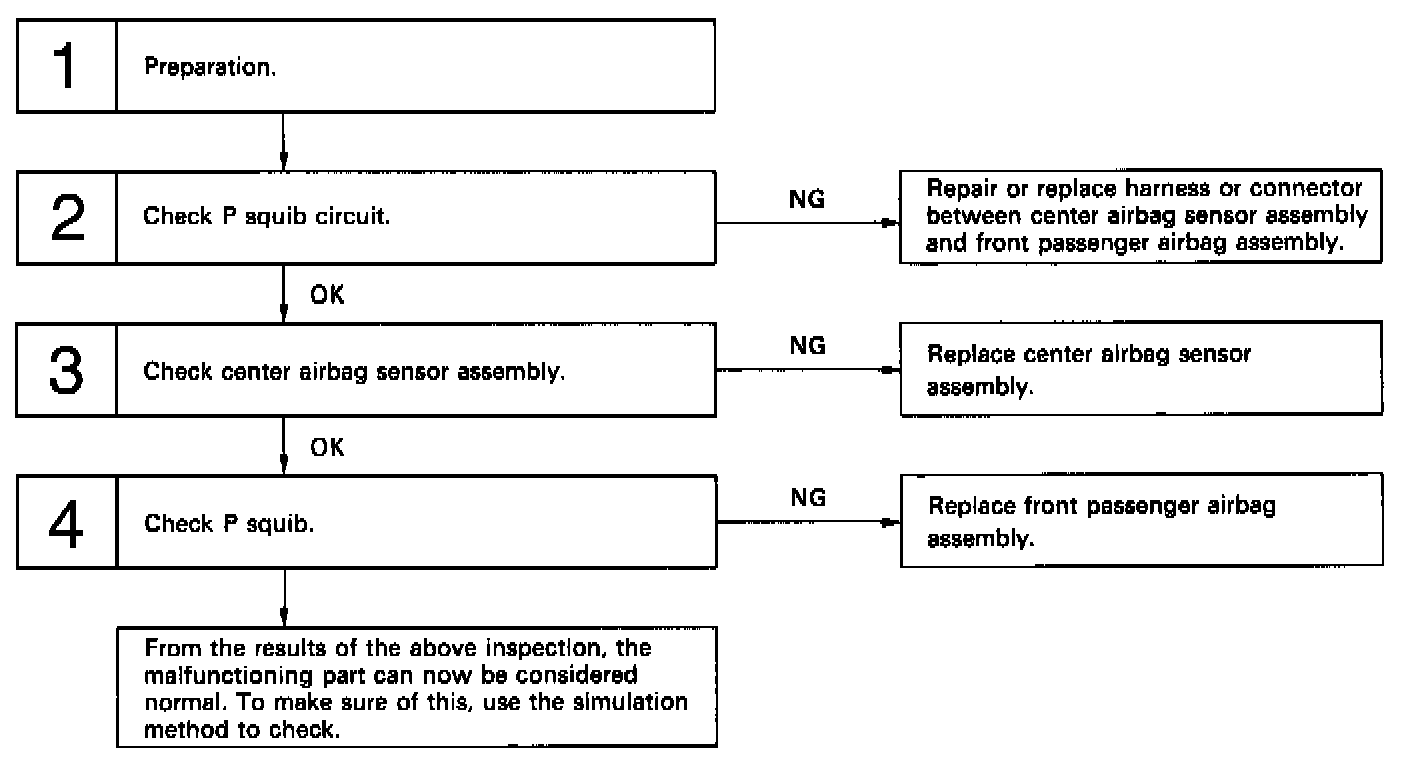

Diagnostic Chart:

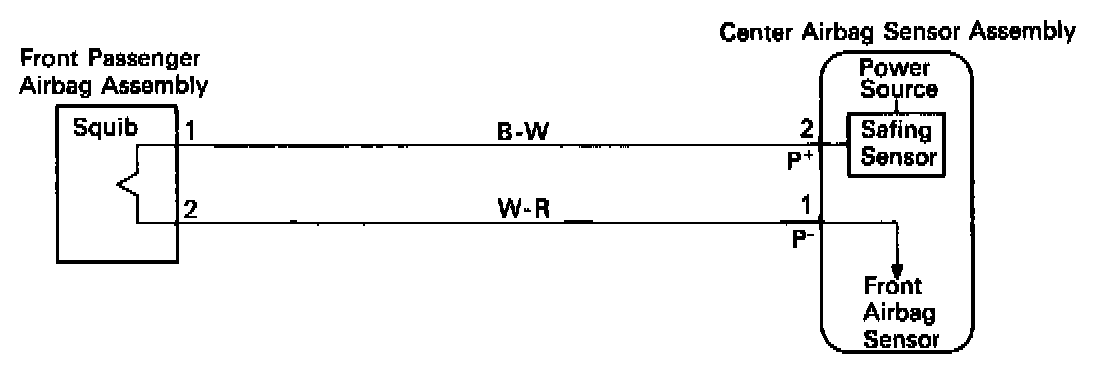

Wiring Diagram:

Inspection Procedure

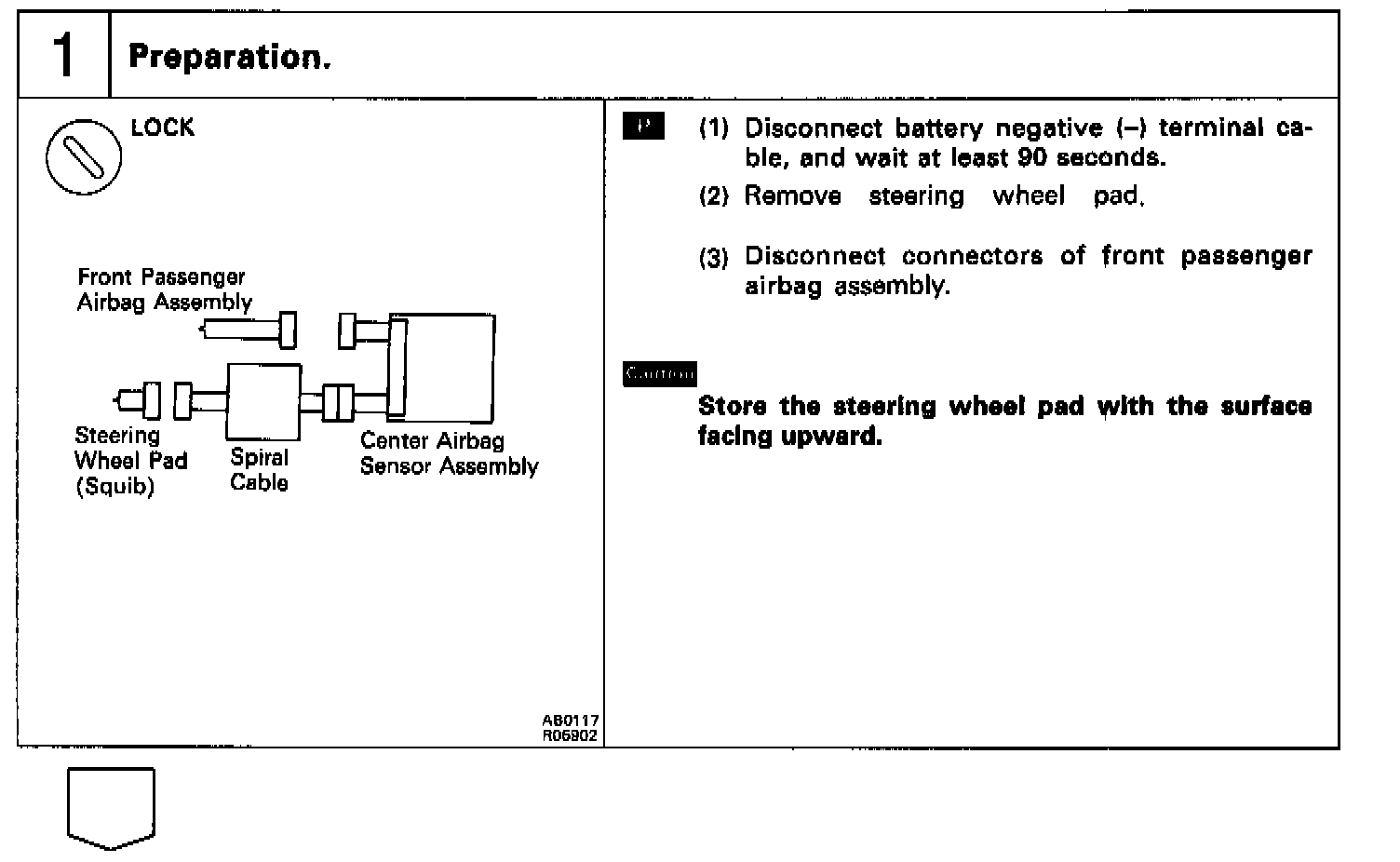

Step 1:

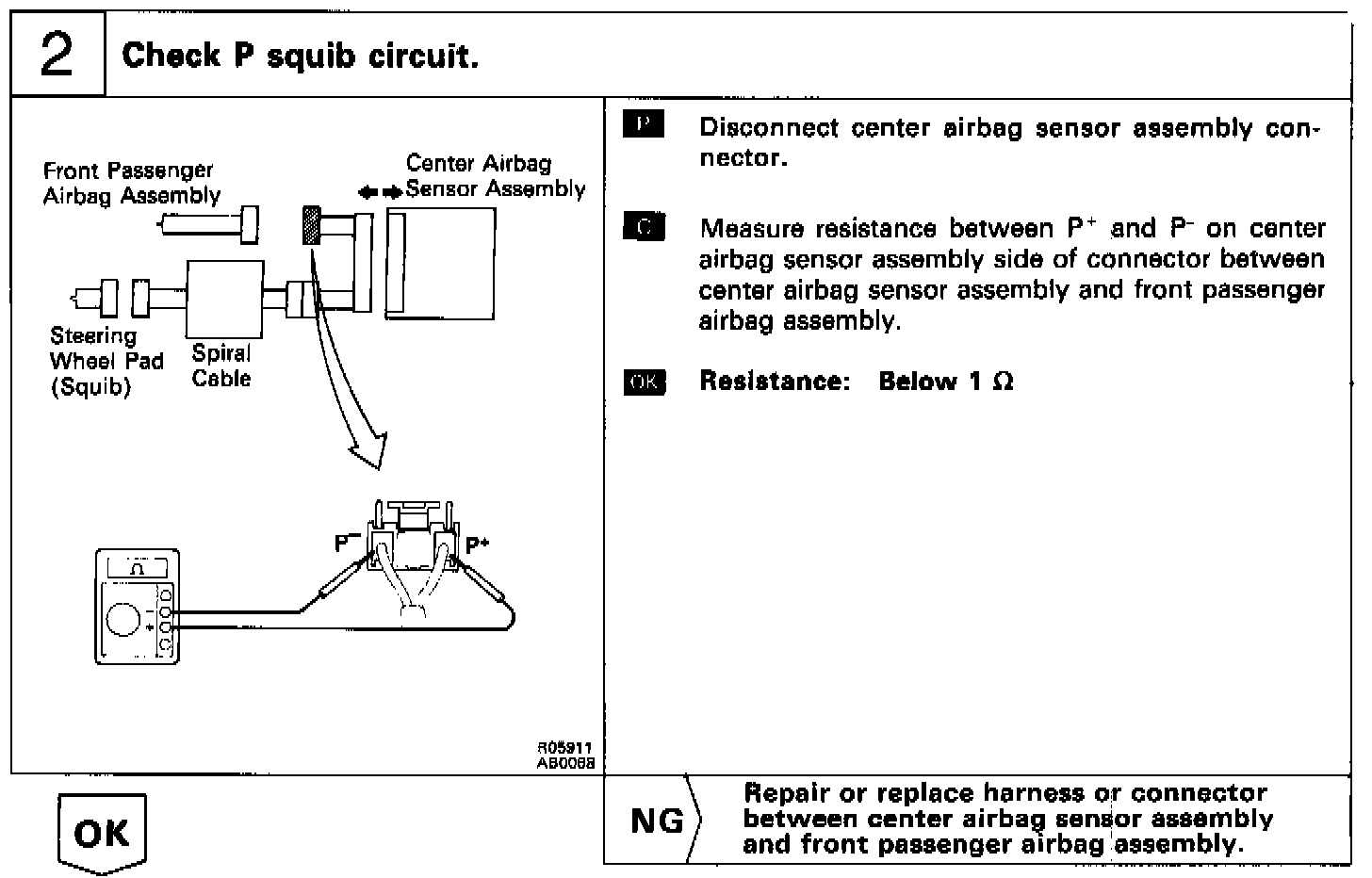

STEP 2:

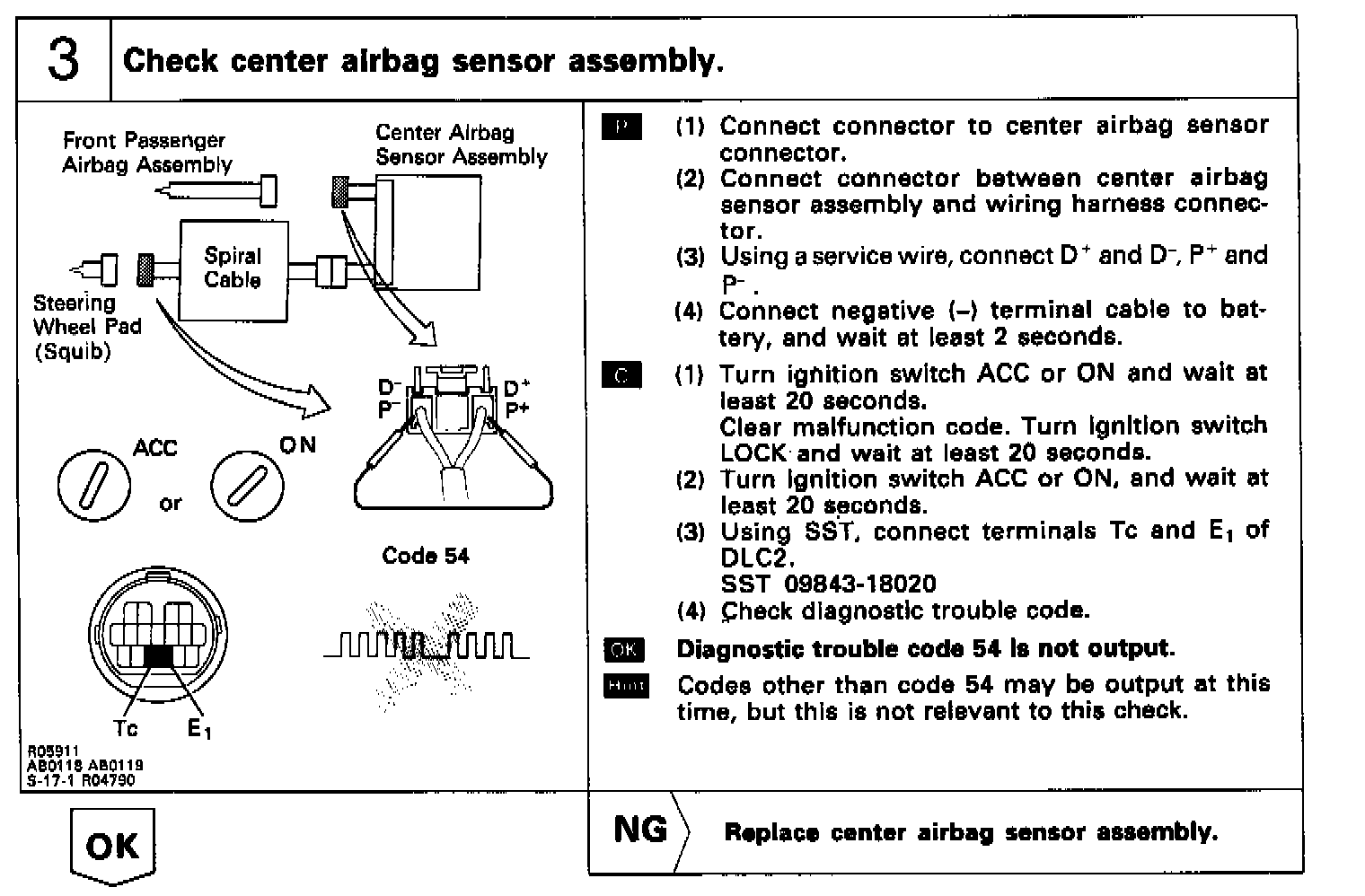

Step 3:

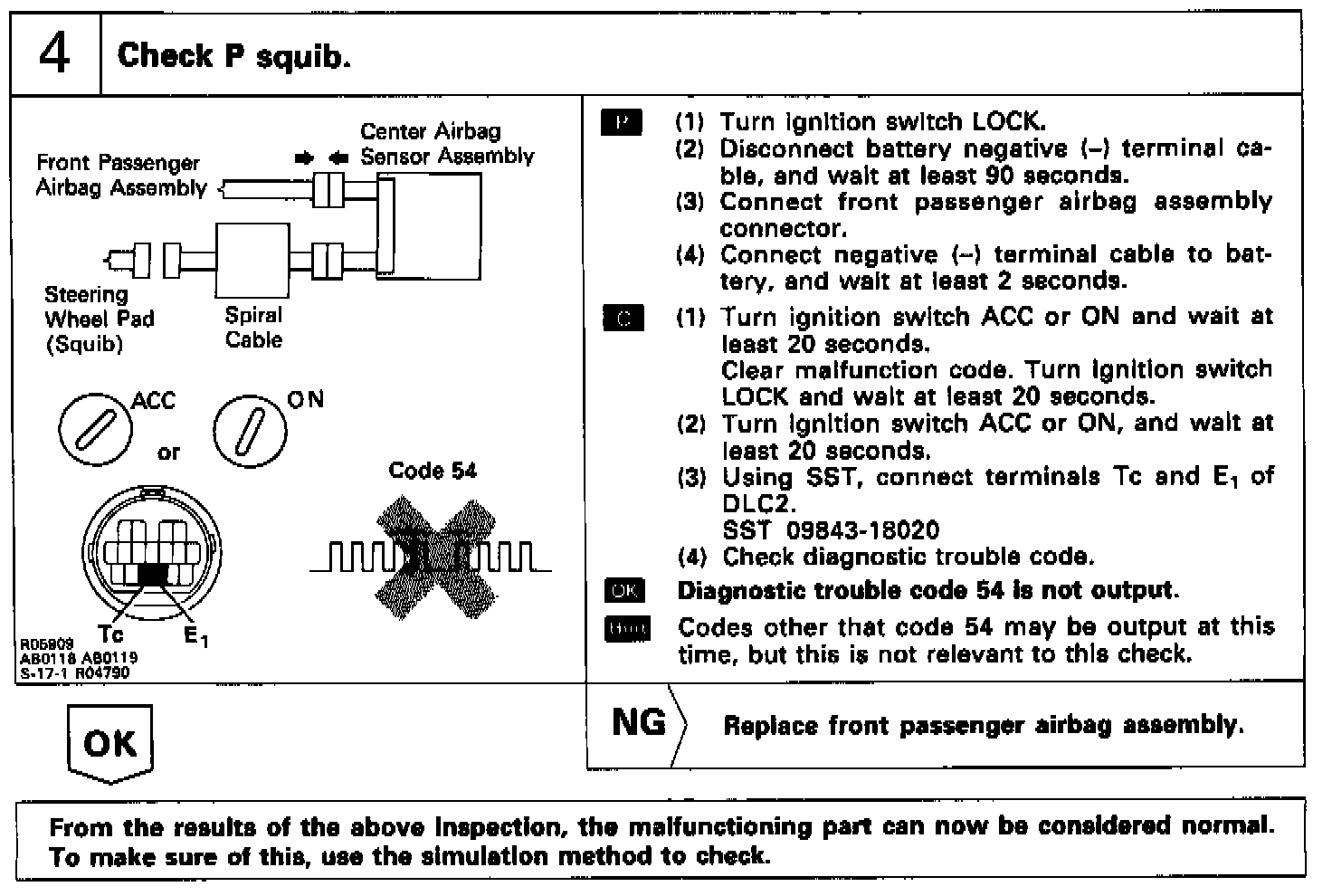

Step 4:
