DTC 31

Circuit Description
The center airbag sensor assembly consists of the center airbag sensor. safing sensors, ignition control and drive circuit, diagnosis circuit, etc.
It receives signals from the airbag sensors, judges whether or not the SRS must be deployed, and diagnoses system malfunction.

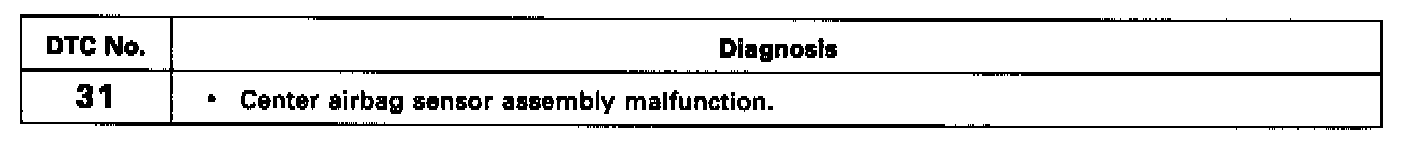

Diagnostic trouble code 31 is recorded when the occurrence of a malfunction in the center airbag assembly is detected.

HINT: When a malfunction code other than code 31 is displayed at the same time, first repair the malfunction indicated by the malfunction code other than 31.

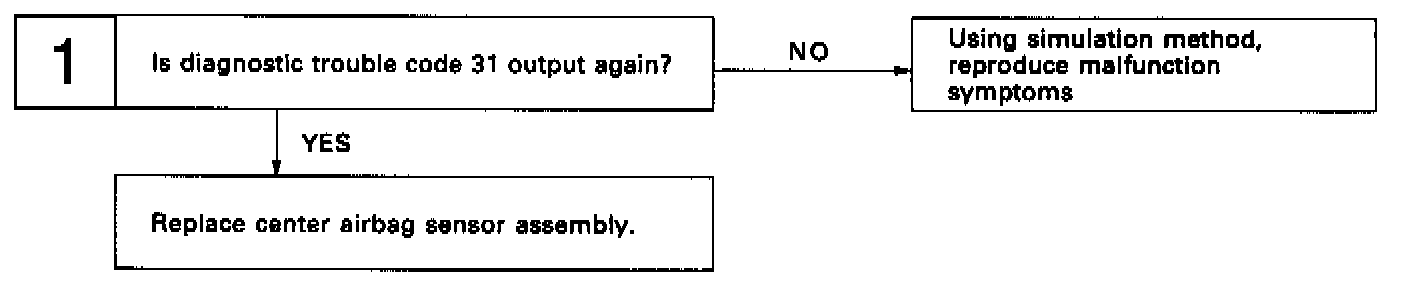

Diagnostic Chart:

Inspection Procedure

Step 1:
