DTC 15

Circuit Description
The front airbag sensor detects the deceleration force in a frontal collision and is located in thefront fender on the left and right sides.
Diagnostic trouble code 15 is recorded when an open is detected in the front airbag sensor circuit.

NOTICE: The front airbag sensor connector is equipped with an electrical connection check mechanism for the purpose of detecting an open in the front airbag sensor.This mechanism is constructed so that when the terminals of the front airbag sensor have been connected (when the connector housing lock is in the locked condition), the connection detection pin on the wire harness side connects with the terminals for diagnosis use on the sensor side. If the connector is not properly connected, the diagnosis system may detect only a malfunction code, even though the supplemental restraint system is functioning normally. When connecting the front airbag sensor connector, make sure it is connected properly. If diagnostic trouble code 15 is displayed after the front airbag sensor connector has been connected, check again that it is properly connected.

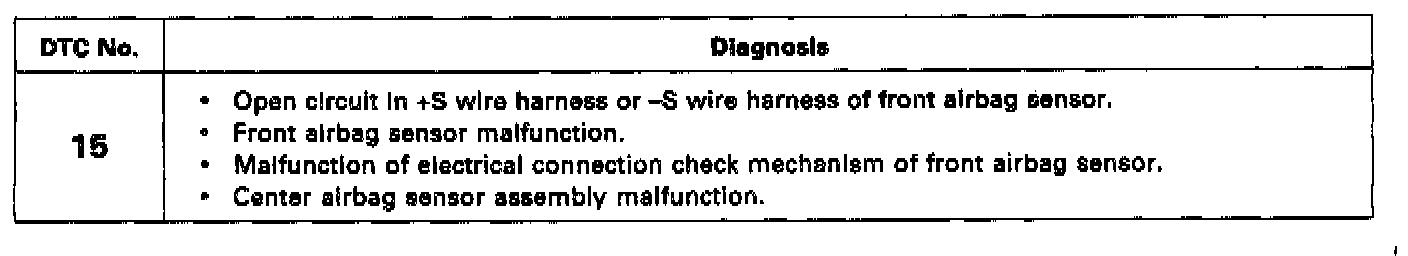

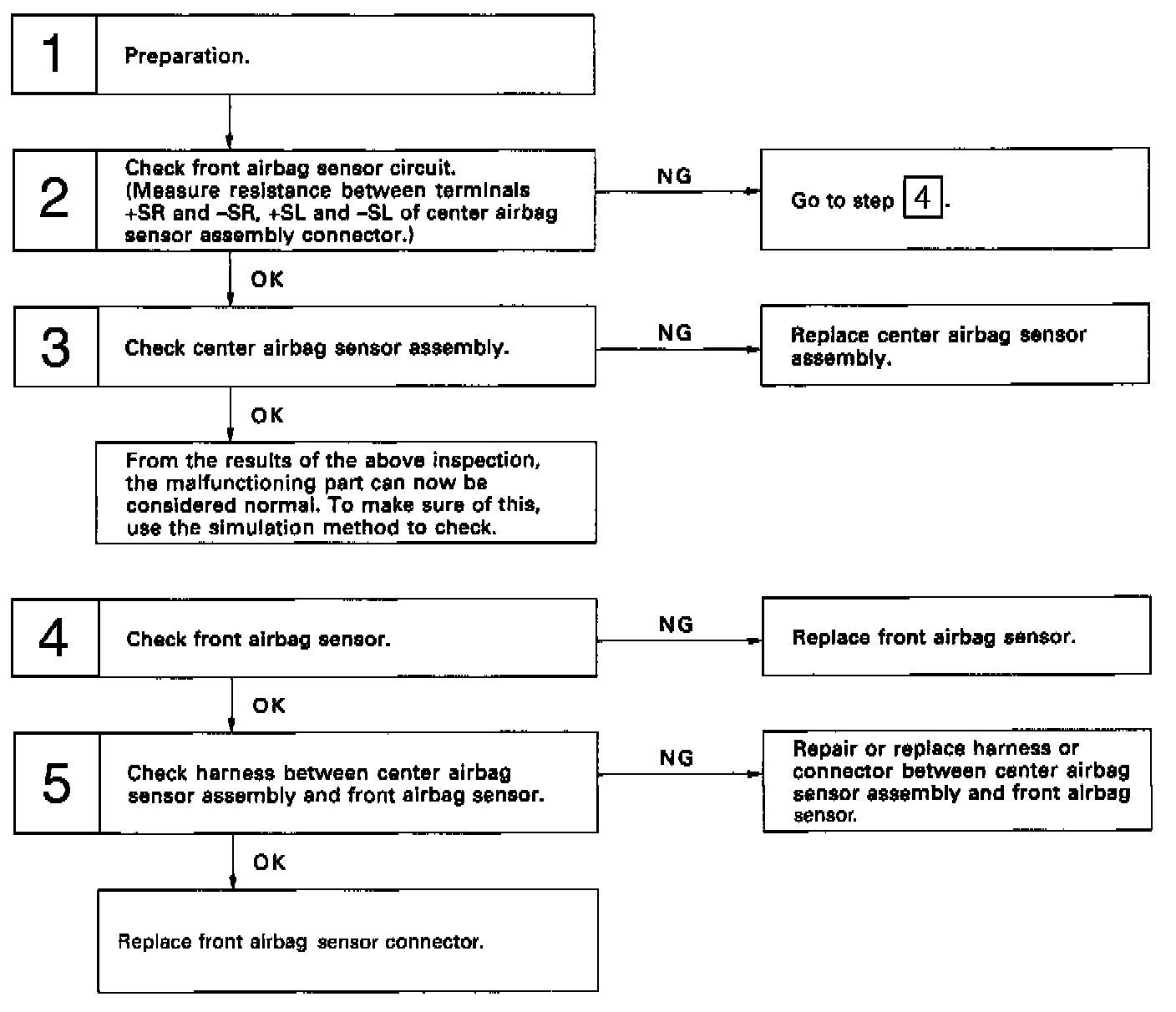

Diagnostic Chart:

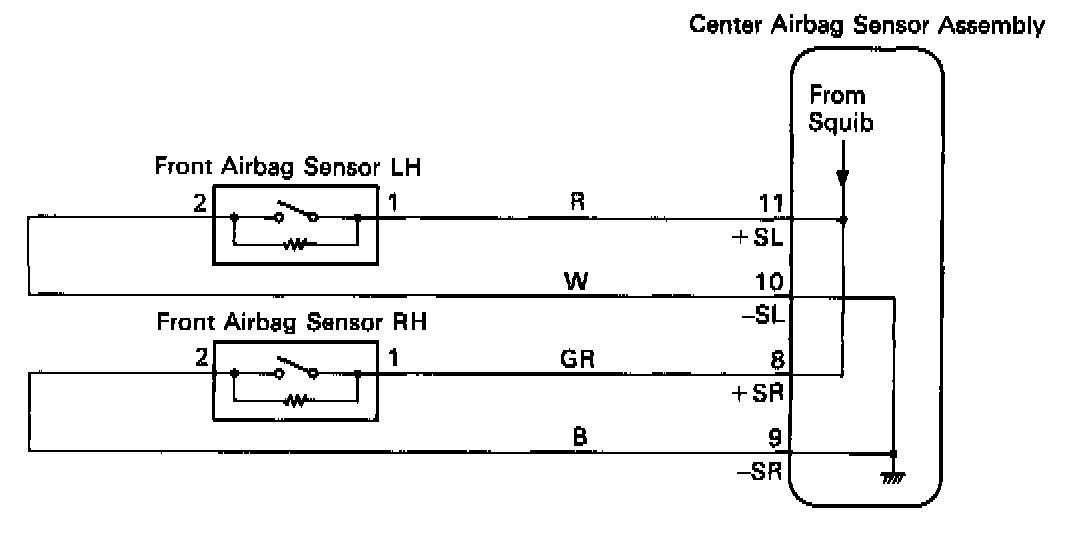

Wiring Diagram:

Inspection Procedure

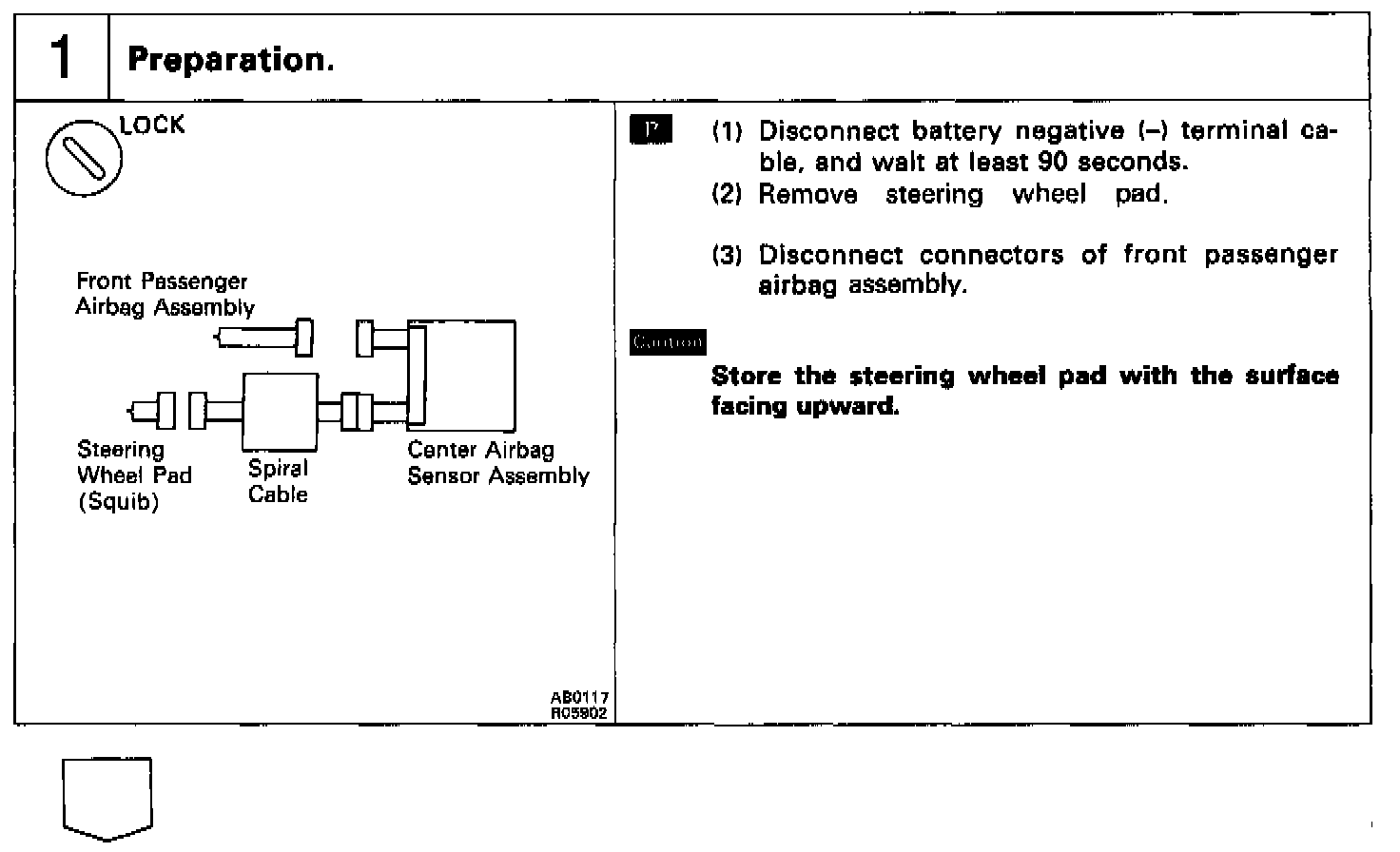

Step 1:

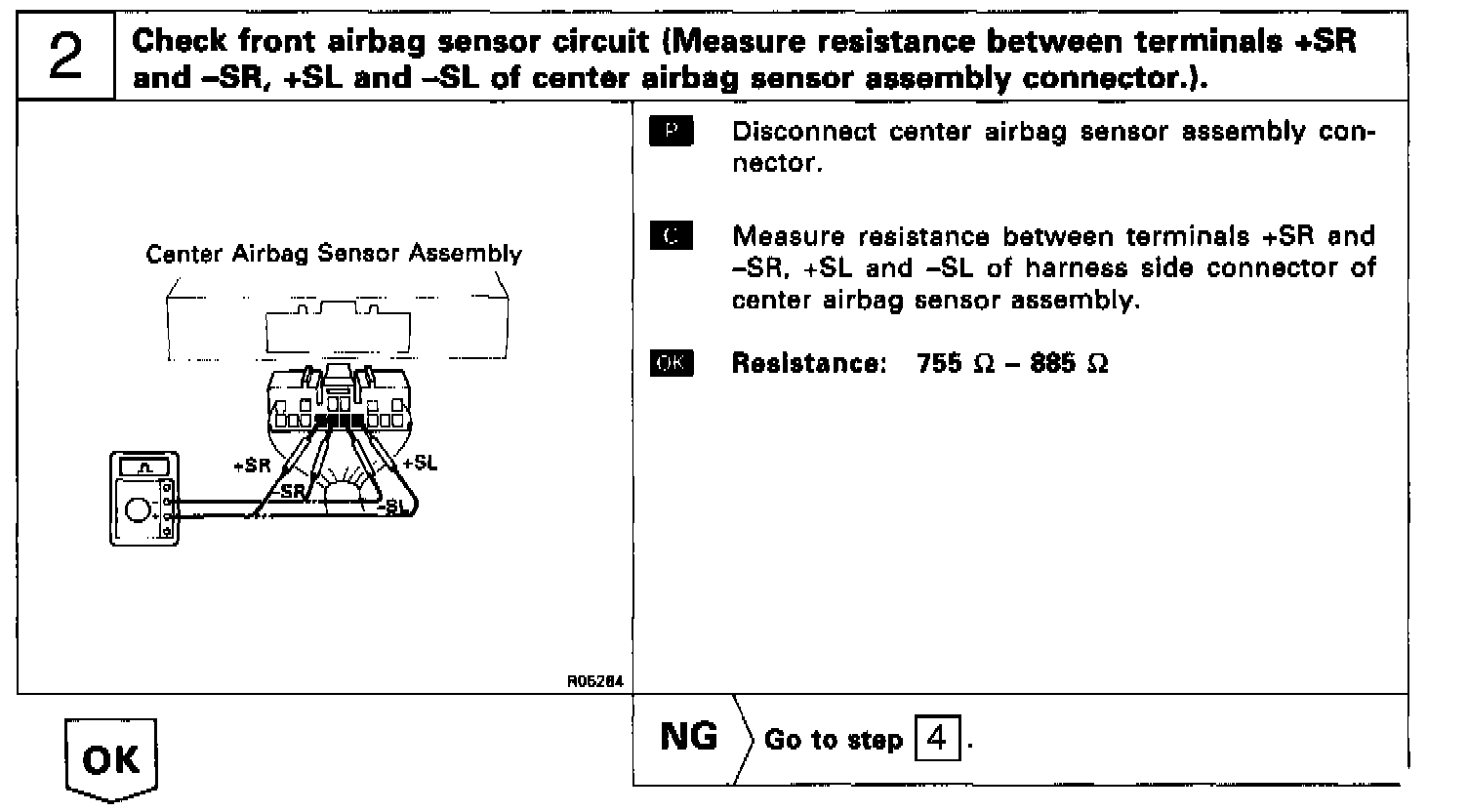

Step 2:

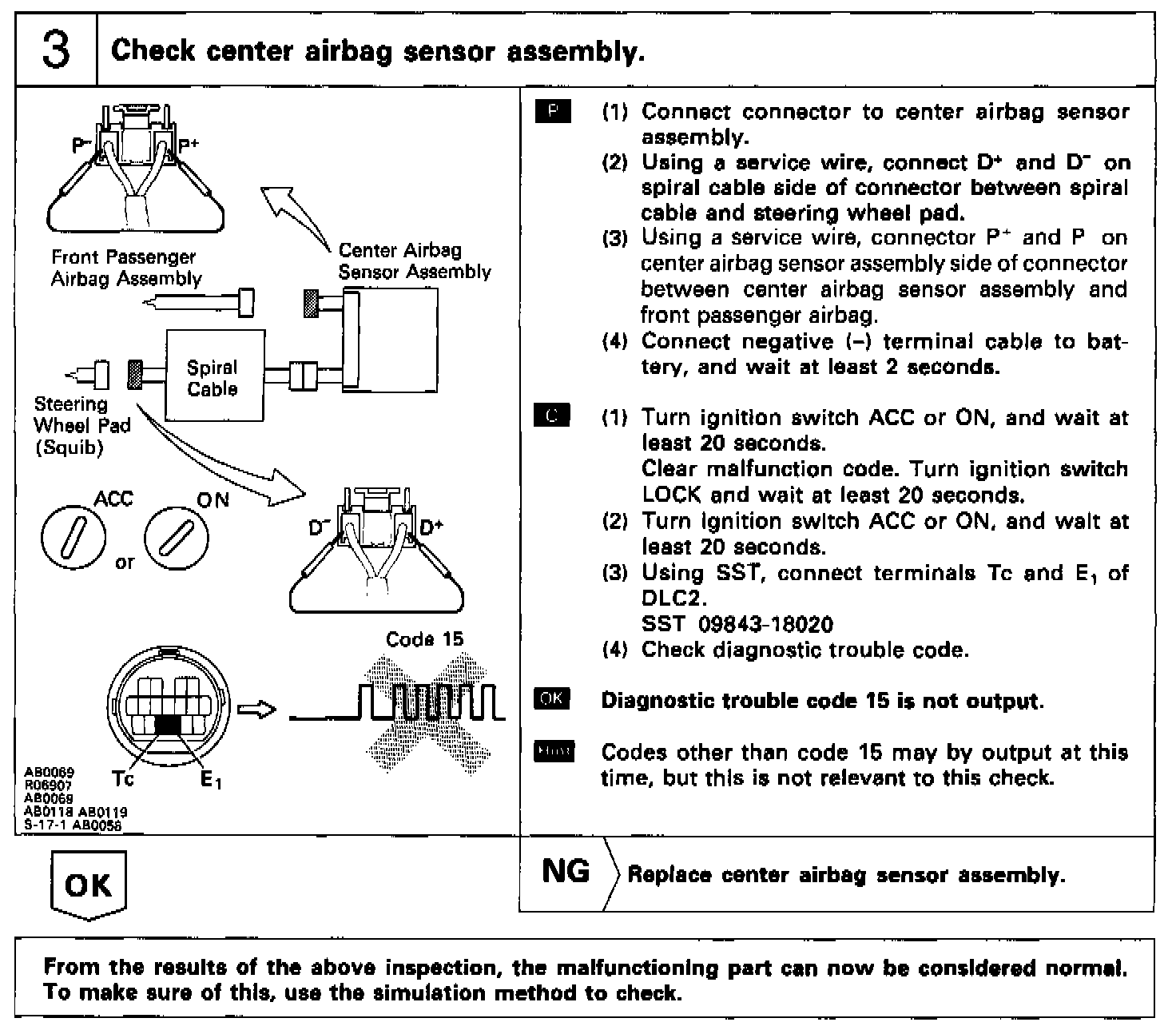

Step 3:

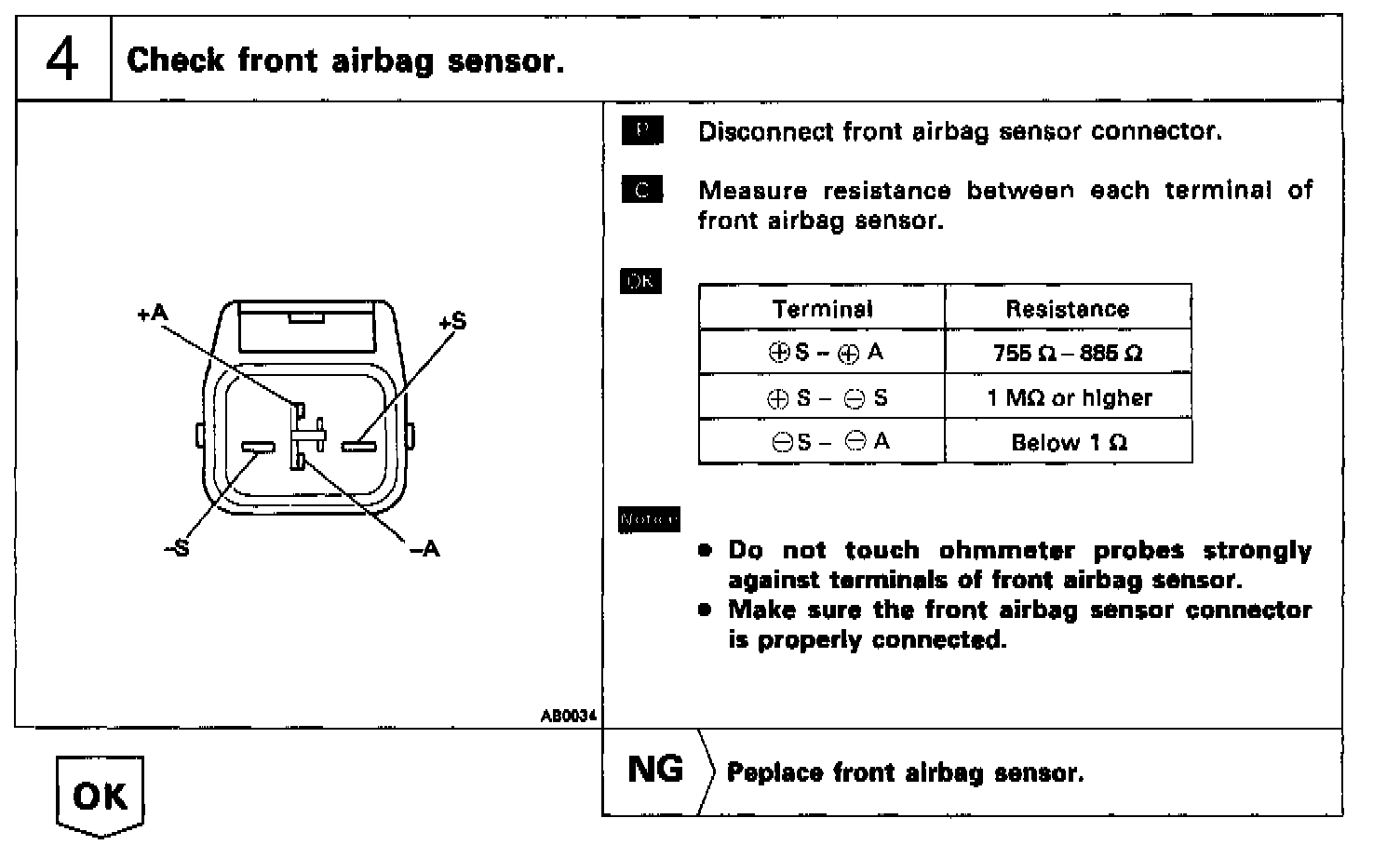

Step 4:

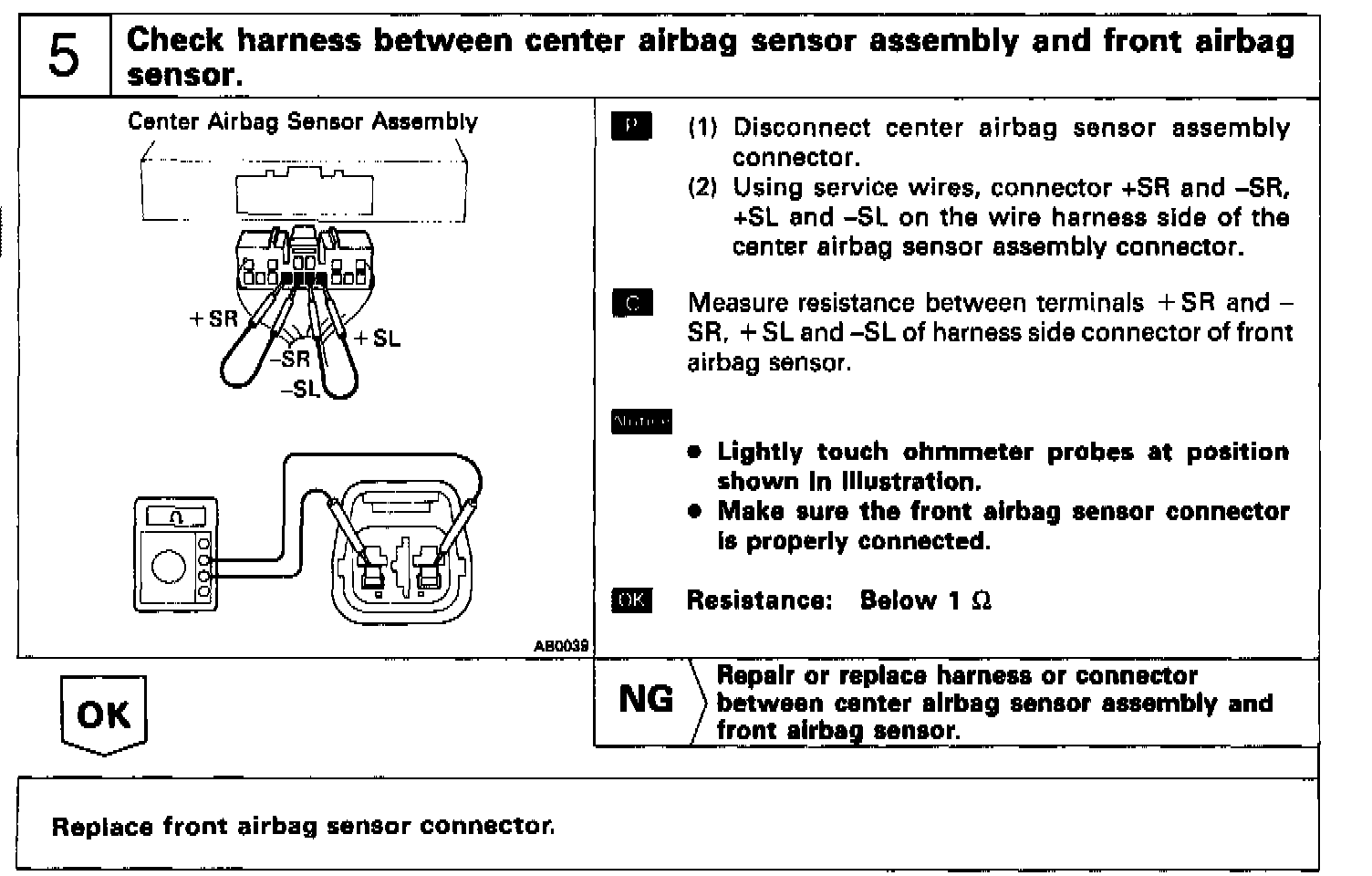

Step 5:
