DTC 14

Circuit Description
The squib circuit consists of the center airbag sensor assembly, spiral cable and the steering wheel pad (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied. Diagnostic trouble code 14 is recorded when an open is detected in the squib circuit.

DTC No. 14 Diagnosis
- Open circuit in D+ wire harness or D- wire harness of squib.
- Squib malfunction.
- Spiral cable malfunction.
- Center airbag sensor assembly malfunction.

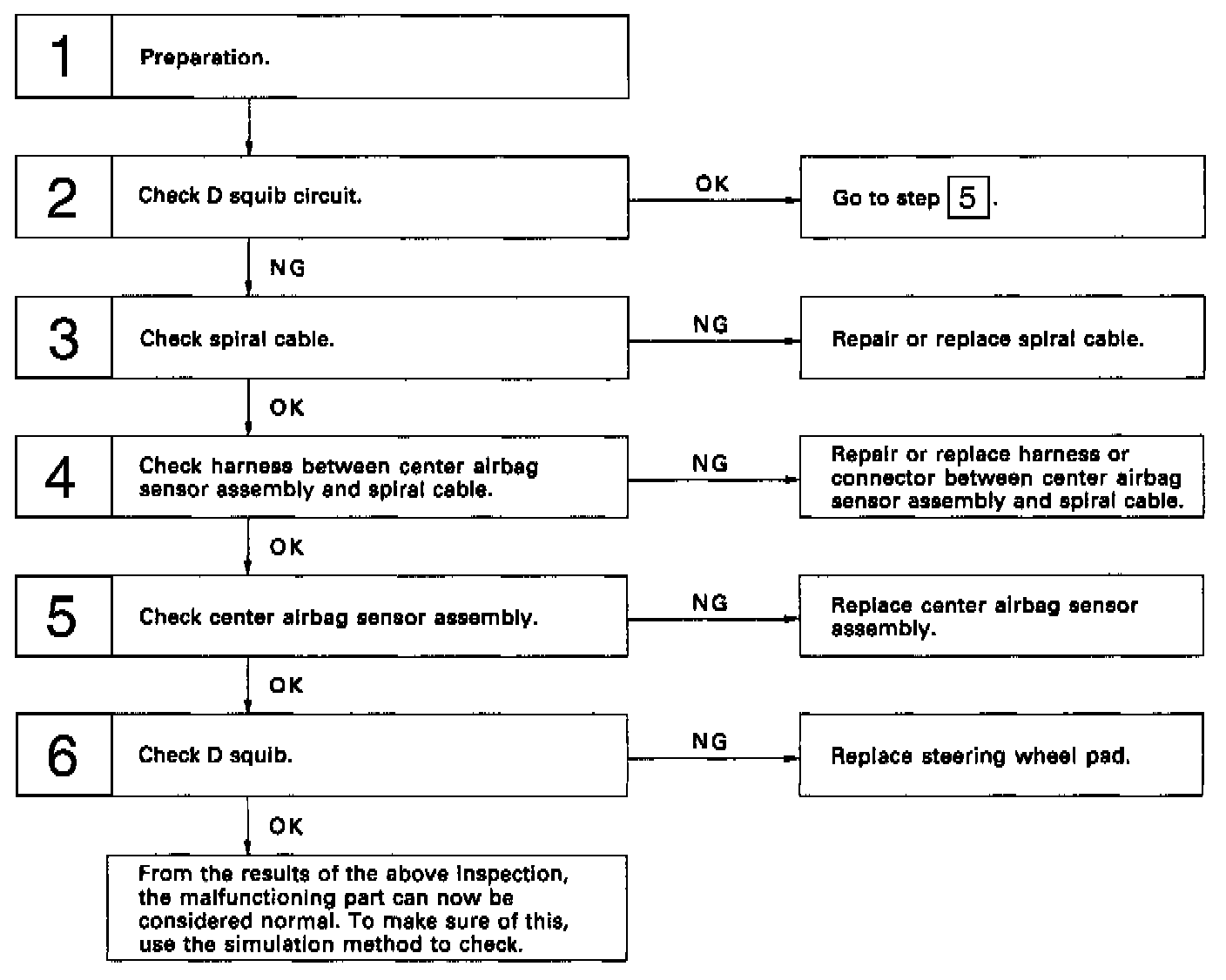

Diagnostic Chart:

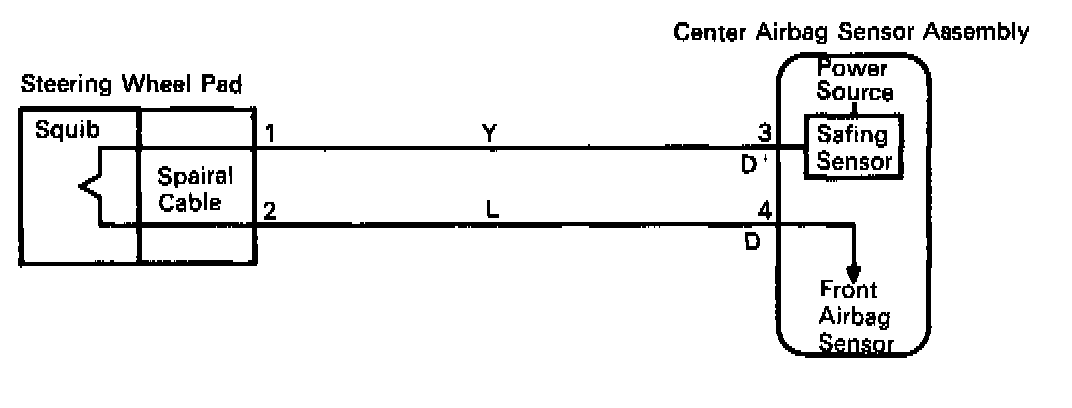

Wiring Diagram:

Inspection Procedure

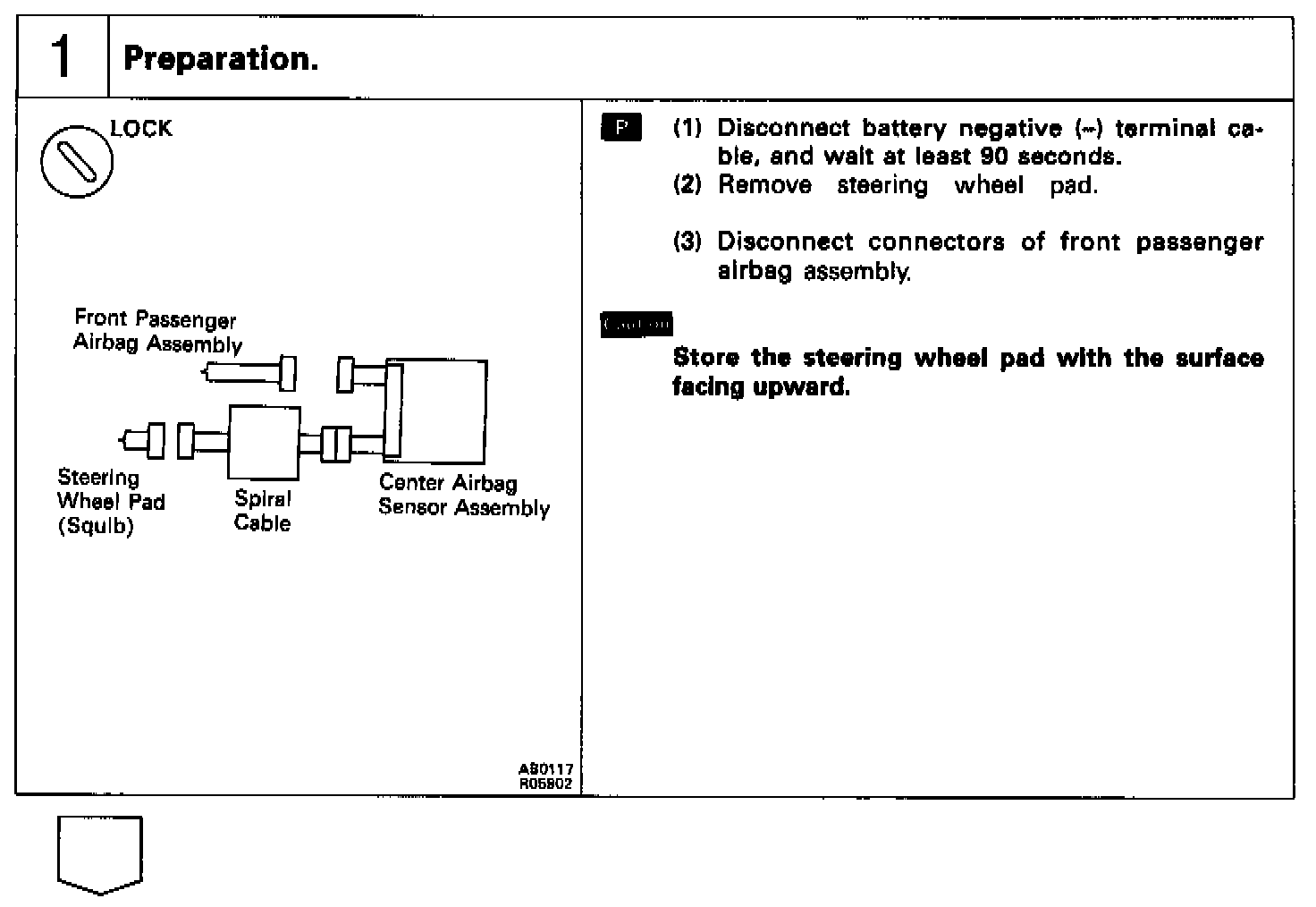

Step 1:

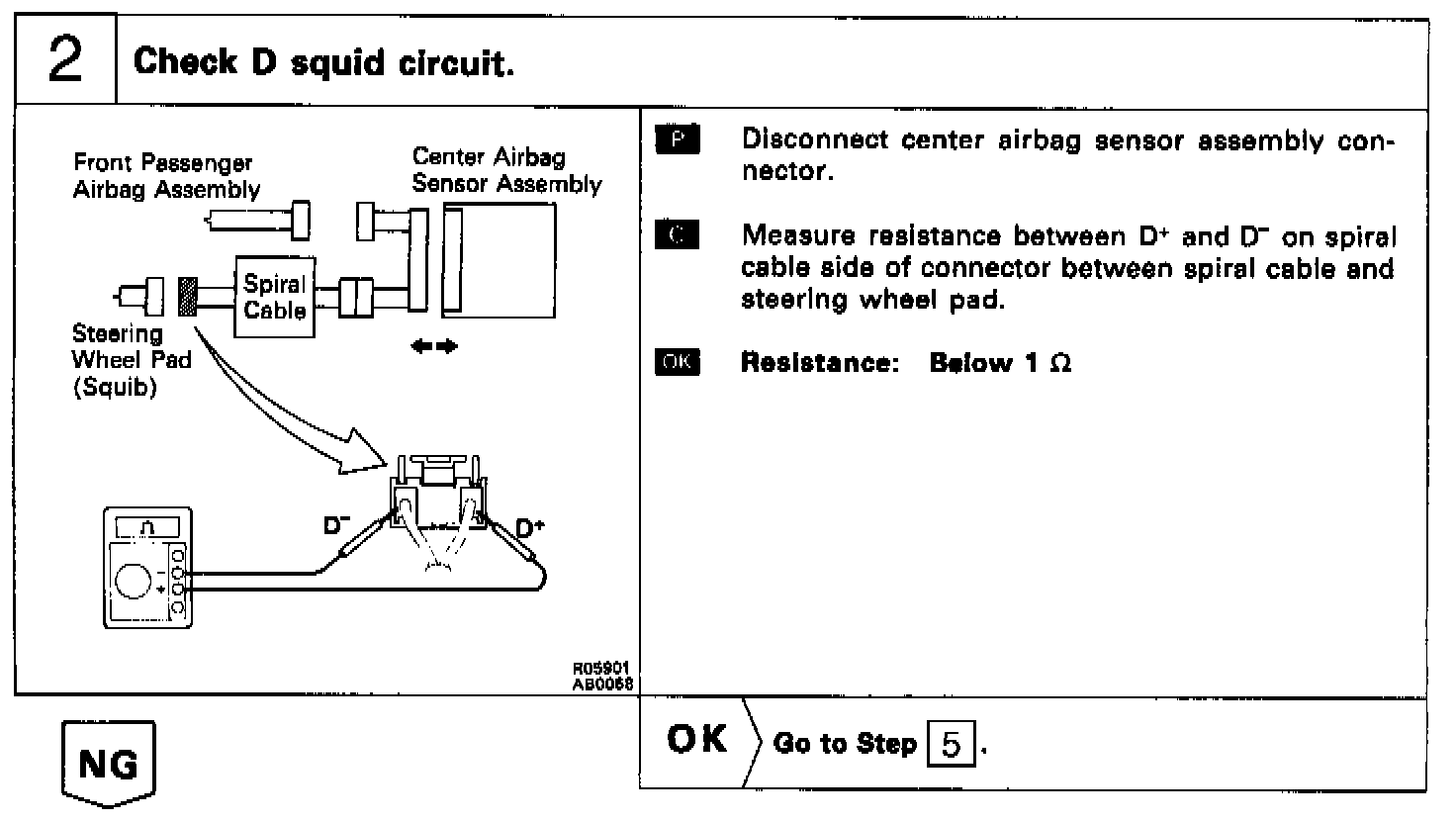

Step 2:

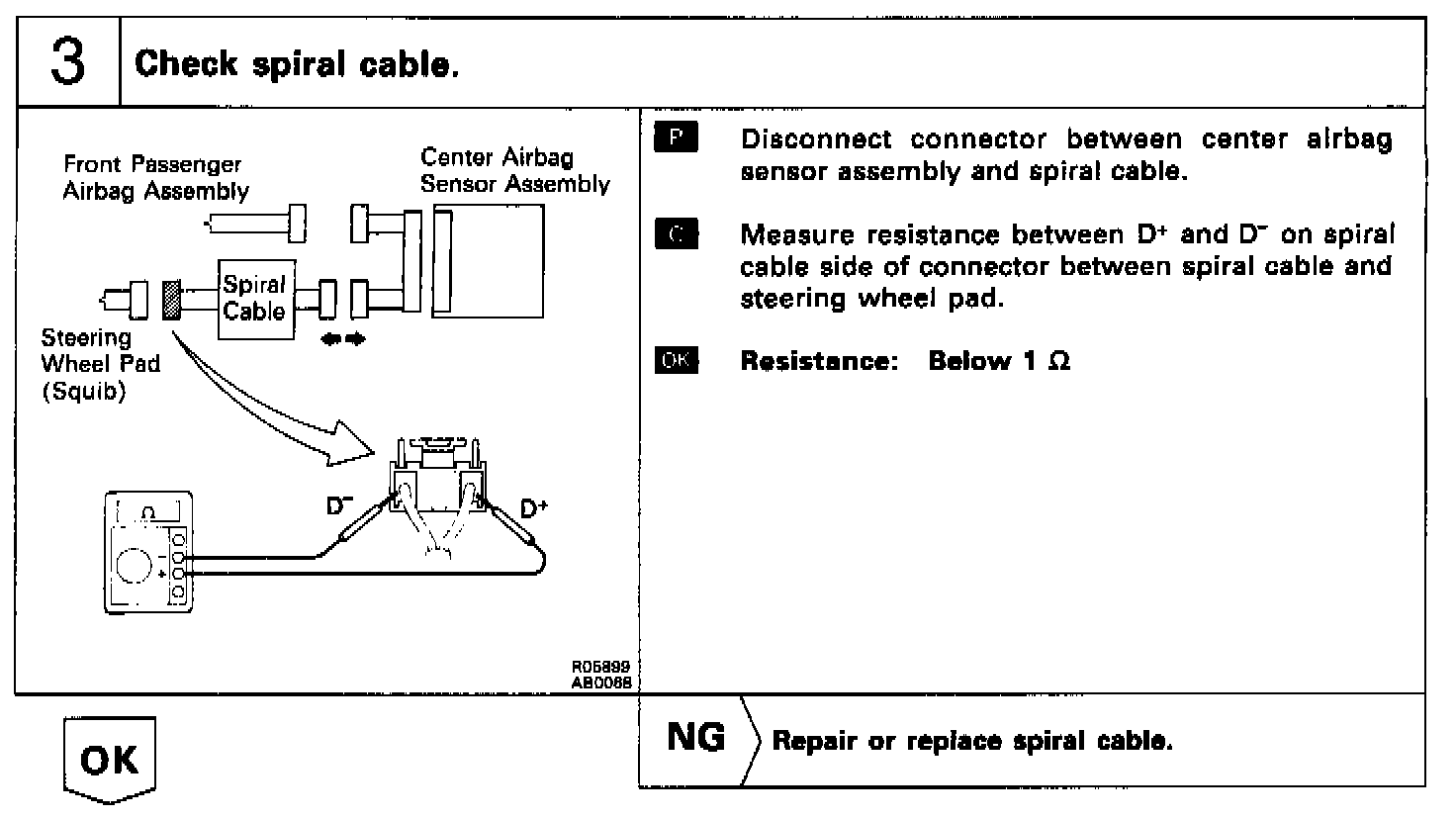

Step 3:

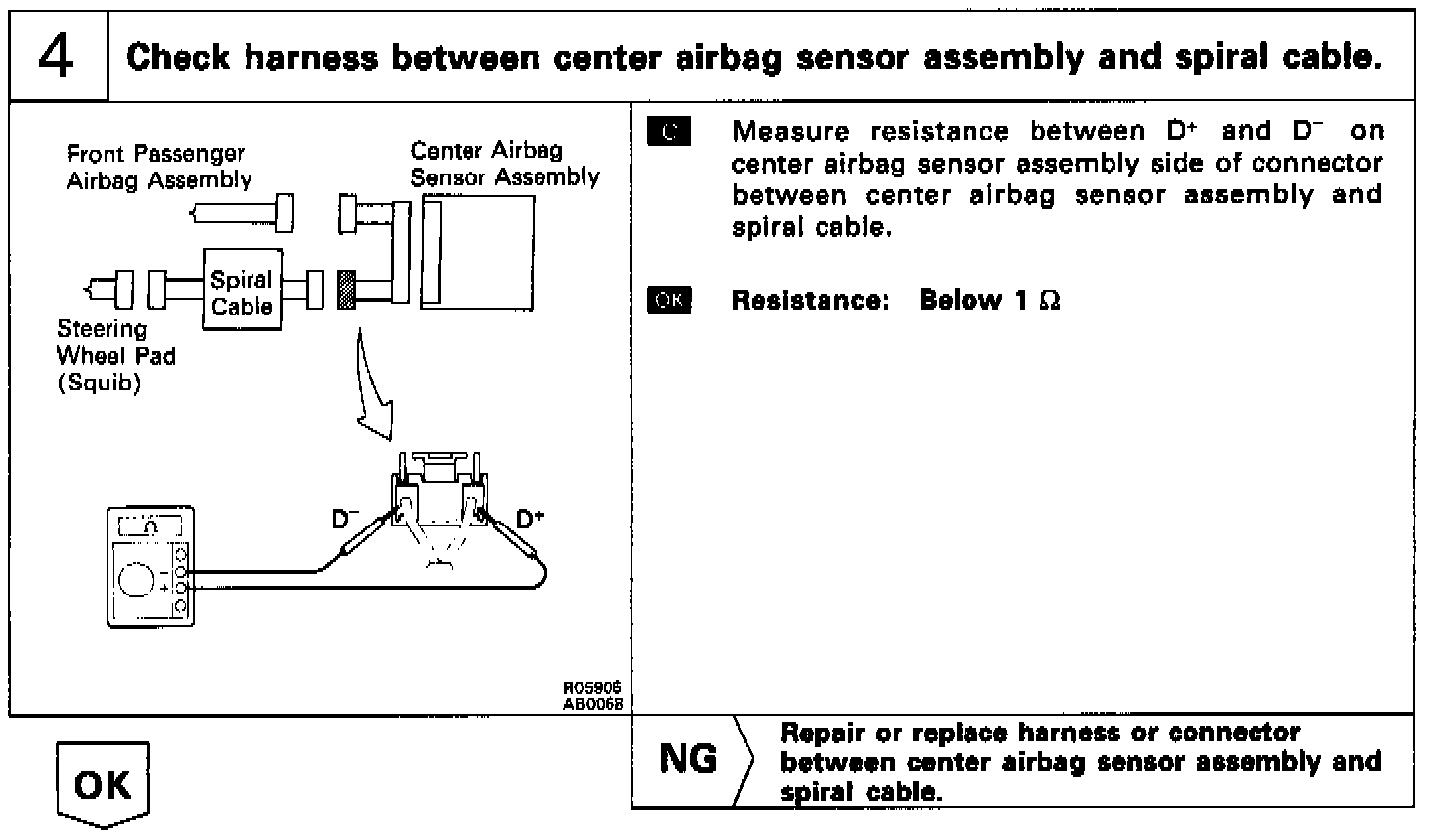

Step 4:

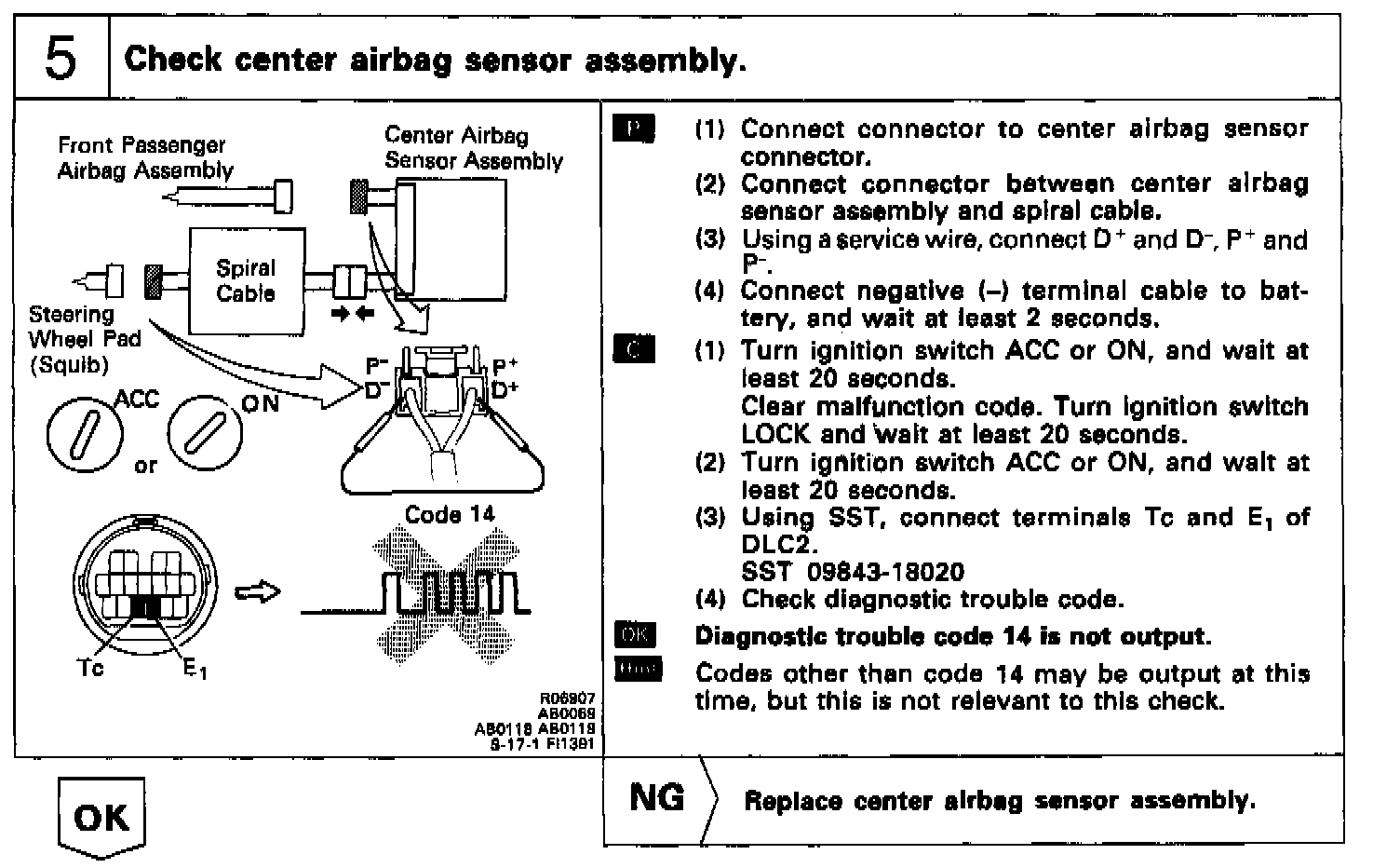

Step 5:

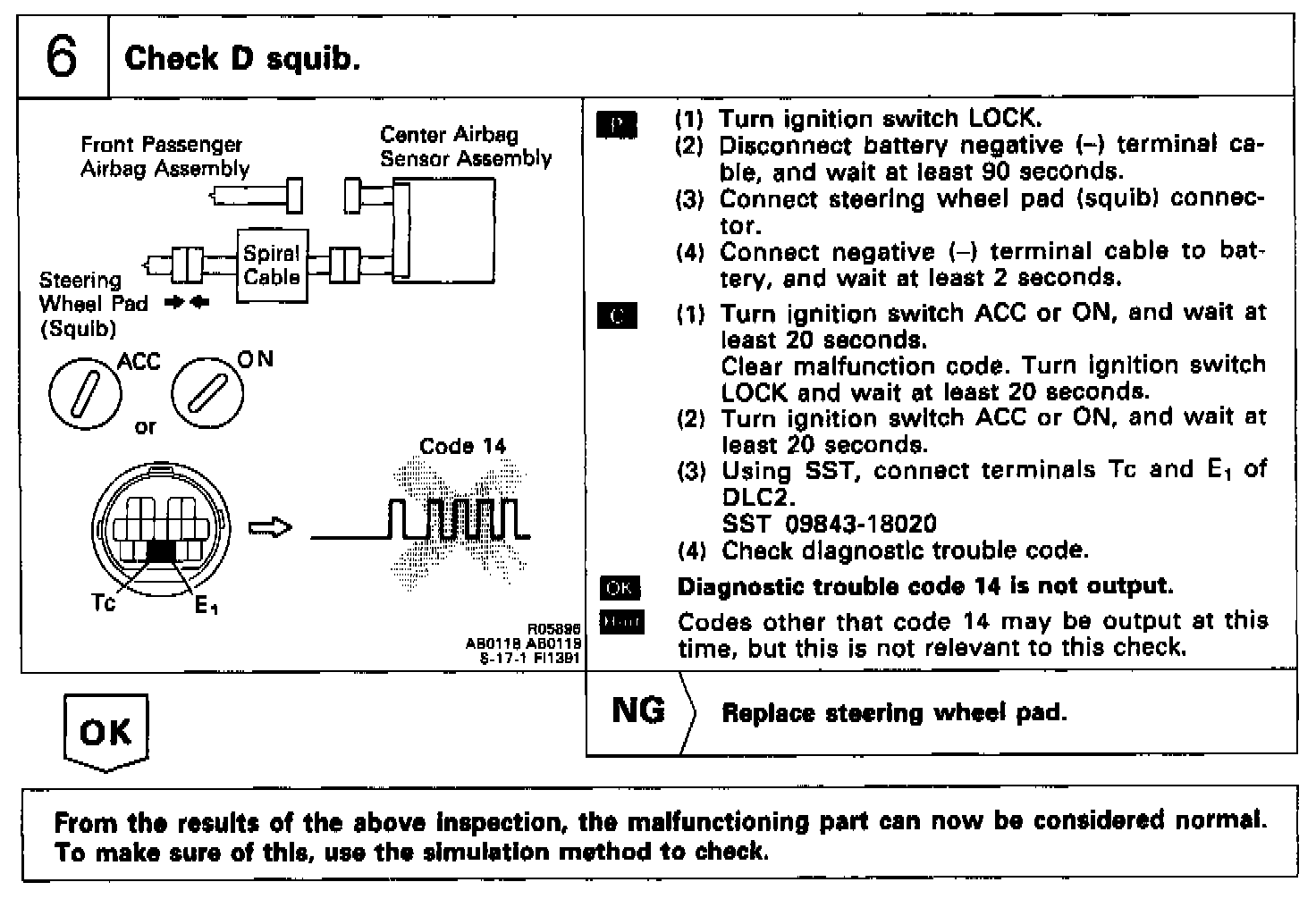

Step 6:
