DTC 11

CIRCUIT DESCRIPTION
The squib circuit consists of the center airbag sensor assembly, spiral cable and the steering wheel pad (squib), wire harness connector and front passenger airbag assembly (squib). It causes the SRS to operate when the SRS operation conditions are satisfied.
The front airbag sensor detects the deceleration force in a frontal collision and is located in the front fender on the left and right sides.

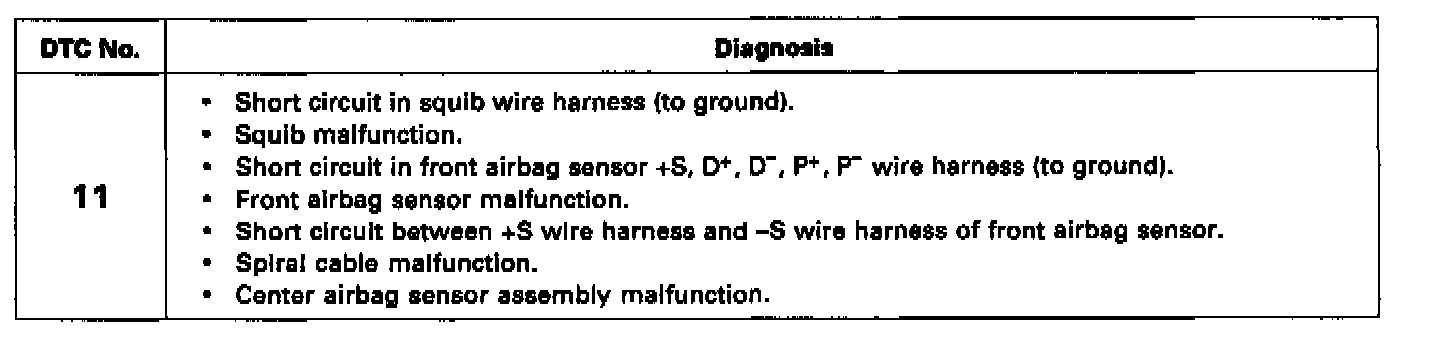

Diagnostic trouble code 11 is recorded when occurrence of ground short is detected in the squib circuit or front airbag sensor circuit.

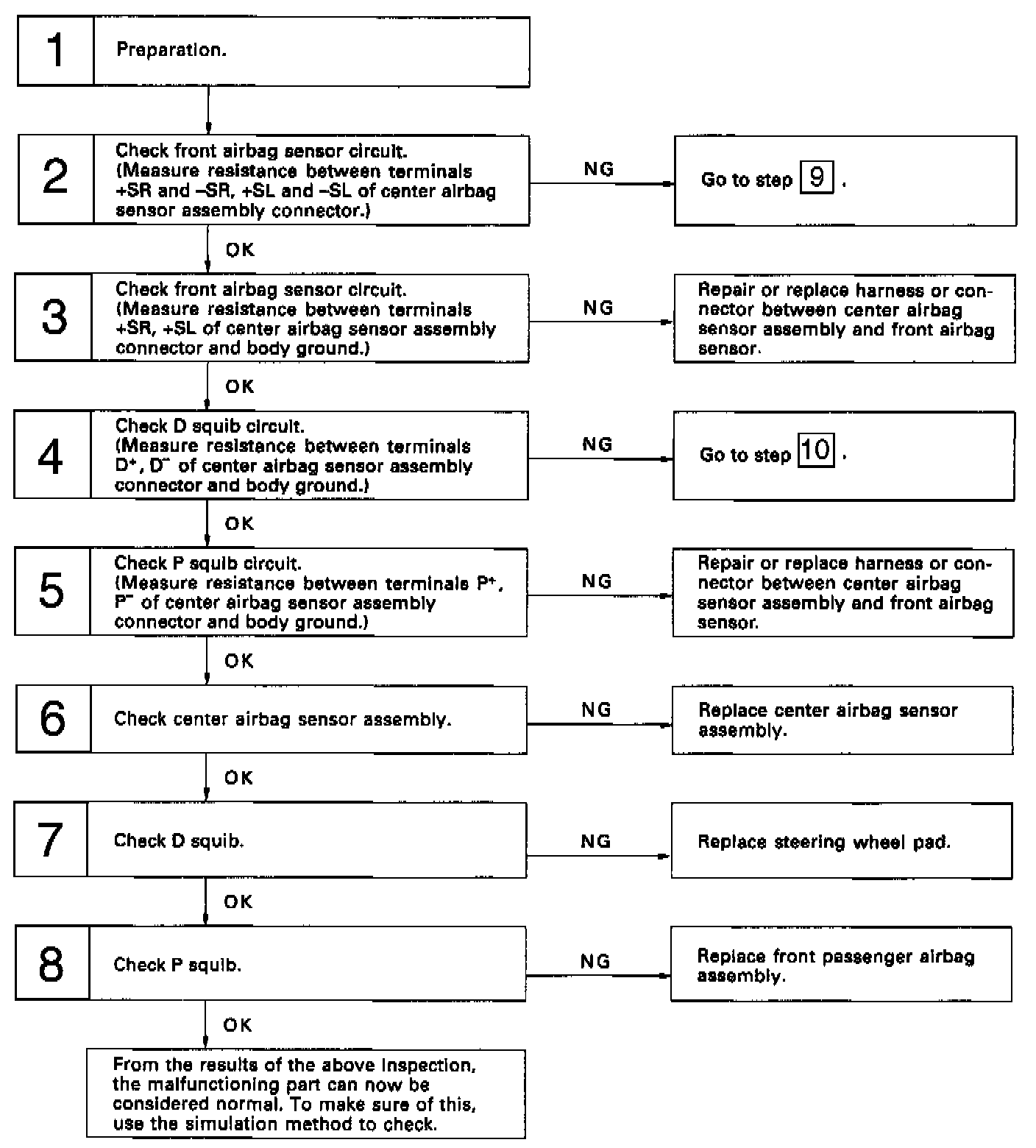

Diagnostic Chart:

Diag. Chart (Cont'd):

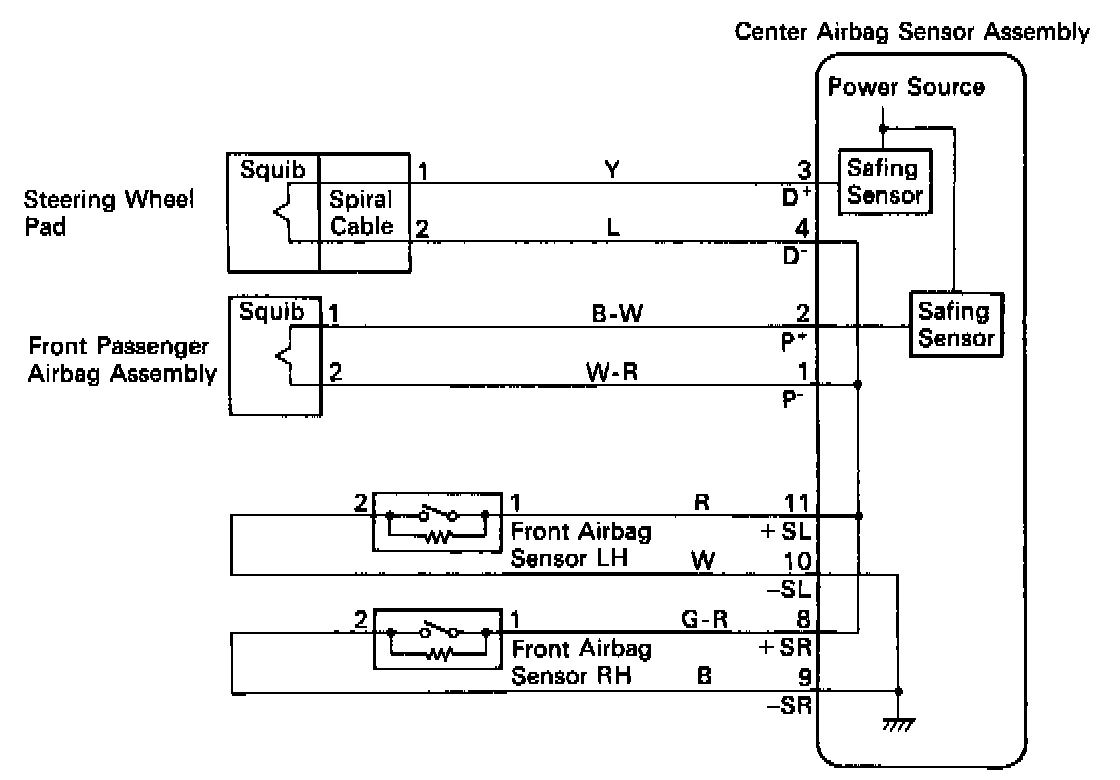

Wiring Diagram:

Inspection Procedure

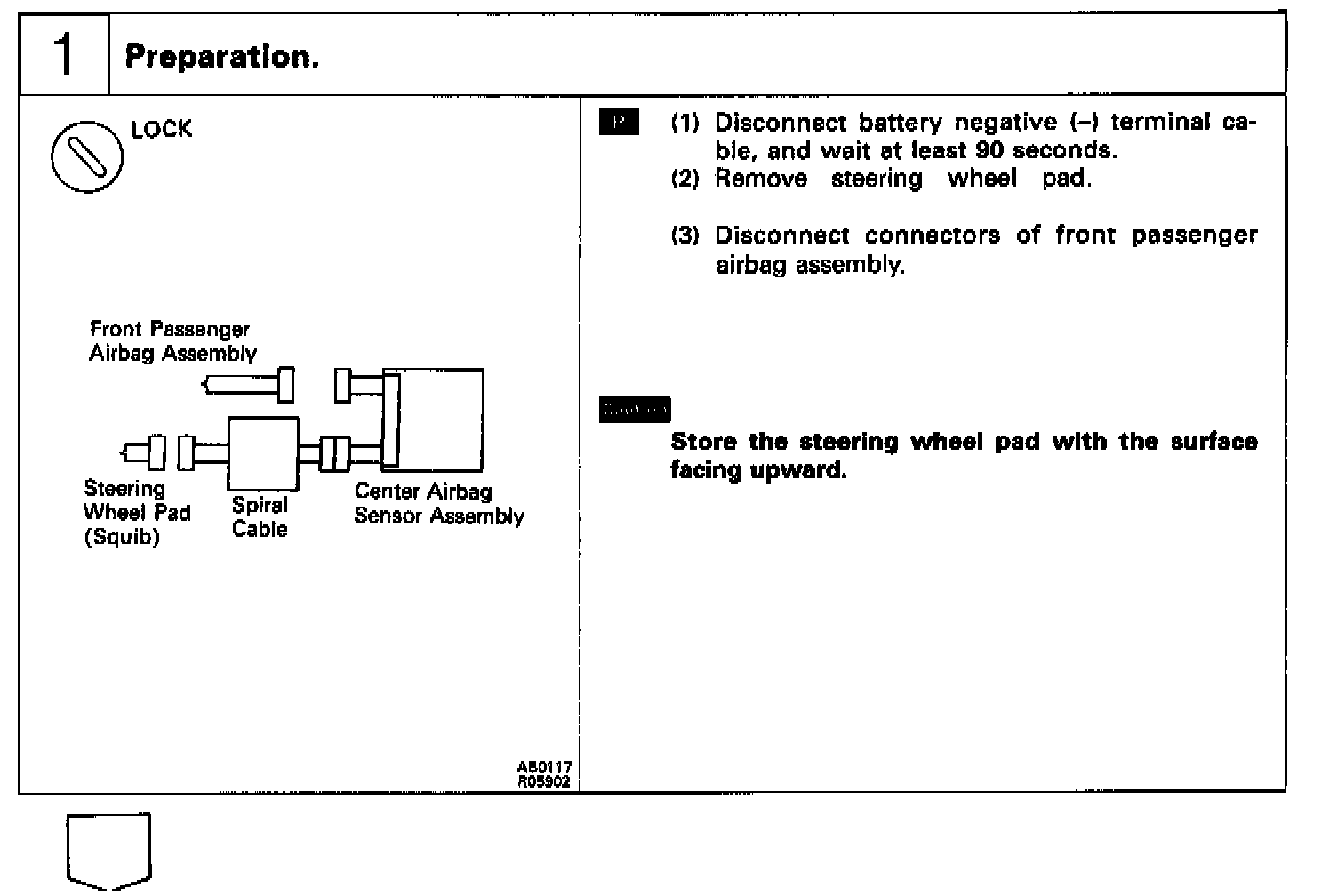

Step 1:

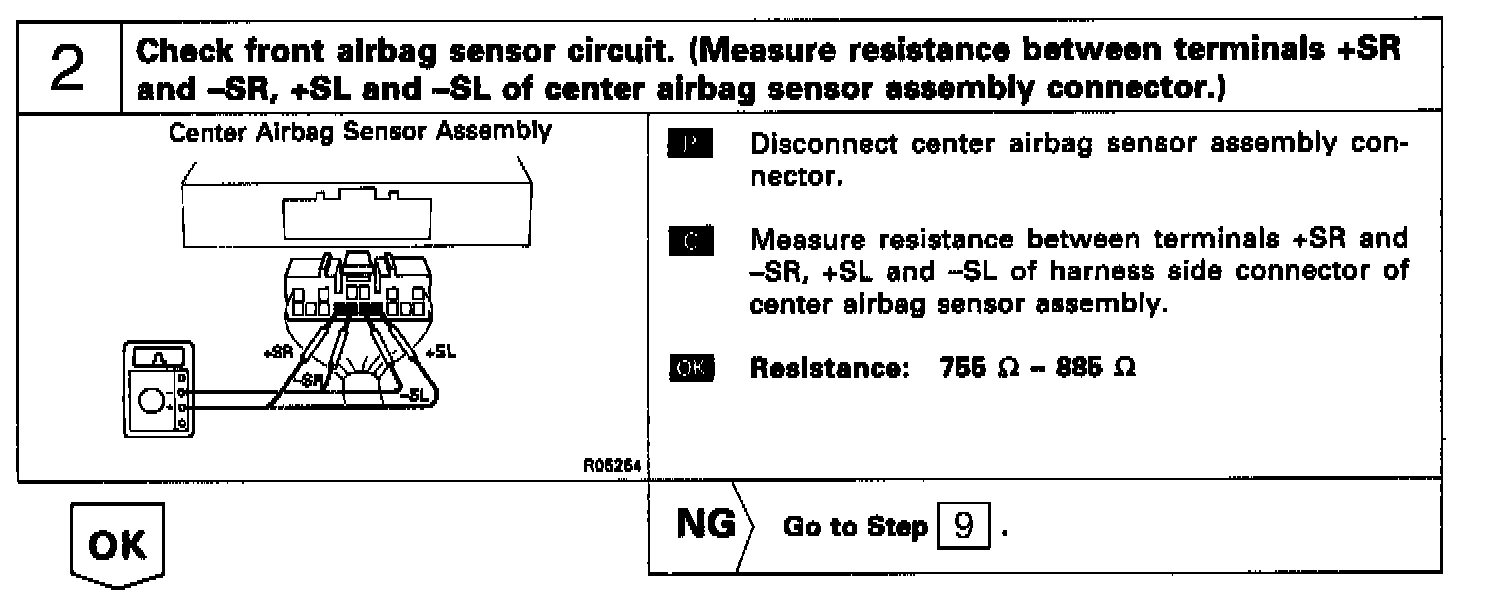

Step 2:

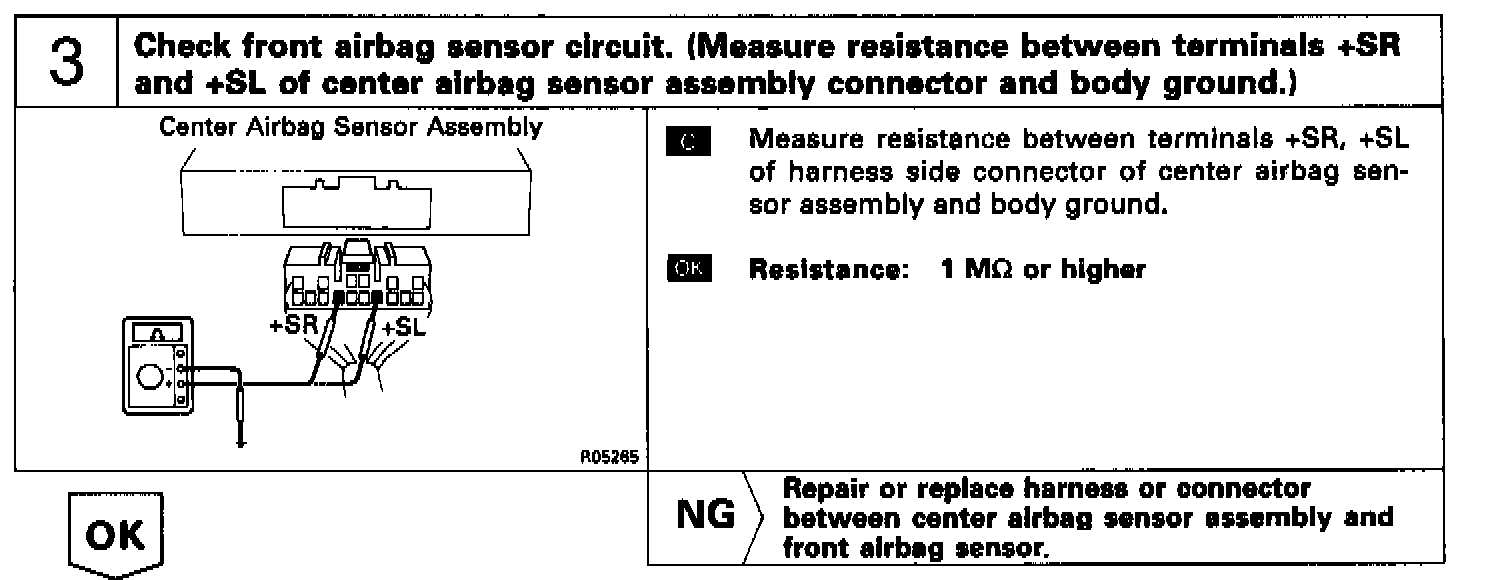

Step 3:

Step 4:

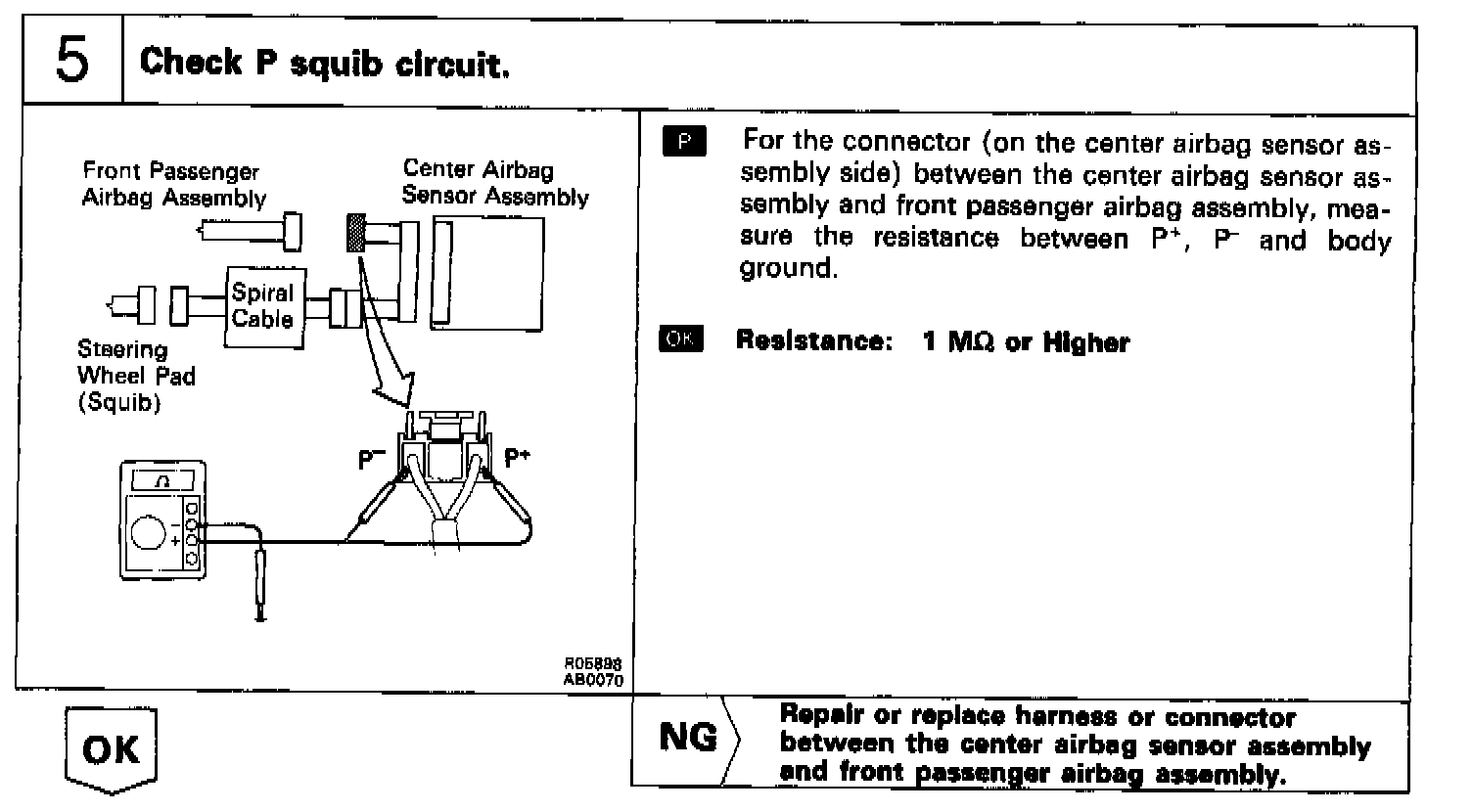

Step 5:

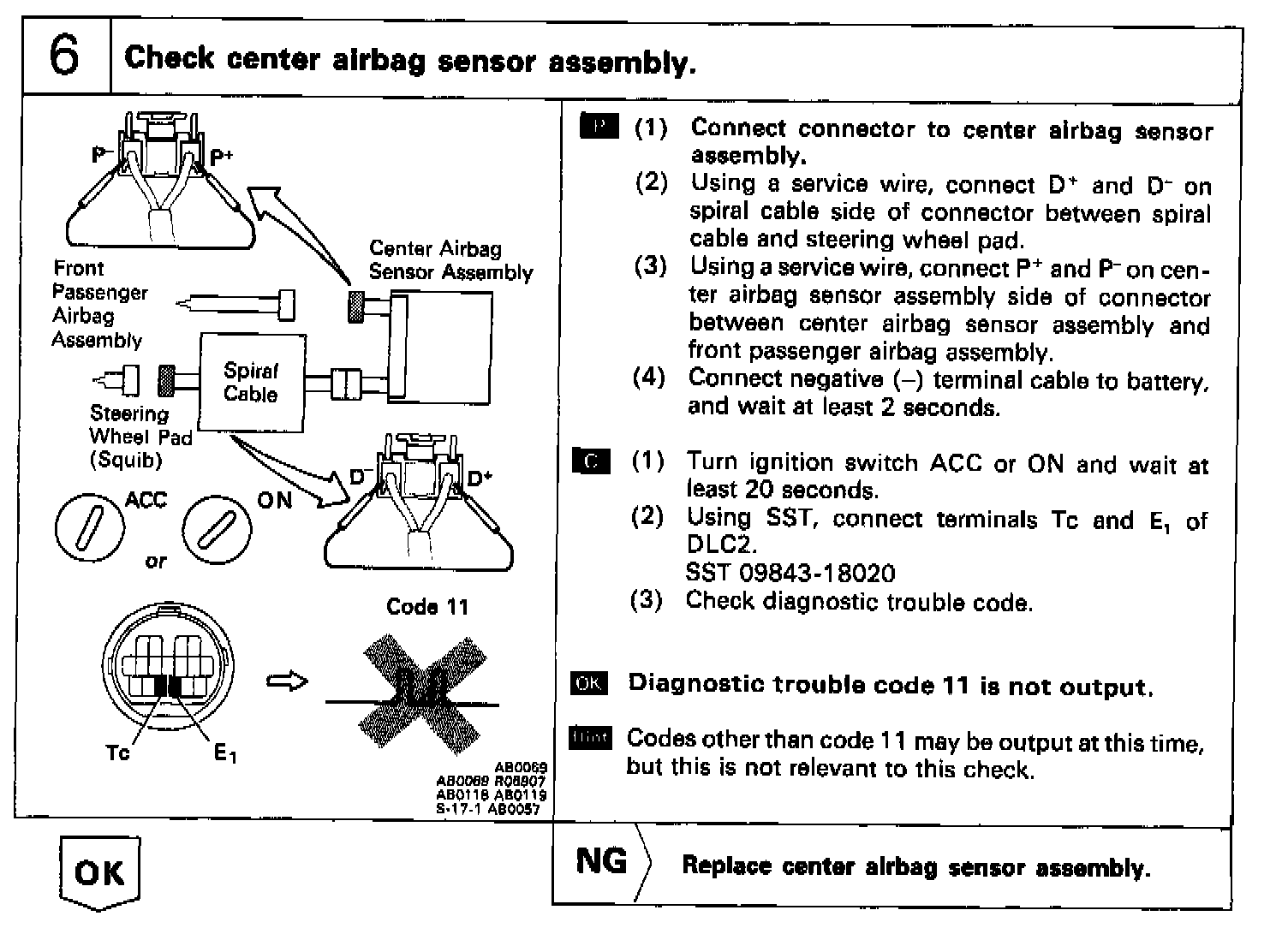

Step 6:

From the results of the above inspection. the malfunctioning part can now be considered normal. To make sure of this, use the simulation method to check.

Step 7:

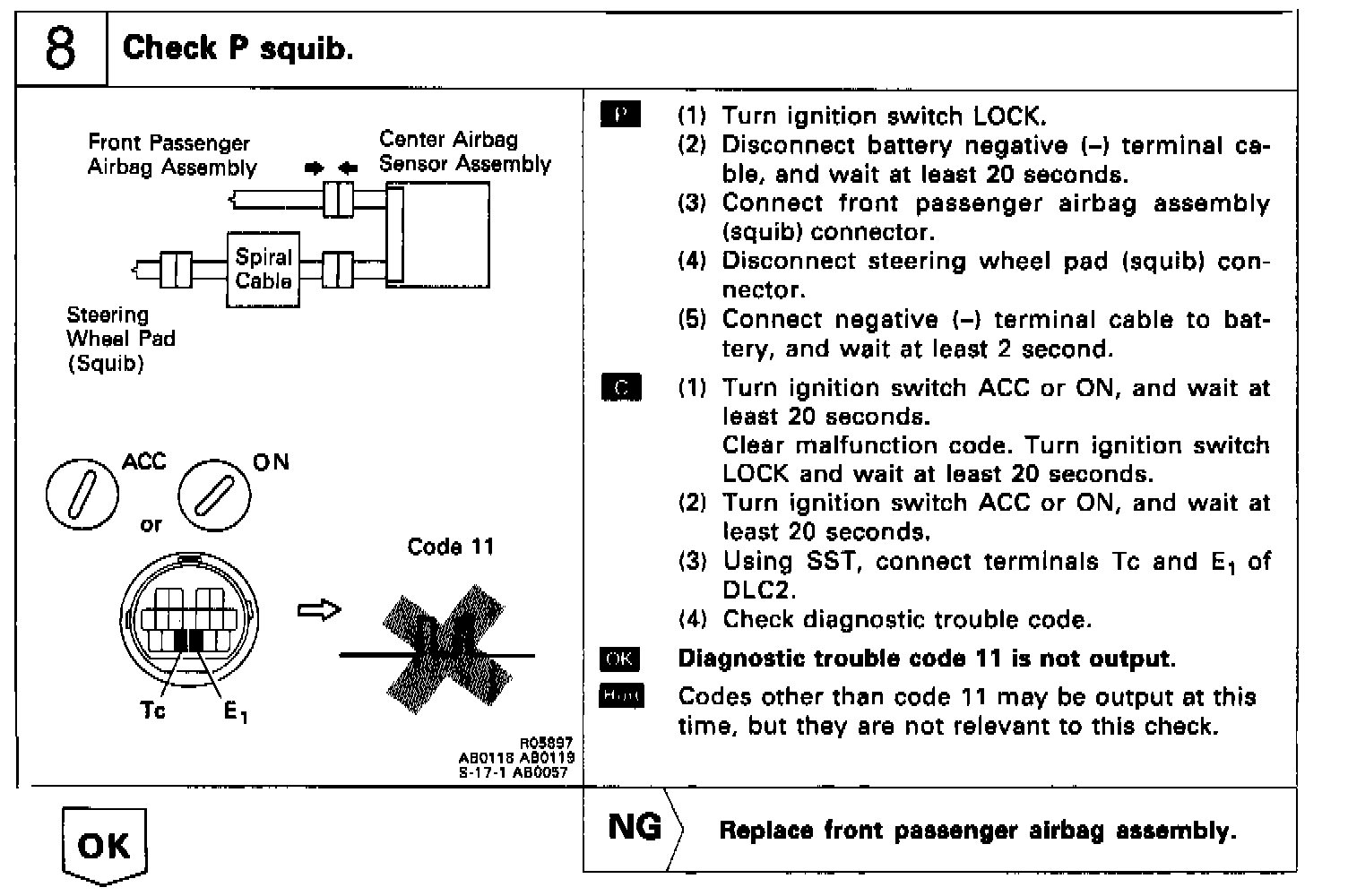

Step 8:

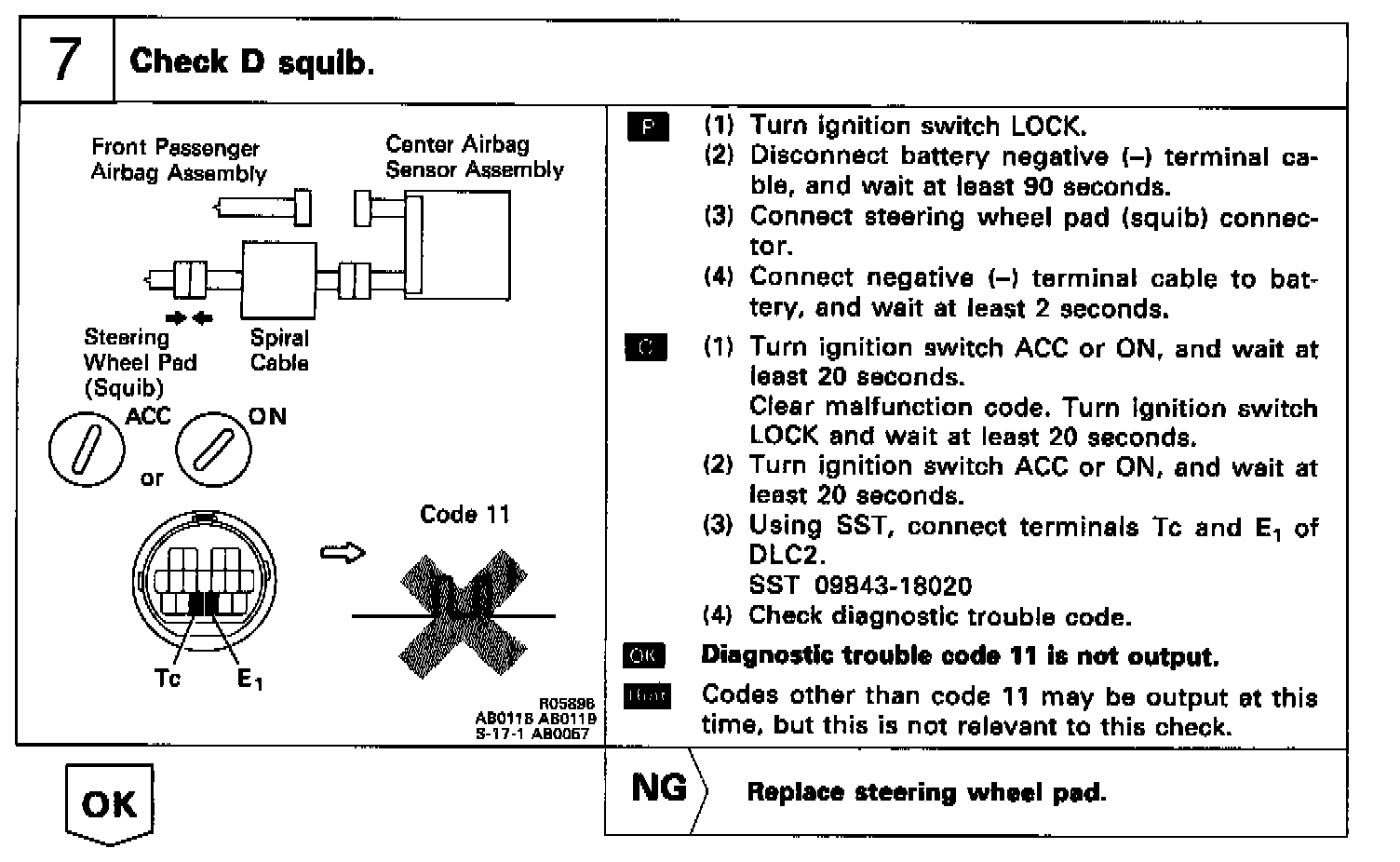

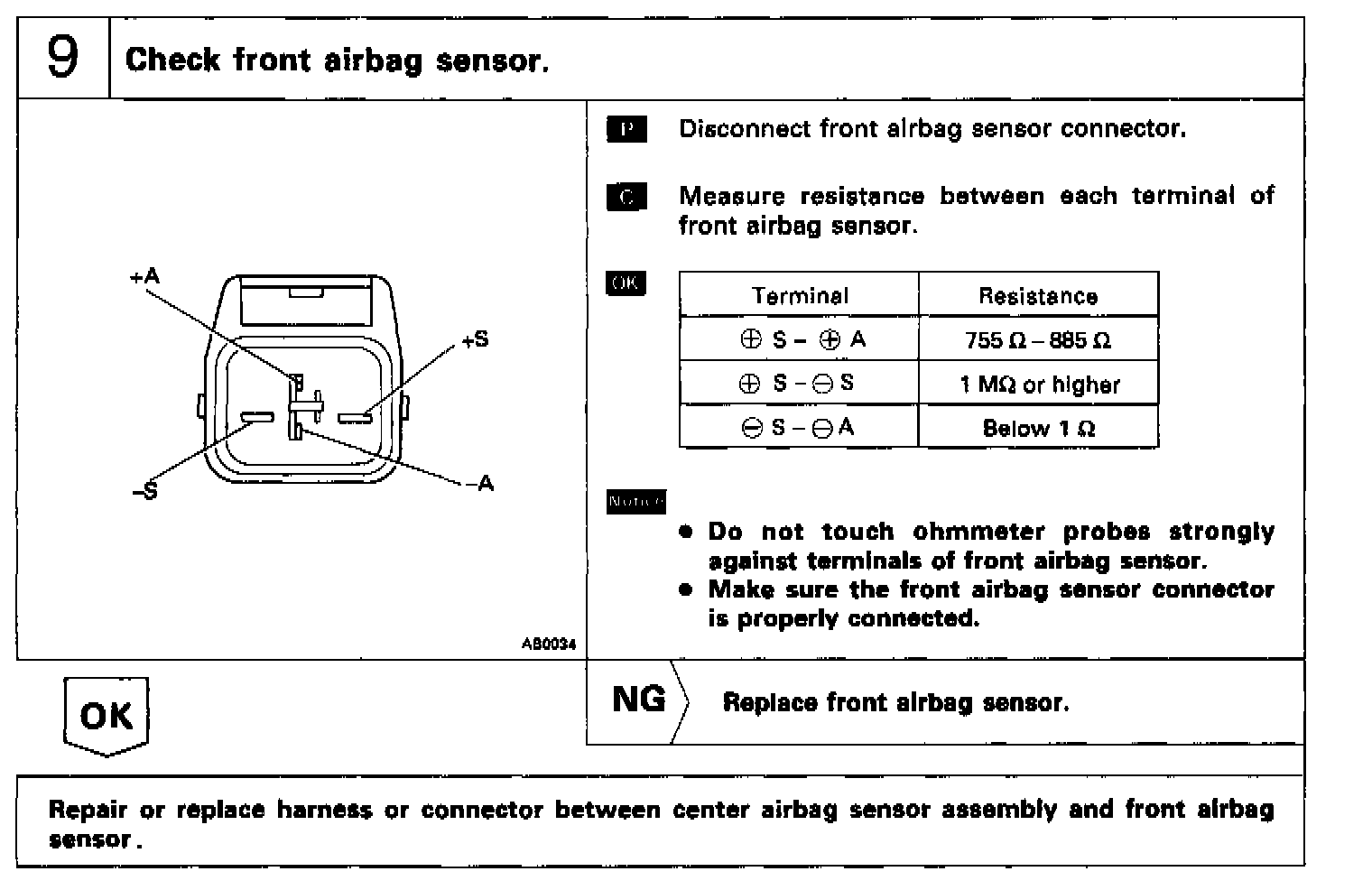

Step 9:

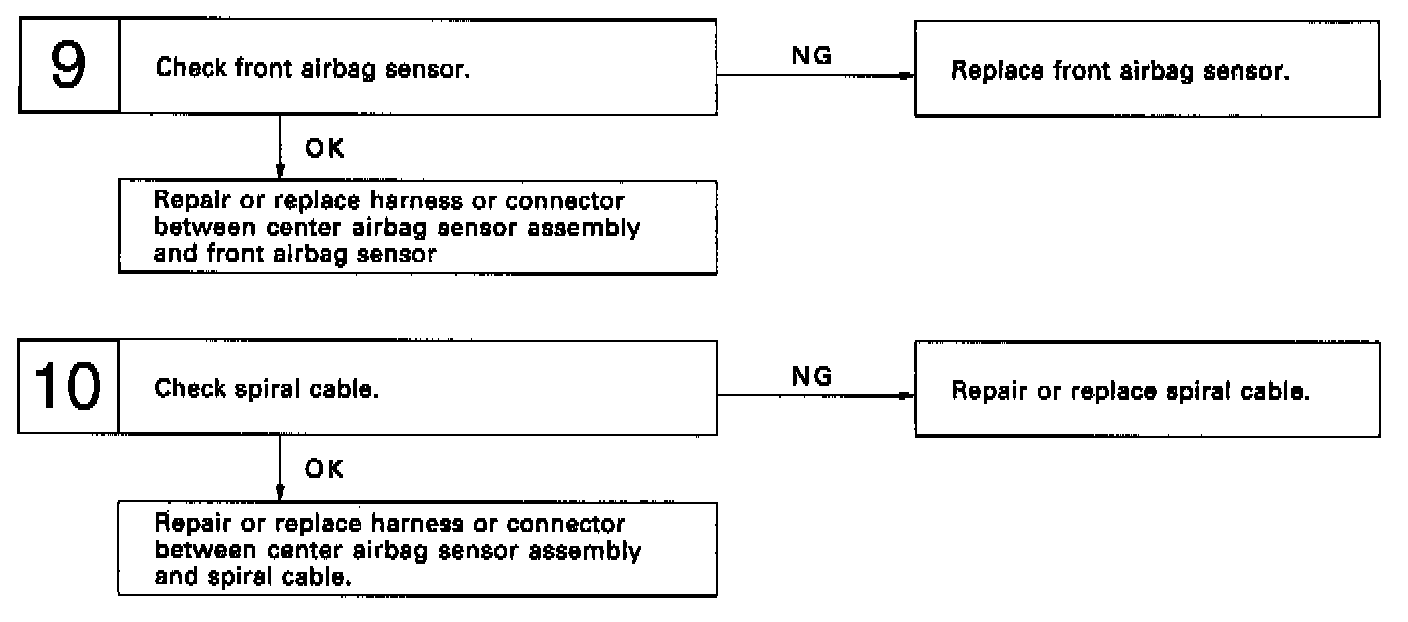

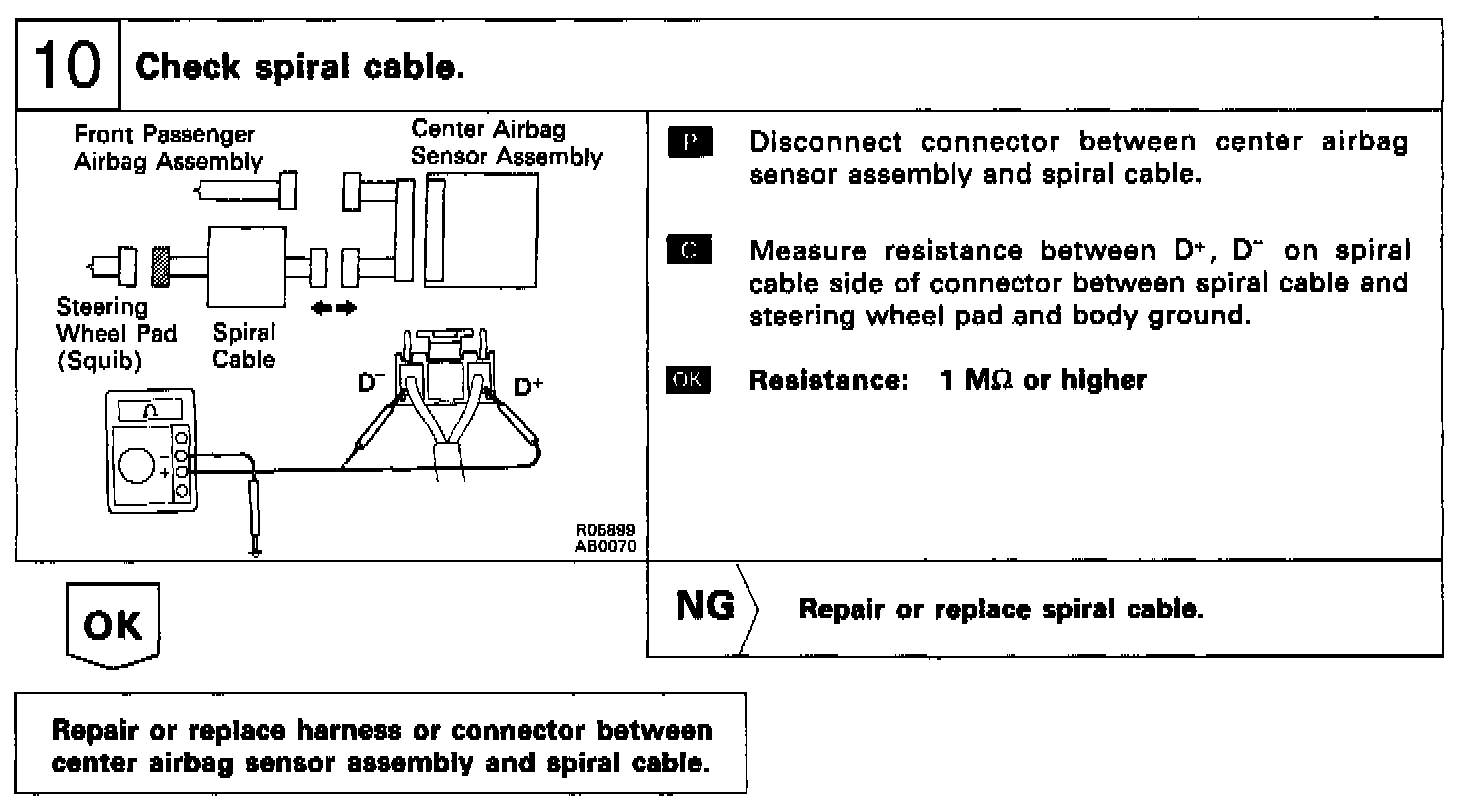

Step 10:
