Home >> Lexus >> 1995 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> ABS (Antilock Brake System) >> DTC 61

DTC 61

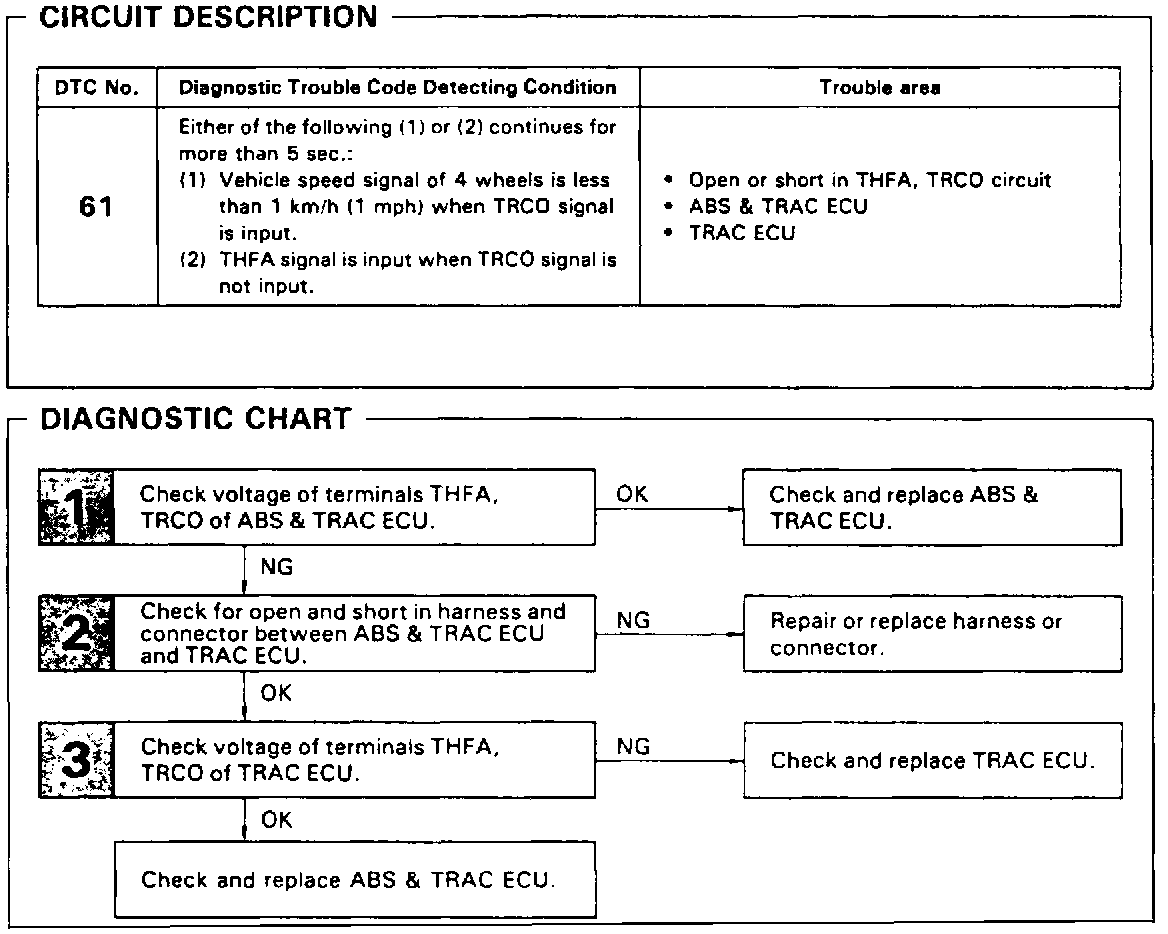

Fig. 105 Code 61: TRAC ECU Communication Abnormal:

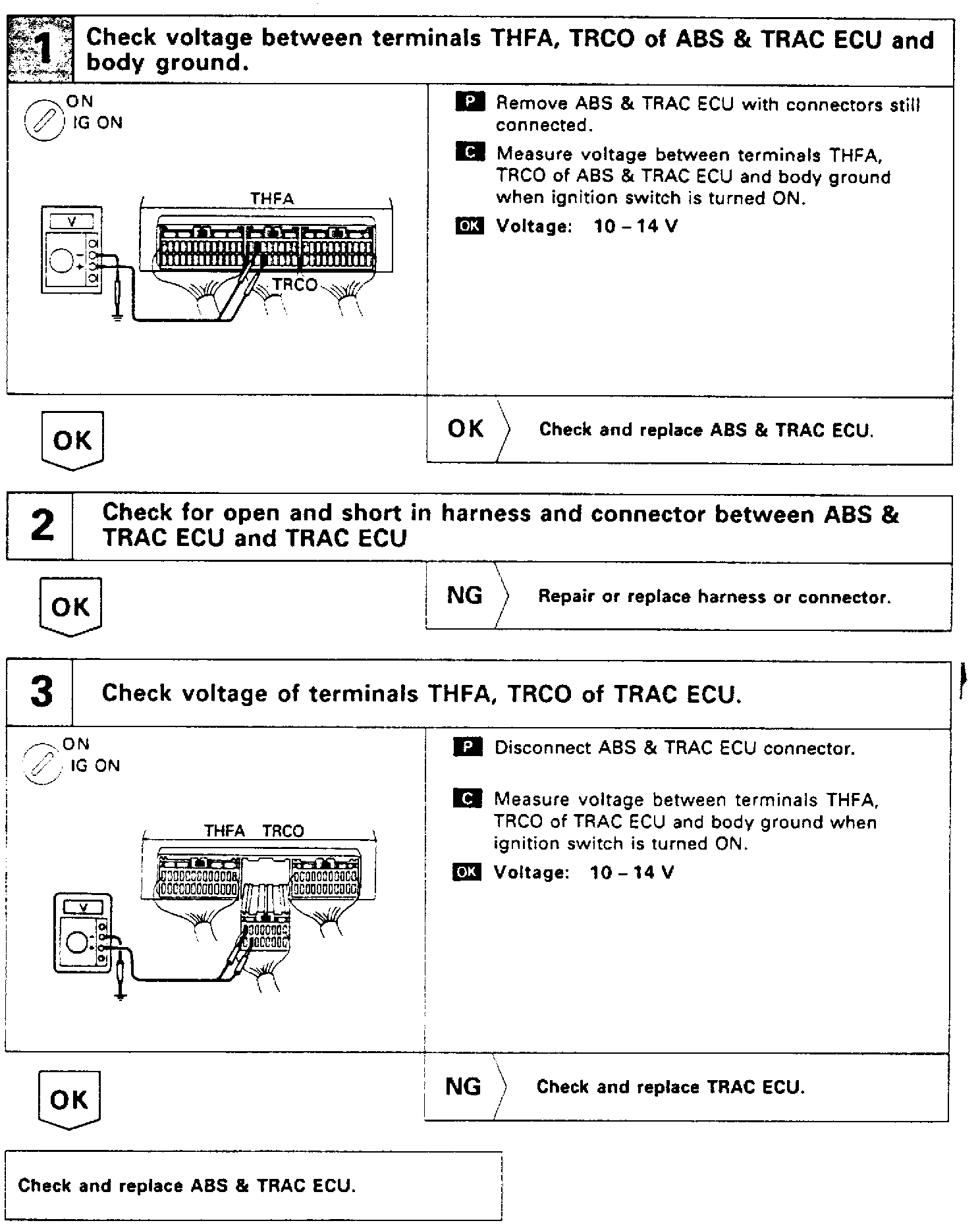

Fig. 107 Code 61: TRAC ECU Communication Abnormal:
