FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1995
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
ABS (Antilock Brake System)
>>
DTC 54
DTC 54

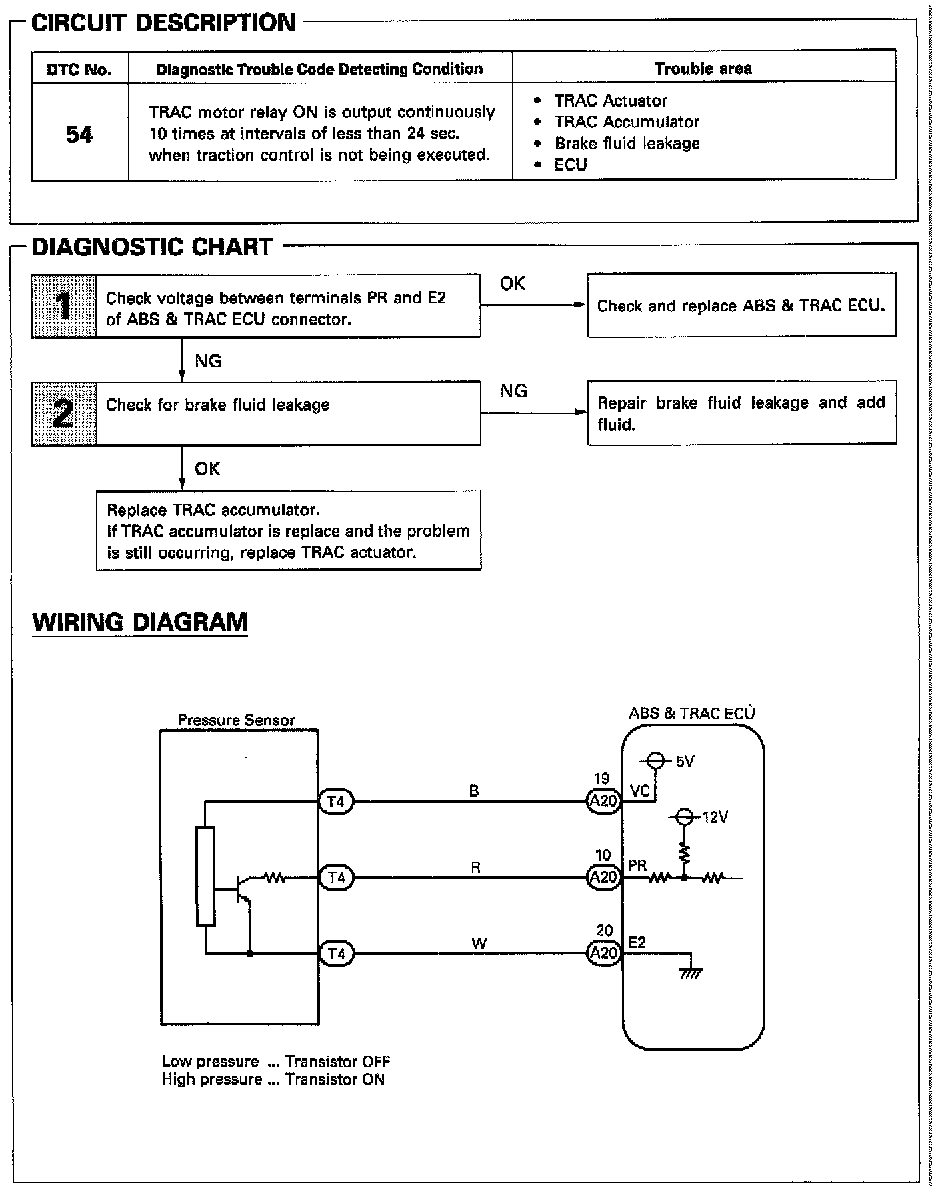

Fig. 99 Code 54: TRAC Pump Motor Operation Frequency Excessive:

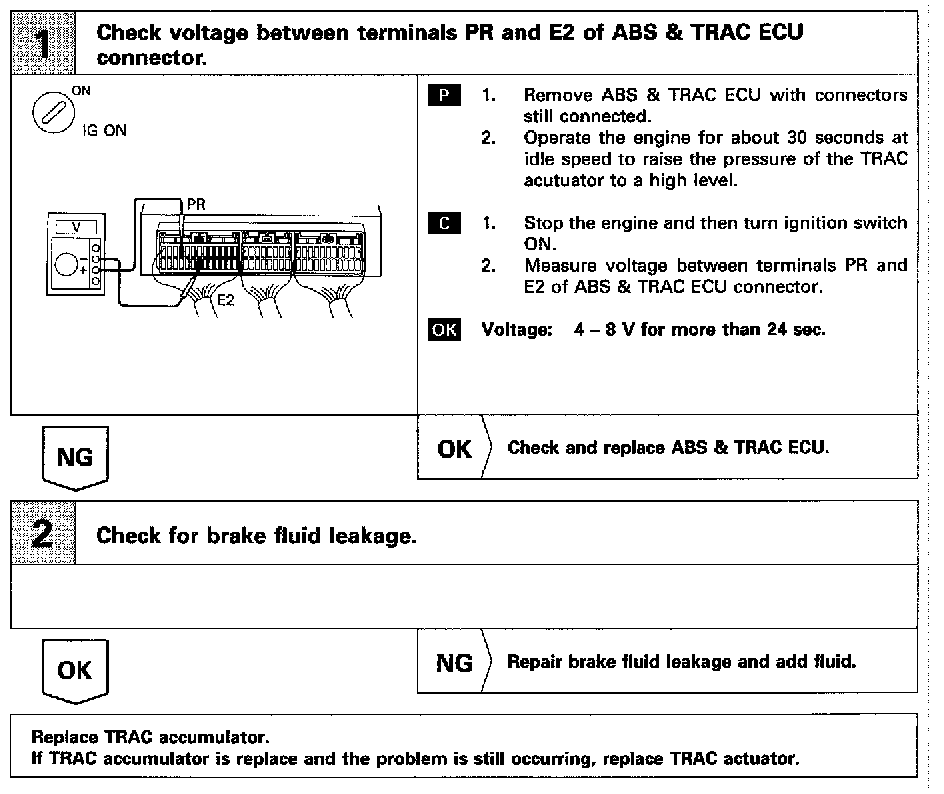

Fig. 100 Code 54: TRAC Pump Motor Operation Frequency Excessive:
