DTC 53
DTC 53

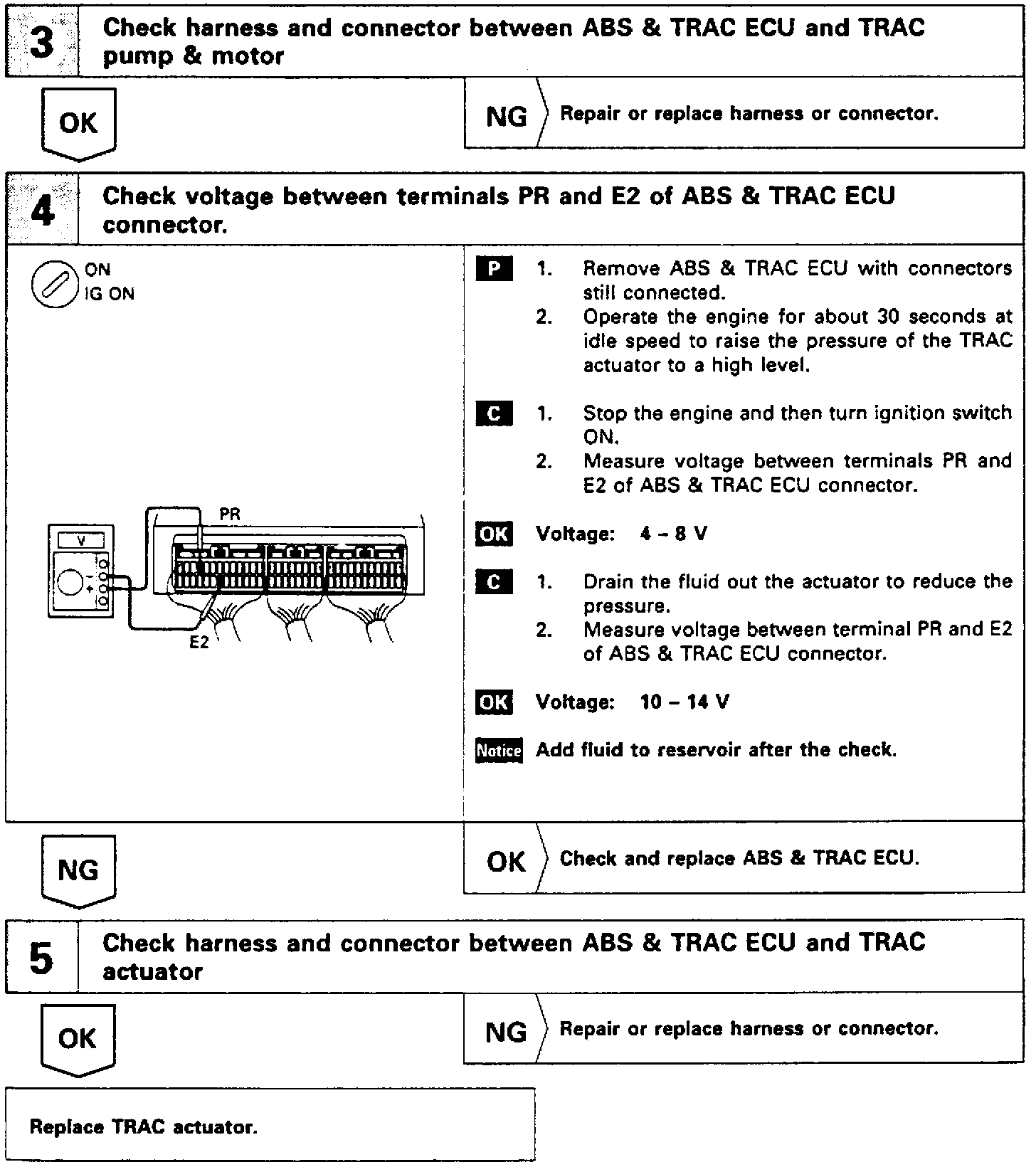

Fig. 97 Code 53: TRAC Pump Motor Long Time Energizing (Part 2 Of 2):

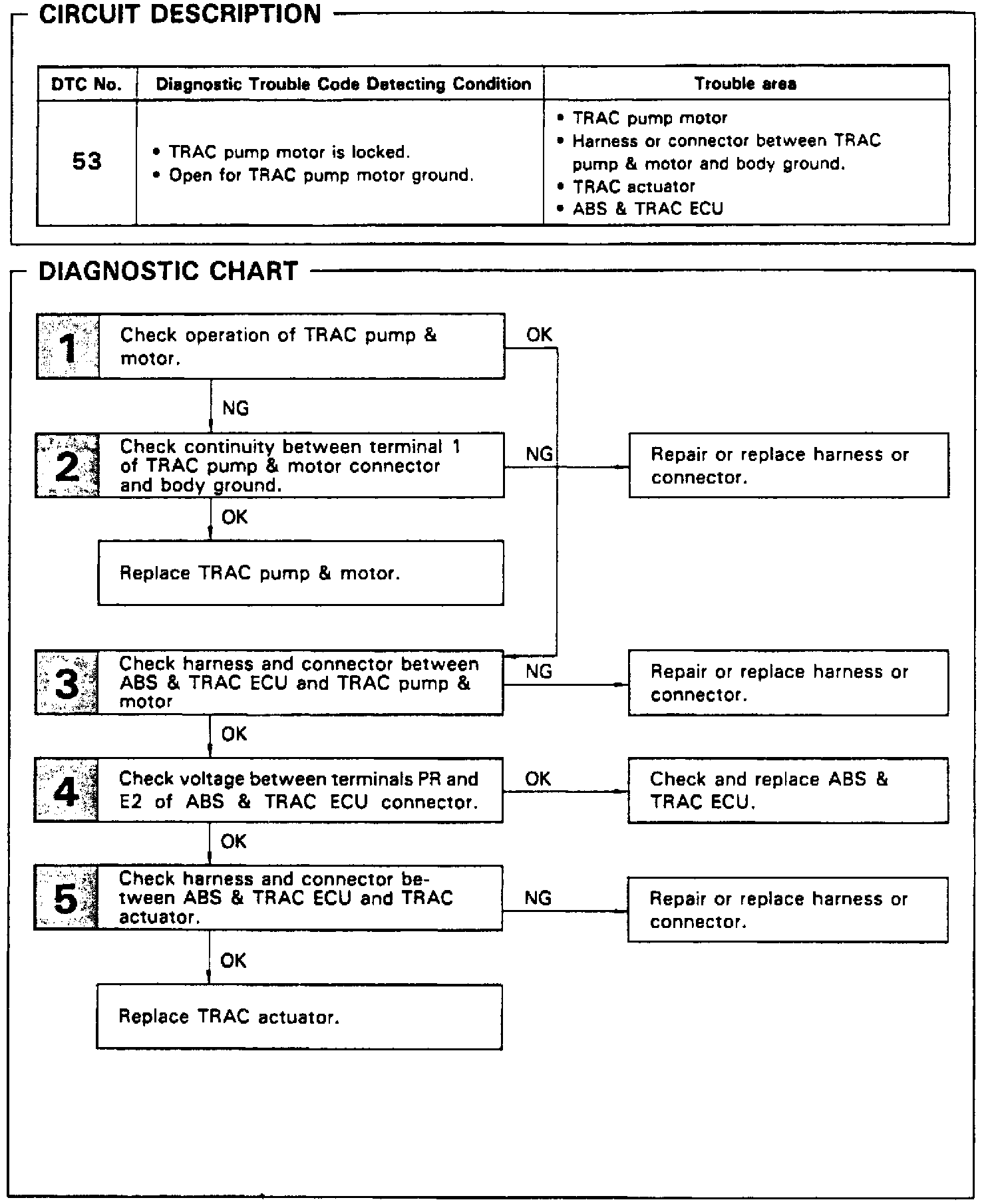

Fig. 96 Code 53: TRAC Pump Motor Long Time Energizing:

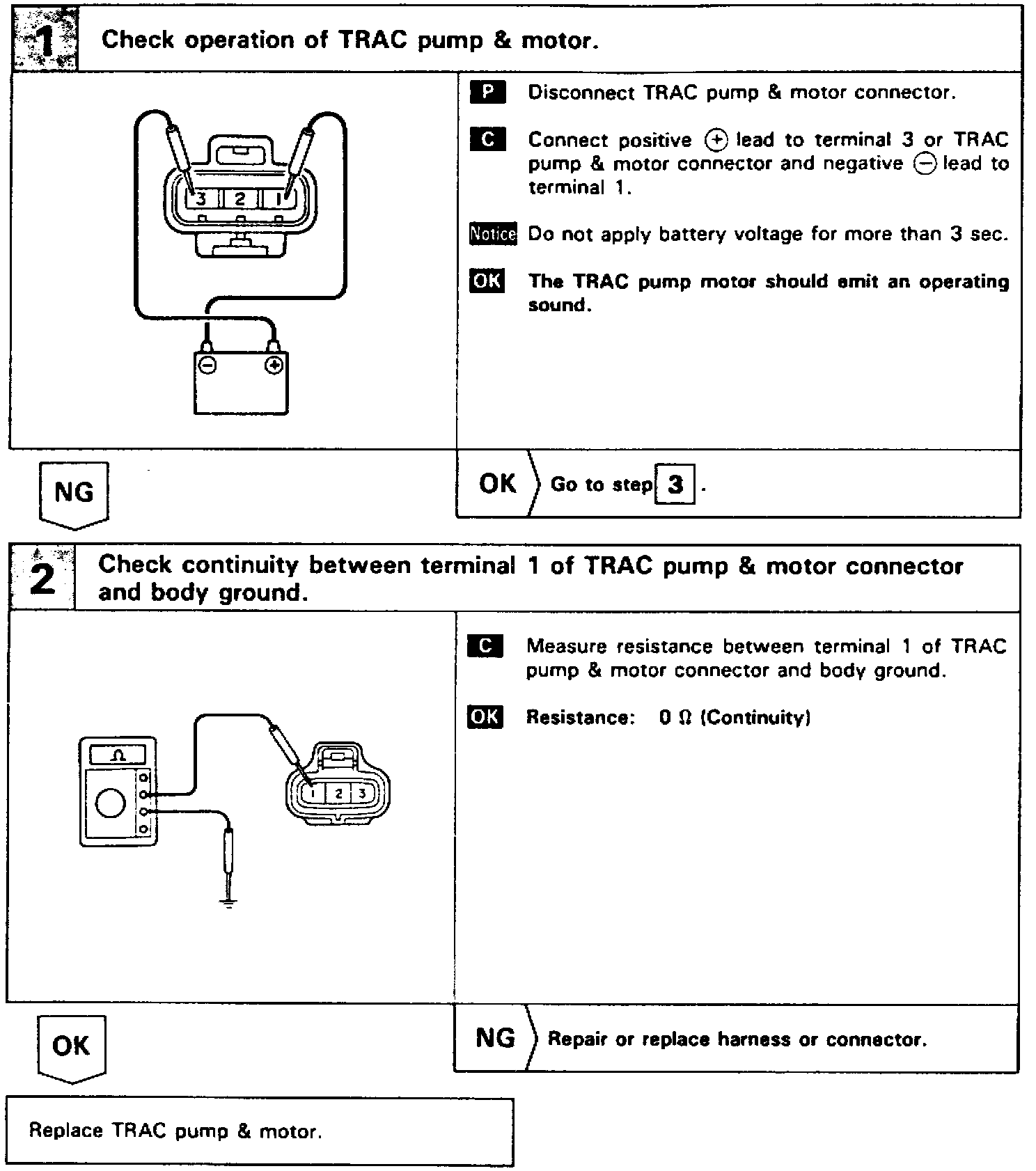

Fig. 97 Code 53: TRAC Pump Motor Long Time Energizing (Part 1 Of 2):
