Home >> Lexus >> 1995 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> ABS (Antilock Brake System) >> DTC 52

DTC 52

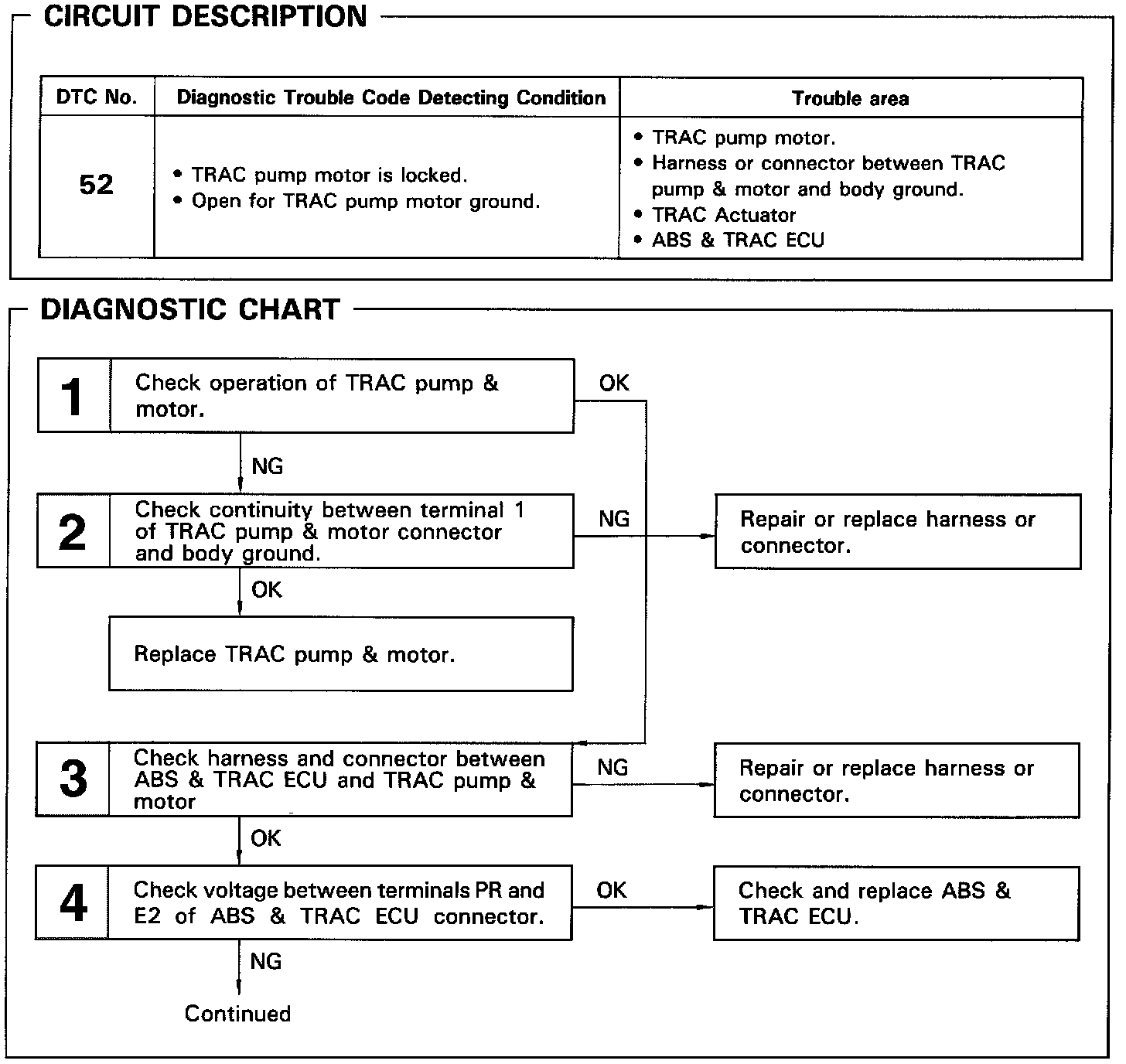

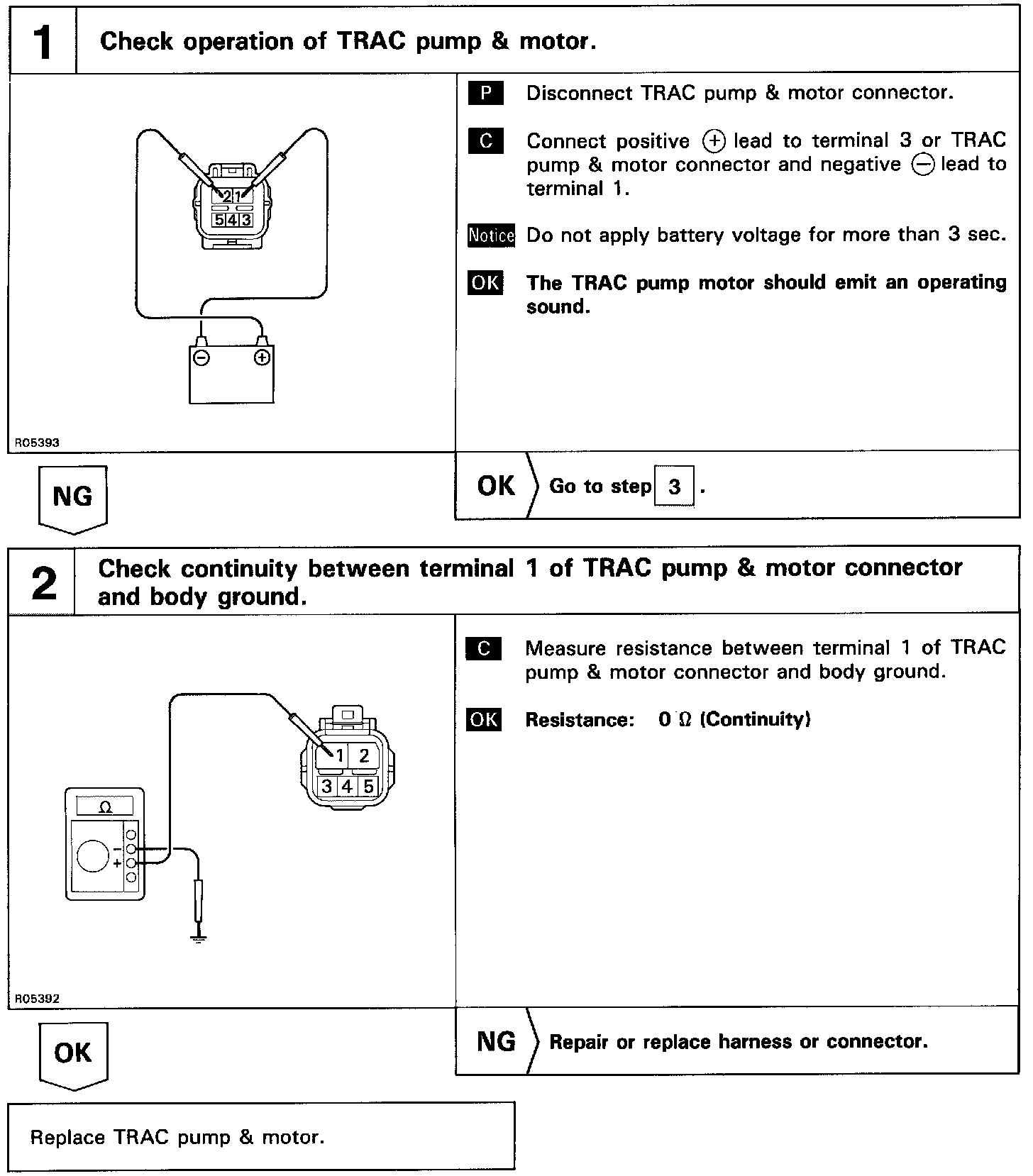

Code 52 Diagnostic Procedure (Part 1 Of 2):

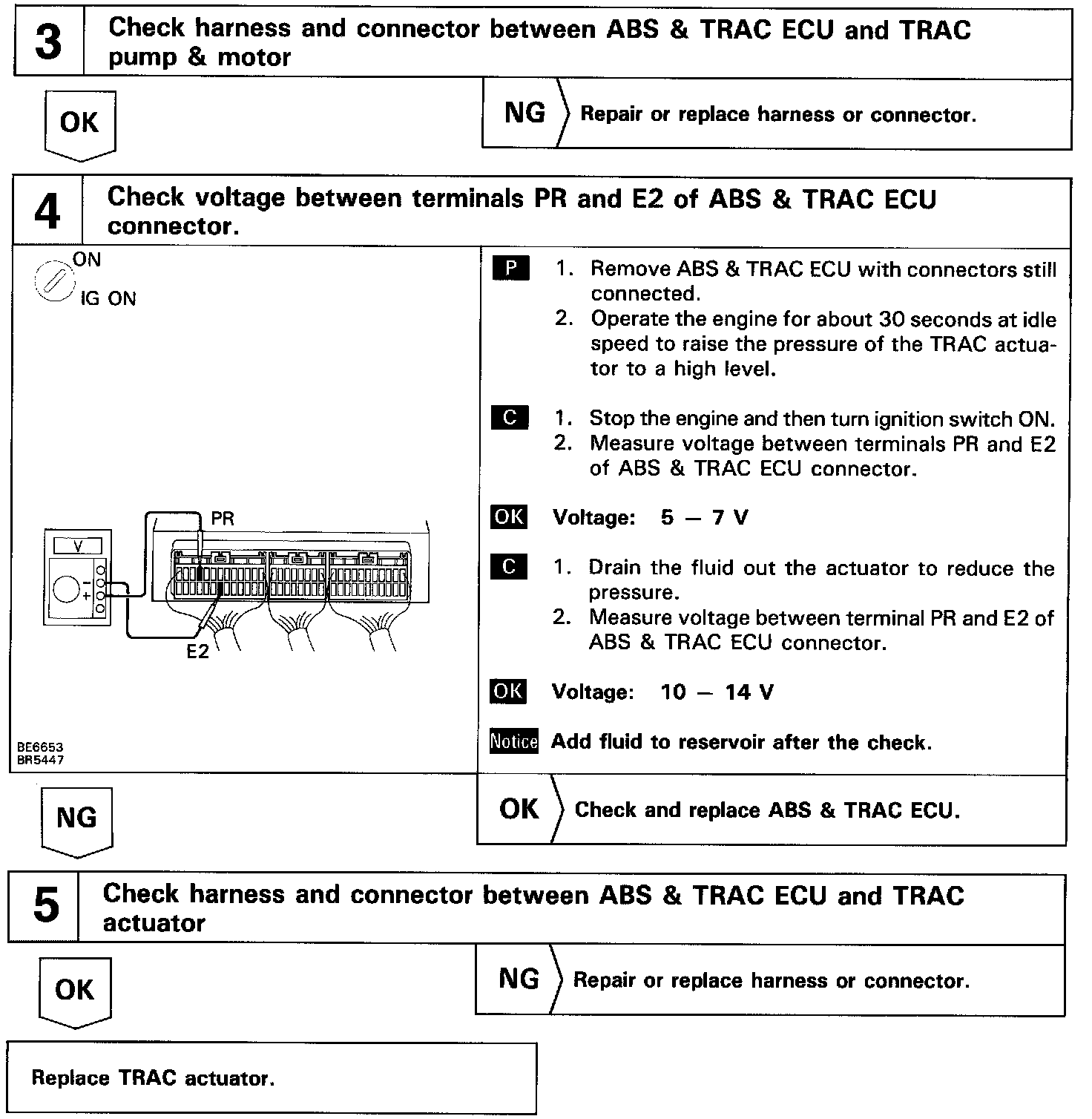

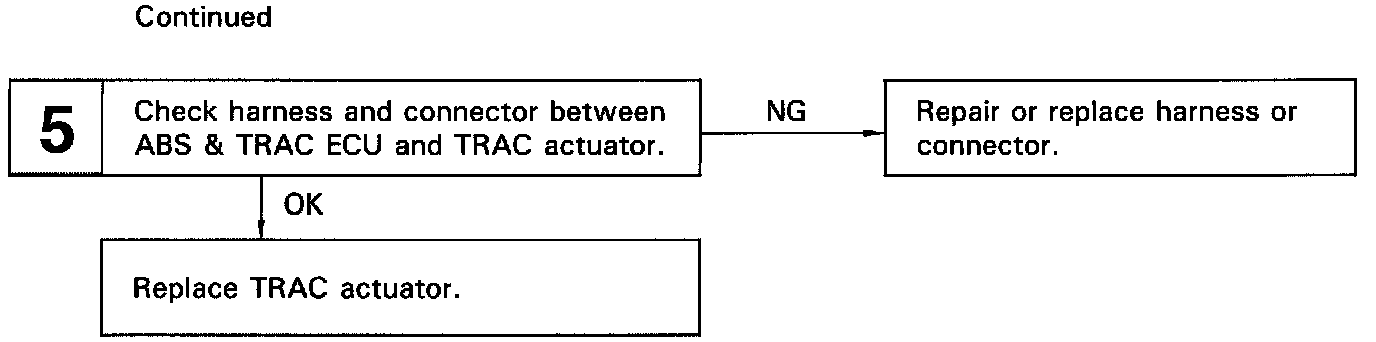

Code 52 Diagnostic Procedure (Part 2 Of 2):



Code 52 Diagnostic Procedure (Part 1 Of 2):



Code 52 Diagnostic Procedure (Part 2 Of 2):
