DTC 12

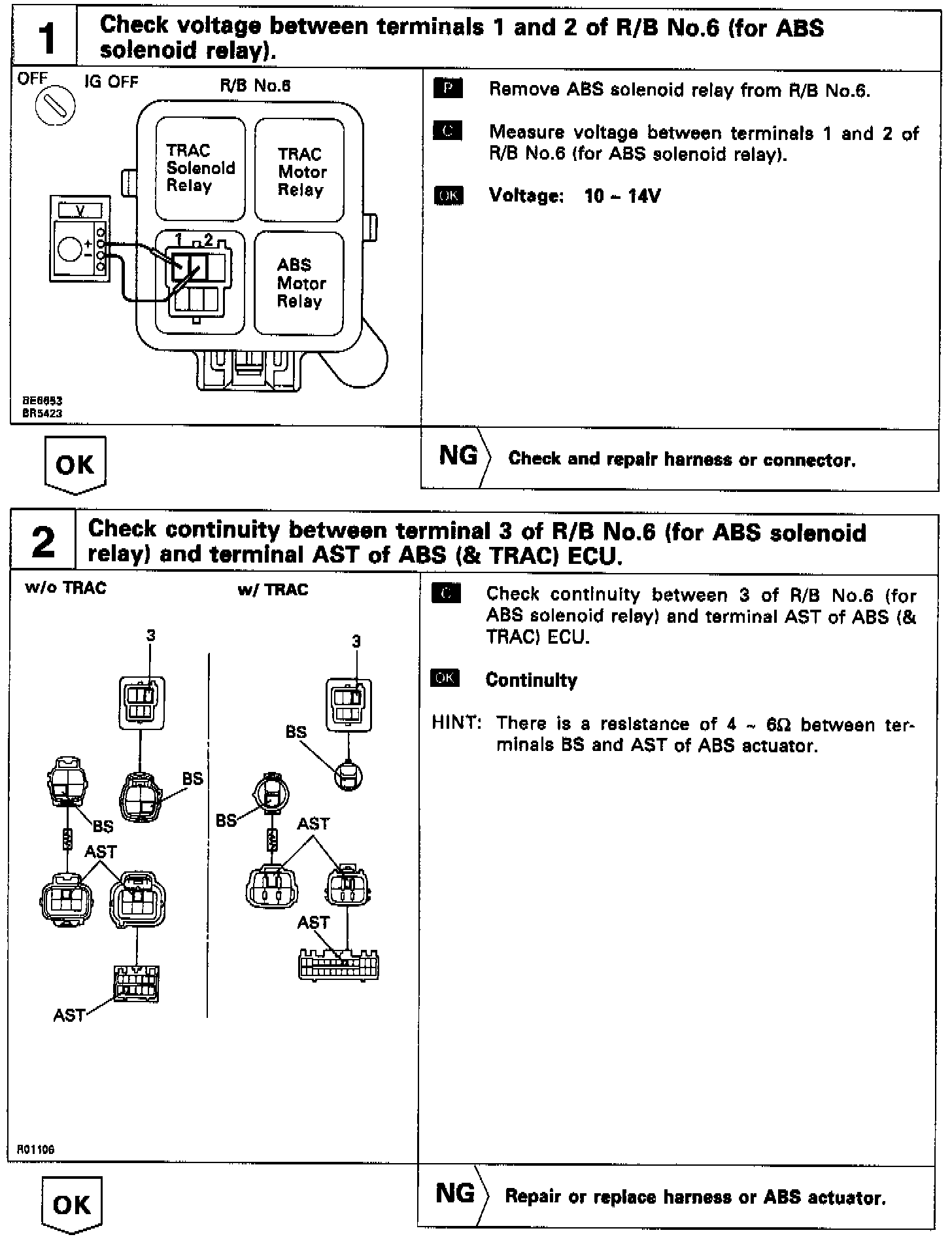

Inspection Procedure Part 1 Of 2:

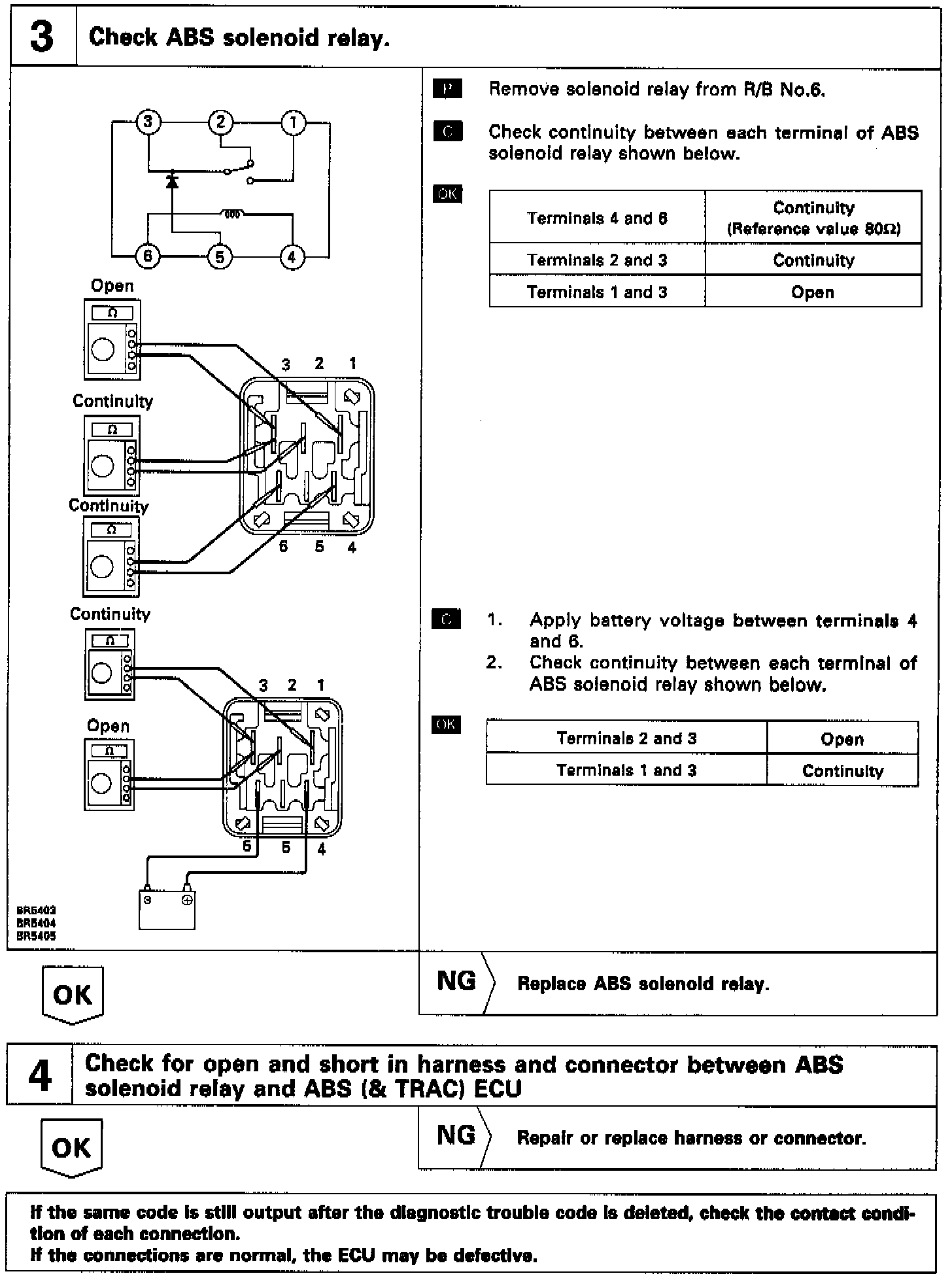

Inspection Procedure Part 2 Of 2:



Fig. 50 Codes 11 Or 12: Open Or Short In ABS Solenoid Relay Circuit & -B Short In ABS Solenoid Relay Circuit. ABS Diagnostic Procedure:
