Restraint Systems

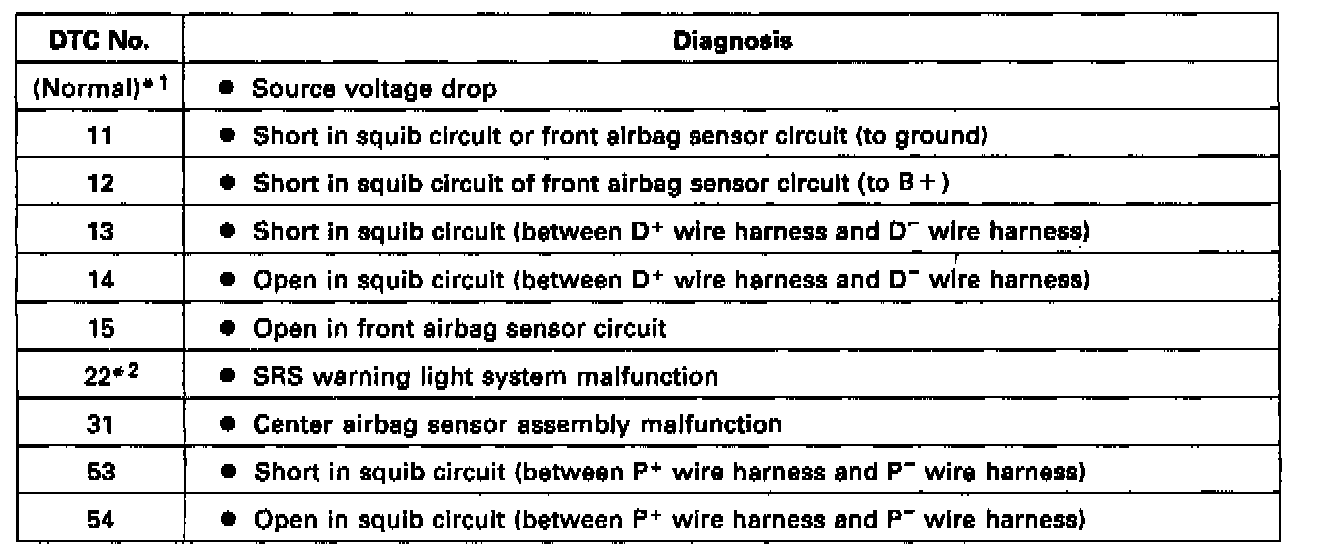

If a malfunction code is displayed during the diagnostic trouble code check, check the circuit listed for that code in the table.

HINT:
*1 When the SRS warning light remains lit up and the diagnostic trouble code is the normal code, this means a source voltage drop.
*2 Code 22 is recorded when a malfunction occurs in the SRS warning light system. If an open malfunction occurs in the SRS warning light system, the SRS warning light does not light up, so that until the malfunction is repaired, the diagnostic trouble code (including 22) cannot be confirmed.
