A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
ABS (Antilock Brake System)
ABS (Antilock Brake System)

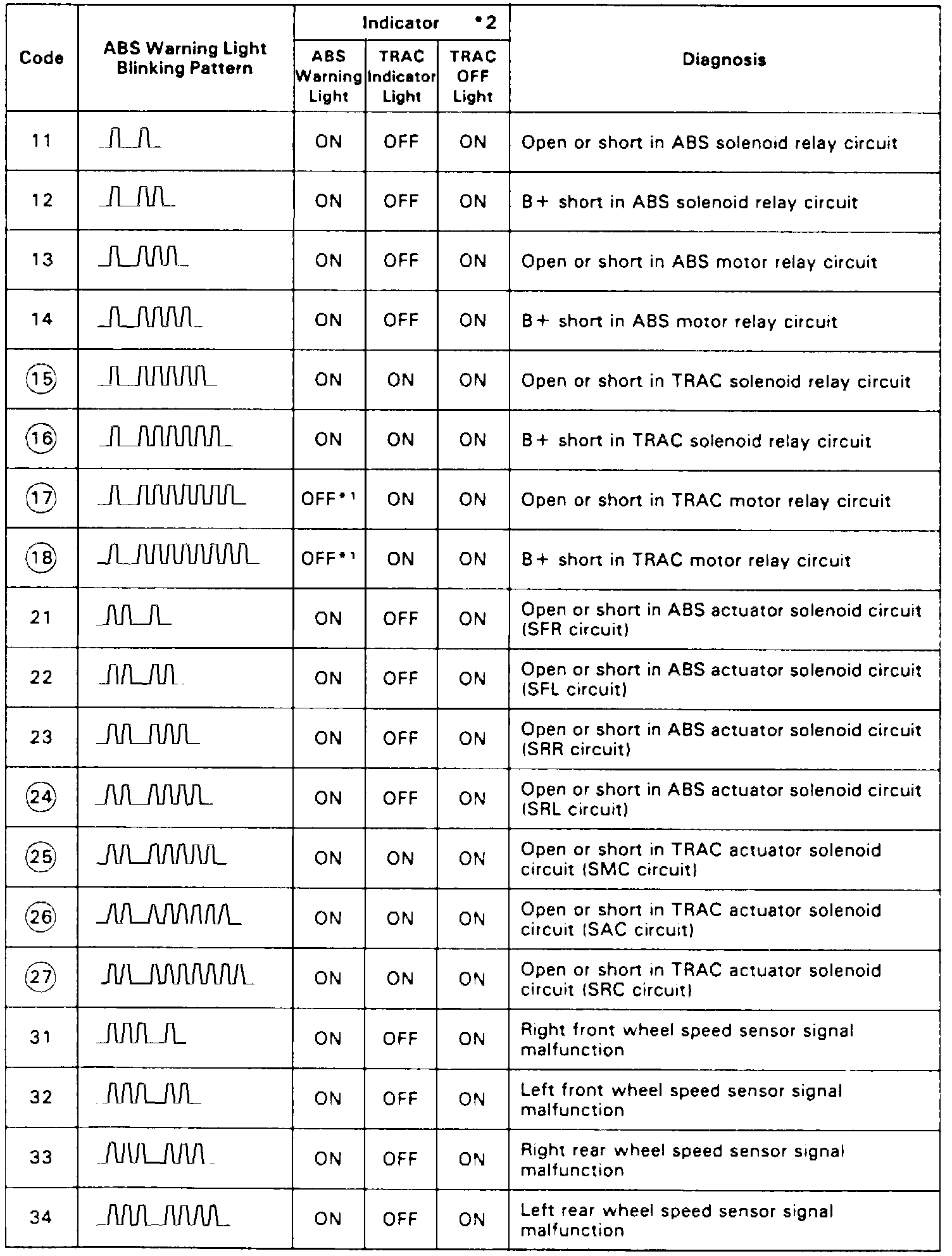

Fig. 7 ABS Diagnostic Trouble Code Chart (Part 1 Of 2):
Fig. 7 ABS Diagnostic Trouble Code Chart (Part 2 Of 2):
