Home >> Lexus >> 1995 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Mechanical/Hydraulic System Tests >> Troubleshooting Data >> Shift Point

Shift Point

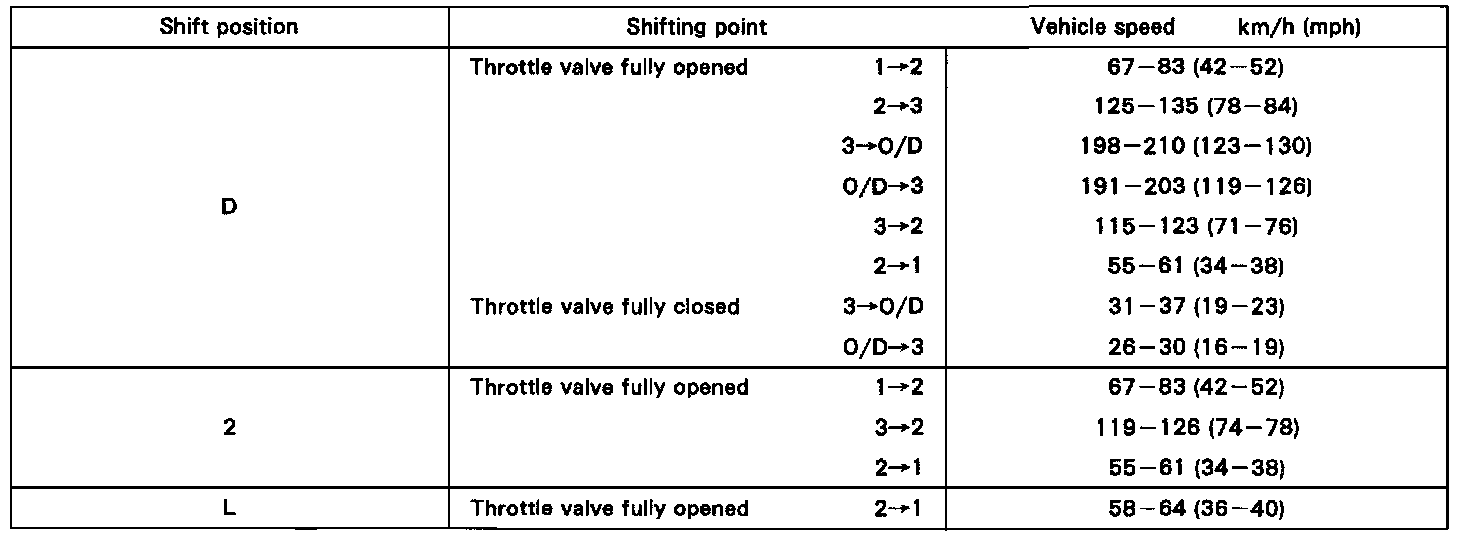

Shift Points:
