Preliminary Check

1. CHECK FLUID LEVEL.

NOTE:
- Only use the COOL range on the dipstick as a rough reference when the fluid is replaced or the engine does not run.

- Drive the vehicle so that the engine and transmission are at normal operating temperature.

Fluid temp.: 70° - 80°C (158° - 176°F)




- Park the vehicle on a level surface and set the parking brake.
- With the engine idling and the brake pedal depressed, shift the shift lever into all positions from "P" to "L" position and return to "P" position.
- Pull out the dipstick and wipe it clean.
- Push it back fully into the pipe.

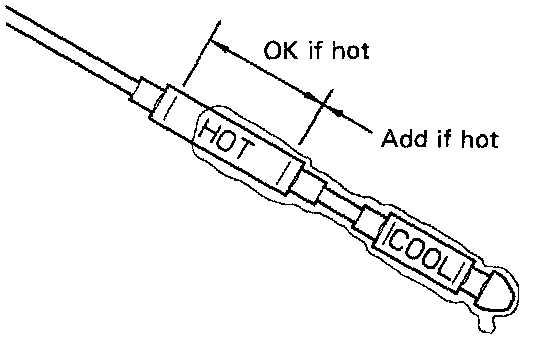

- Pull it out and check that the fluid level is in the HOT range.
- If the level is at the low side, add fluid.
NOTICE: Do not overfill.

Fluid type: TYPE T-II or equivalent

2. CHECK FLUID CONDITION.
- If the fluid smells burnt or is black, replace it.

3. REPLACE ATF.



- Remove the drain plug and drain the fluid.
- Reinstall the drain plug securely.



- With the engine OFF, add new fluid through the oil filler pipe.

Fluid type: TYPE T- II or equivalent
Capacity:
Dry fill: 8.3 liters (8.8 US qts, 7.3 Imp. qts)
Drain and refill: 1.9 liters (2.0 US qts, 1.7 Imp. qts)

- Start the engine and shift the shift lever into all positions from "P" to "L" position and then shift into "P" position.

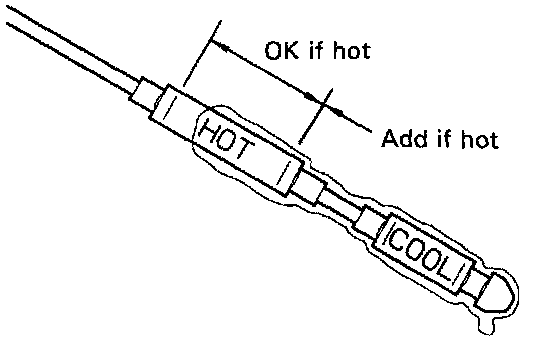

- With the engine idling, check the fluid level. Add fluid up to the COOL level on the dipstick.



- Check the fluid level at the normal operating temperature, 70° - 80°C (158° - 176°F), and add as necessary.
NOTICE: Do not overfill.

4. CHECK FLUID LEAKS.
- Check for leaks in the transmission.
- If there are leaks, it is necessary to repair or replace 0-rings, FIPGs, oil seals, plugs or other parts.

5. INSPECT AND ADJUST THROTTLE CABLE.
- Remove the bolt, 2 nuts and V-bank cover.
- Check that the accelerator pedal is fully released.
- Check that the inner cable is not slack.



- Measure the distance between the outer cable end and stopper on the cable.

Standard distance: 0 - 1 mm (0 - 0.04 in.)

- If the distance is not standard, adjust the cable by the adjusting nuts.
- Install the V-bank cover with the bolt and 2 nuts.

6. INSPECT AND ADJUST SHIFT LEVER POSITION.
- When shifting the shift lever from the "N" position to other positions, check that the lever can be shifted smoothly and accurately to each position and that the position indicator correctly indicates the position.
- If the indicator is not aligned with the correct position, carry out the following adjustment procedures.



- Loosen the nut on the shift lever.



- Push the control shaft fully rearward.
- Return the control shaft lever 2 notches to "N" position.
- Set the shift lever to "N" position.
- While holding the shift lever lightly toward the "R" position side, tighten the shift lever nut.

Torque: 13 Nm (9 ft.lb)




- Start the engine and make sure that the vehicle moves forward when shifting the lever from the "N" to "D" position and reverses when shifting it to the "R" position.

7. INSPECT AND ADJUST PARK/NEUTRAL POSITION SWITCH.
- Check that the engine can be started with the shift lever only in the "N" or "P" position, but not in other positions.
- If it is not as stated above, carry out the following adjustment procedure.



- Loosen the park/neutral position switch bolt and set the shift lever to the "N" position.
- Align the groove and neutral basic line.
- Hold in position and tighten the bolt.

Torque: 5.4 Nm (48 in.lb)

- Perform a continuity inspection of the park/neutral position switch.
- Refer to "Transmission Control Switch Inspection" under the Non-Trouble Code Charts.

8. INSPECT IDLE SPEED.

Idle speed: 650±50 rpm
(In "N" position and air conditioner OFF)

- If not correct, refer to "Idle Speed" inspection procedures under Fuel Delivery and Air Induction.
- Idle Speed
