Manual Shifting Test

MANUAL SHIFTING TEST

- With this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transmission.




1. DISCONNECT SOLENOID WIRE.
2. INSPECT MANUAL DRIVING OPERATION.

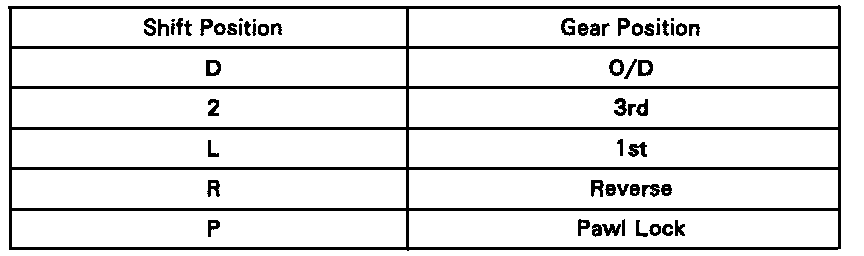

- Check that the shift and gear positions correspond with the following table.





HINT: If the "L", "2" and "D" position gear positions are difficult to distinguish, do the following road test.



- While driving, shift through the "L", "2" and "D" positions.
- Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test, the problem is in the transmission itself.

3. CONNECT SOLENOID WIRE.
4. CLEAR DTC.
