Home >> Lexus >> 1995 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> How to Proceed With Troubleshooting

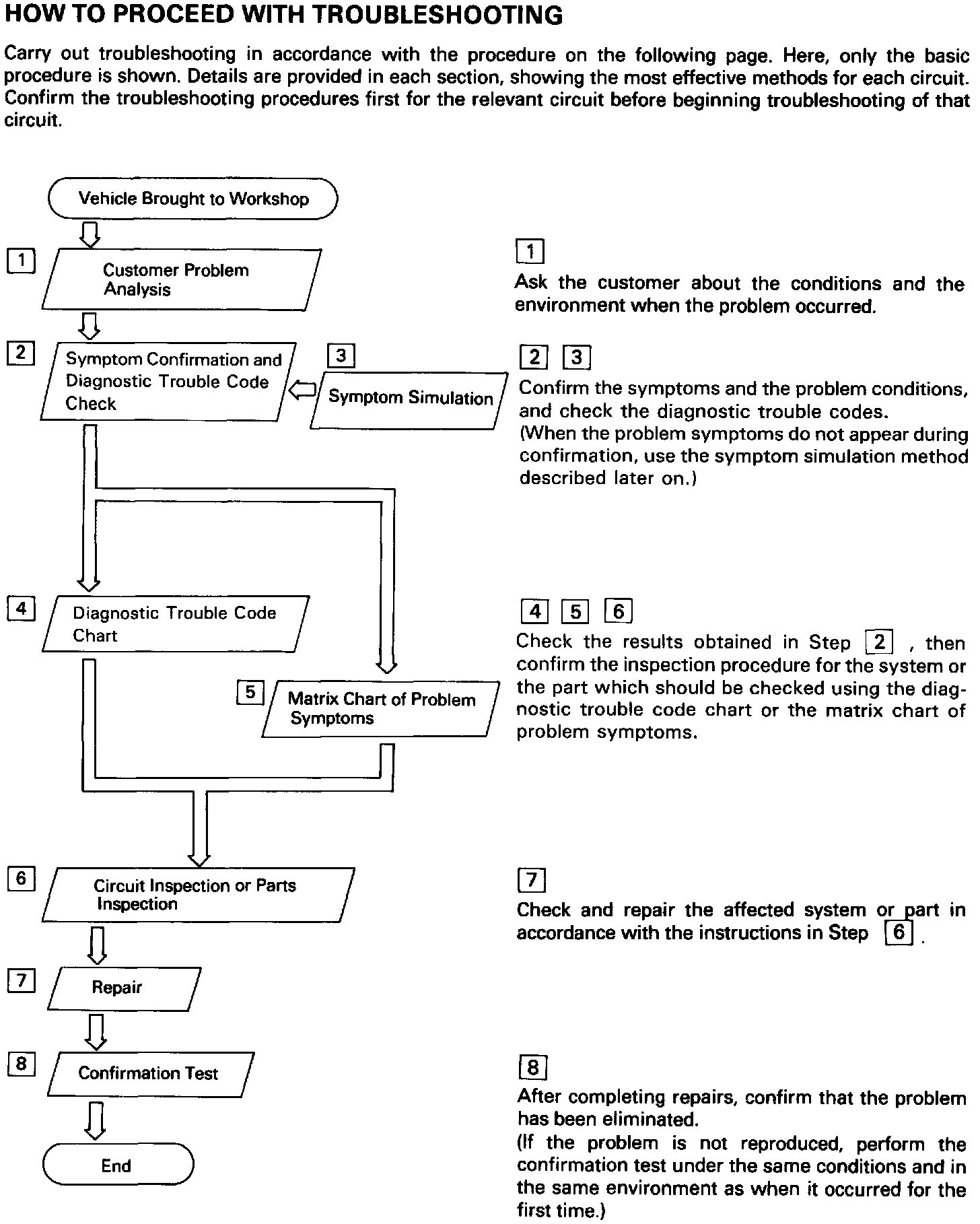

How to Proceed With Troubleshooting

Computers And Control Systems, Flow Of Diagnosis:

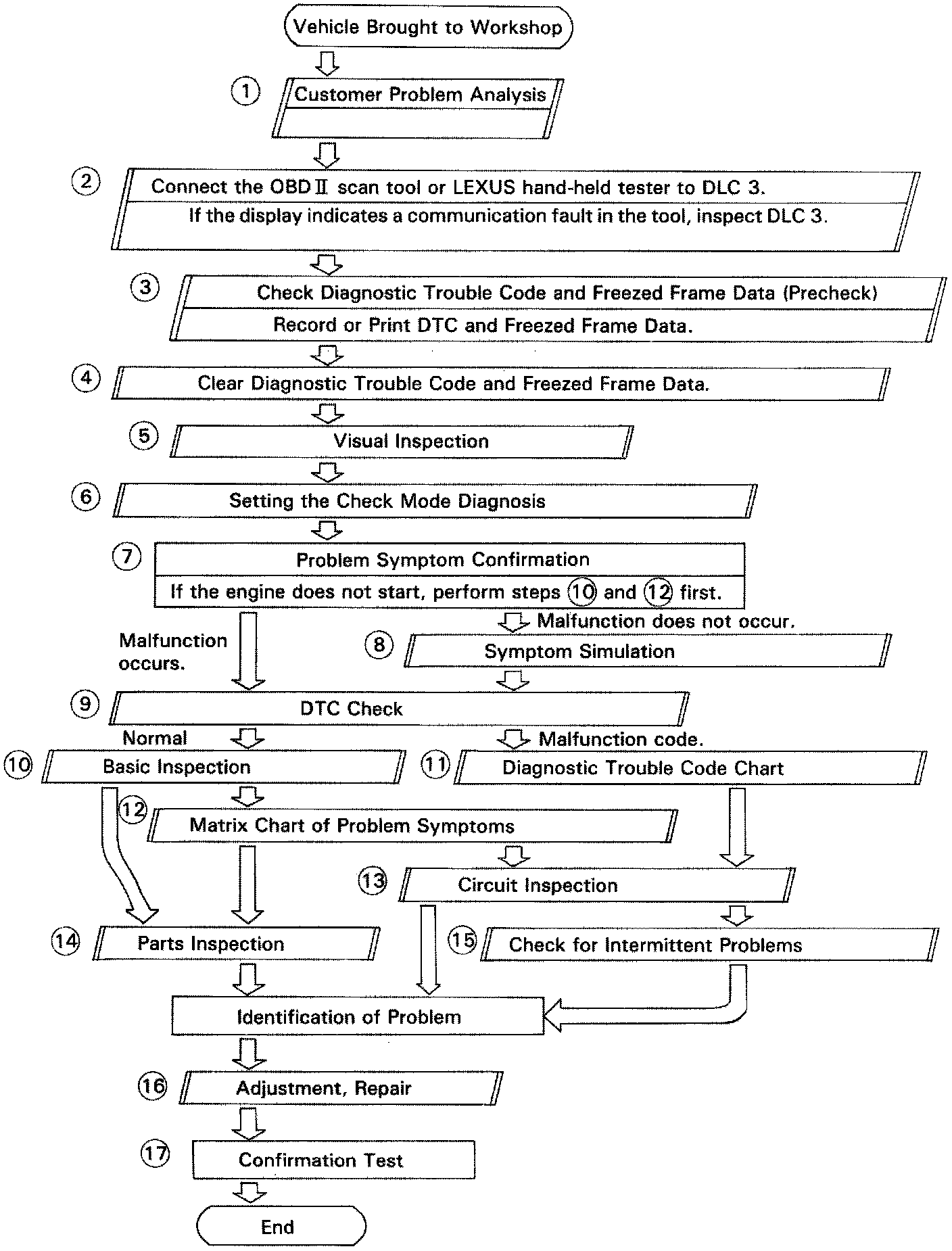

Flow Of Diagnosis - Powertrain Management:
