Pinout Values and Diagnostic Parameters
Terminals:

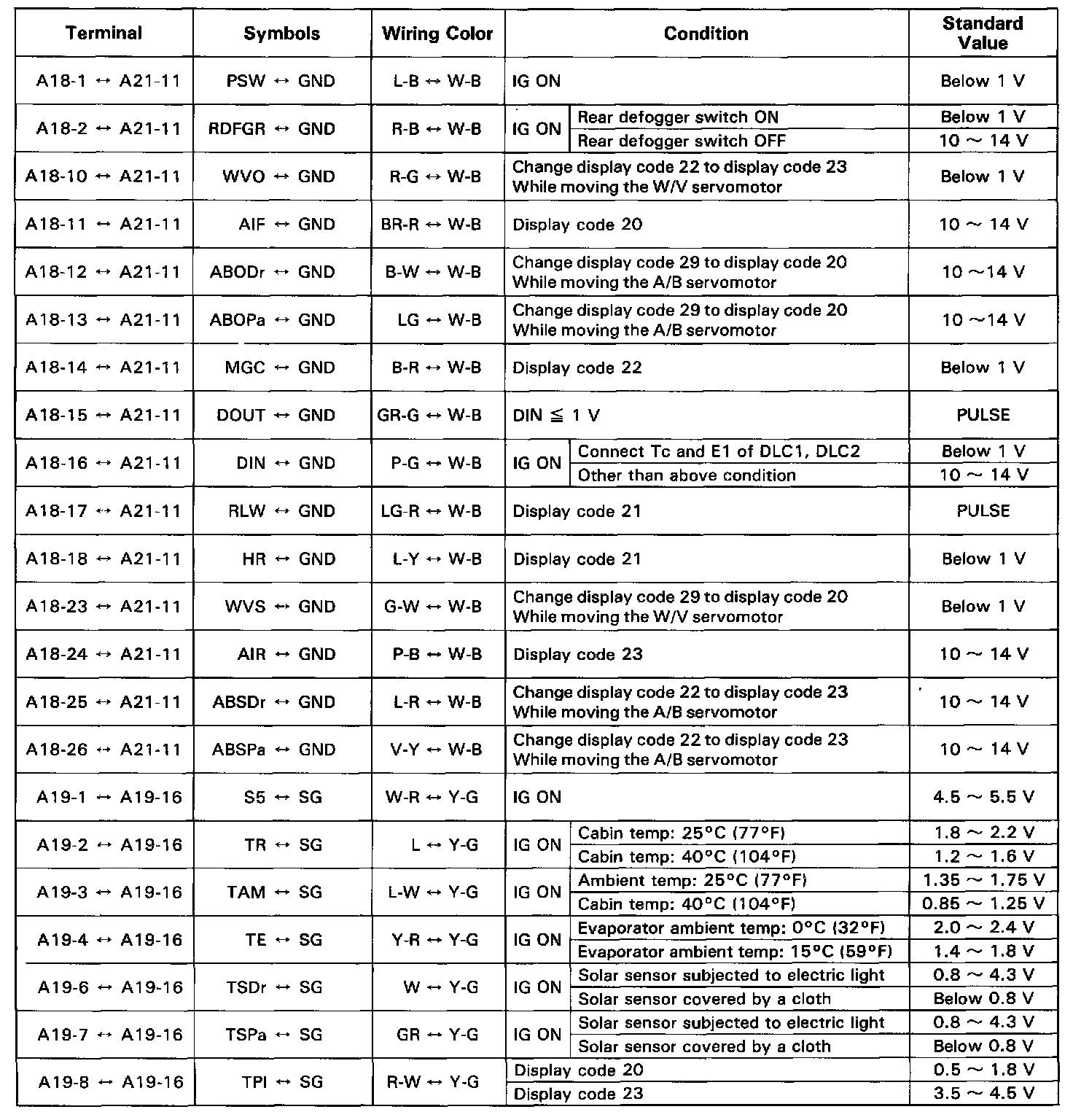

A/C Control Assembly Terminal Standard Value
Chart 1:
Chart 2:
Chart 3:
