Water Valve Control Servomotor Circuit

Circuit Description
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly.

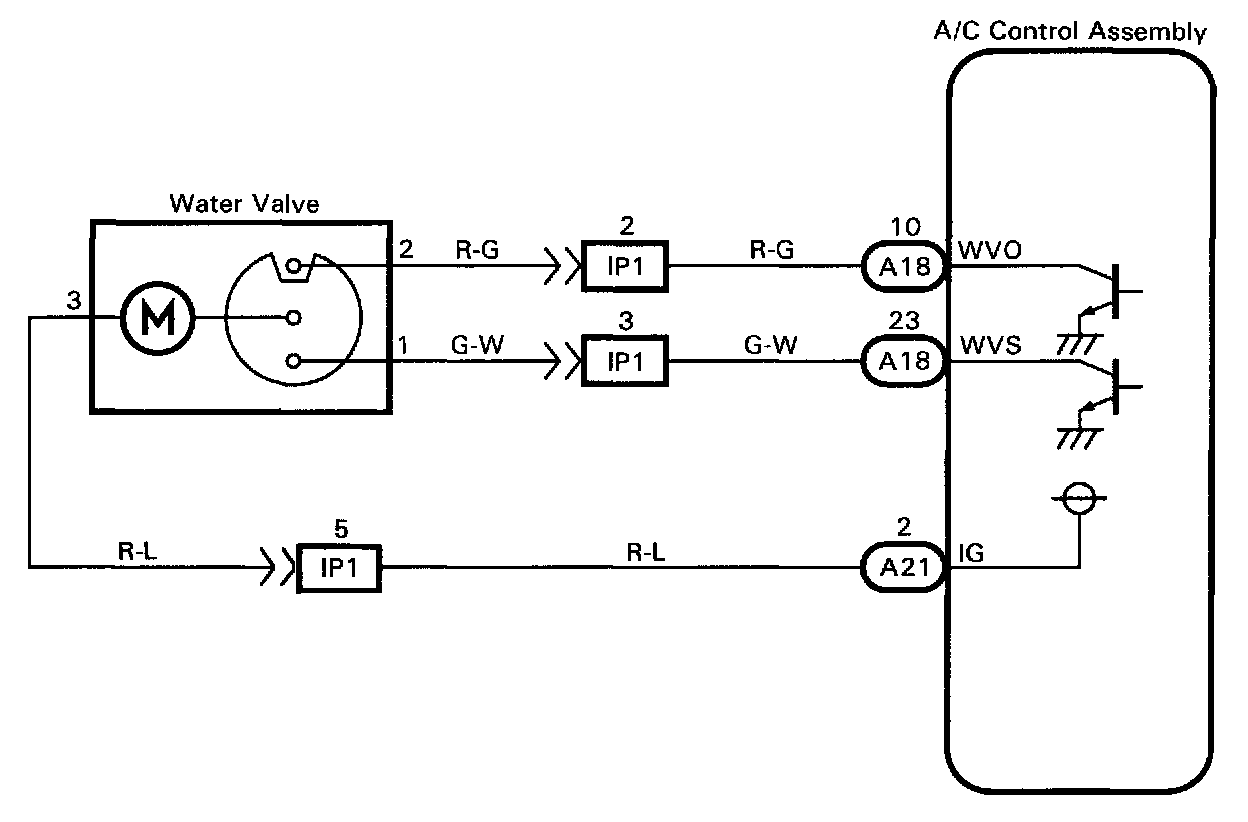

Wiring Diagram:

Inspection Procedure

Step 1:

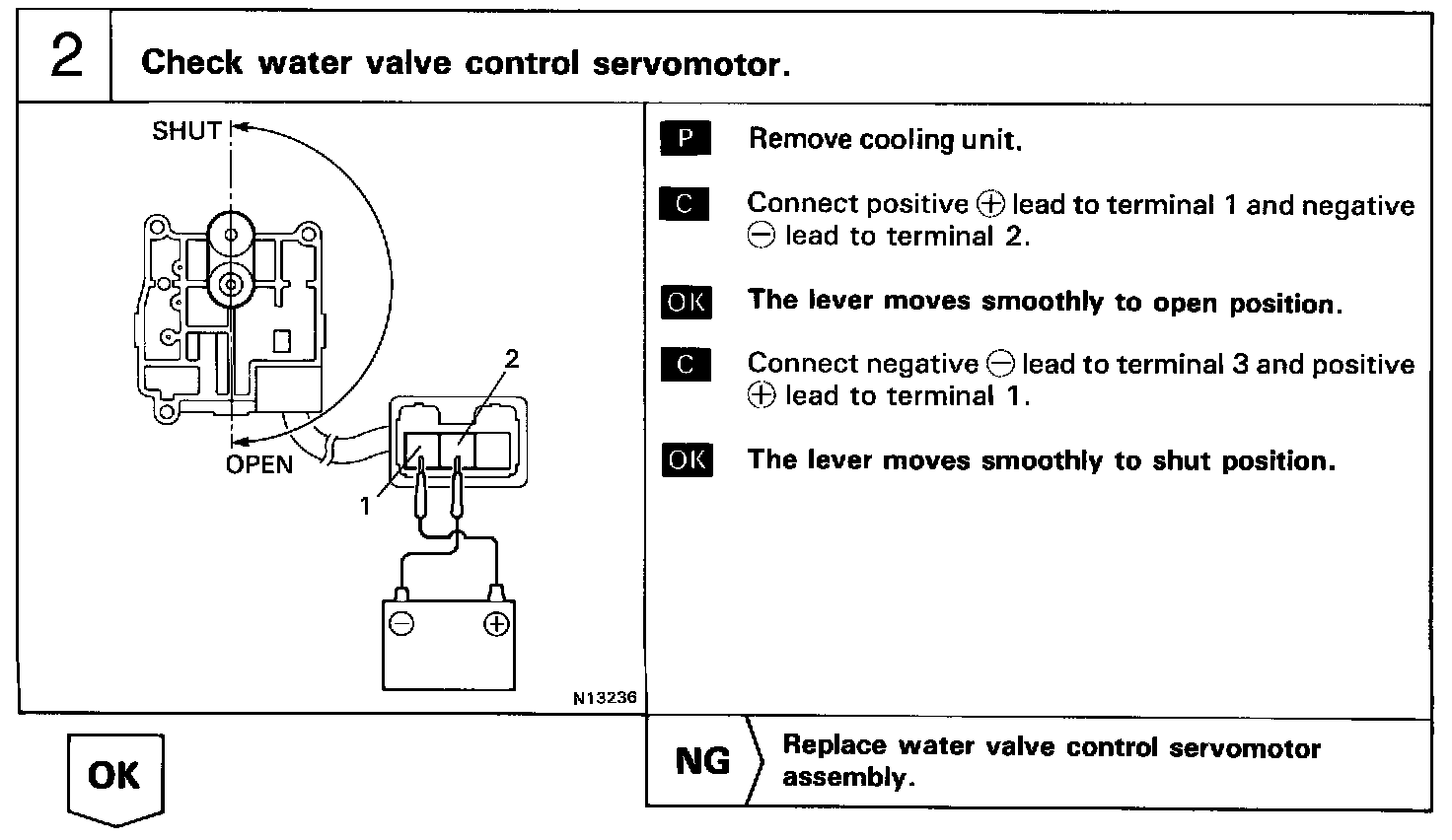

Step 2:

Step 3:
