ACC Power Source Circuit

Circuit Description
This circuit supplies power to the air conditioning control assembly.

Wiring Diagram:

Inspection Procedure

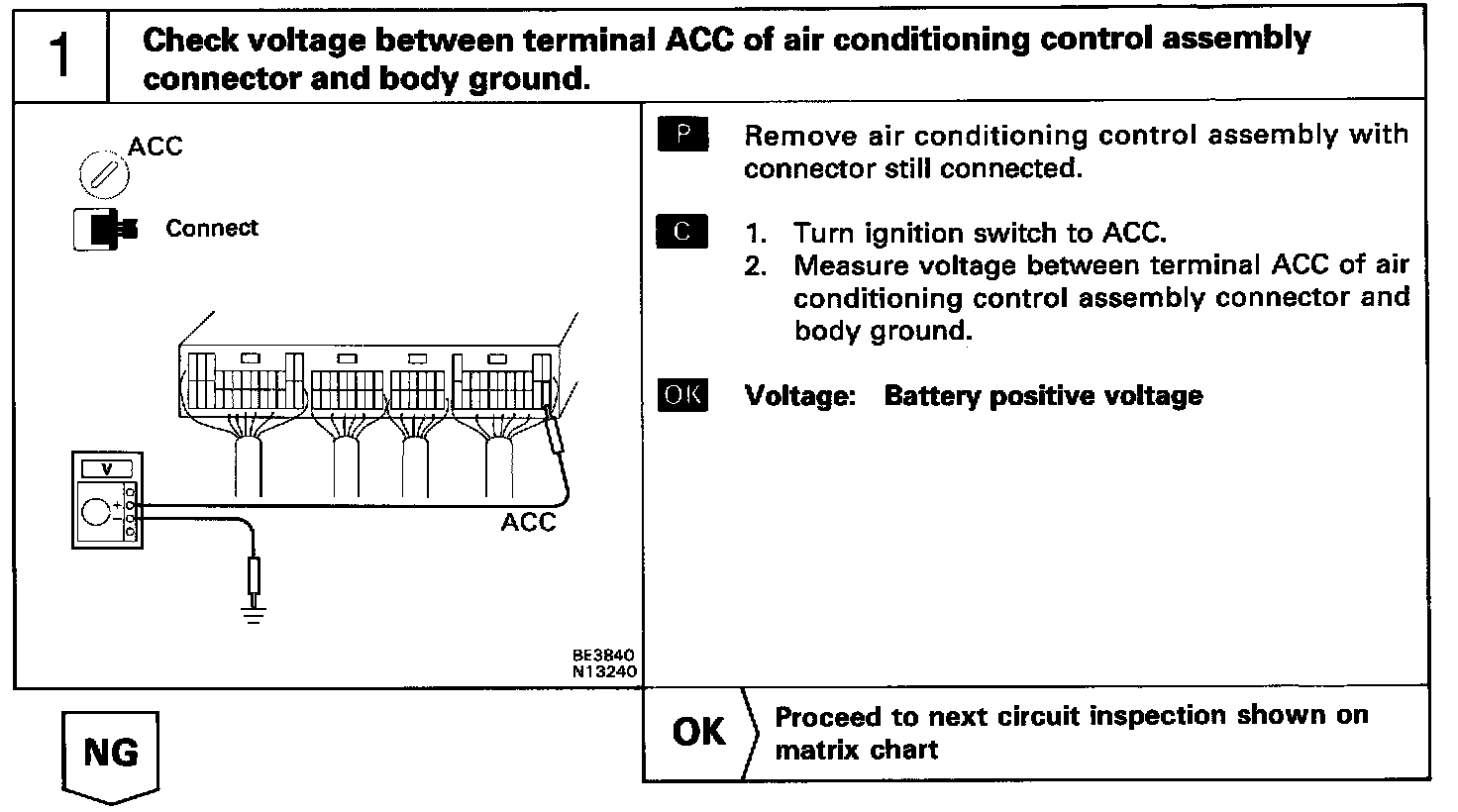

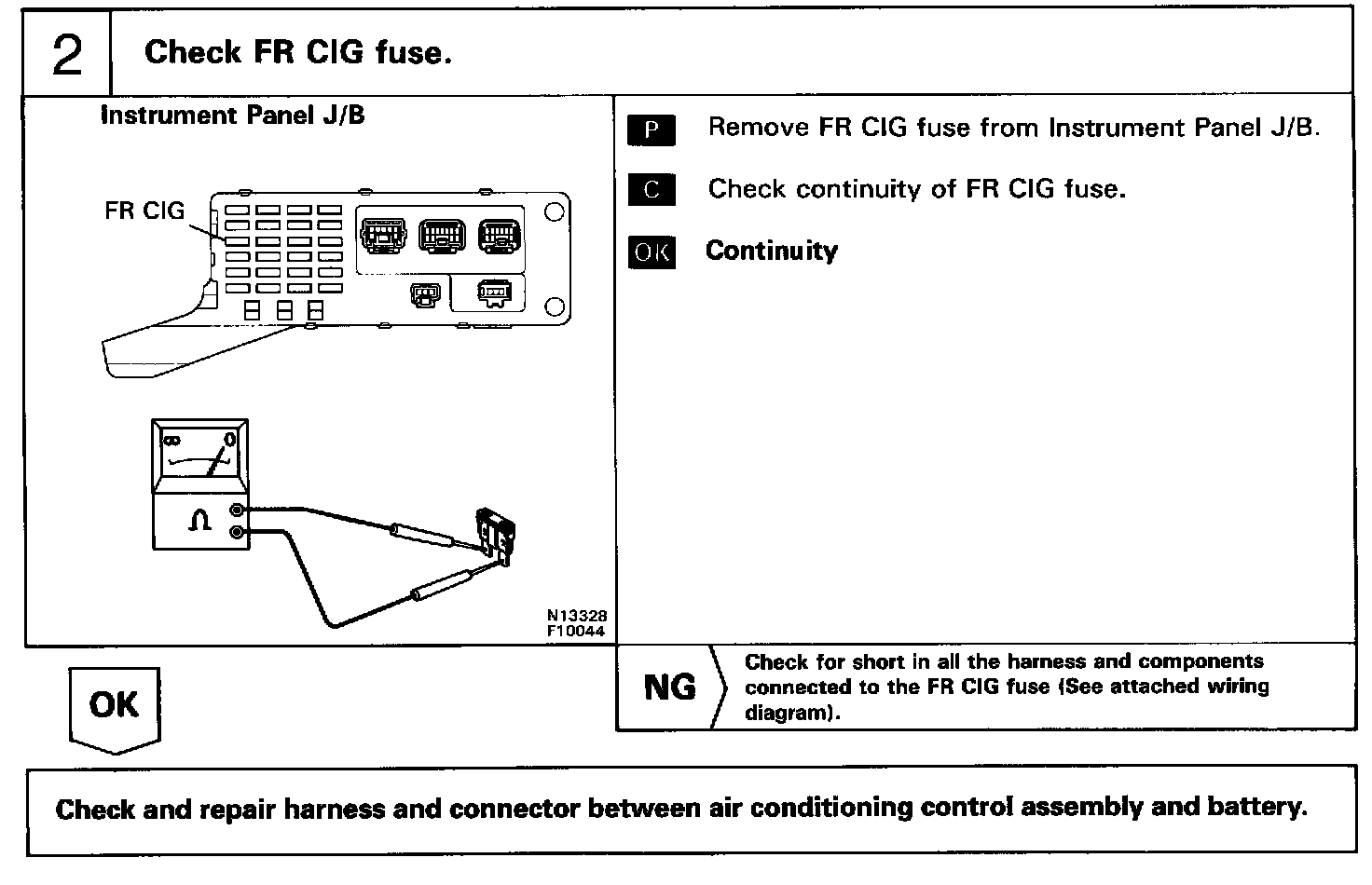

Step 1:
