A/C - Control Unit Power Source Change

ELECTRICAL
EL95-005
SEPTEMBER 15, 1995
LS 400

Title: A/C CONTROL UNIT POWER SOURCE CHANGE

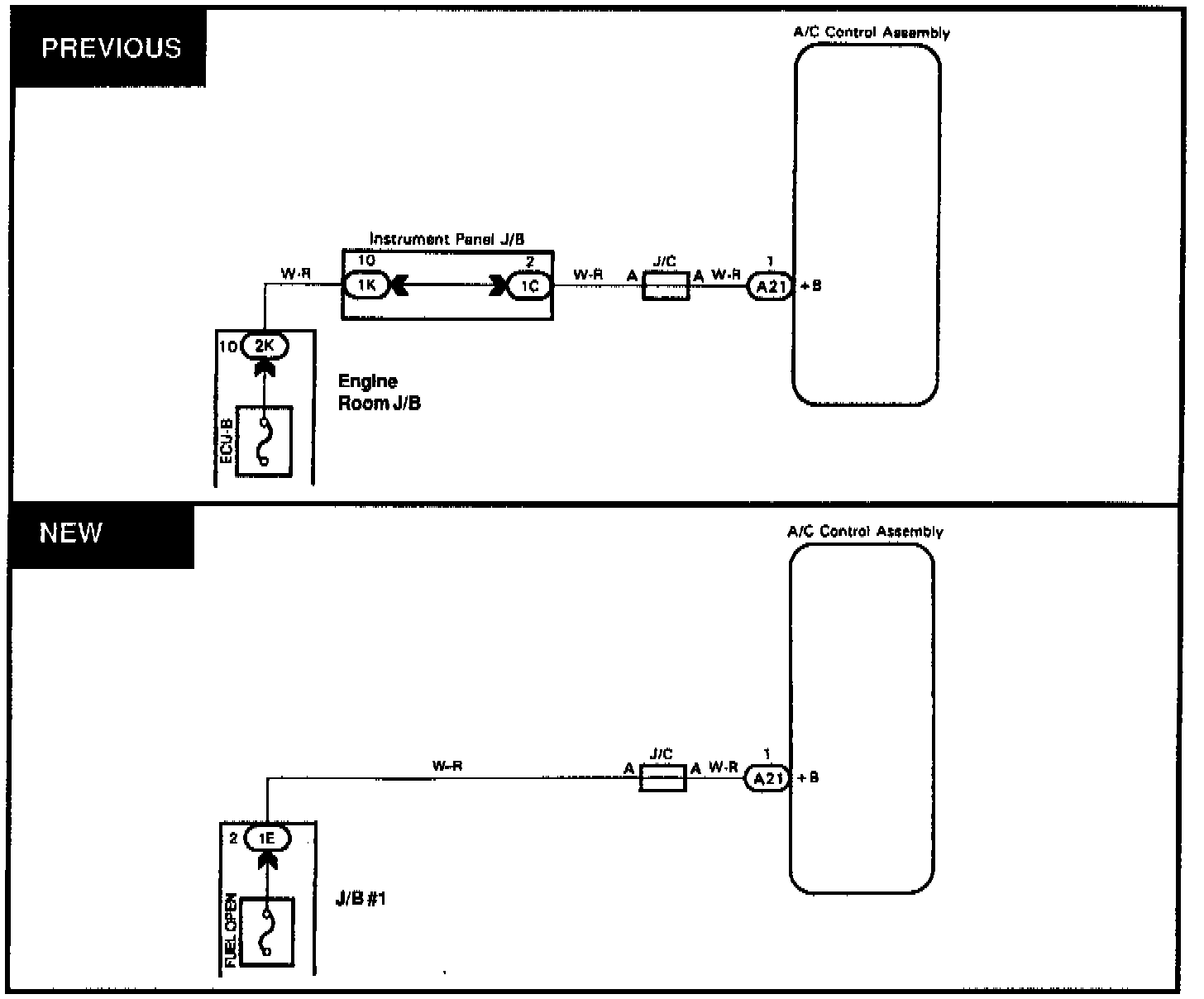

On the 1995 LS 400, the power source for the A/C Control Assembly has been moved from the "ECU-B" fuse to the "FUEL OPEN" fuse.

NOTE:
To clear Diagnostic Trouble Codes from A/C Control Units on vehicles after the referenced VIN, it is necessary to remove the "Fuel Open" fuse for 60 seconds and reinstall.

PRODUCTION EFFECTIVE:

STARTING VIN: JT8UF22*S0018654

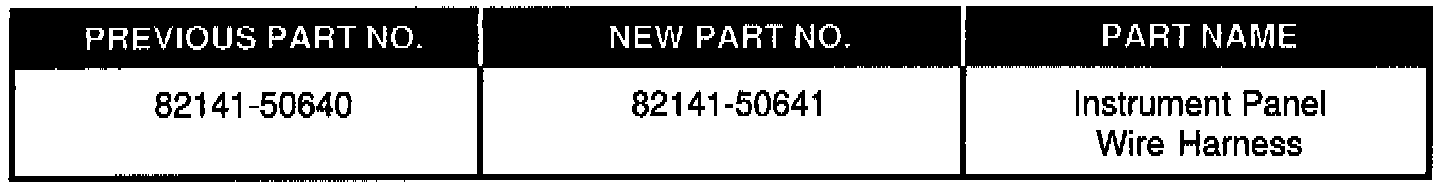

PART NUMBER INFORMATION:

REFERENCE INFORMATION:

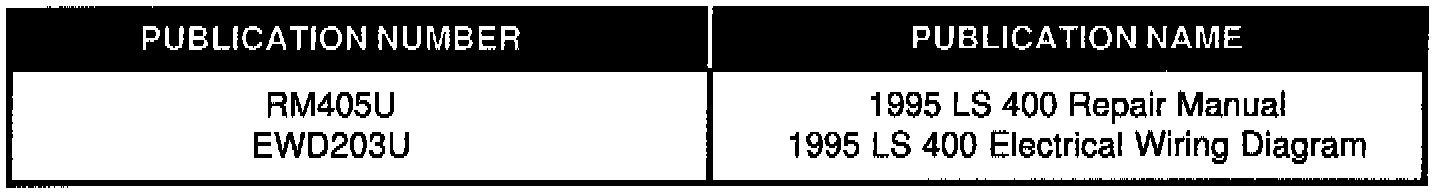

Refer to this Technical Service Information Bulletin when using these manuals, see illustration.
