Transmission Control System

CIRCUIT DESCRIPTION

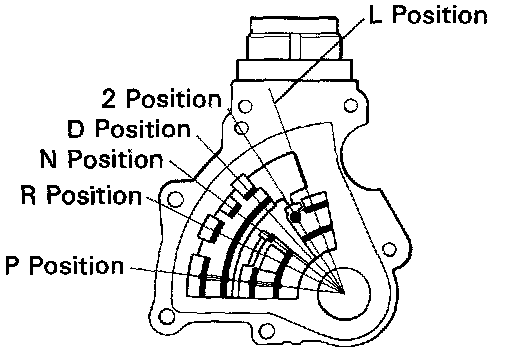

The Park/Neutral position switch detects the shift lever position and sends signals to the Engine Control Module (ECM). The ECM receives signals (NSW, 2 and L) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in the D position.






WIRING DIAGRAM

Park/Neutral Position Switch Circuit:

INSPECTION PROCEDURE
