P1400

CIRCUIT DESCRIPTION



The sub throttle position sensor is built and operates in the same way as the main throttle position sensor. This sensor is used for traction control. The sub throttle valve is opened and closed by the sub throttle actuator according to signals from the TRAC ECU to control the engine output.

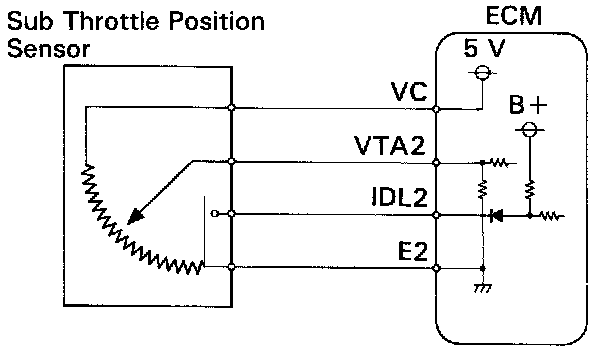

WIRING DIAGRAM

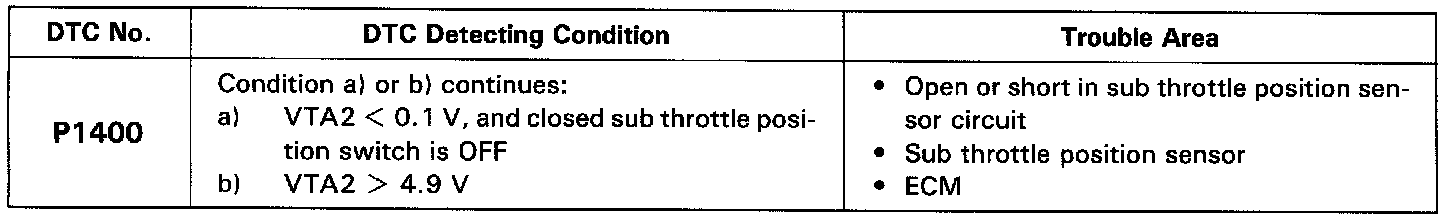

DTC P1400 - Sub Throttle Position Sensor Malfunction

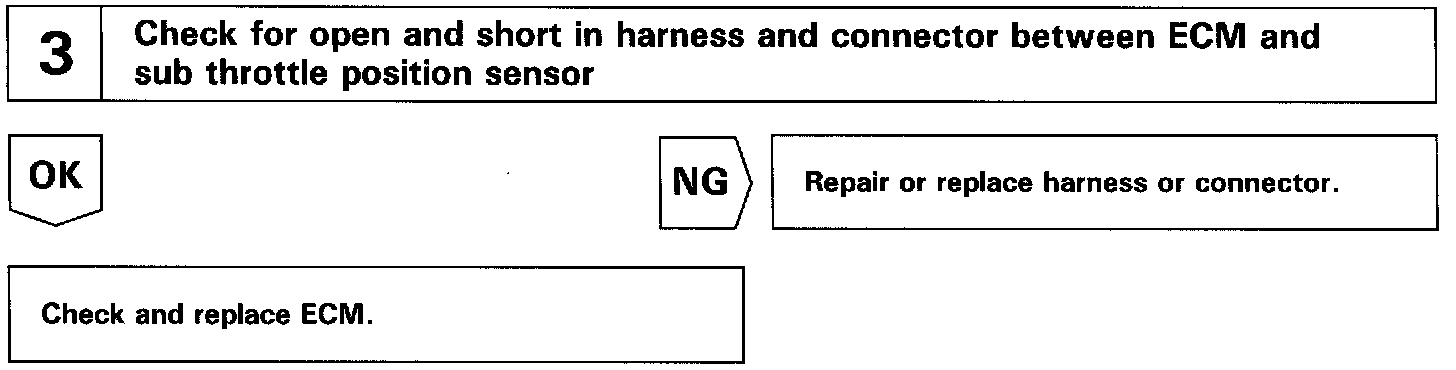

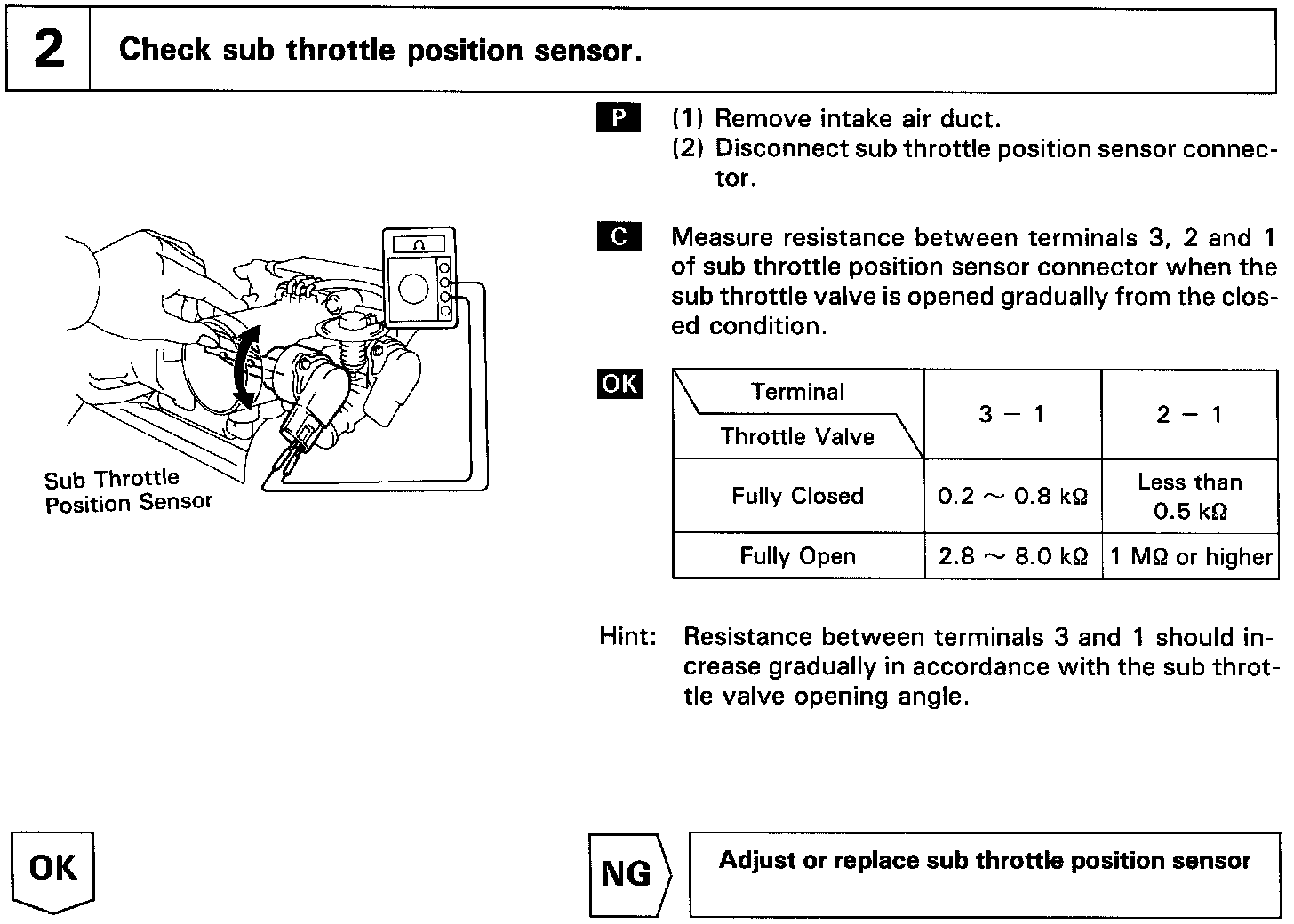

INSPECTION PROCEDURE











DTC P1401 - Sub Throttle Position Sensor Range/Performance Problem

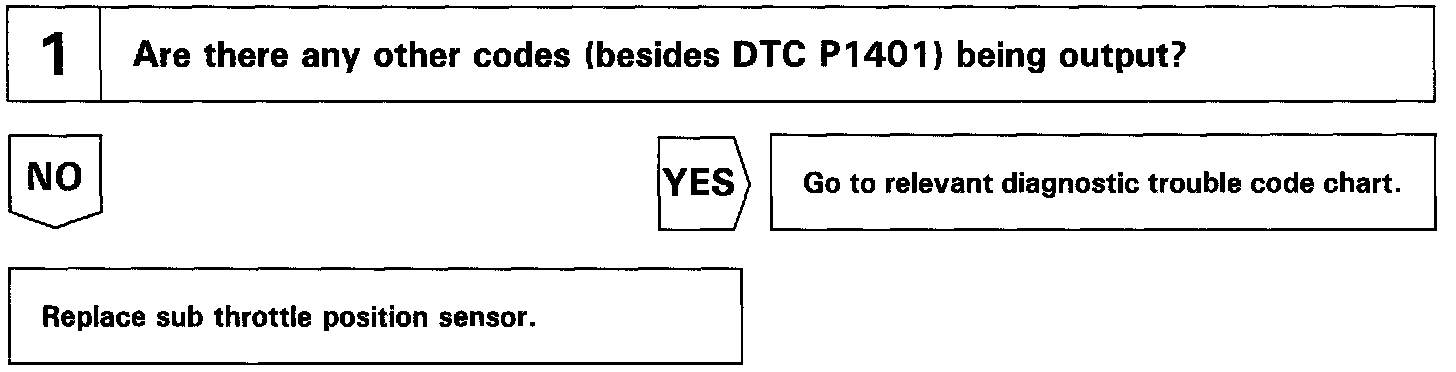

INSPECTION PROCEDURE
