DTC 14

DTC 14 Open in D Squib Circuit

CIRCUIT DESCRIPTION





The D squib circuit consists of the airbag sensor assembly, spiral cable and the steering wheel pad (squib). It causes the airbag to deploy when the airbag deployment conditions are satisfied.

For details of the function of each component, see Description and Operation.

Diagnostic trouble code 14 is recorded when an open is detected in the squib circuit.

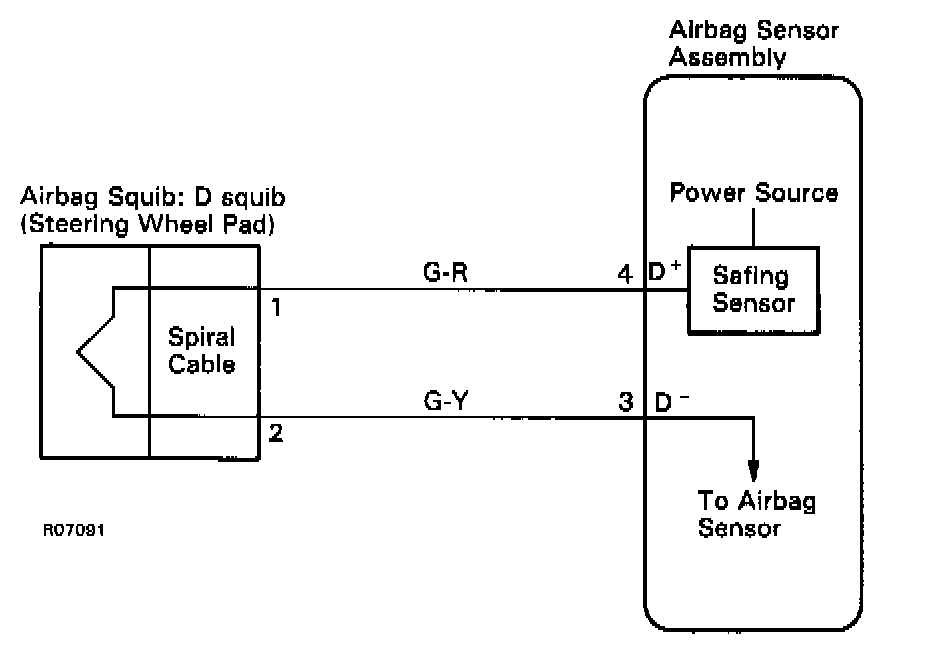

WIRING DIAGRAM:

STEP 1:

STEP 2:

STEP 3:

STEP 4:

STEP 5:

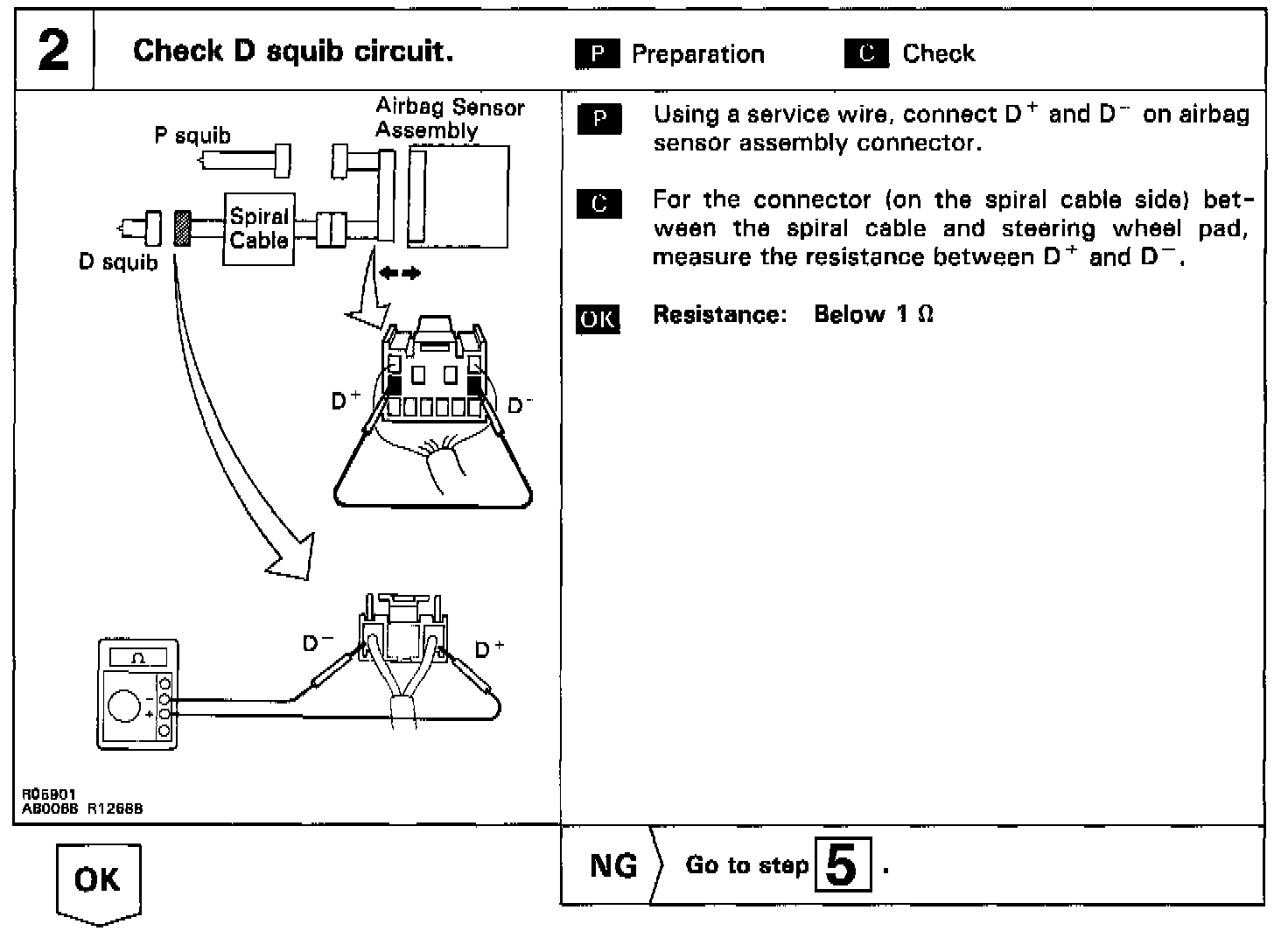

STEP 6:

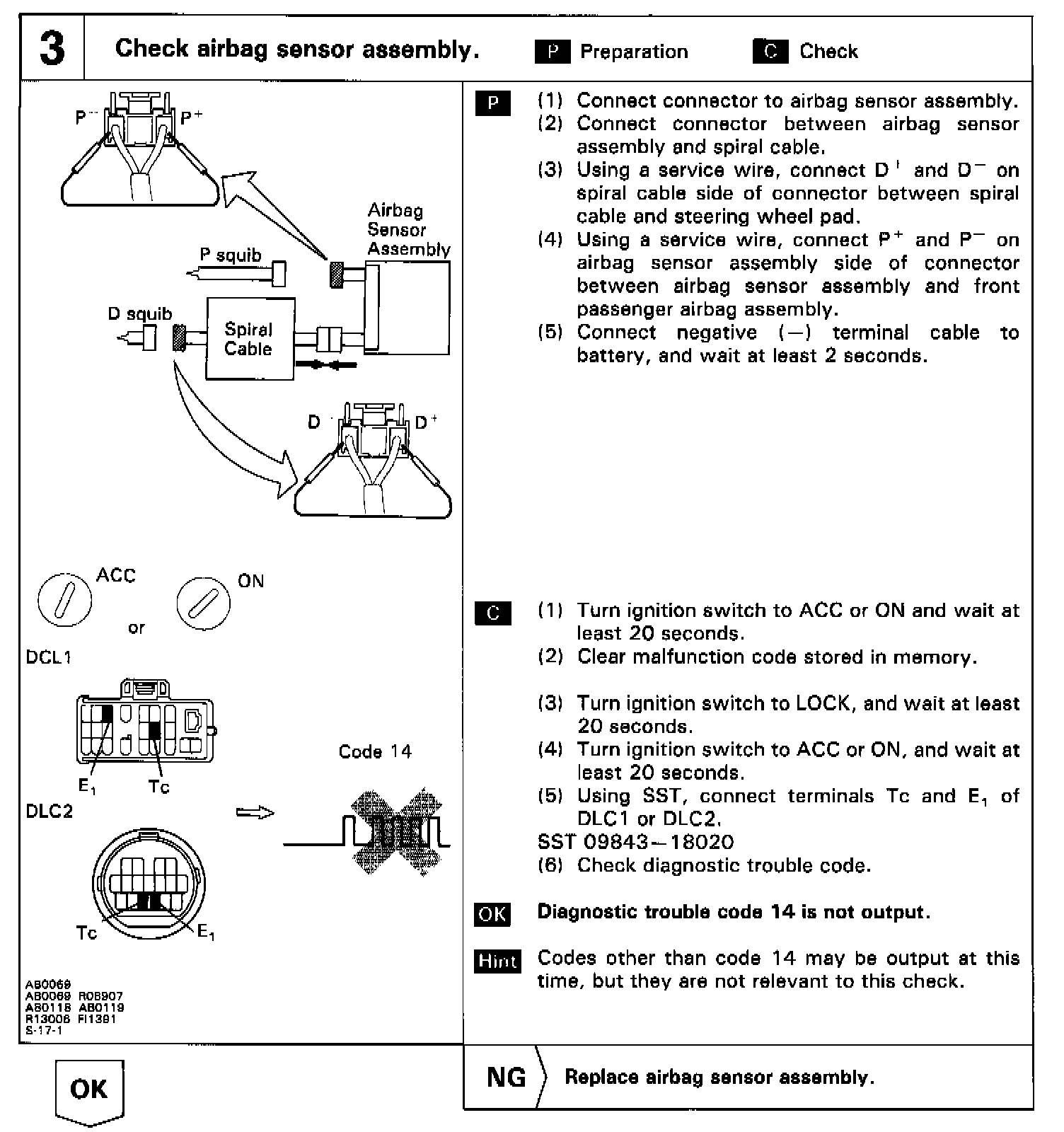

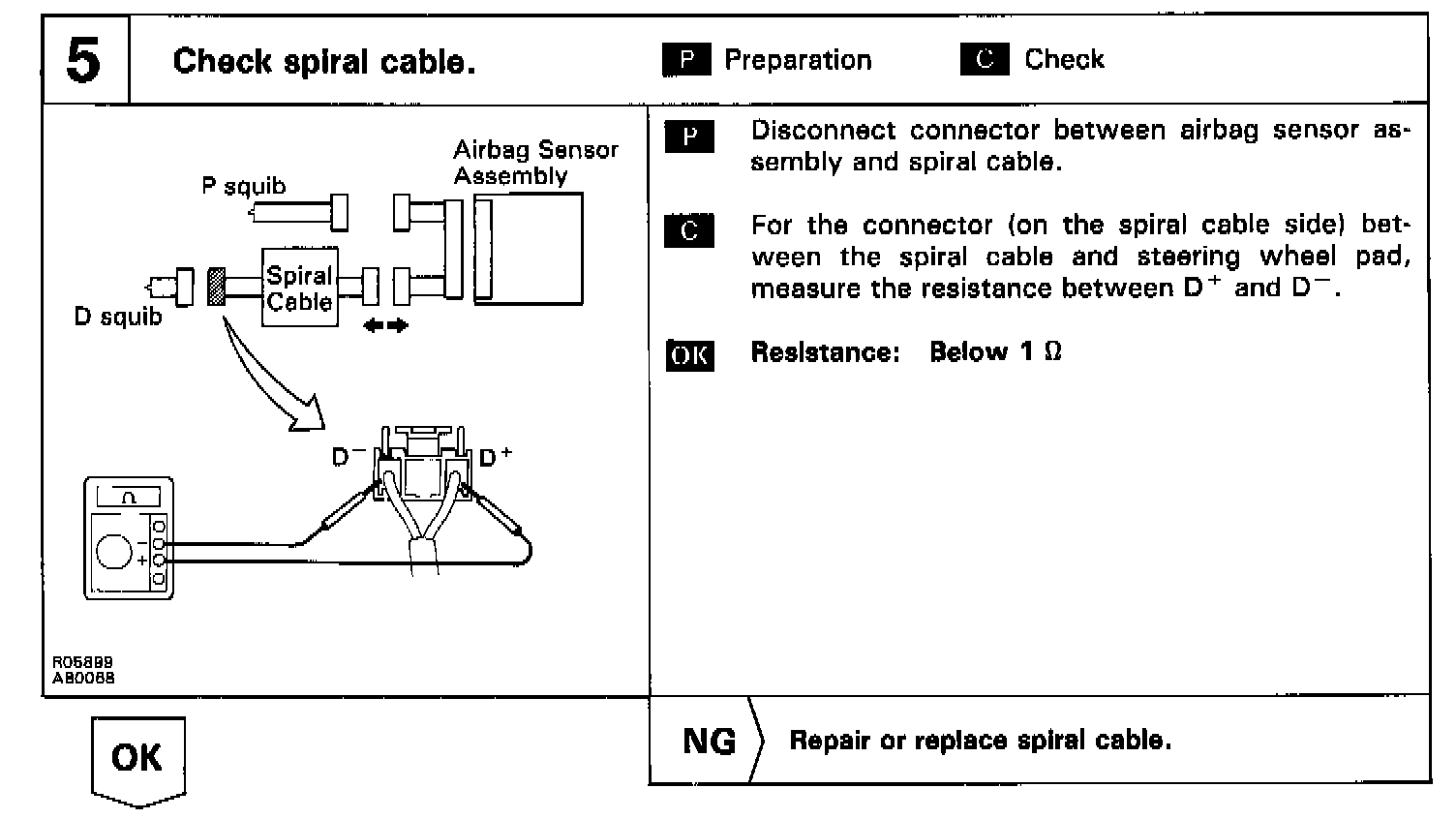

INSPECTION PROCEDURES

P-Preparation
C-Check
