SFI System

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table below.

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

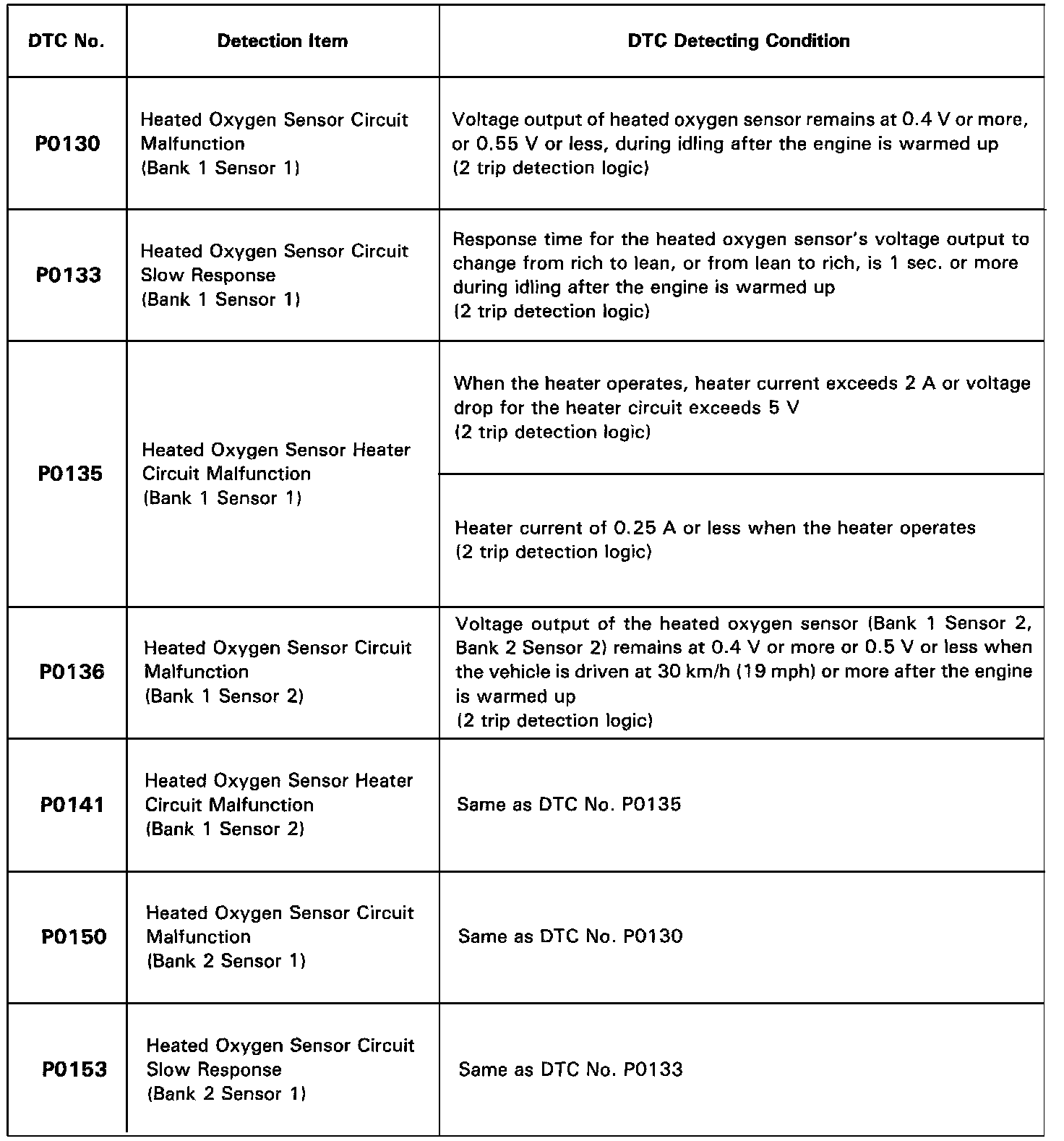

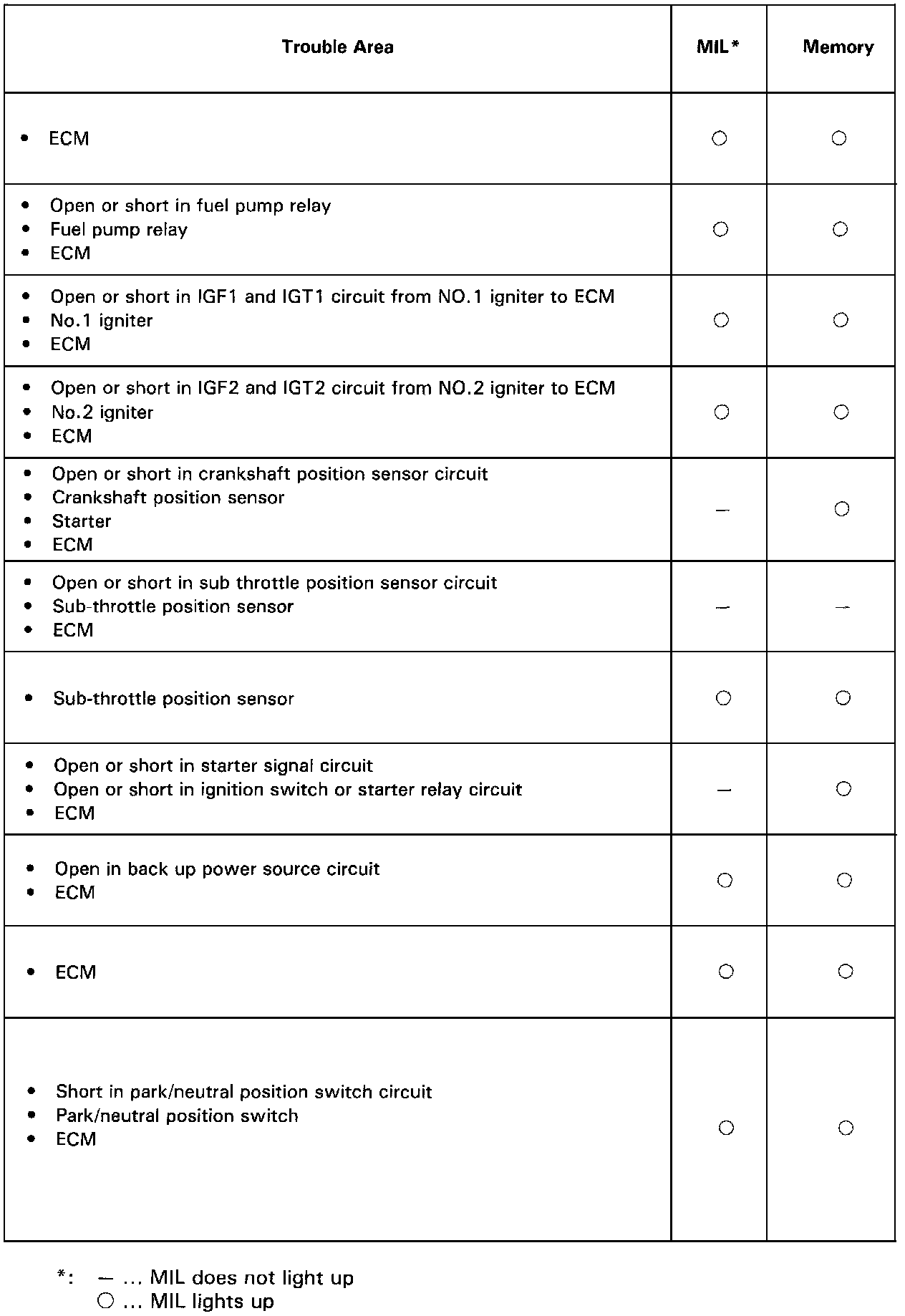

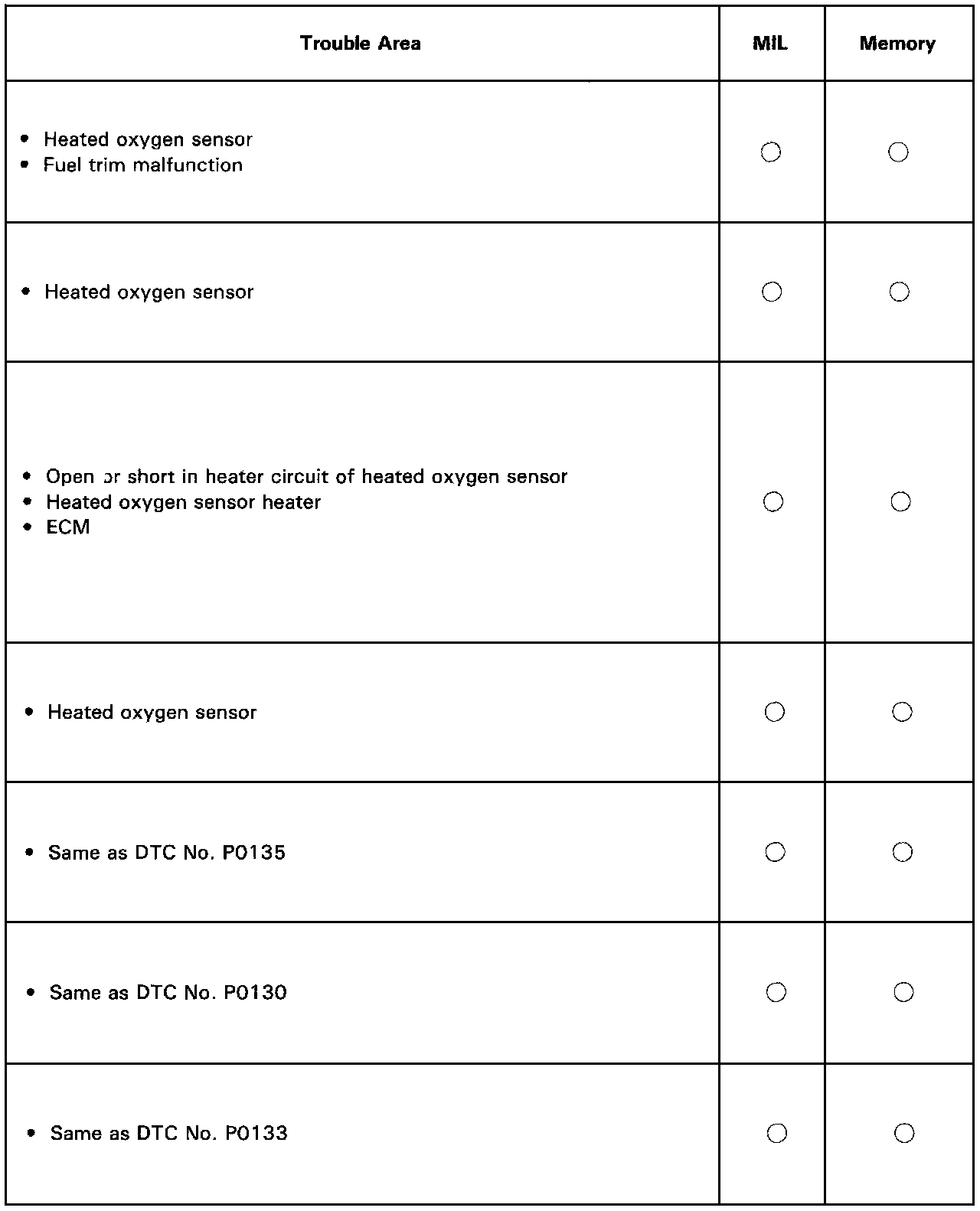

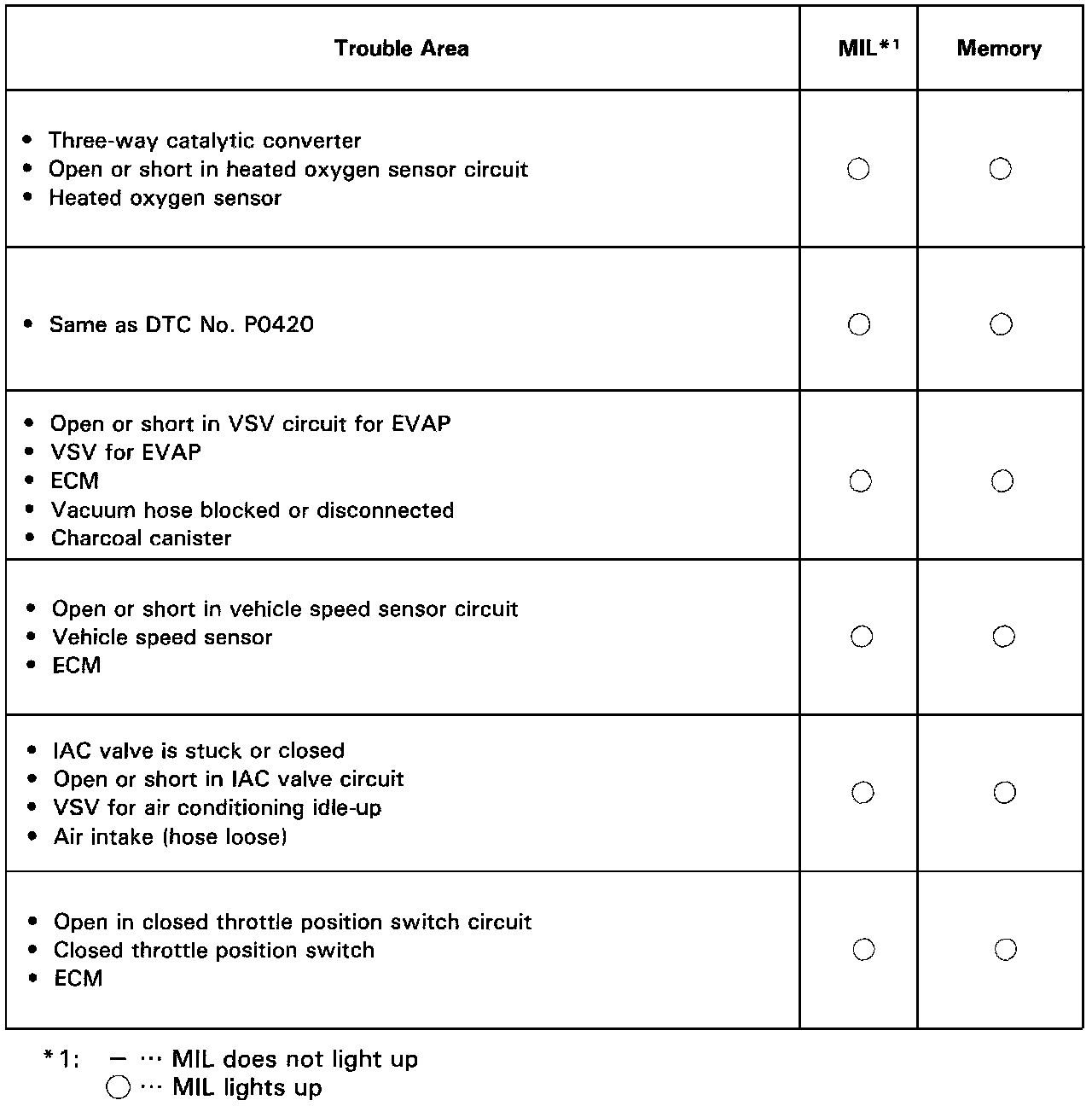

SAE Controlled DTC Chart






































Manufacturer Controlled DTC Chart
