Telescopic Steering Column - Grinding Noise: Overview

ST001-97

March 14, 1997

Title:
TELESCOPIC STEERING COLUMN

Models:
'95 GS 300

Introduction

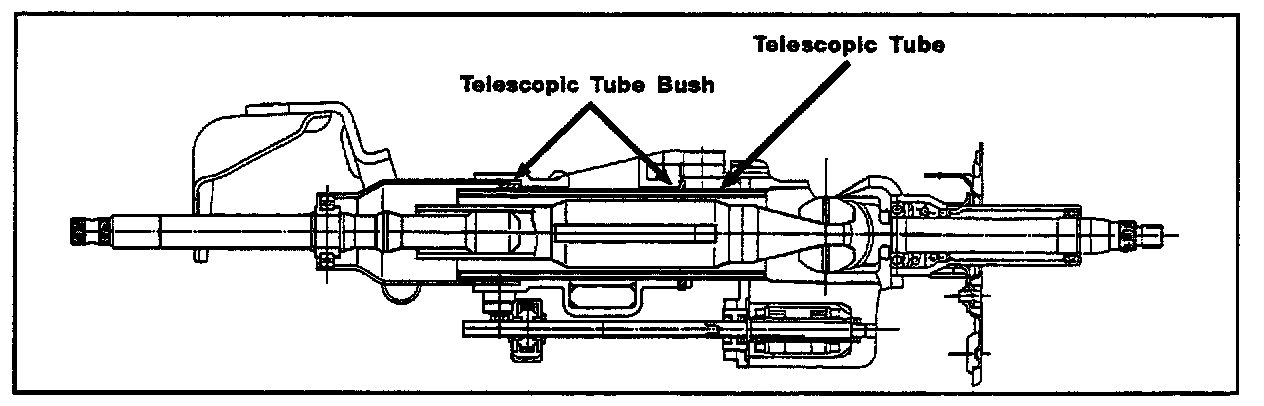

Introduction Image:

To eliminate possible telescopic steering column grinding noise on some GS 300 models the following production changes have been made.

^ To increase wear resistance molybdenum has been added to the teflon coating material which is applied on the surface of the telescopic tube.

^ To reduce the concentration of local stress the precision of the telescopic tube roundness has been improved.

^ A chamfered cut has been added to both ends of the telescopic tube bush.

NOTE: It is not necessary to change the telescopic tube to eliminate the grinding noise. Performing the lubrication procedures outlined in this bulletin and adding the telescopic steering pad should be sufficient.

Production Change Information

^ GS 300s starting with VIN JT8BD42S9T0119476

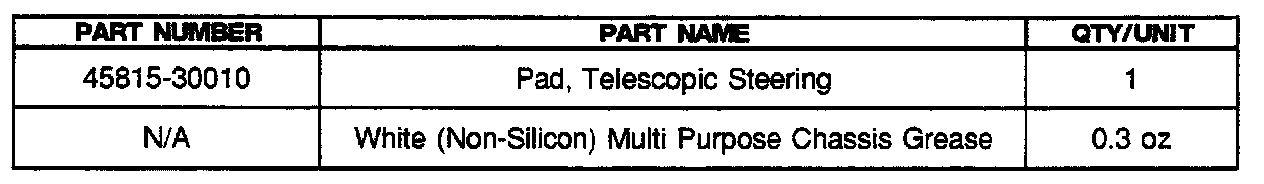

Parts Information

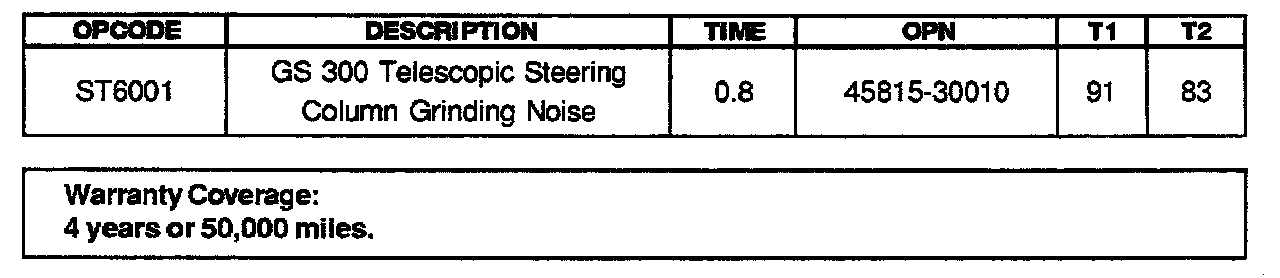

Warranty Information
