Removal and Installation

NOTICE:
- If the wiring connector of the supplemental restraint system is disconnected with the ignition switch at ON or ACC, diagnostic trouble codes will be recorded.
- Never use SRS parts from another vehicle. When replacing parts, replace with new parts.
- Never reuse the sensor involved In a collision when the SRS ha8 deployed.
- Never repair a sensor in order to reuse it.





1. REMOVE FOLLOWING PARTS:
a. Front fender wheel opening moulding
b. Front fender liner





2. INSTALL FRONT AIRBAG SENSOR

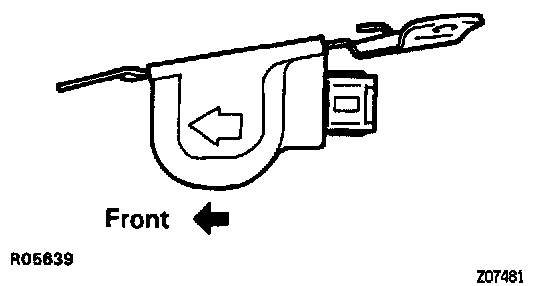

- Install the sensor with the arrow on the sensor facing toward the front of the vehicle.

Torque: 29 Nm (300 kgf cm, 22 ft lb)

NOTICE:
- Make sure the sensor is Instilled to the specified torque.
- If the sensor has been dropped, or there are cracks, dents or other defects in the case, brackets or connector, replace the sensor. If removed, always replace the set bolts with new one.
- The sensor set bolts have been anti-rust treated. When the sensor is removed, always replace the set bolts with new ones.
- After installation, shake the sensor to check that there is no looseness.
- The front senior Is equipped with an electrical connection check mechanism. Be sure to lock this mechanism securely when connecting the connector. If the connector is not securely locked, a malfunction code will be detected by the diagnosis system.
- Check that the dimensions of the body where the front airbag sensor is installed match those in the body dimension drawings.

(The SRS may malfunction, or may not work, if the dimensions of the sensor mount is not correct.)
