Passenger Airbag - Replacement Procedure
ELECTRICALEL95-001
FEBRUARY 3, 1995
ES 300, GS 300
When replacing the passenger airbag door or airbag assembly on ES 300 or GS 300, make sure to replace both parts as a set. To simplify this procedure, the front passenger airbag parts for these models are now packaged as a set (set contains the airbag door, airbag assembly and associated rivets, bolts and/or nuts).
Caution:
Replace the front passenger airbag door and airbag assembly as a set, never separately. INSTALLATION PRECAUTIONS:
TAKE THE FOLLOWING PRECAUTIONS WHEN REPLACING THESE PARTS:
^ When installing the airbag door, always replace the bolts, nuts, and screws.
^ Do not store the front passenger airbag assembly with the airbag door facing down.
^ Never disassemble the front passenger airbag assembly.
^ Make sure the airbag door does not have scratches, cracks, peeling or deformation.
^ When installing the airbag door, do not let any foreign particles get into the airbag assembly.
^ When installing the airbag door, do not pinch or otherwise damage the airbag assembly.
See the repair manual for the airbag installation and handling instructions.
INSTALLATION INSTRUCTIONS:

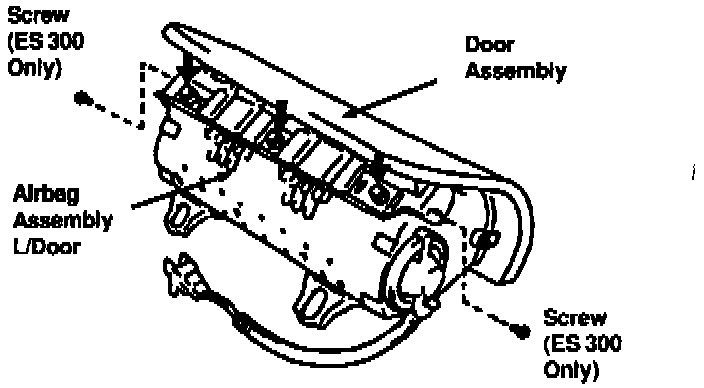

The airbag door and airbag assembly must be assembled before it is installed onto the vehicle.
ES 300

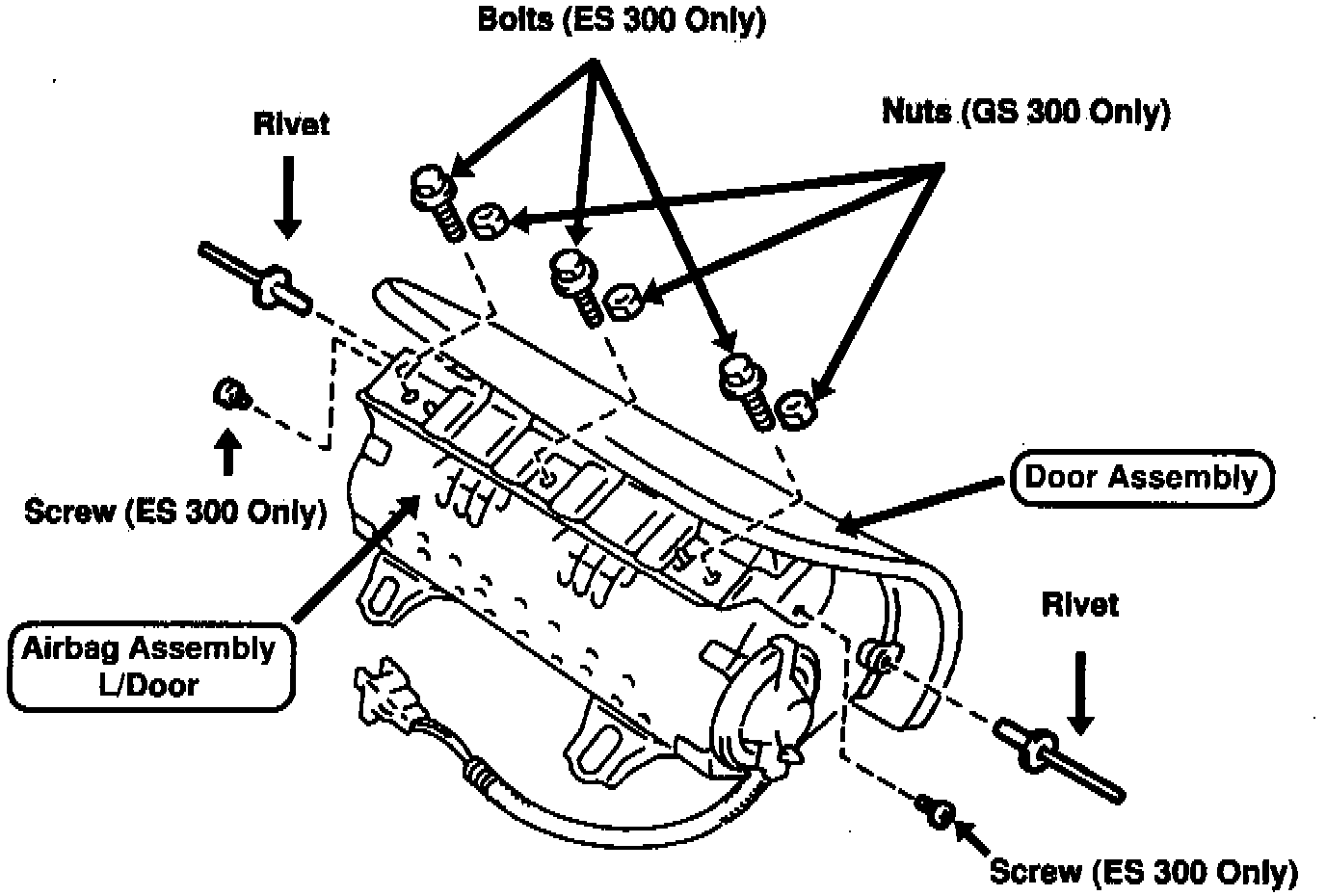

1) Install the airbag door on to the airbag assembly with 3 new nuts.
Torque: 9.0 Nm (92 Kgf cm, 90 in lbf)
2) Install 2 new screws.

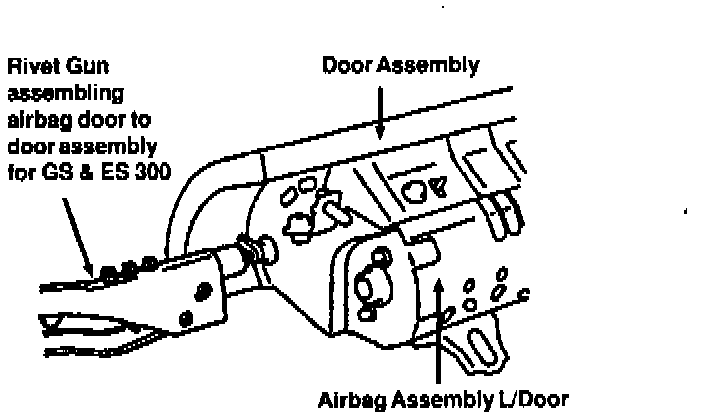

3) Install 2 new rivets.
4) Install front passenger airbag assembly according to the repair manual.
GS 300
1) Install the airbag door on the airbag assembly with the new bolts.
Torque: 8.0 Nm (82 Kgf cm, 71 in lbf )
2) Install 2 new rivets.
3) Install front passenger airbag assembly according to the repair manual.

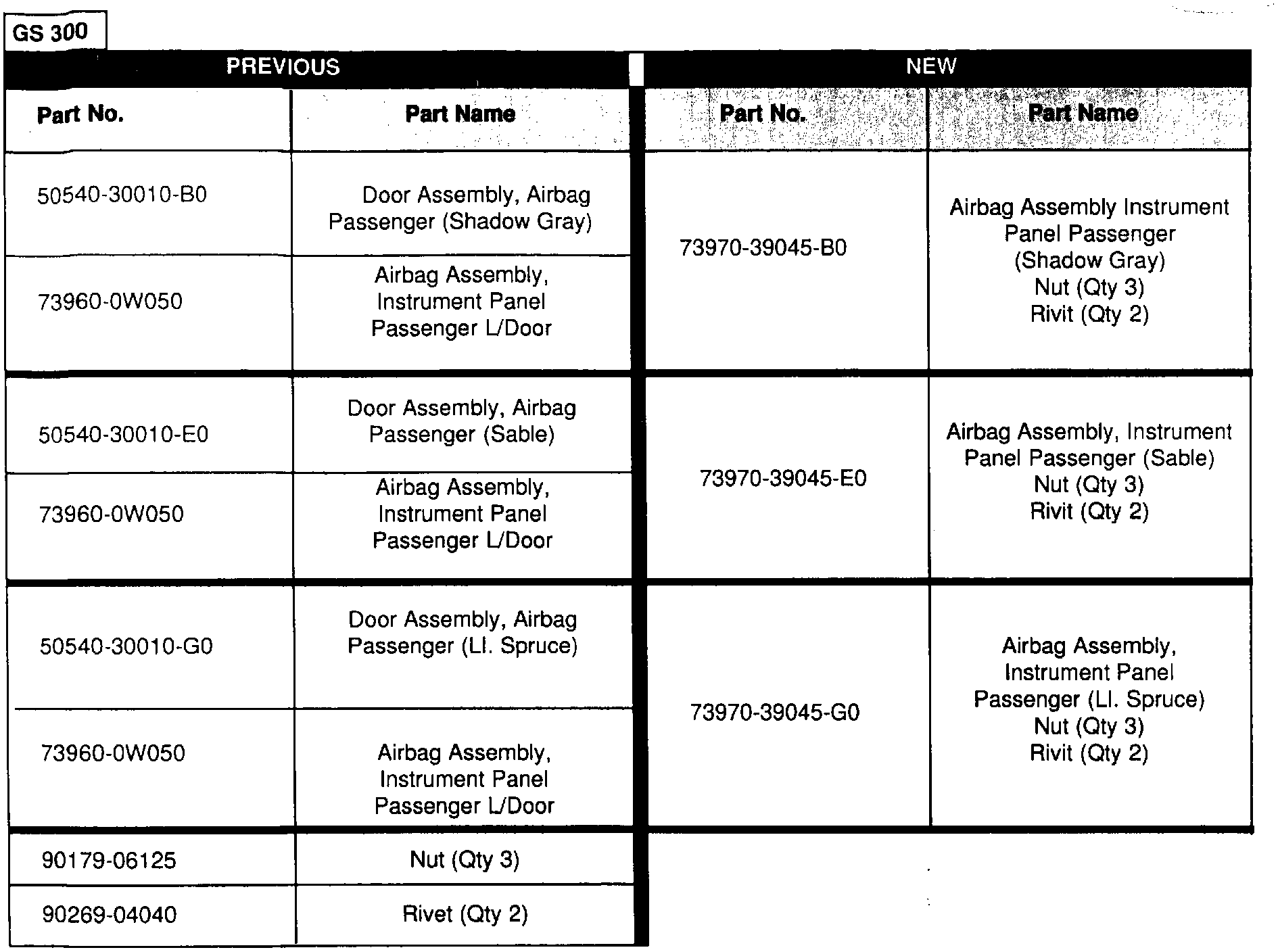

Parts Information
