Component Inspection




FUEL PUMP ECU INSPECTION

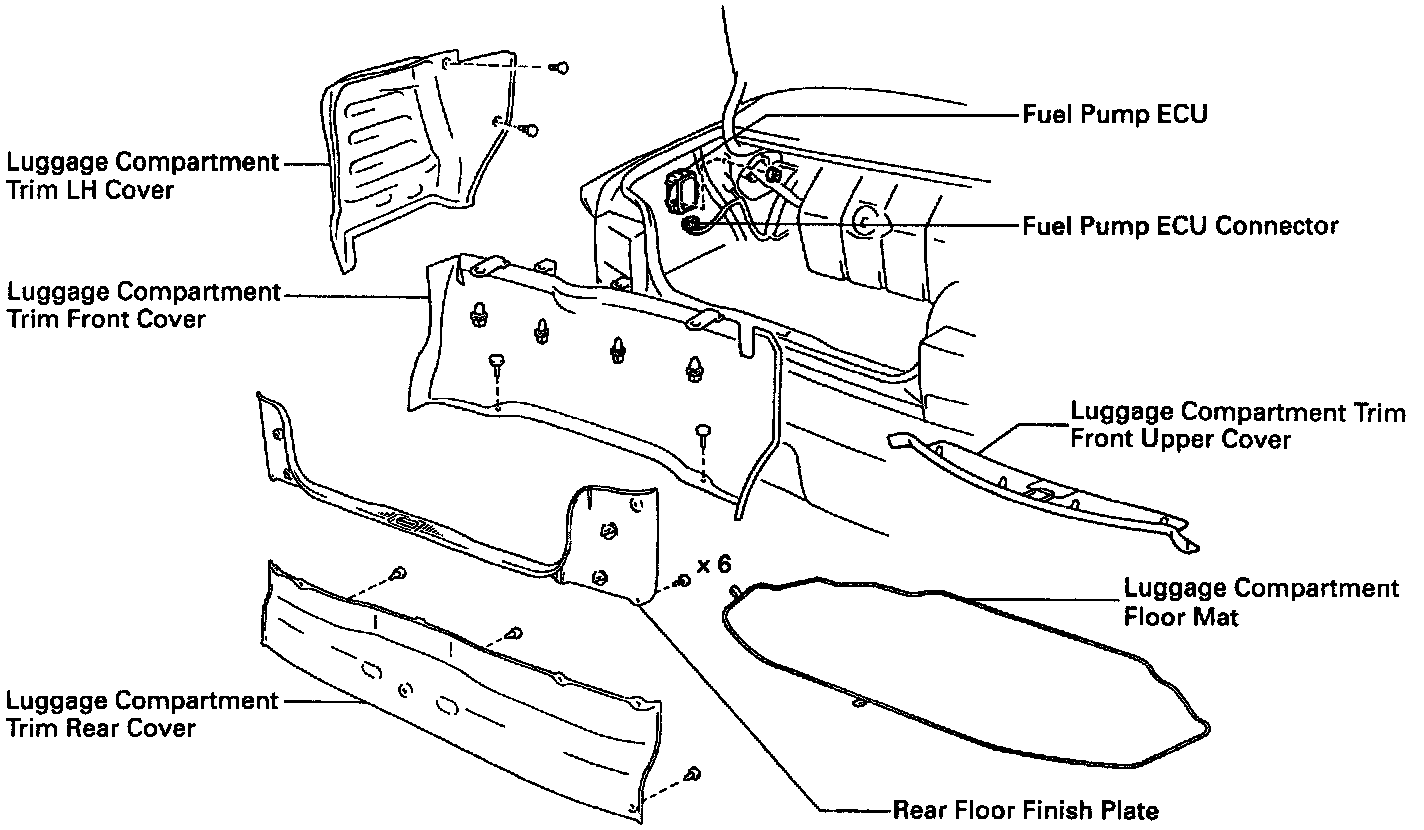

1. REMOVE FUEL PUMP ECU.

2. INSPECT FUEL PUMP ECU.
Refer to "Diagnositc Charts / Trouble Code Charts / DTC 78 - Fuel Pump Control Circuit". Testing and Inspection

3. REINSTALL FUEL PUMP ECU.
