Throttle Body: Adjustments

THROTTLE POSITION SENSOR ADJUSTMENT

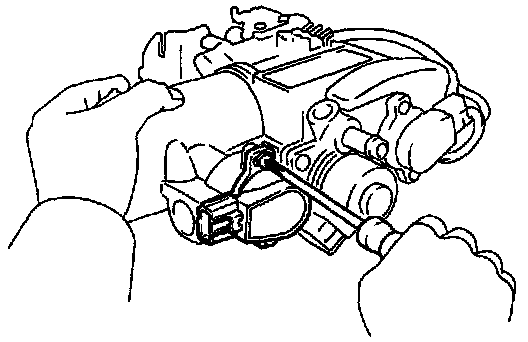

- Loosen the 2 set screws of the sensor.

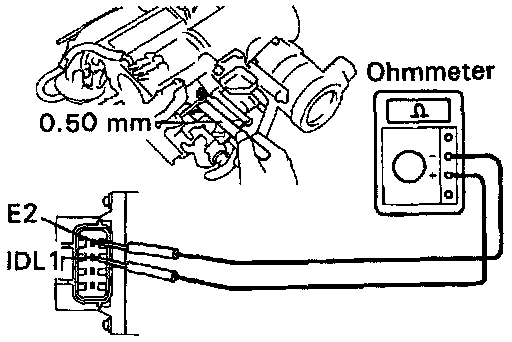

- Insert a 0.50 mm (0.020 in.) feeler gauge between the throttle stop screw and stop lever.
- Connect the test probe of an ohmmeter to the terminals IDL1 and E2 of the sensor.

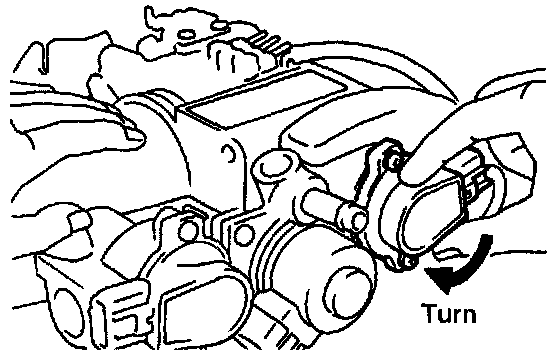

- Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.

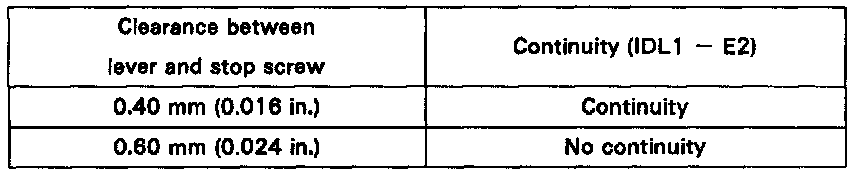

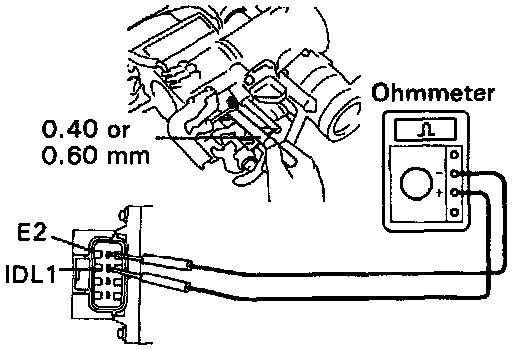

- Recheck the continuity between terminals IDL1 and E2.




SUB-THROTTLE POSITION SENSOR ADJUSTMENT

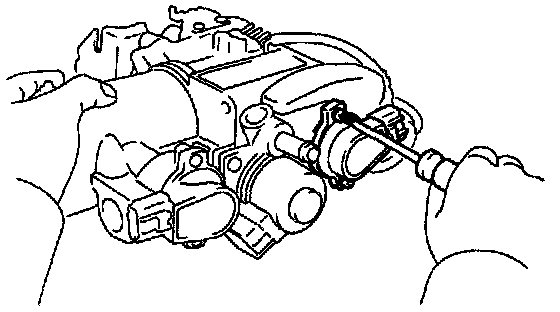

- Loosen the 2 set screws of the sensor.

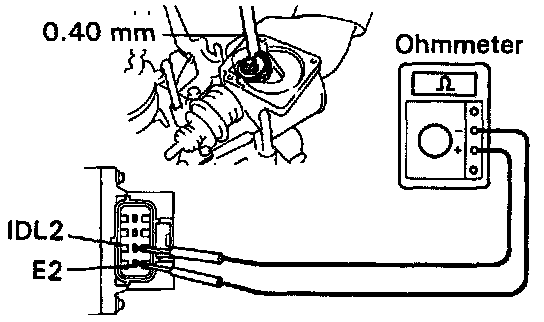

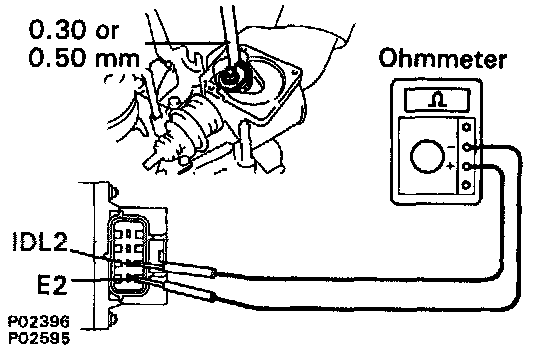

- Insert a 0.40 mm (0.016 in.) feeler gauge, between the throttle stop screw and throttle valve gear.
- Connect the test probe of an ohmmeter to the terminals IDL2 and E2 of the sensor.

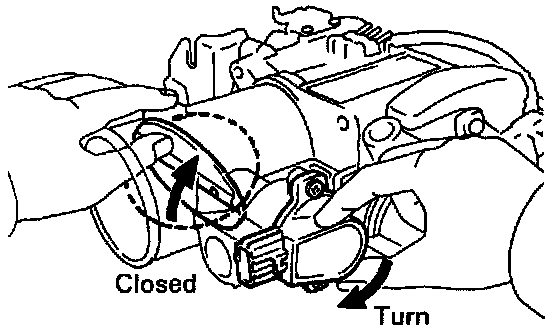

- Set that the sub-throttle valve is fully closed.
- Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.

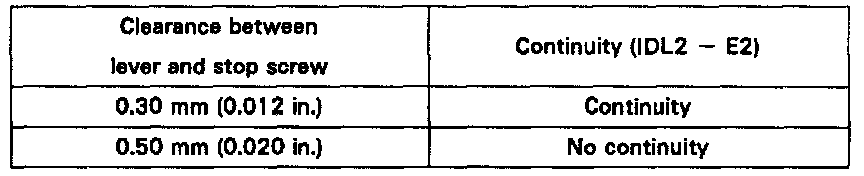

- Recheck the continuity between terminals IDL2 and E2.

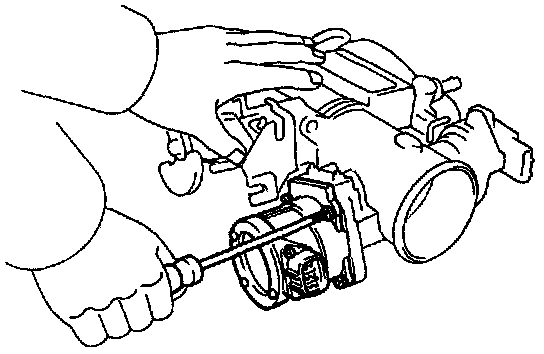

NOTE: For reinstallation of the sub-throttle actuator, reinstall the 4 screws.
