Disassembly and Reassembly

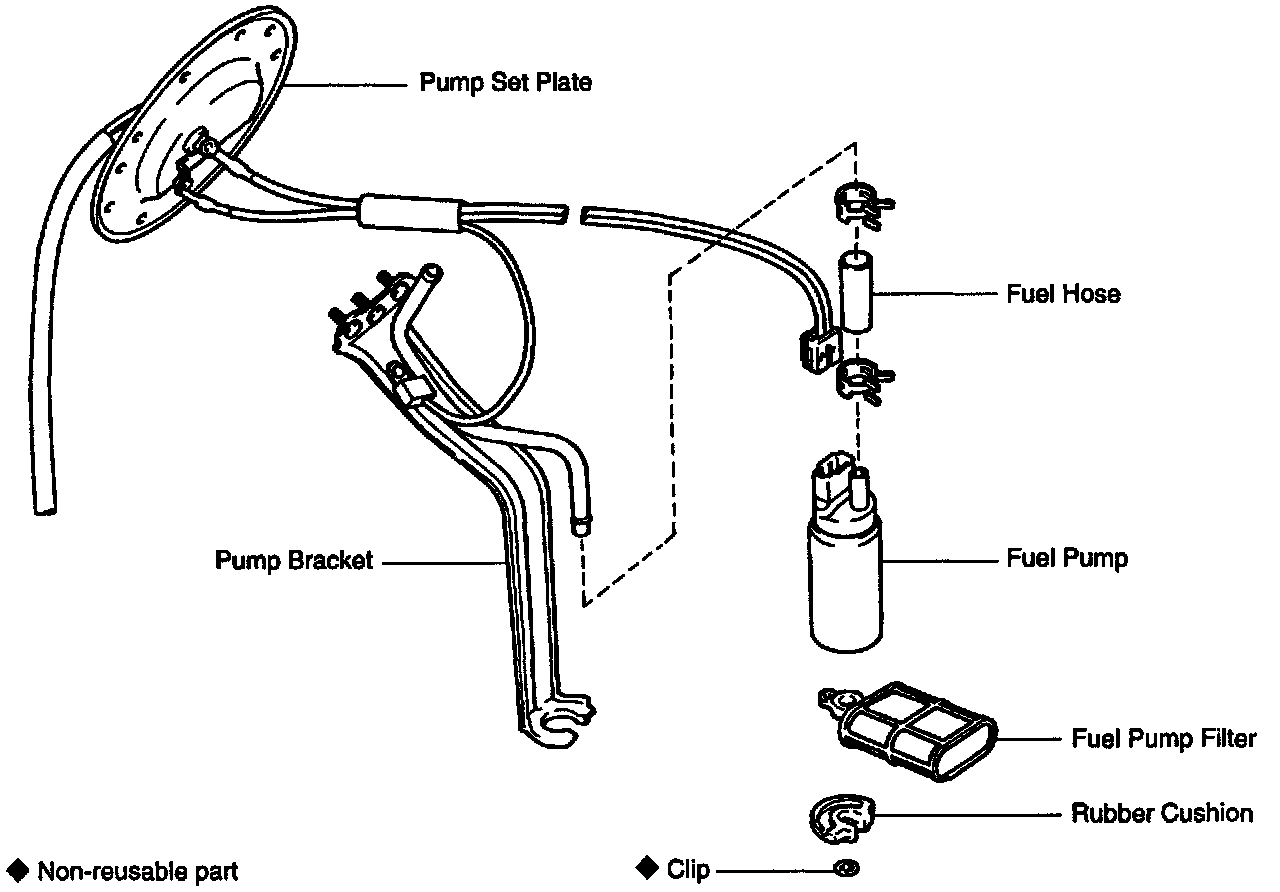

DISASSEMBLY
1. Remove pump set plate from fuel pump.
- Disconnect the lead connector from the fuel pump, and remove the set plate.




2. Remove fuel pump from pump bracket.

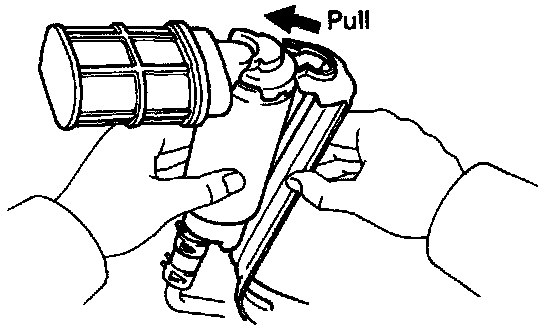

- Pull out the lower side of the fuel pump from the pump bracket.
- Remove the rubber cushion from the fuel pump.
- Disconnect the fuel hose from the fuel pump. and remove the fuel pump.




3. Remove fuel pump filter from fuel pump.

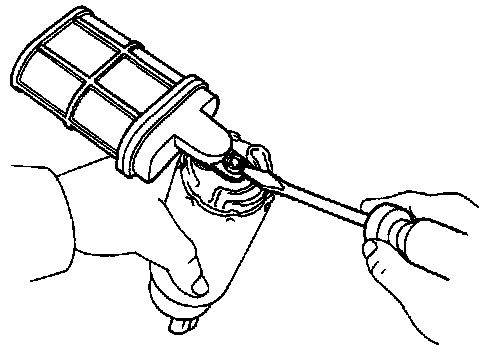

- Using a small screwdriver, remove the clip.
- Pull out the pump filter.

ASSEMBLY
Assembly is in the reverse order of disassembly.

HINT: Use a new clip.
