Evaporative Emissions System: Testing and Inspection

1. VISUALLY INSPECT FUEL VAPOR LINES
- Visually inspect lines and connections.
- Look for loose connections, sharp bends or damage.

2. VISUALLY INSPECT FUEL TANK
- Look for deformation, cracks or fuel leakage.

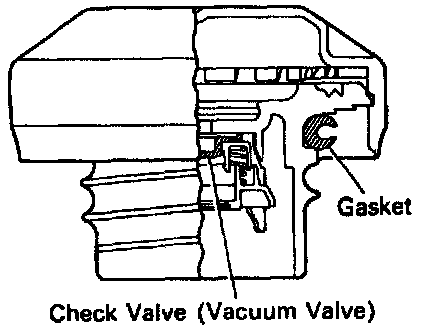

3. VISUALLY INSPECT FUEL TANK CAP
- Check if the cap and/or gasket are deformed or damaged.
- If necessary. repair or replace the cap.
