Home >> Lexus >> 1995 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Injector Circuit >> Inspection Using Oscilloscope

Inspection Using Oscilloscope




INSPECTION USING OSCILLOSCOPE
Reference

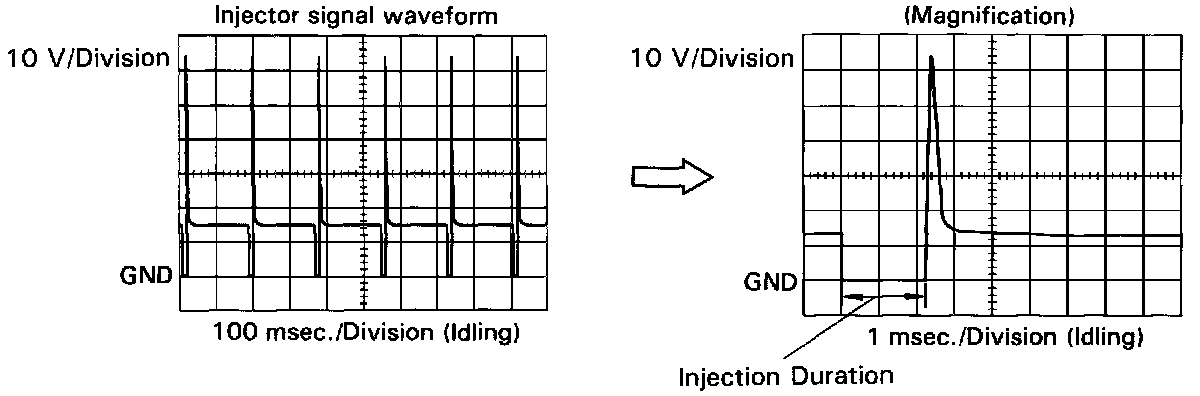

With the engine idling measure waveform between terminals #10 - 60 and E01 of Engine Control Module (ECM).

HINT: The correct waveforms are as shown.
