Description

CIRCUIT DESCRIPTION

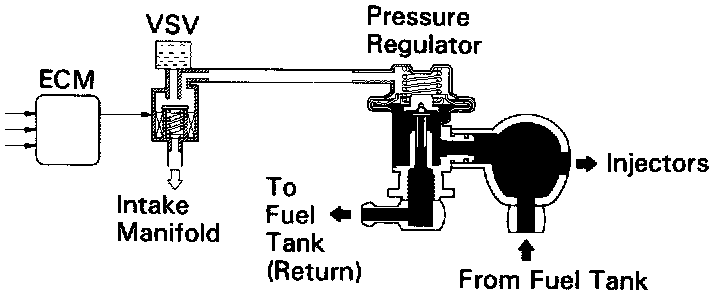

The Engine Control Module (ECM) turns on a Vacuum Switching Valve (VSV) to draw air into the diaphragm chamber of the pressure regulator if it detects that the temperature of the engine coolant is too high during engine starting.

The air drawn into the chamber increases the fuel pressure to prevent fuel vapor lock at high engine temperature in order to help the engine start when it is warm.

Fuel pressure control ends approx. 120 secs. after the engine is started.
