IG Power Source Circuit

IG POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the power source for air conditioning control assembly and servomotors, etc.

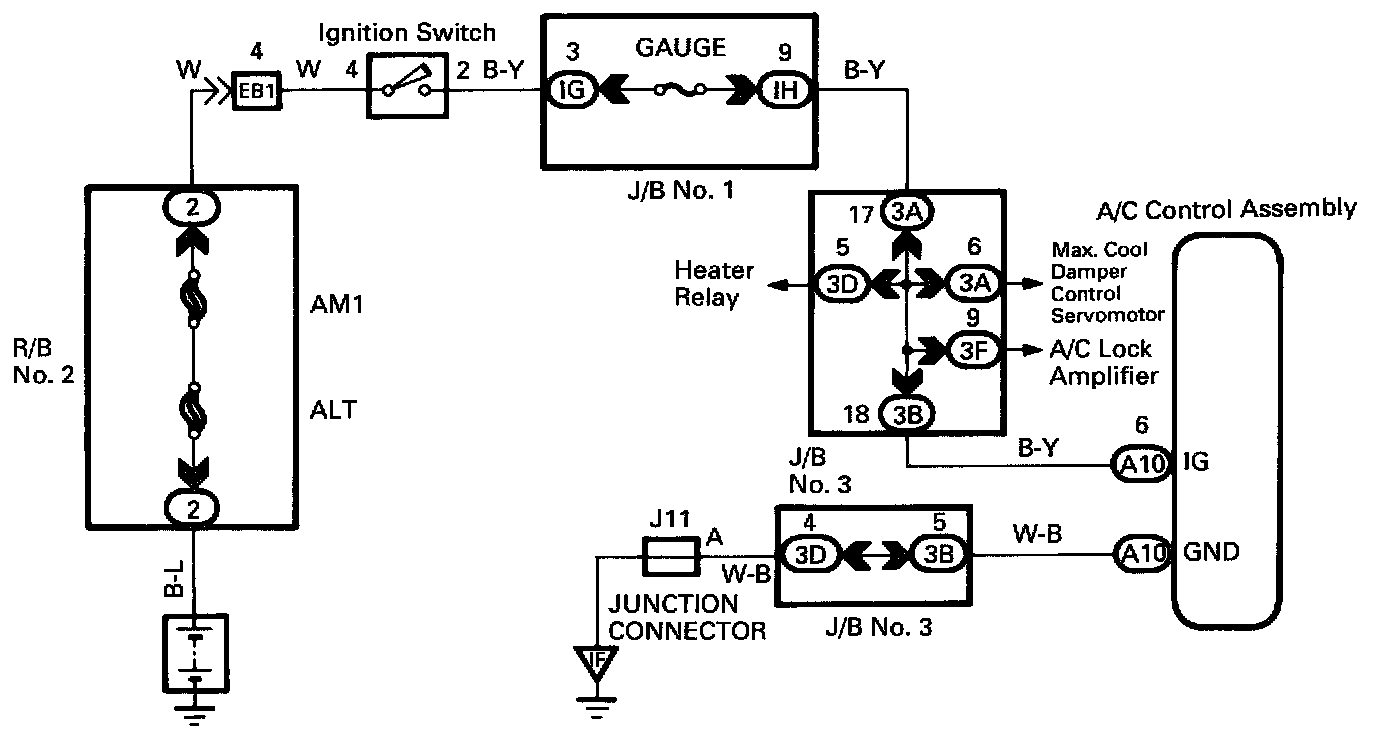

Wiring Diagram:





INSPECTION PROCEDURE (P) Preparation (C) Check

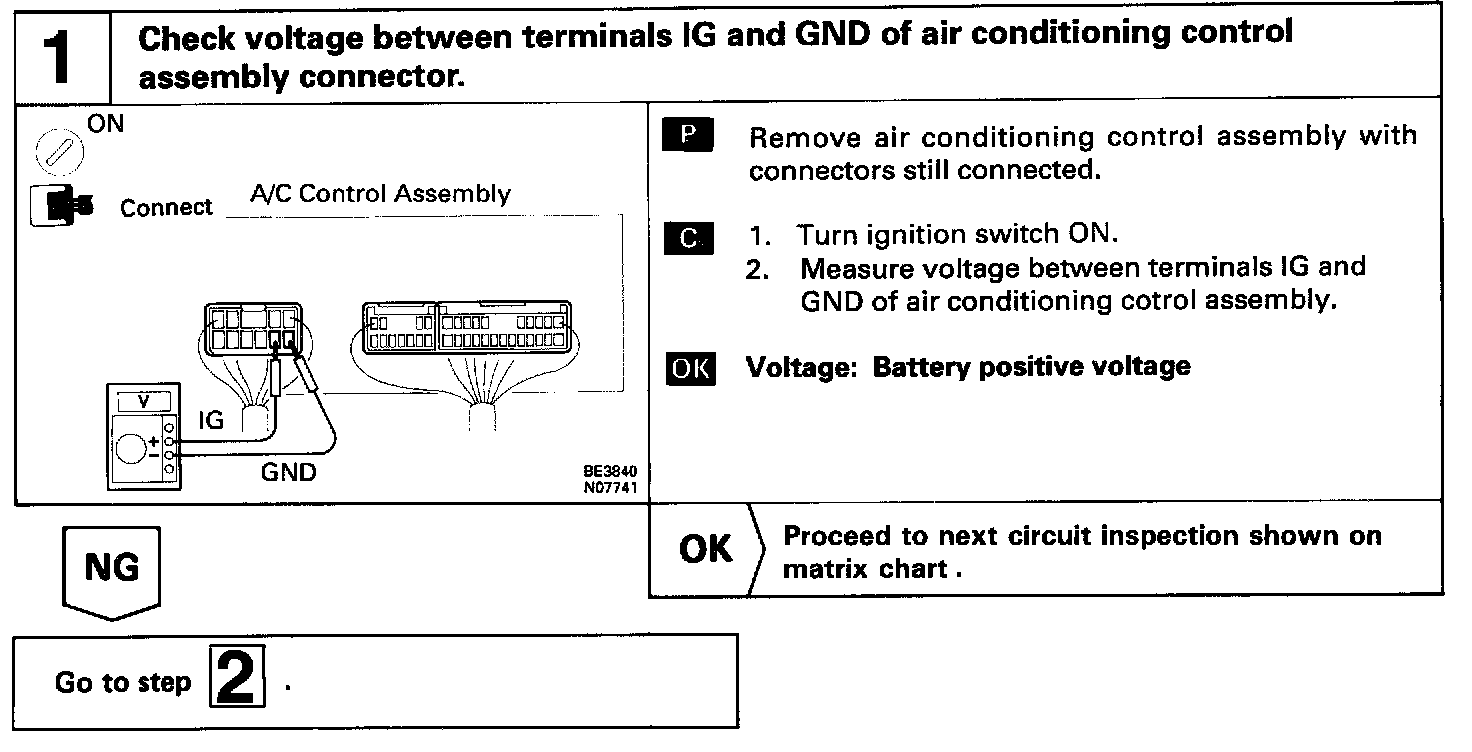

Step 1:

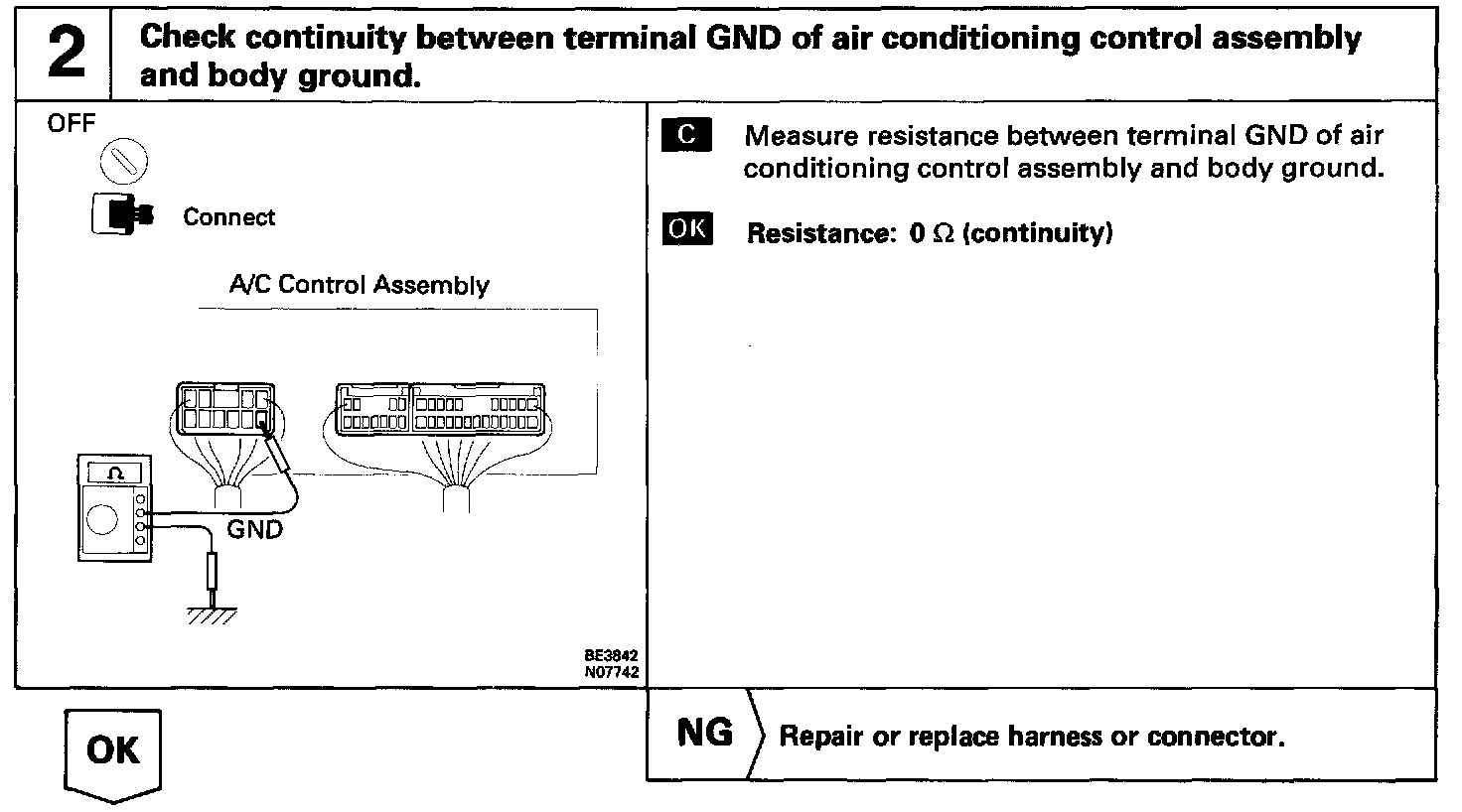

Step 2:

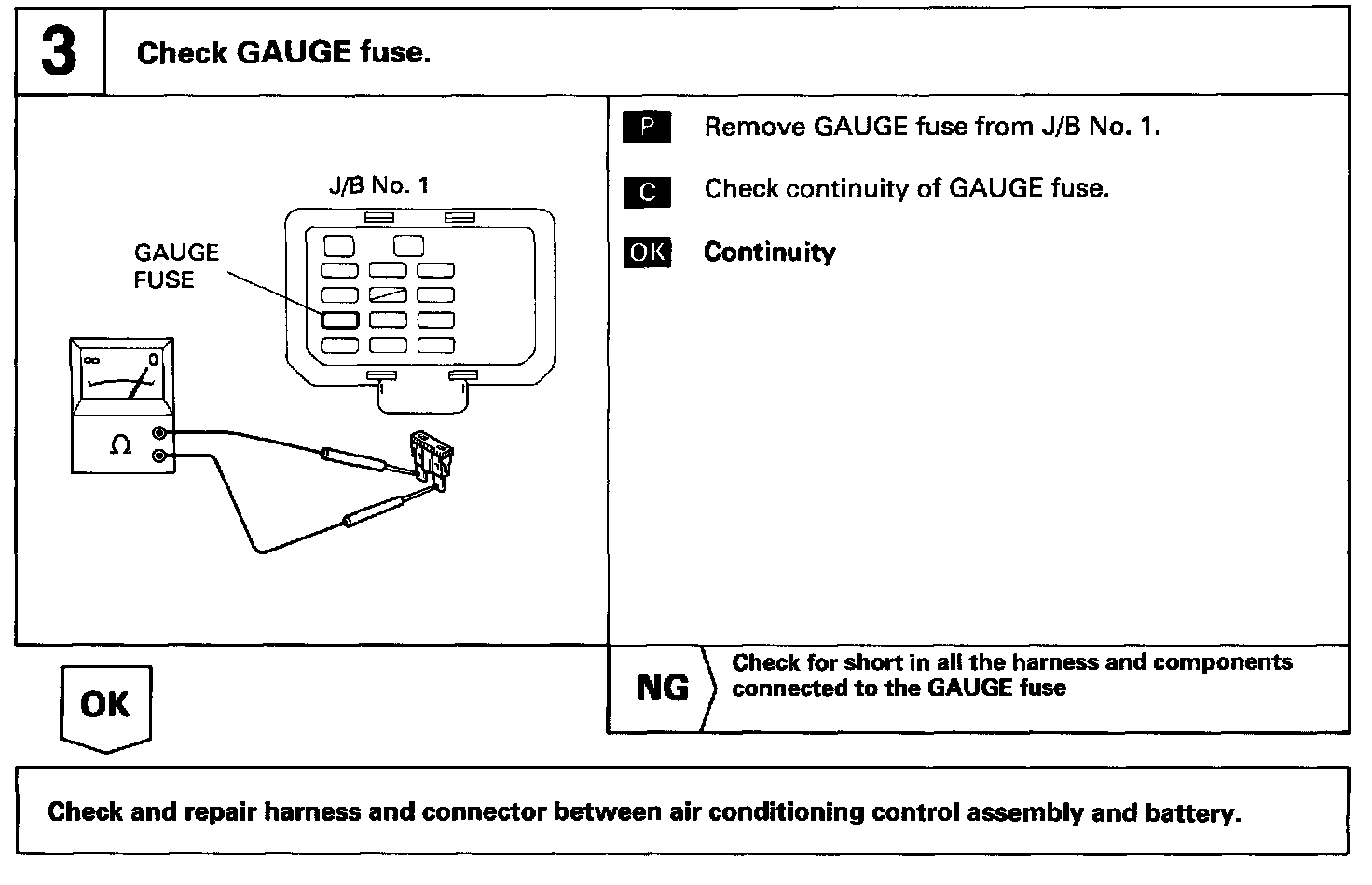

Step 3:
