ACC Power Source Circuit

ACC POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to the air conditioning control assembly.

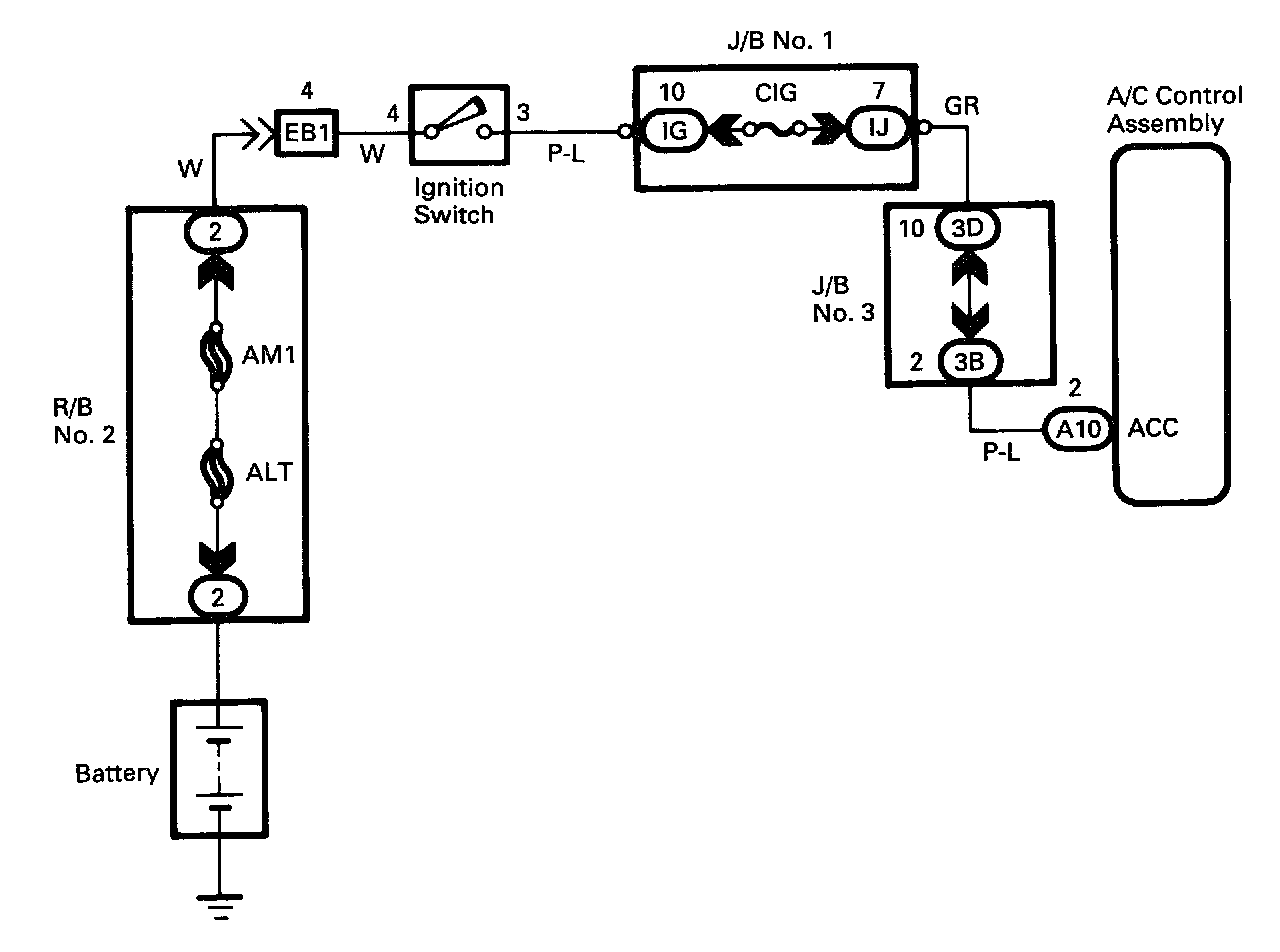

Wiring Diagram:





INSPECTION PROCEDURE (P) Preparation (C) Check

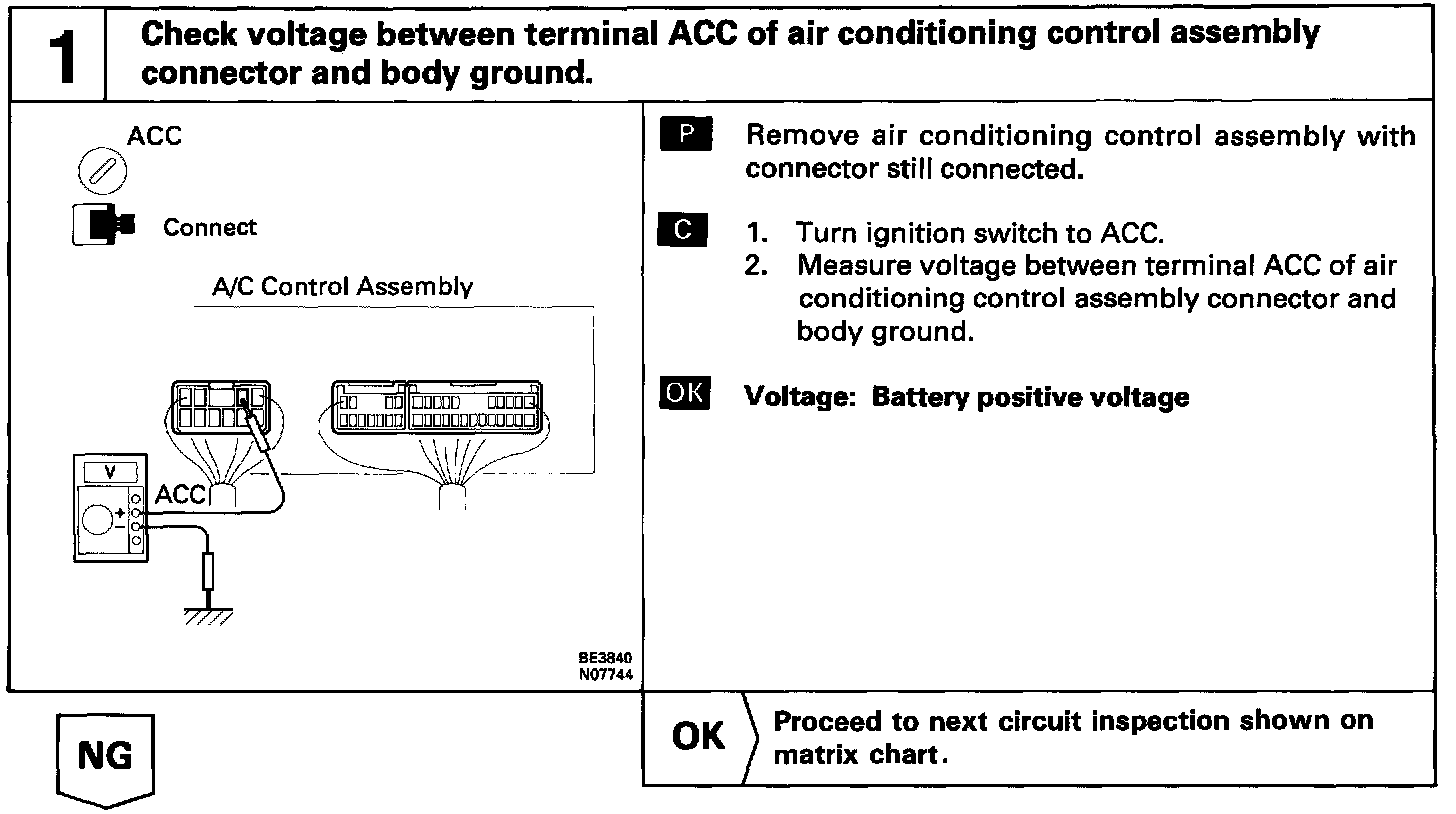

Step 1:





Step 2:
