Home >> Lexus >> 1995 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuse, Relay, and Junction Block Data >> J/B 3

J/B 3

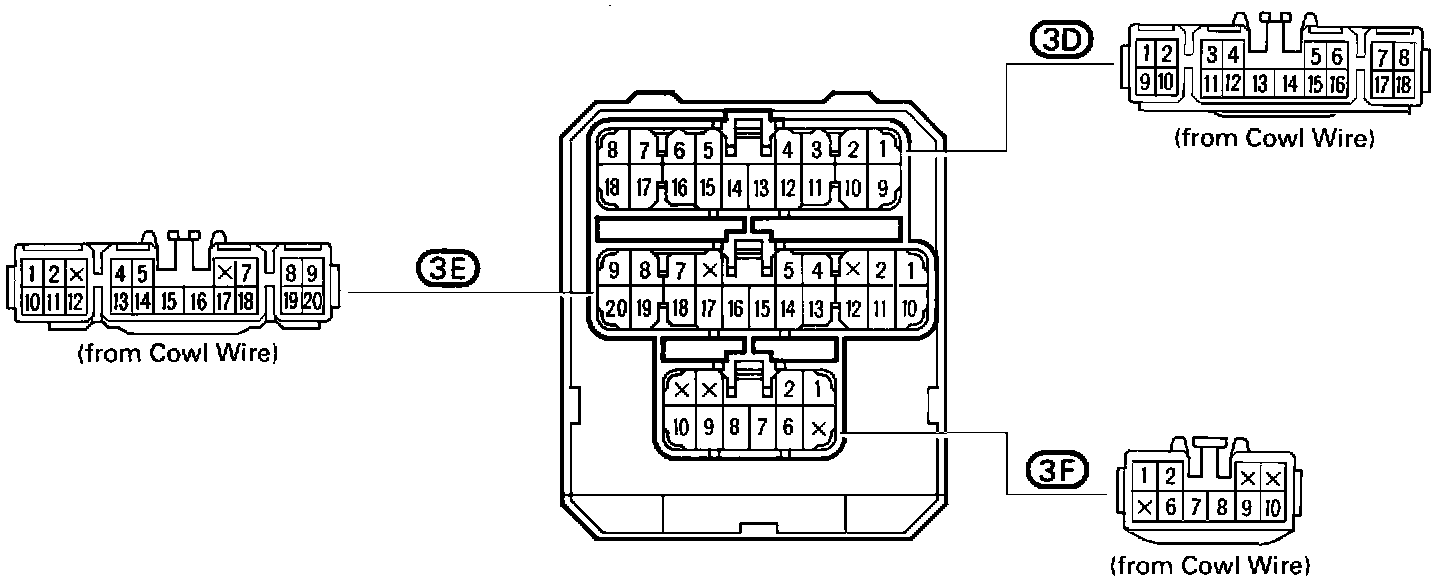

J/B No. 3 Behind The Instrument Panel Center (part 1 Of 2) (Fig 22):

J/B No. 3 Behind The Instrument Panel Center (part 1 Of 2) (Fig 22):

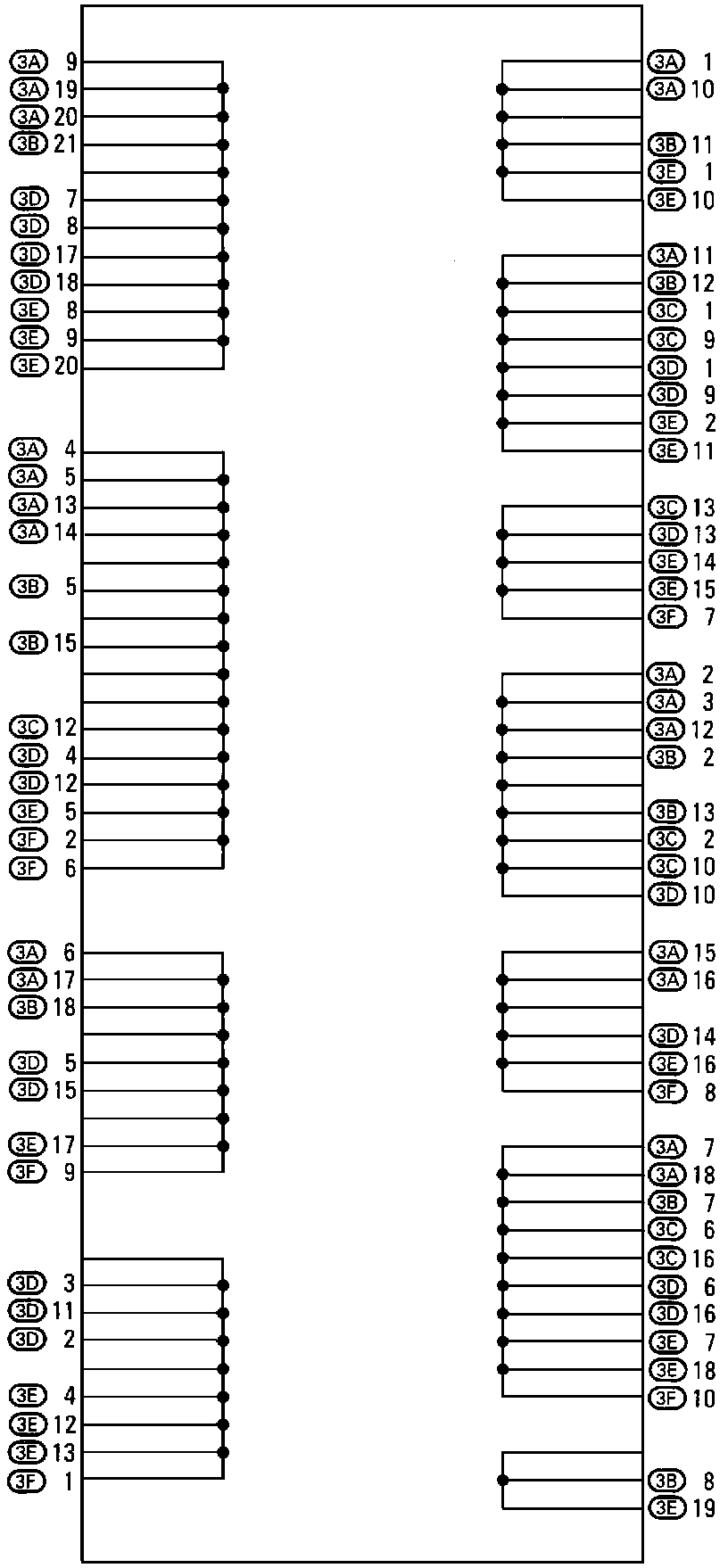

J/B No.3 Inner Circuit (Fig 23):
