Seats

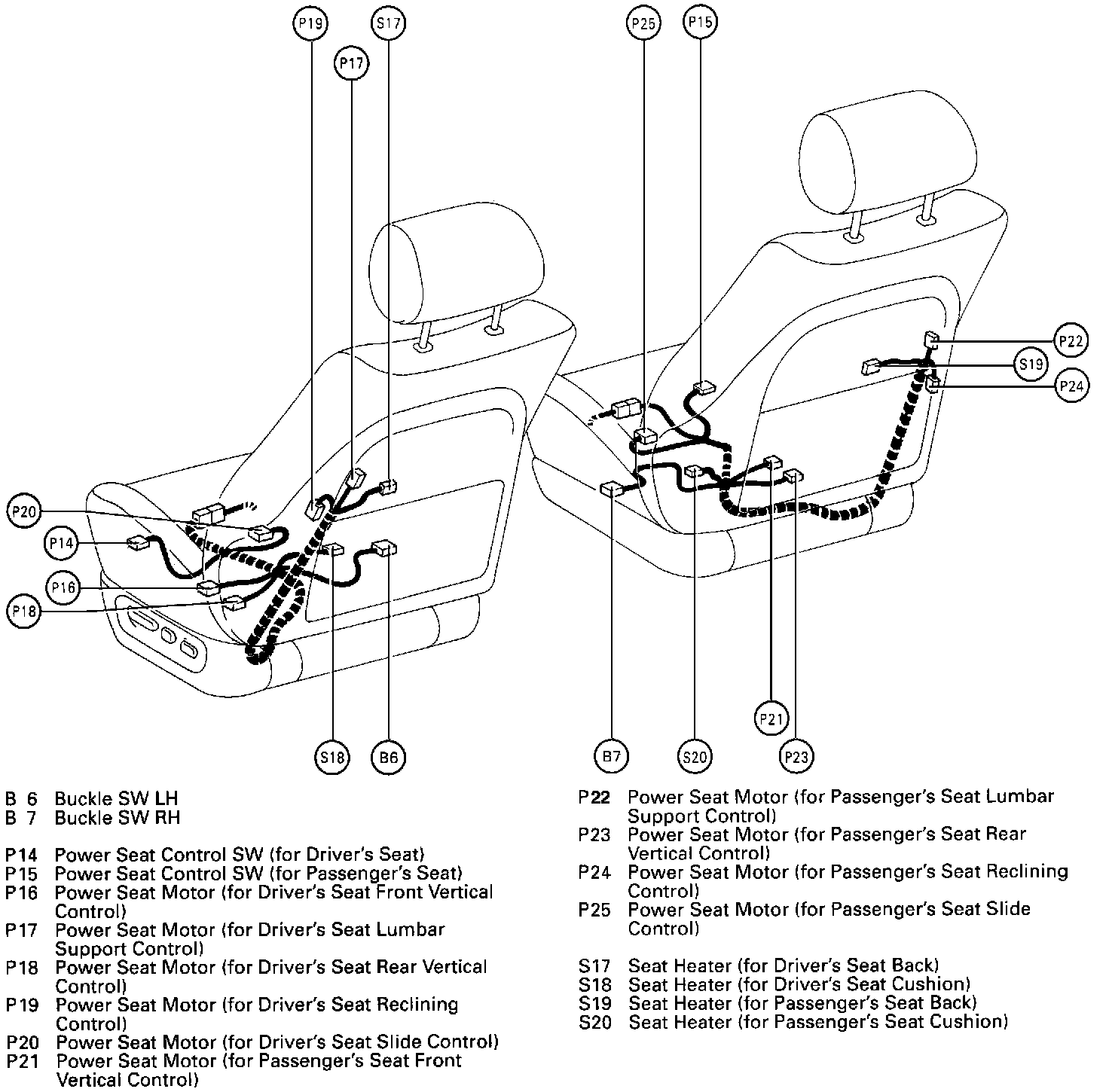

Position Of Parts In Seat (Fig 32):

Position of Parts in Seat

B 6 Buckle SW LH
B 7 Buckle SW RH

P14 Power Seat Control SW (for Driver's Seat)
P15 Power Seat Control SW (for Passenger's Seat)
P16 Power Seat Motor (for Driver's Seat Front Vertical Control)
P17 Power Seat Motor (for Driver's Seat Lumbar Support Control)
P18 Power Seat Motor (for Driver's Seat Rear Vertical Control)
P19 Power Seat Motor (for Driver's Seat Reclining Control)
P2O Power Seat Motor (for Driver's Seat Slide Control)
P21 Power Seat Motor (for Passenger's Seat Front Vertical Control)
P22 Power Seat Motor (for Passenger's Seat Lumbar Support Control)
P23 Power Seat Motor (for Passenger's Seat Rear Vertical Control)
P24 Power Seat Motor (for Passenger's Seat Reclining Control)
P25 Power Seat Motor (for Passenger's Seat Slide Control)

S17 Seat Heater (for Driver's Seat Back)
S18 Seat Heater (for Driver's Seat Cushion)
S19 Seat Heater (for Passenger's Seat Back)
S20 Seat Heater (for Passenger's Seat Cushion)
