Paint - Colors On Cladding And Bumpers
PAINTPA95-001
SEPTEMBER 01, 1995
LS 400, GS 300, ES 300
TITLE: PAINT COLORS ON CLADDING AND BUMPERS
The following information outlines the two-tone painting scheme used on 1995 Lexus models:
NEW TWO-TONE PAINTING METHOD:

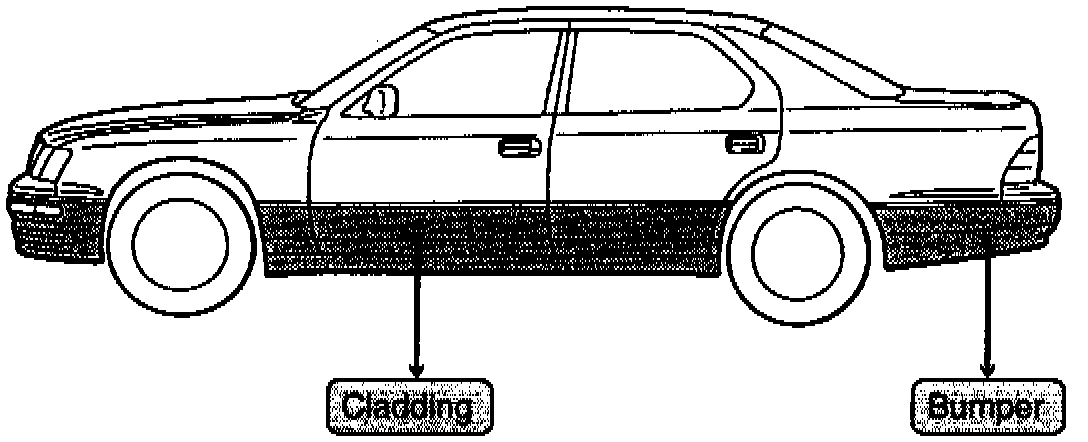

The cladding and the lower portion of the bumpers are painted with a different color than the body color to achieve a two-tone painting scheme.
COLORS:

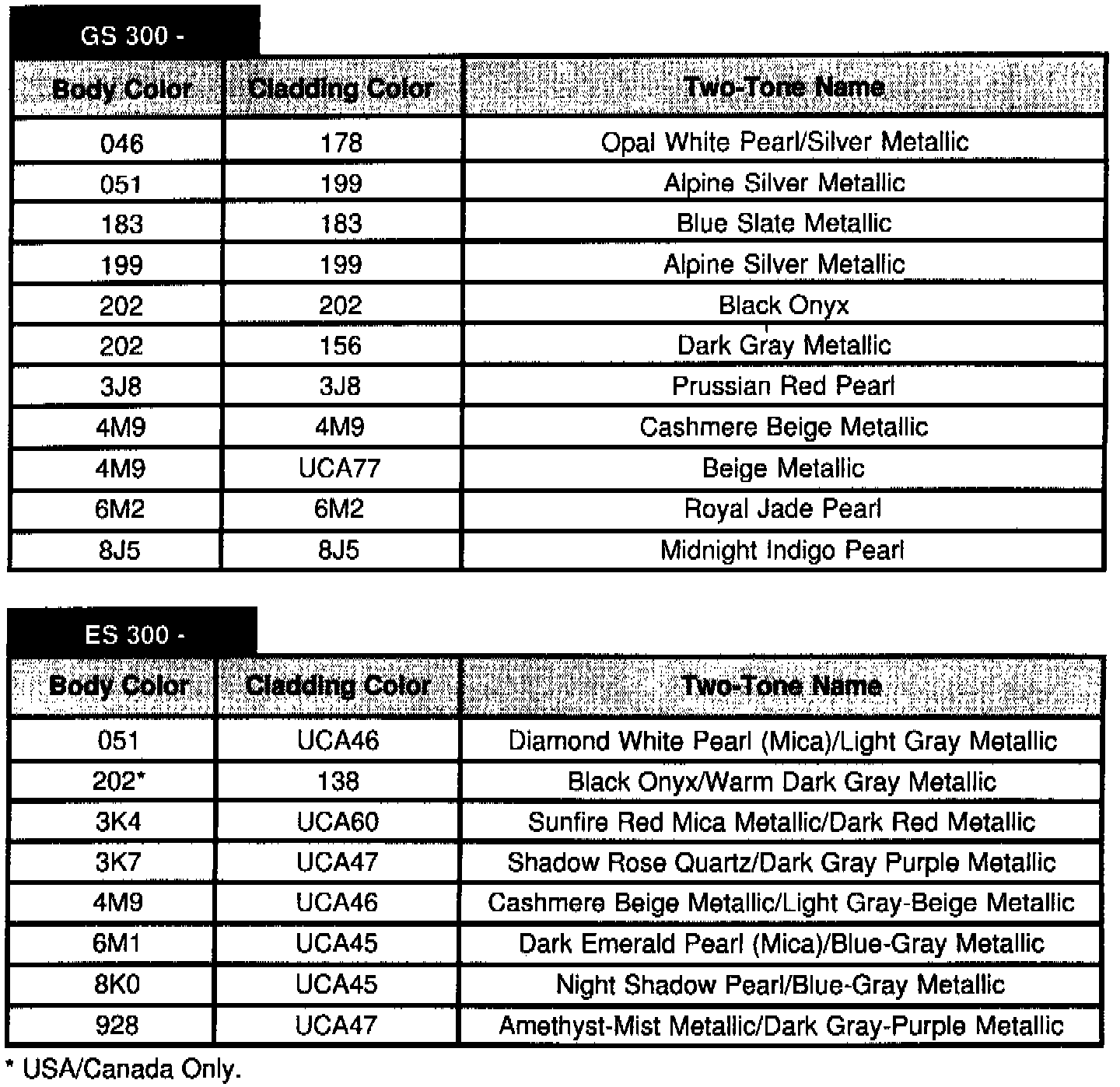

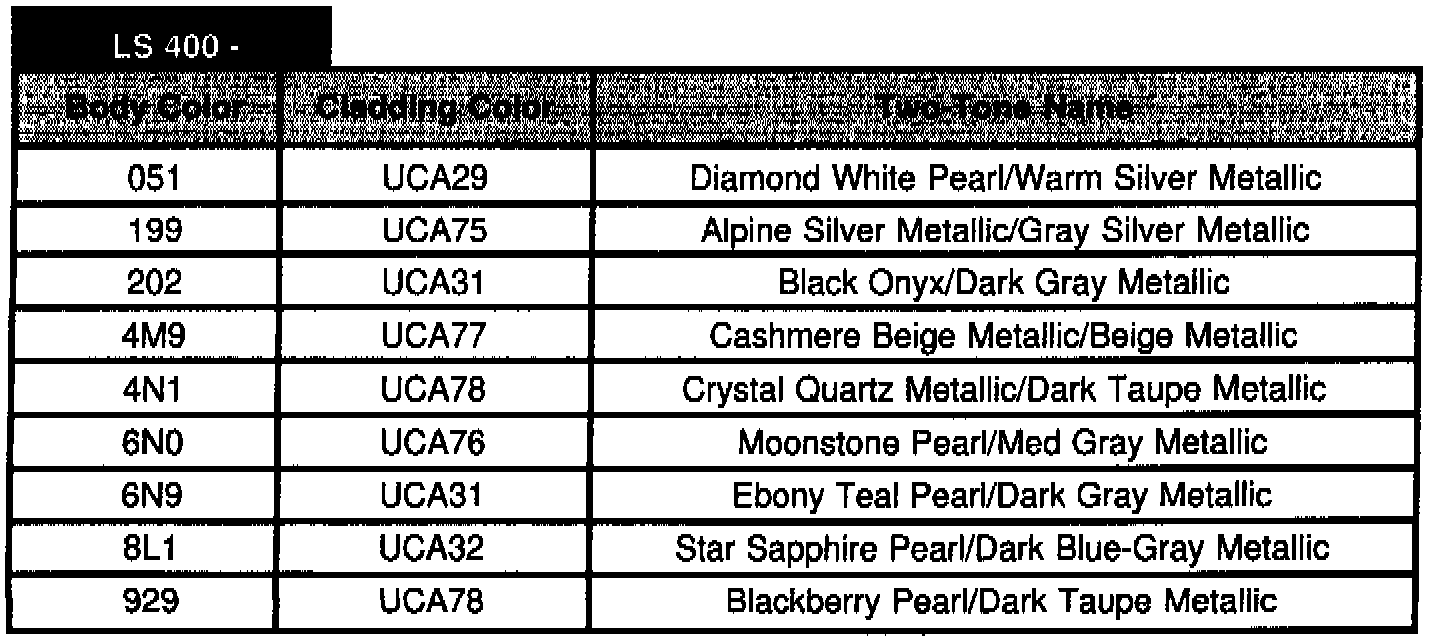

PAINT COLORS ON CLADDING AND BUMPERS
REPAIR PROCEDURE:
Factory painted cladding sub-assemblies are available from Lexus parts supply. If original parts are to be refinished, observe the following precautions during the refinish/drying process:
1. To prevent cladding warpage, firmly hold the cladding in place and keep drying temperature below 50° (122°F).
2. Since the cladding and bumpers are made of a flexible plastic urethane material, use a 2-part urethane refinish paint system with plasticizer for all bumper/cladding repairs.
