Home >> Lexus >> 1995 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Transmission Control Systems >> DTC 63 >> Detection Condition

Detection Condition

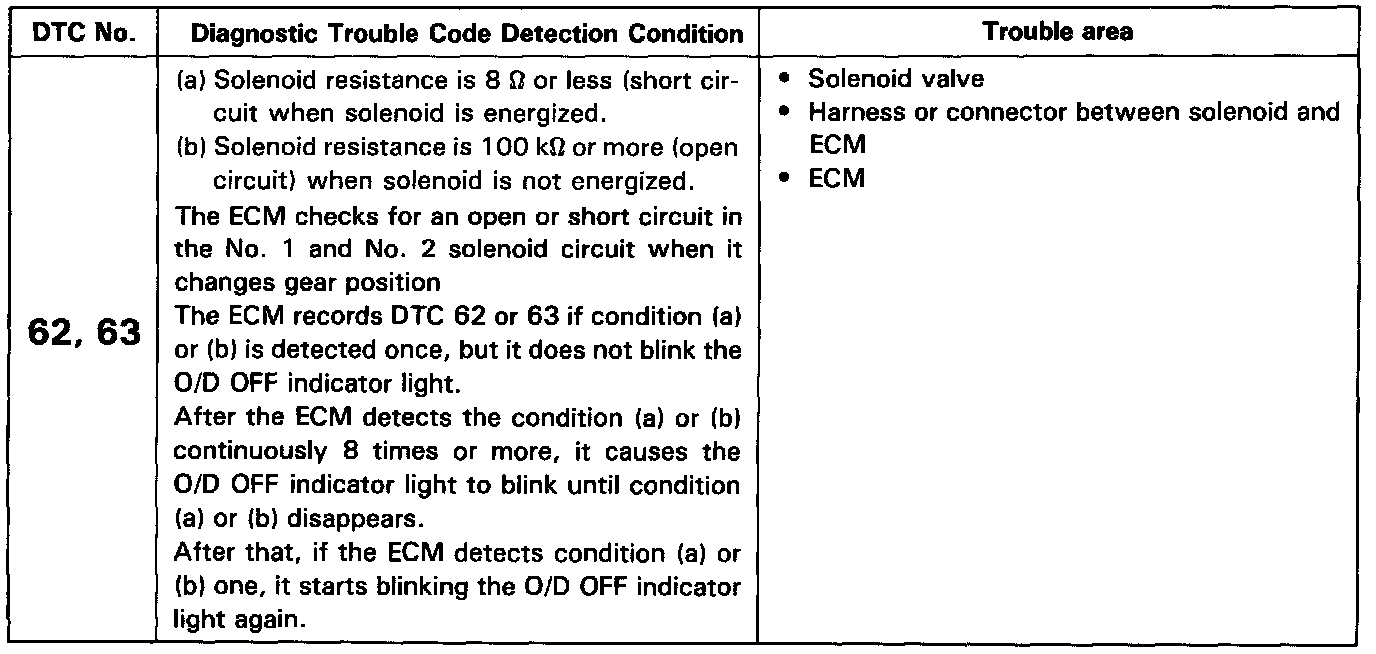

DETECTING CONDITION
Check the No. 1 solenoid when DTC 62 is output and check the No. 2 solenoid when DTC 63 is output.




WIRING DIAGRAM
